Cambium Networks ePMP Force 110
For high interference environments
Cambium Networks Products
ePMP Force 110
ePMP Force 110 PTP - High Perf. PTP ROW
#C050900B051A
Our Price: $225.00
Our Price: $225.00
ePMP Force 110 PTP 5GHz
#C058900B052A
Our Price: $225.00
Our Price: $225.00
Click here to jump to more pricing!
Overview:
Wireless service providers and enterprises around the globe need affordable, reliable high performance links for their network backbone and to connect high value customers. As spectrum increasingly becomes a scarce commodity, finding the right broadband solution that optimizes the use of spectrum is critically important. These applications need a solution with low latency and superior packet processing capability in order to ensure high quality of service. The Force 110 PTP meets these stringent requirements at an affordable price.
The ePMP Force 110 PTP:
- Delivers up to 220 Mbps of real user throughput
- Achieves 2 ms of round-trip latency
- Comes equipped with a high gain (25 dBi) dish antenna for long range
- Has high processing capability for optimized throughput
- Provides a 802.3af compliant Gigabit Ethernet port
Specifications:
| ePMP Force 110 Specifications | |
|---|---|
| Spectrum | |
| Channel Spacing | Configurable on 5 MHz increments |
| Frequency Range | 5 GHz 5150 – 5970 MHz (exact frequencies as allowed by local regulations) |
| Channel Width | 5 | 10 | 20 | 40 MHz |
| Interface | |
| MAC (Media Access Control) Layer | Cambium proprietary |
| Physical Layer | 2x2 MIMO/OFDM |
| Ethernet Interface | 100/1000 BaseT, rate auto negotiated (802.3af compliant) |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20MHz Channel | MCSO = -93 dBm to MCS15 = -69 dBm (per branch) |
| Nominal Receive Sensitivity (w/FEC) @40MHz Channel | MCS0 = -90 dBm to MCS15 = -66 dBm (per branch) |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
| Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
| Transmit Power Range | -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Physical | |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C (-22°F to +140°F) |
| Wind Survival | 145 km/hour (90 mi/hour ) with antenna |
| Weight | 4.1 kg (9 lbs) |
| Dimensions (H x W x D) | 47 cm x 27 cm (18.5 in x 10.6 in) |
| Pole Diameter Range | 5.7cm -7.6cm (2.25in - 3in) |
| Power Consumption | 10 W Maximum, 7.5 W Typical |
| Input Voltage | 23 to 56 V |
| Security | |
| Encryption | 128-bit AES (CCMP mode) |
| Certifications | |
| FCCID | 5 GHz: Z8H89FT00012 |
| Industry Canada Cert | 5 GHz: 109W-00012 |
| CE | 5.4 GHz EN 301 893 V2.1.1 5.8 GHz EN 302 502 V2.1.1 |

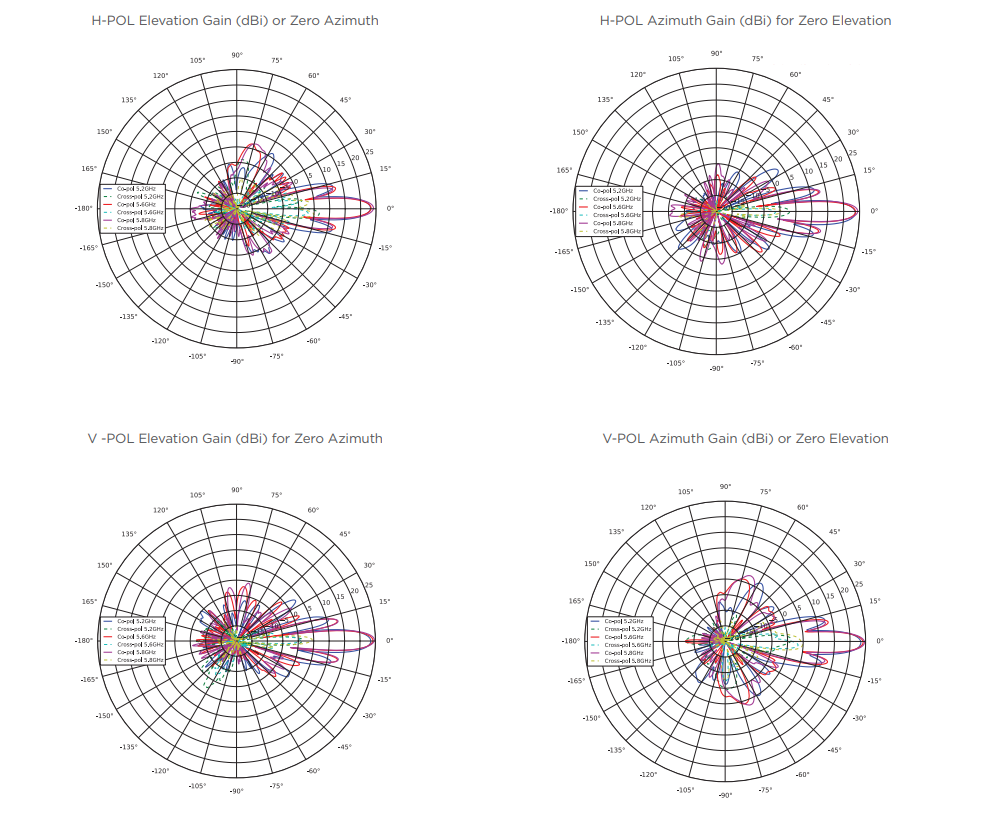

Antenna Patterns:
| Antenna Specifications | 5 GHz Specifications |
|---|---|
| Frequency Range | 5150 – 5970 MHz |
| Antenna Type | DISH |
| Peak Gain | 25 dBi |
| 3dB Beamwidth-Azimuth | 7 degrees |
| 3dB Beamwidth-Elevation | 30 degrees |
| Front-to-Back Isolation | >25 dB |
| Cross Polarization | >15 dB |
Documentation:
Download the Cambium Networks ePMP Force 110 Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
