ePMP Force 300-19R
  • Specs: Broad selection of high-performance
  • Combining the latest 802.llac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-19R delivers up to 600 Mbps of capacity.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
Cambium Networks Products
ePMP Force 300-19R
ePMP 5 GHz Force 300-19R Radio (FCC) (US cord)
#C058900C901A
Our Price: $171.35

Click here to jump to more pricing!

Product Overview

Cambium Networks ePMP Force 300-19R

Combining the latest 802.llac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-19R delivers up to 600 Mbps of capacity.

ePMPCPE

Product Highlights

Interoperability with the ePMP 3000, which uses MU-MIMO to achieve 1.2 Gbps per sector by transmitting to Force SMs simultaneously

Multiple levels of QoS (quality of service) for voice, video, and data applications supporting a wide variety of service packages for both residential and enterprise users

Ideal Applications

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi. MSP-managed networks leveraging cnMaestro for zero-touch provisioning and real-time monitoring.

Product Images

17 photos
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP Force 300-19R to ensure compatibility with your deployment.

Spectrum*

Available Models Force300-16, Force 300-19R, Force 300-25, Force 300 CSM
Channel Width MHz 20 |40 | 80
300-19R:5 | 10 | 20 | 40 | 80
Proprietary Physical Air Interfaceon top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM)
Channel Spacing Configurablein 5 MHz increments
Frequency Range Wideband operation 4910–6080 MHz (Note: Allowable frequencies and bands are dictated by individual
countryregulations.)
MAC Layer Cambiumproprietary
Ethernet Interfaced 10/100/1000BaseT, compatible with Cambium PoE & standard PoE pinouts
Protocols Used IPv4/IPv6(Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management IPv4/IPv6,HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
VLAN 802.1Qwith 802.1p priority
*Specifications in this table applyto all models, except where noted.

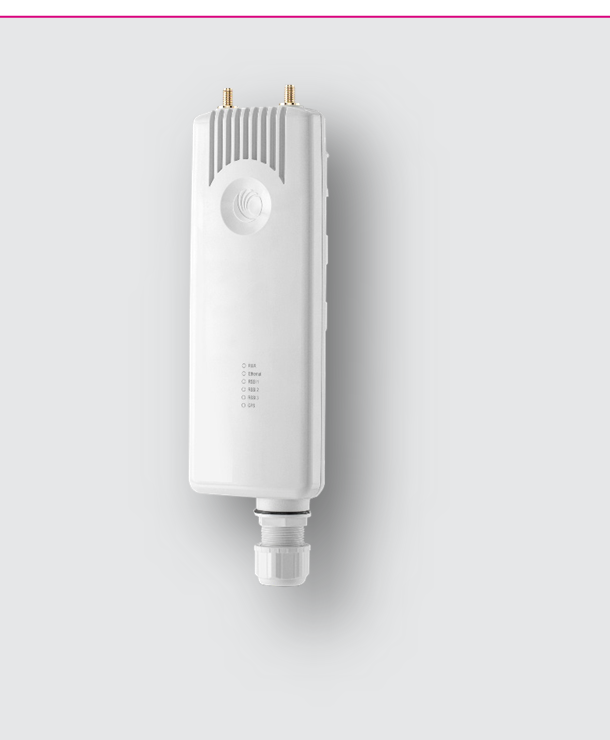

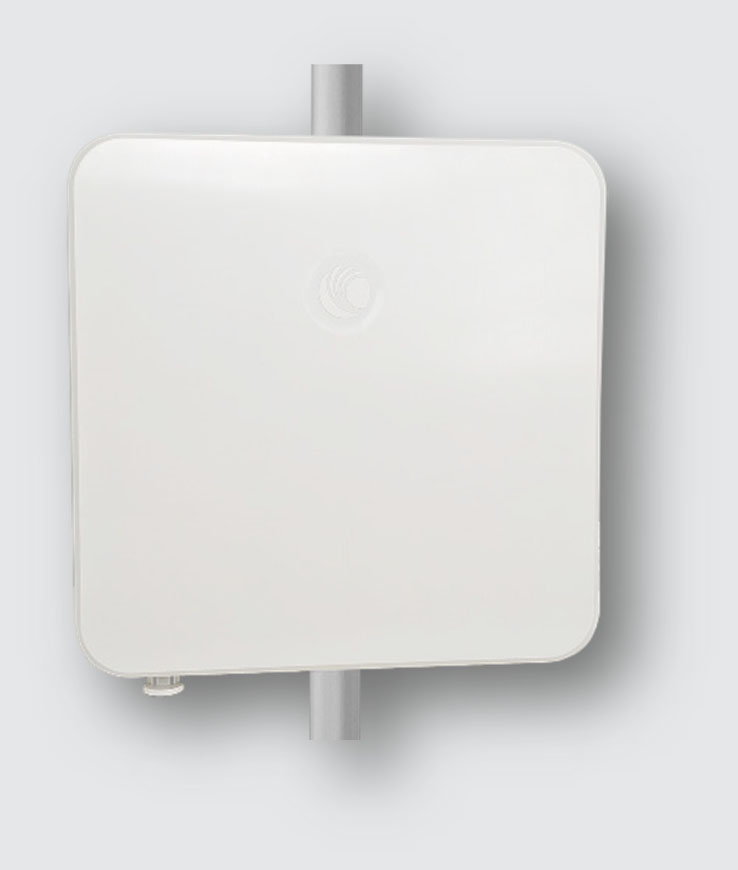

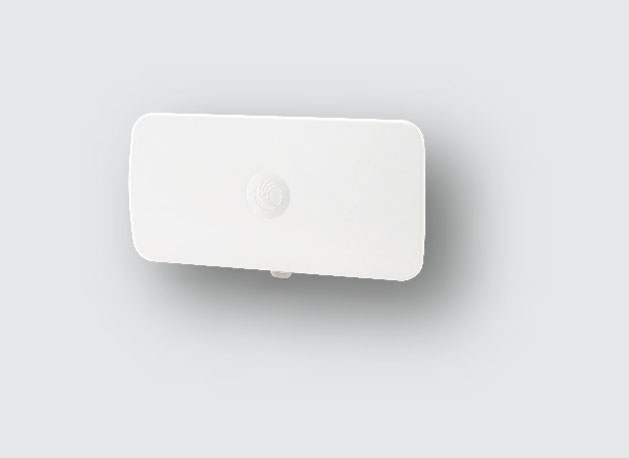

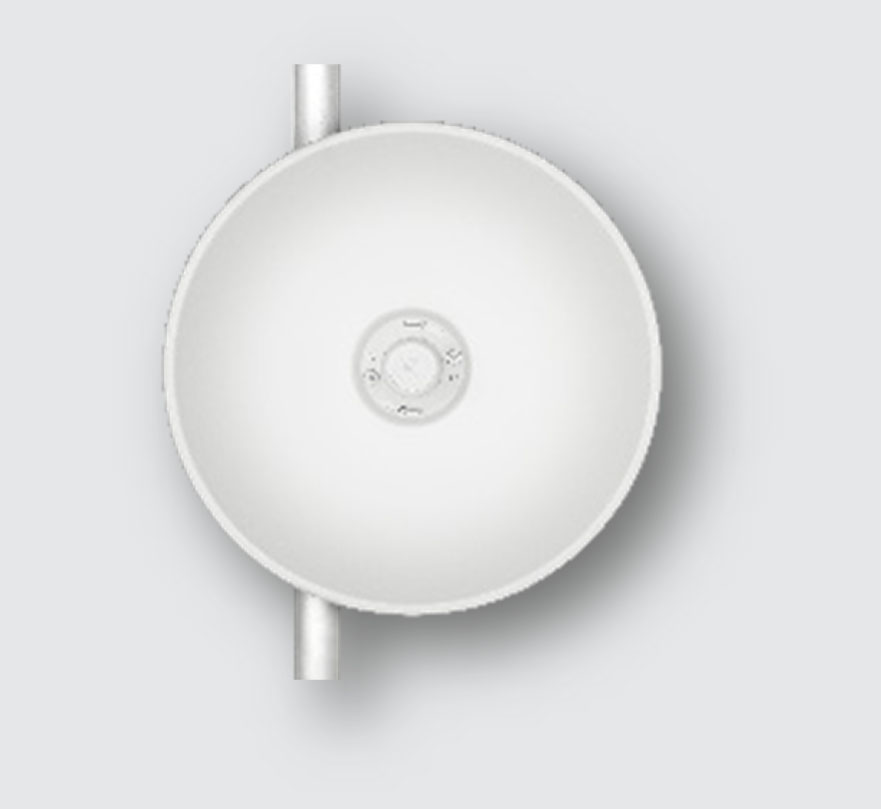

Force300-16 Force 300-19R Force 300-25 Force 300 CSM
ARQ YesYes Yes Yes
Nominal Receive MCS 0 =-89 dBm to MCS 0 = -89 dBm to MCS 0 = -87 dBm to MCS 0 = -89 dBm to
Sensitivity (w/FEC) MCS 8 (256QAM-3/4) MCS 8 (256 QAM-3/4) MCS 8 (256 QAM-3/4) MCS 8 (256 QAM-3/4)
= -66 dBm(per chain) = -68 dBm (per chain) = -63 dBm (per chain) = -66 dBm (per chain)
Nominal Receive MCS 0 =-87 dBm to MCS 0 = -87 dBm to MCS 0 = -85 dBm to MCS 0 = -87 dBm to
Sensitivity (w/FEC) MCS 9 (256QAM-5/6) MCS 9 (256 QAM-5/6) MCS 9 (256 QAM-5/6) MCS 9 (256 QAM-5/6)
= -64 dBm(per chain) = -66 dBm (per chain) = -59 dBm (per chain) = -64 dBm (per chain)
Nominal Receive MCS0 = -84dBm to MCS9 MCS 0 = -84 dBm to MCS 0 = -82 dBm to MCS 0 = -84 dBm to
Sensitivity (w/FEC) (256 QAM-5/6)MCS 9 (256 QAM-5/6) MCS 9 (256 QAM-5/6) MCS 9 (256 QAM-5/6)
= -59 dBm(per chain) = -61 dBm (per chain) = -56 dBm (per chain) = -59 dBm (per chain)
Modulation Levels MCS 0 (BPSK)to MCS 0 (BPSK) to MCS 0 (BPSK) to MCS 0 (BPSK) to
(Adaptive) MCS 9 (256QAM-5/6) MCS 9 (256 QAM-5/6) MCS 9 (256 QAM-5/6) MCS 9 (256 QAM-5/6)
Transmit Power 0 to +29dBm (combined, 0 to +28 dBm (combined, 0 to +27 dBm (combined, 0 to +29 dBm (combined,
Range to regionalEIRP limit) to regional EIRP limit) to regional EIRP limit) to regional EIRP limit)
(1 dB interval)(1 dB interval) (1 dB interval) (1 dB interval)
QoS (Quality of 3 level priority(voice, high, 3 level priority (voice, high, 3 level priority (voice, high, 3 level priority (voice, high,
low) withpacket low) with packet low) with packet low) with packet
classificationby DSCP, COS, classification by DSCP, COS, classification by DSCP, COS, classification by DSCP, COS,
VLANVLAN VLAN VLAN
ID, IP & MACaddress, ID, IP & MAC address, ID, IP & MAC address, ID, IP & MAC address,
broadcast,multicast and broadcast, multicast and broadcast, multicast and broadcast, multicast and
station priority,MIR/CIR station priority, MIR/CIR station priority, MIR/CIR station priority, MIR/CIR
supportsupport support support ePMP Force 300 Series

Physical

Force300-16 Force 300-19R Force 300-25 Force 300 CSM
Surge Suppression* 1 joule integrated1 joule integrated 1 joule integrated 1 joule integrated
Environmental IP55IP67 & IP68 IP55 IP67 & IP68
Temperature -30°C to60°C (-22°F to -30°C to 60°C (-22°F to -30°C to 60°C (-22°F to -30°C to 60°C (-22°F to
140°F)140°F) 140°F) 140°F)
Weight 0.50 kg (1.1lb) Includes 1.45 kg (3.2 lb) Includes 2.4 kg (5.3 lb) Includes 0.5 kg (1.1 lb) Includes
mountingbracket mounting bracket mounting bracket mounting bracket
Wind Survival 180 km/h180 km/h 180 km/h 180 km/h
(112 mi/h)(112 mi/h) (112 mi/h) (112 mi/h)
Dimensions 12.4 x 25.1x 11.9 cm 27.8 x 27.8 x 4.5 cm 47 x 31 cm 84 x 223 x 32 mm
(Diameter x Depth) (4.9 x 9.9x 4.7 in) (10.9 x 10.9 x 1.8 in) (18.5 x 12.2 in) (3.3 x 8.8 x 1.3 in)
with mountingbracket with mounting bracket with mounting bracket without brackets
attachedattached attached
Pole Diameter 1–1.6 in (2.5–4.1cm) 1–1.6 in (2.5–4.1 cm) 2.5–3 in (6.4–7.6 cm) 2.5–3 in (6.4–7.6 cm)
Range with includedclamp; up to with included clamp; up to with included clamp with included clamp
2.25 in (5.7cm) with larger 2.25 in (5.7 cm) with larger
clampclamp
Power Consumption 12W12W 12W 12W
(Up to 15Win extreme cold (Up to 15W in extreme cold (Up to 15W in extreme cold (Up to 15W in extreme cold
temperatureswhen heater temperatures when heater temperatures when heater temperatures when heater
is activated)is activated) is activated) is activated)
Input Voltage 30V passivePoE 30V passive PoE 30V passive PoE 30V passive PoE
(14–30VDC input) (14–30V DC input) (14–30V DC input) (14–30V DC input)
*Optional 30 V Surge SuppressorAvailable: Part # C000000L065A

Security

Encryption All models:128-bit AES (CCMP mode)

Certifications

Force300-16 Force 300-19R Force 300-25 Force 300 CSM
FCCID Z8H-89FT0016Z8H89FT0048 Z8H89FT0017 Z8H-89FT0047
FCC C058910P112AC058900P901A C058910P102A C058910C122A

Regulatory Part #

ETSI C050910P011AC050900P904A C050910P001A C050910C221A

Regulatory Part #

Industry Canada 109W-0016109W-0048 109W-0017 109W-0047
CE EN 301 893V2.1.1 EN 301 893 V2.1.1 EN 301 893 V2.1.1 EN 301 893 V2.1.1
(5.4 GHz),(5.4 GHz), (5.4 GHz), (5.4 GHz),
EN 302 502V2.1.1 EN 302 502 V2.1.1 EN 302 502 V2.1.1 EN 302 502 V2.1.1
(5.8 GHz)(5.8 GHz) (5.8 GHz) (5.8 GHz) ePMP Force 300 Series

Antenna Specifications

Force300-16 Force 300-19R Force 300-25 Force 300 CSM
Frequency Range 4910–6080MHz 4910–6080 MHz 4910–6080 MHz 4910–6080 MHz
Antenna Type PanelPanel Dish Connectorized
Peak Gain 16 dBi19 dBi 25 dBi N/A
3 dB Beamwidth 15°14.5° 6° to 10° N/A
3 dB Beamwidth 30°12.5° 6° to 10° N/A
Front-to-Back N/AN/A 25 dB N/A
Cross Polarization N/AN/A 25 dB N/A
Connectors N/AN/A N/A 2 x 50 ohm, RP-SMA (reverse polarity SMA) compatible with RF- Elements TwistPort™ Adaptor Force 300-16 Force 300 CSM Force 300-19R Force 300-25 ePMP Force 300 Series

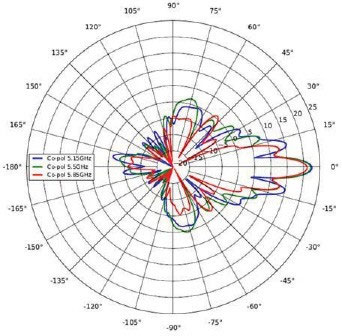

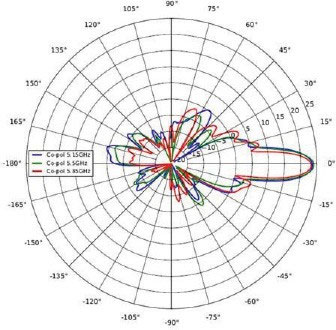

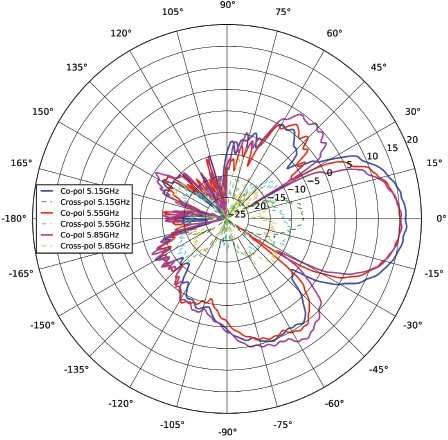

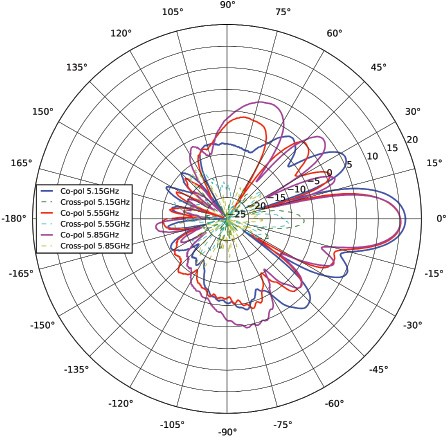

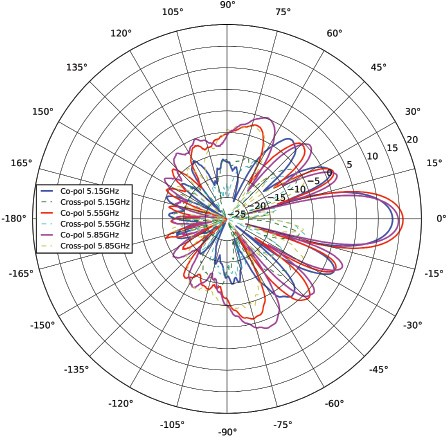

Force 300-16 Antenna Patterns

Azimuth,Horizontal Azimuth, Vertical
Elevation,Horizontal Elevation, Vertical ePMP Force 300 Series

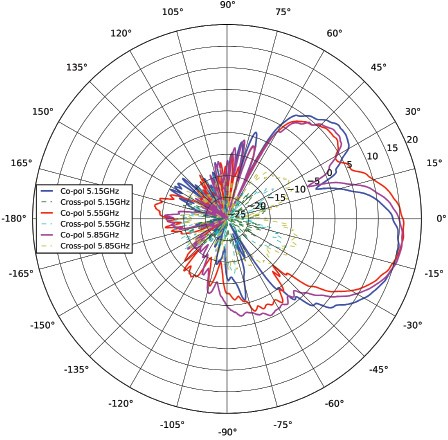

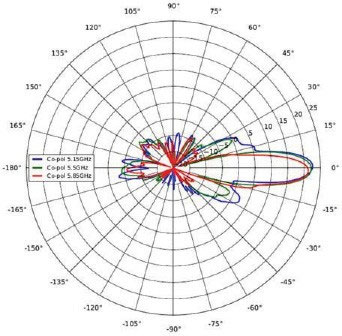

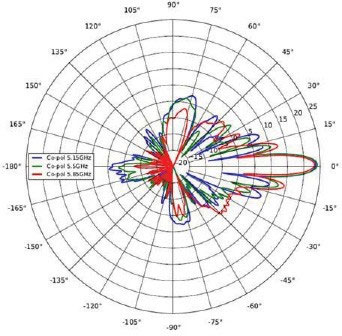

Force 300-25 Antenna Patterns

Azimuth,Horizontal Azimuth, Vertical
Elevation,Horizontal Elevation, Vertical ePMP Force 300 Series
5 GHz Force 300-16 OrderingInformation
C050910C011B 5 GHz Force 300-16Radio (ROW) (no cord)
5 GHz Force 300-16Radio (ROW) (US cord)
C050910C114B 5 GHz Force 300-16Radio (IC) (Canada/US cord)
C050910C211B 5 GHz Force 300-16Radio (ROW) (EU cord)
C050910C213B 5 GHz Force 300-16Radio (EU) (EU cord)
C050910C311B 5 GHz Force 300-16Radio (ROW) (UK cord)
C050910C313B 5 GHz Force 300-16Radio (EU) (UK cord)
C050910C411B 5 GHz Force 300-16Radio (ROW) (India cord)
C050910C412B 5 GHz Force 300-16Radio (India) (India cord)
C050910C511B 5 GHz Force 300-16Radio (ROW) (China cord)
5 GHz Force 300-16Radio (ROW) (Brazil cord)
C050910C711B 5 GHz Force 300-16Radio (ROW) (Argentina cord)
5 GHz Force 300-16Radio (ROW) (ANZ cord)
C050910C911B 5 GHz Force 300-16Radio (ROW) (South Africa cord)
C058910C112B 5 GHz Force 300-16Radio (FCC) (US cord)
Note: 5 GHz Force 300-19 is nolonger available for new orders. Use Force 300-19R instead.
5 GHz Force 300-19R OrderingInformation
C050900C901B 5 GHz Force 300-19RSM (IC) (Canada/US cord)
C050900C902B 5 GHz Force 300-19RSM (EU) (EU cord)
5 GHz Force 300-19RSM (EU) (UK cord)
C050900C904B 5 GHz Force 300-19RSM (ROW) (no cord)
C050900C905B 5 GHz Force 300-19RSM (ROW) (US cord)
C050900C906B 5 GHz Force 300-19RSM (ROW) (EU cord)
C050900C907B 5 GHz Force 300-19RSM (ROW) (UK cord)
C050900C908B 5 GHz Force 300-19RSM (ROW) (India cord)
C050900C909B 5 GHz Force 300-19RSM (India) (India cord)
C050900C910B 5 GHz Force 300-19RSM (ROW) (China cord)
C050900C911B 5 GHz Force 300-19RSM (ROW) (Brazil cord)
5 GHz Force 300-19RSM (ROW) (Argentina cord)
C050900C913B 5 GHz Force 300-19RSM (ROW) (ANZ cord)
C050900C914B 5 GHz Force 300-19RSM (ROW) (South Africa cord)
C058900C901B 5 GHz Force 300-19RSM (FCC) (US cord) ePMP Force 300 Series
5 GHz Force 300-25 OrderingInformation
C050910M001C 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (no cord)
C050910M101B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (US cord)
C050910M104A 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (IC) (Canada/US cord)
C050910M201B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (EU cord)
C050910M203B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (EU) (EU cord)
C050910M301B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (UK cord)
C050910M303B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (EU) (UK cord)
C050910M401B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (India cord)
C050910M501B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (China cord)
C050910M601B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (Brazil cord)
C050910M701B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (Argentina cord)
C050910M801B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (ANZ cord)
C050910M901B 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (ROW) (South Africa cord)
C058910M102A 5 GHz Force300-25 High Gain Radio 4-Pack packaging, priced per radio (FCC) (US cord)
C050910C001C 5 GHz Force300-25 High Gain Radio (ROW) (no cord)
C050910C101B 5 GHz Force300-25 High Gain Radio (ROW) (US cord)
C050910C104A 5 GHz Force300-25 High Gain Radio (IC) (Canada/US cord)
C050910C201B 5 GHz Force300-25 High Gain Radio (ROW) (EU cord)
C050910C203B 5 GHz Force300-25 High Gain Radio (EU) (EU cord)
C050910C301B 5 GHz Force300-25 High Gain Radio (ROW) (UK cord)
C050910C303B 5 GHz Force300-25 High Gain Radio (EU) (UK cord)
C050910C401B 5 GHz Force300-25 High Gain Radio (ROW) (India cord)
C050910C402B 5 GHz Force300-25 High Gain Radio (India) (India cord)
C050910C501B 5 GHz Force300-25 High Gain Radio (ROW) (China cord)
C050910C601B 5 GHz Force300-25 High Gain Radio (ROW) (Brazil cord)
C050910C701B 5 GHz Force300-25 High Gain Radio (ROW) (Argentina cord)
C050910C801B 5 GHz Force300-25 High Gain Radio (ROW) (ANZ cord)
C050910C901B 5 GHz Force300-25 High Gain Radio (ROW) (South Africa cord)
C058910C102A 5 GHz Force300-25 High Gain Radio (FCC) (US cord)
C050910C701B 5 GHz Force300-25 High Gain Radio (ROW) (Argentina cord) ePMP Force 300 Series
5 GHz Force 300 CSM OrderingInformation*
C050910C124A 5 GHz Force300 CSM Radio (IC) (Canada/US cord)
C058910C122A 5 GHz Force300 CSM Radio (FCC) (US cord)
C050900S005A LicenseKey Force 300 upgrade to AP – 12 SMs maximum
Note: Force300 CSM can be converted to an access point by applying the above license key. A maximum of 12 SMs can
be connectedin this way. The Force 300 CSM does not support GPS synchronization. Refer to ePMP 3000L or ePMP 3000
for full-featuredaccess point.
*Only available for new ordersin US and Canada. Refer to Force 300 CSM FSR for all other regions.

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads

Documentation & Resources

Download datasheets and technical documentation for the ePMP Force 300-19R.

Data Sheet

Download PDF →

Need Help?

Talk to a Pro →

Pricing Notes:

  • Pricing and product availability subject to change without notice.
Cambium Networks Products
ePMP 5 GHz Force 300-19R Radio (FCC) (US cord)
#C058900C901A
Our Price: $171.35
