Cambium Networks XV3-8 Wi-Fi 6 Indoor Enterprise Wireless Access Point
High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities.
Talk to a Pro
XV3-8
- Specs: 802.11ax Tri-Radio 8x8 Access Point with Software-Defined Radios
- High-density Wi-Fi with software-defined radios (SDR)
- 5-radio architecture for edge services
- 6 Gbps aggregate data rate
- Dedicated scanning sensor, dual band
- Application policy control
- EasyPass with Microsoft Azure and Google G Suite
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Cambium Networks Products
XV3-8 Wi-Fi 6 Access Point
XV3-8 Wi-Fi 6 Access Point
#XV3-8X00A00-US
Our Price: $1,392.84
Our Price: $1,392.84
Click here to jump to more pricing!
Product Overview

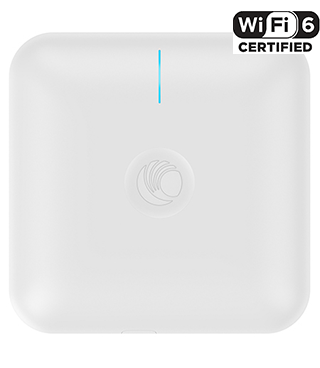

Cambium Networks XV3-8 Wi-Fi 6 Indoor Enterprise Wireless Access Point
High-density architecture reduces the equipment required while leveraging automation to deliver SLA. XV3-8 includes seamless roaming, fast roaming, automatic RF optimization and interference avoidance to automatically optimize performance to specific local needs.
Wi-Fi 6Indoor
Product Highlights
The XV3-8 Wi-Fi Access Point (AP) features a total of radios to deliver a next-generation network at the edge service with high capacity and high density. Three data radios can be configured as two GHz 4x4 plus one 2.4 GHz 4x4, or the two GHz radios can be combined into a
For networks dominated by legacy 802.11ac client devices, the dual GHz 4x4 mode will double network capacity to maintain high-bitrate services as density increases. When the devices migrate to the new Wi-Fi standard based on 802.11ax, the XV3-8 SDR can be
single GHz 8x8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth® Smart 4.1 IoT
quickly converted into full 8x8 operating mode via a simple configuration change. No firmware change is required to support this mode.
radio for BLE-based location services and you get a multi- radio, high-capacity Wi-Fi AP designed for the most demanding networks in enterprise, education, retail, and public venues.
Cloud and On-Premises Management
The XV3-8 is supported by Cambium’s ONE Network enterprise architecture managed by the cnMaestro™
Ideal Applications
High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities. Deployments requiring BSS Coloring and OFDMA for efficient spectrum use in congested RF environments.

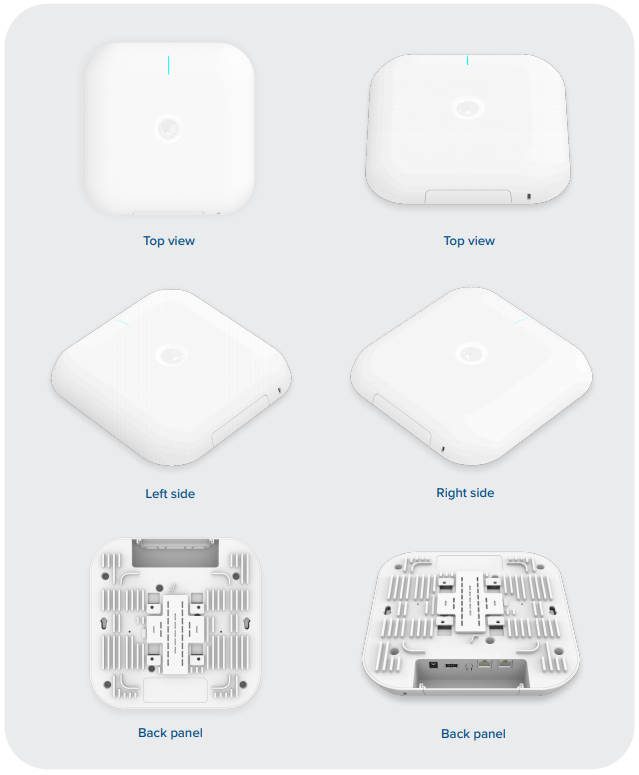

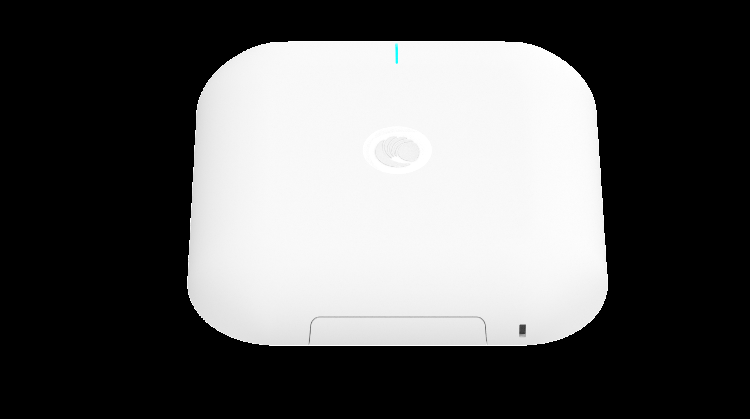

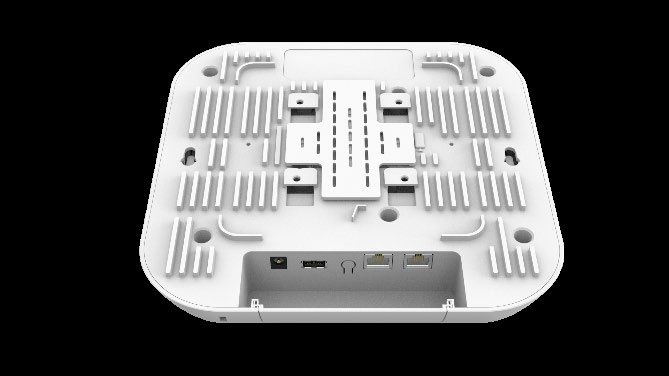

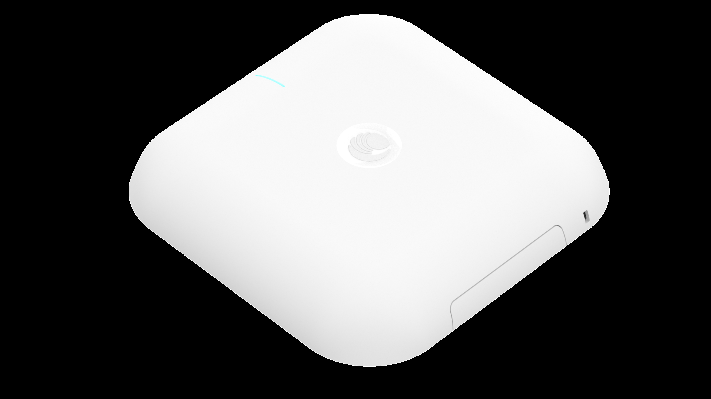

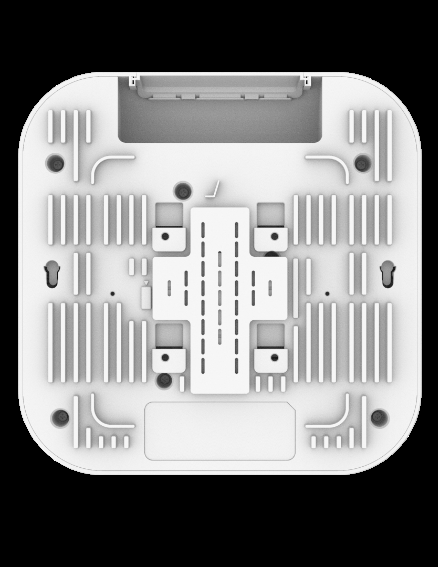

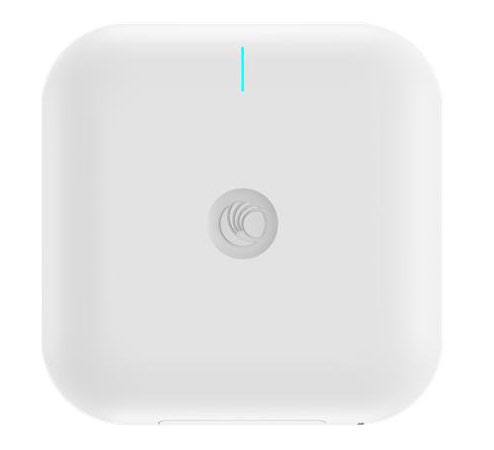

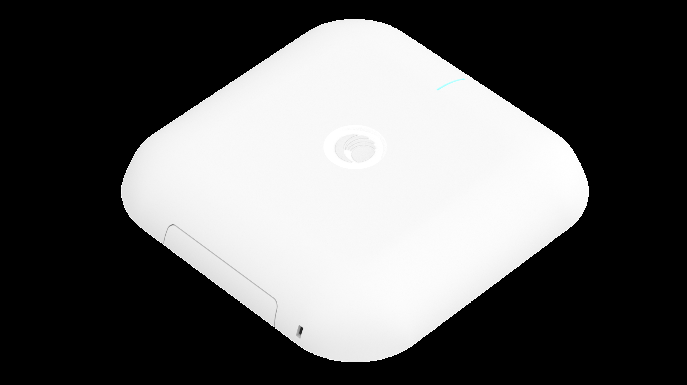

Product Images
13 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the XV3-8 to ensure compatibility with your deployment.
Access Point Specifications
RadiosPower
5 GHz: 802.11a/n/ac/ax, 8x8 (or dual 4x4) Max power with USB/BLE, 35 W (802.3bt) 802.3at mode with USB/BT disabled
2.4 GHz: 802.11b/g/n/ax, 4x4 12 VDC power, 2.1 mm (.083 in) barrel
2.4/5 GHz scan,1x1 connector
Wi-Fi 802.11 a/b/g/n/ac/axDimensions 235 mm x 235 mm x 42 mm (9.25 in x 9.25 in x 1.65 in)
SSID Security WPA3-SAE,WPA3-Enterprise, WPA2-PSK (CCMP, Weight 1,250 g (2.76 lb)
AES, 802.11i),WPA2-Enterprise (802.1X/EAP), OSEN, Security Kensington lock slot Wall or ceiling, T-bar with included locking
Ports 1 x IEEE 802.3bz100/1000/2500/5000 Mbps Mount Options bracket, ceiling tile plate
1 x IEEE 802.310/100/1000 Mbps
Antenna GainAmbient 0ºC to 50ºC (32ºF to 122ºF)
5 GHz: 6.7dBi,Omni Operation
2.4 GHz: 5 dBi,Omni Temperature
2.4/5 GHz: sensor5 / 6.3 dBi
Max EIRP*Storage -20ºC to 70ºC (-4ºF to 158ºF) Temperature
2.4 GHz: 31dBm
Max PHY RateHumidity 95% RH non-condensing
5 GHz radio4,804 Mbps MTBF 891k hours 50ºC and 2.379 million hours at
2.4 GHz radio1,147 Mbps 25ºC
FCCLEDs Multi-color status LEDs
Ch 1–11, 36–64,100–144, 149–165
ISED Ch 1–11, 36–64,100–116, 149–165 Certifications Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC,
ETSI(compliance)
Ch 1–13, 36–64,100–140 CE, EN 60601-1-2, EN 60950-1, IEC
ROW* Ch 1–14, 36–64,100–144, 149–173 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
Standards
Wi-Fi Protocols Data Codingsupport 16/64/256/1024-QAM
Channelwidth support 5GHz: 20/40/80 MHz
TWT, LongOFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO
PowerSave, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO
IEEE 802.11a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v/w XV3-8 Wi-Fi 6 Access Point
Network Specifications
Operational Modes Controllerlessstandalone RF Management Multi-modal RF optimization supporting
Cloud-managedcnMaestro or VM Auto-RF for dynamic channel selection and dynamic power adjustment configured via
WLAN 1024 clientsper AP, 1536 concurrent cnMaestro, performed in the intelligent
clientswith split radio edge AP.
16 SSIDsper AP RF monitor with channel utilization/ packet error rate / interference.
Security, Open,WPA2-AES with PSK, ePSK and Band Steering Yes Mesh Multi-hop, either band
WPA3with PSK (WPA3-SAE), ePSK, Scheduled WLAN On/off by day, week, time of day
Enterprise,Enterprise-CNSA, OWE Data Limit Client bitrate/time/throughput limit per SSID
(EnhancedOpen) TCP connection log, NAT logging firewall, Network
OSEN andPMF (802.11 W) DHCP server, VLAN pooling, RADIUS
MAC authenticationwith local database or attribute, VID VLAN per SSID per user,
externaldatabase using RADIUS protocol ePSK with VLAN assignment per PSK.
802.1Xwith EAP-TTLS, EAP-TLS / LLDP, IGMP v1, v2
MSCHAPv2,PEAPv0 / PEAPv1 / EAP-PEAP Network Tools Wired and wireless remote packet capture, logging, WAN speed test, ZapD, remote
HotspotWEB authentication network connectivity tools
Wi-Fi Quality of WMM (packetmarking either with 802.1p Tunnel L2TPv2, L2GRE, PPPoE
or IP DSCP),WMM-PS, U-APSD IP IPv4, IPv6
Multicastto unicast conversion
Service Availability Criticalnetwork resource monitor with VLAN 802.11Q, max 4096
Fast RoamingManagement HTTP / HTTPS web interface, SSH, Telnet
802.11k/r/v,OKC, cnMaestro-assisted roam Interfaces
Guest Access/Security Rogue AP detection and termination,
cnMaestro-hostedEasyPass portal
Captive Portal
Multipleauthentication methods
supportedto onboard guest user: L2–L7 firewall with application visibility(X) &
• Radius-basedauthentication control(X), DNS based access control(X).
• Click-throughwith simple terms and ACL and AirCleaner tools
conditionsacceptance Wi-Fi Calling control, NTP, Syslog, DNS Services
• Sociallogin using Google®, Facebook® proxy, auto-off on WAN failure, SNMP
• SMS-basedauthentication (X) traps, SNMPv1, SNMPv2c, SNMPv3
• Voucher-basedaccess RESTful management and statistics API via API
• Microsoft®Azure AD and Google cnMaestro X, Presence location push APIs
Workspace®(X)
• Sponsoredguest access (X)
• Self-registrationaccess (X)
cnMaestroAPI support for external captive
portal integration
802.11u,HotSpot 2.0
Accounting RADIUSaccounting, multiple AAA
*X features available in cnMaestroX. XV3-8 Wi-Fi 6 Access Point
Management

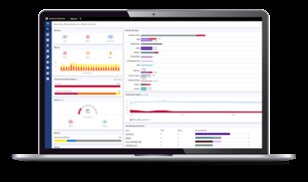

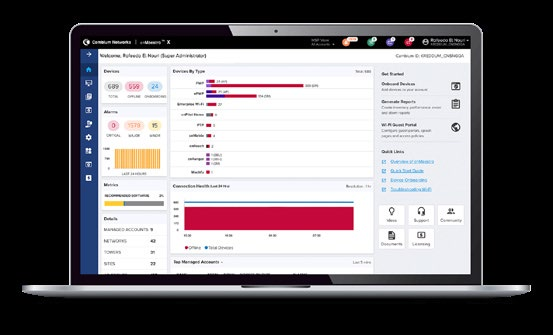

cnMaestro XX Assurance • Helps to quickly identify network-wide connectivity
• Advanced device managementcapabilities issues by isolating every element of the client’s
• Deep packet inspection(DPI) application visibility lifecycle, either radio or network related
and Control for 2,400+apps • Gives an overview quality index of the network and
• RESTful managementand statistics API highlights each element’s contribution to easily identify the worst offender
Presence location pushAPIs • Provides insight of probable causes and proposes
• Graphic reports
• Webhooks• Provides individual client connectivity visibility
Cambium Care Profor 24x7 technical support throughout the entire lifecycle of its connection to
• Accelerated accessto L2 engineers and regular easily identify each connection’s result and highlight
software updatesthe failure reason, should there be any EasyPass Portal with Additional Options • Self-registration: Form-based access
Assesses the network’sconfiguration and identifies
weak security settingsand proposes a fix to ensure • Sponsored guest: Guest ambassador-based access
the network configurationis up to the top security • Paid access: Monetize the Wi-Fi access
industry standards
License-free cloud managementthat delivers a disruptive total cost of ownership (TCO) for organizations of all sizes. Includes EasyPass
for OneClick or voucher-basedconnection as well as WiFi4EU access. P356T#y Find out more about cnMaestro XV3-8 Wi-Fi 6 Access Point Front Top View Right Side Left Side Back Panel Connectors XV3-8 Wi-Fi 6 Access Point

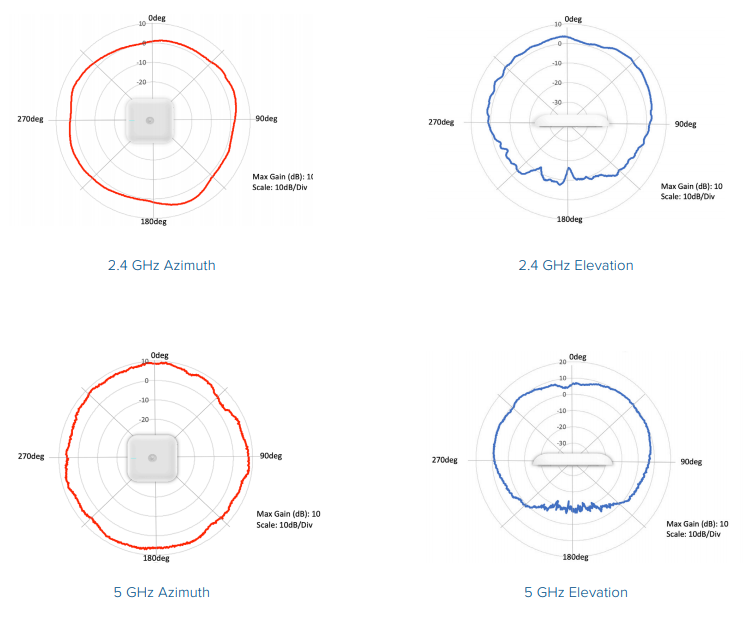

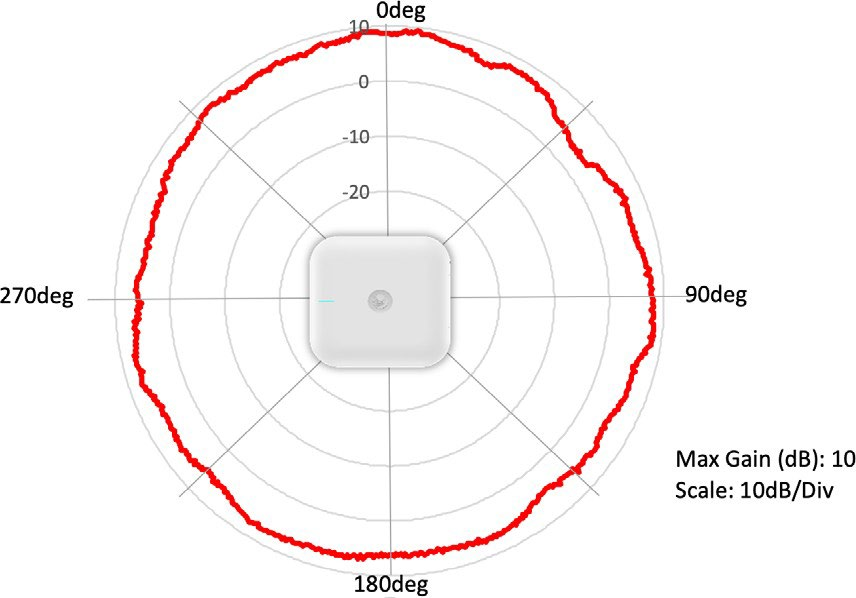

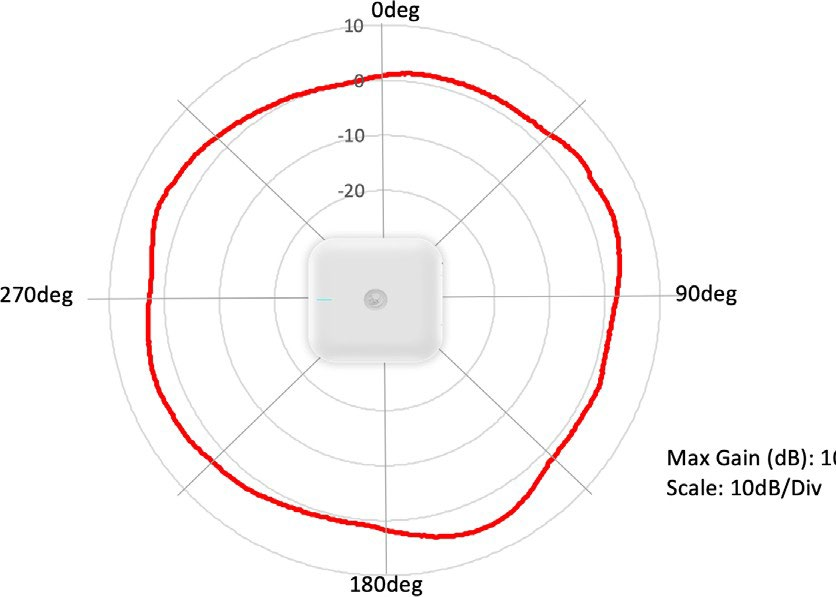

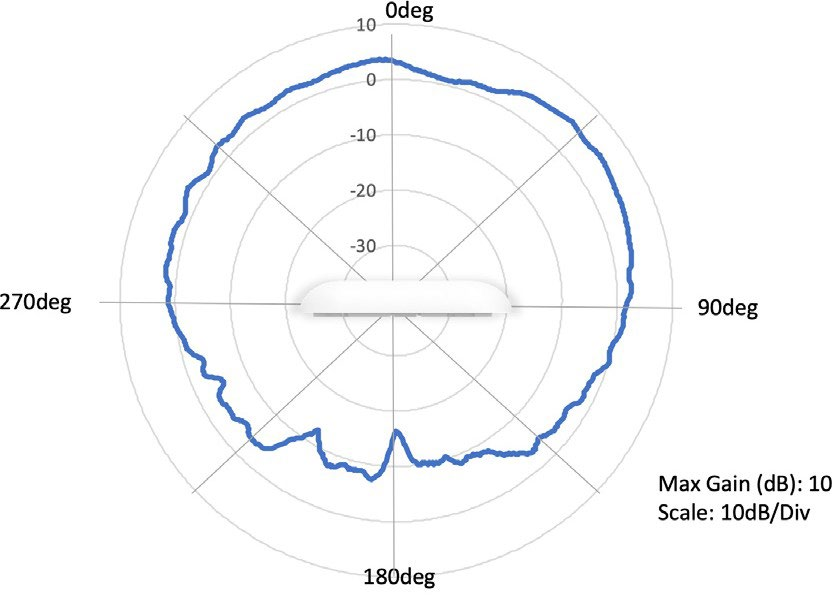

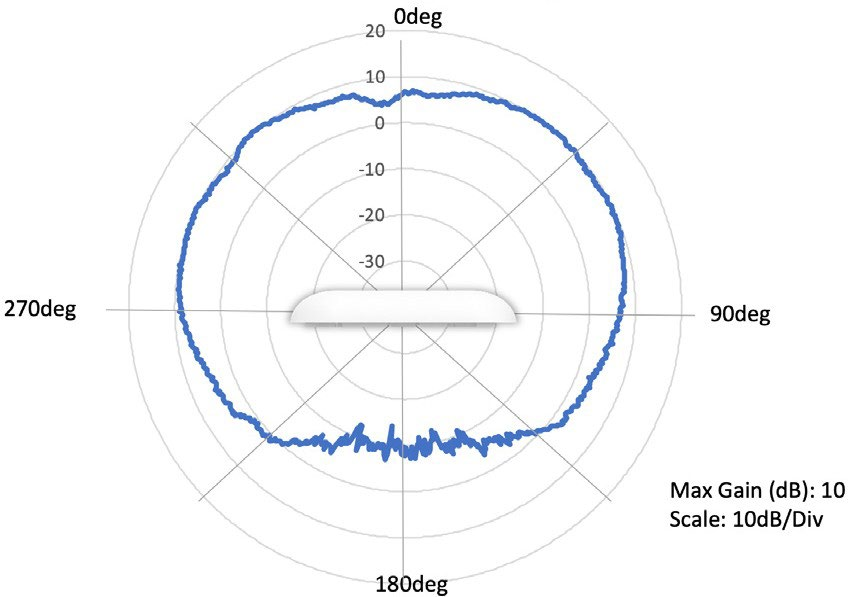

Antenna Patterns
2.4 GHzAzimuth 2.4 GHz Elevation
5 GHzAzimuth 5 GHz Elevation XV3-8 Wi-Fi 6 Access Point
Regulatory Model XV3-8
XV3-8X00A00-US XV3-8Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, US
XV3-8X00A00-CA XV3-8Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, CA
XV3-8X00A00-EU XV3-8Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, EU
XV3-8X00A00-RW XV3-8Tri-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5 GHz WLAN AP, scan radio, BLE, RW
Shockmount bracket for cnPilot e510 and e505, Wi-Fi 6 XV3-8, XV2-2. XE3-4
AX-WALLBRKT-WW WallMount L-Bracket for XV and XE series APs. Use to mount the AP horizontally.
AX-X7-1BRKT-WW SpareMounting Bracket for X7 series enterprise access point. Compatible with X7-3 series, XE3-4, XV3-8
C000000L141A PoE,60W, 56V, 10GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
N000000L034B PoE injector,30.5W, 56V, 5GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
N000900L031A AC linecord, US Type B, 720mm, C5 connector
N000900L032A AC linecord, EU Type F angled, 720mm, C5 connector
N000900L033A AC linecord, UK Type G angled, 720mm, C5 connector
N000900L034A AC linecord, BR Type N, 720mm, C5 connector
AC linecord, AU Type I, 720mm, C5 connector
N000900L012A AC linecord, IN Type D angled, 720mm, C5 connector
N000900L013A AC linecord, AR Type I, 720mm, C5 connector
N000900L015A AC linecord, CN Type I, 720mm, C5 connector
MSX-SUB-XV3-8-1 cnMaestroX 1-year subscription for one XV3-8 AP. Creates one Device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-XV3-8-1 for NBD advanced replacement hardware support.
MSX-SUB-XV3-8-3 cnMaestroX 3-year subscription for one XV3-8 AP. Creates one Device Tier3 slot. Includes Cambium Care Pro support. Order
advancedreplacement hardware support.
MSX-SUB-XV3-8-5 cnMaestroX 5-year subscription for one XV3-8 AP. Creates one Device Tier3 slot. Includes Cambium Care Pro support. Orde
advancedreplacement hardware support.
Cambium Care Support
CCADV-UPG-XV3-8-1 CambiumCare Advanced Add-on to cnMaestro X, 1-year support for one XV3-8. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW
CCADV-UPG-XV3-8-3 CambiumCare Advanced Add-on to cnMaestro X, 3-year support for one XV3-8. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW
CCADV-UPG-XV3-8-5 CambiumCare Advanced Add-on to cnMaestro X, 5-year support for one XV3-8. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW
CCADV-SUP-XV3-8-1 CambiumCare Advanced, 1-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support, SW updates, and NBD
advancereplacement for HW
CCADV-SUP-XV3-8-3 CambiumCare Advanced, 3-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support, SW updates, and NBD
advancereplacement for HW
CCADV-SUP-XV3-8-5 CambiumCare Advanced, 5-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support, SW updates, and NBD
advancereplacement for HW
CCPRO-SUP-XV3-8-1 CambiumCare Pro, 1-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support and SW updates
CCPRO-SUP-XV3-8-3 CambiumCare Pro, 3-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support and SW updates
CCPRO-SUP-XV3-8-5 CambiumCare Pro, 5-year support for one XV3-8 Wi-Fi 6 AP. 24x7 TAC support and SW updates LIMITED WARRANTY Cambium Networks XE3-8 Wi-Fi 6 Access Point includes a limited lifetime hardware warranty that extends 5 years after end of sale.
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the XV3-8.
Data Sheet
Download PDF →Need Help?
