Cambium Networks XV2-23T Wi-Fi 6 Outdoor Wireless Access Point
High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities.
Talk to a Pro
XV2-23T
- Specs: 802.11ax Dual-Radio, 2x2
- Dual-radio Wi-Fi 6
- 5 GHz (2x2), 2.4 GHz (2x2)
- One 1 GbE uplink
- Outdoor rated IP67 enclosure
- cnMaestro™ Network Management
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Cambium Networks Products
XV2-23T Wi-Fi 6 Outdoor Access Point
Outdoor Dual radio WiFi 6 AP Omni 2x2, GbE
#XV2-23T0A00-US
Our Price: $652.78
Our Price: $652.78
Click here to jump to more pricing!
Product Overview

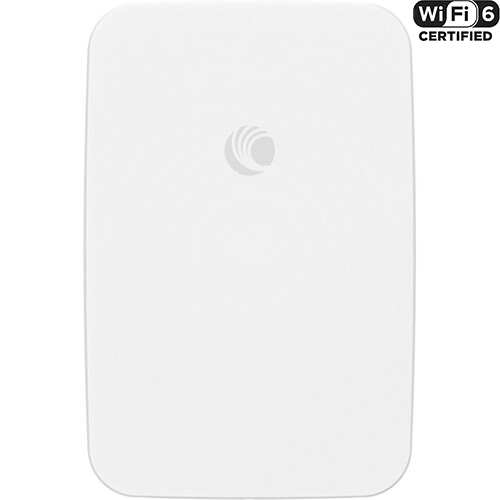

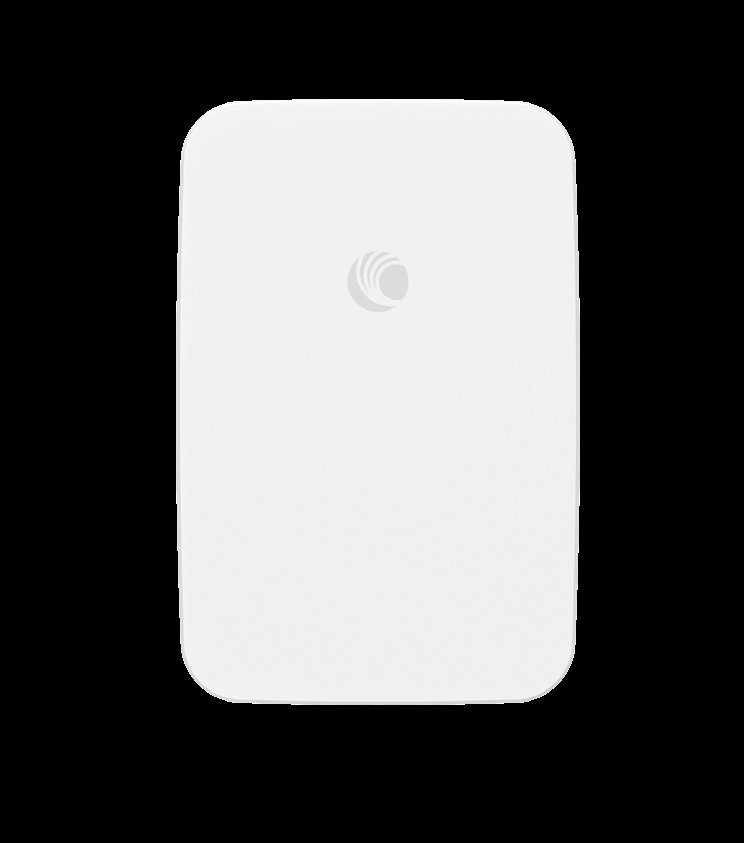

Cambium Networks XV2-23T Wi-Fi 6 Outdoor Wireless Access Point
The XV2-23T outdoor 2×2 Wi-Fi 6 AP with long range internal antennas. Ideal for hospitality, education, municipal, transportation and logistics applications.
Wi-Fi 6Outdoor
Product Highlights
Value-Tier Wi-Fi for Any Market
The Cambium Networks’ XV2-23T Wi-Fi Outdoor
Designed for Fast Installation

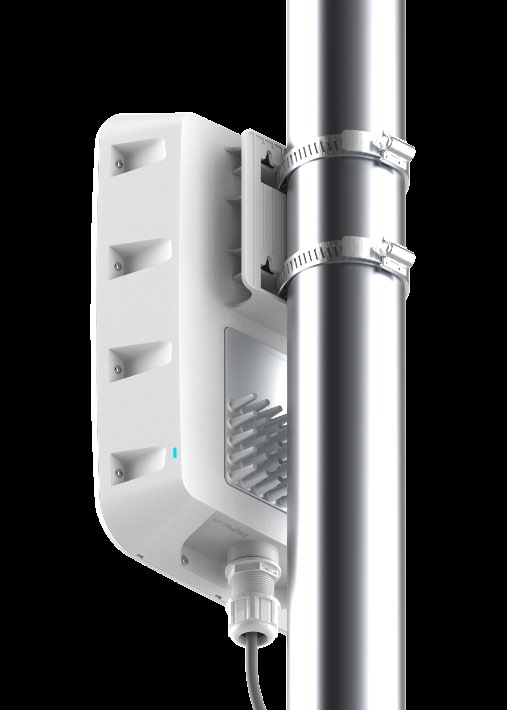

The XV2-23T offers multiple installation methods included in the same shipping box. Mount the AP to a pole using the included clamps or to a flat surface using the integrated bracket. The XV2-23T is a compact size and high- performance outdoor Wi-Fi AP.
onboarded and managed by your choice of Cambium management systems, including cnMaestro™ Essentials and cnMaestro X, available in cloud and on-premises versions. Choose the management type you need and change it at any time. Unlike other value-tier access points, the XV2-23T is never locked into just one management selection.
Ideal Applications
High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities. Deployments requiring BSS Coloring and OFDMA for efficient spectrum use in congested RF environments.

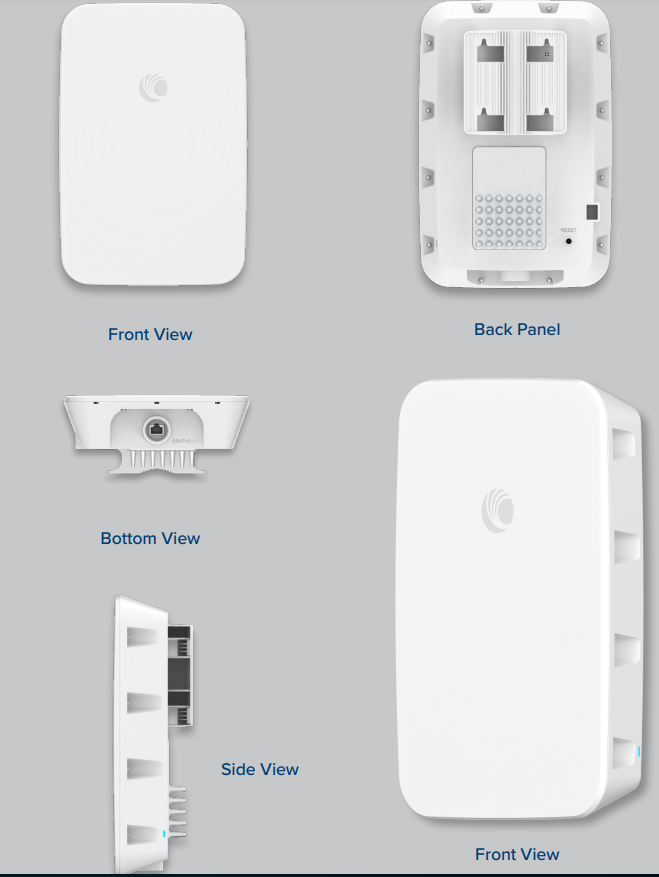

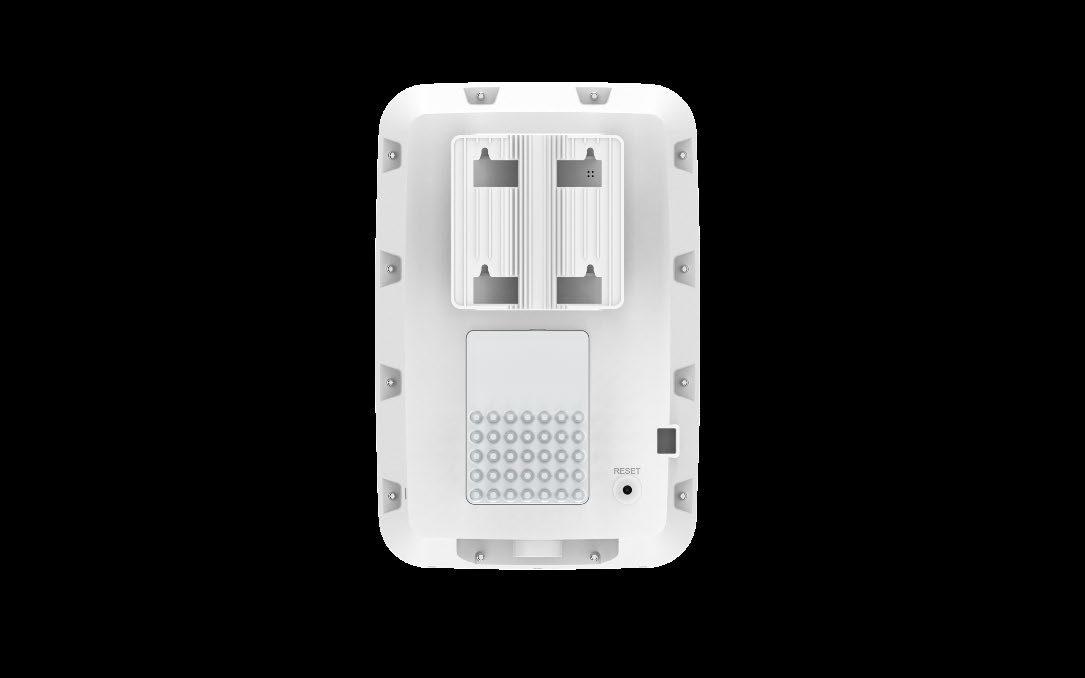

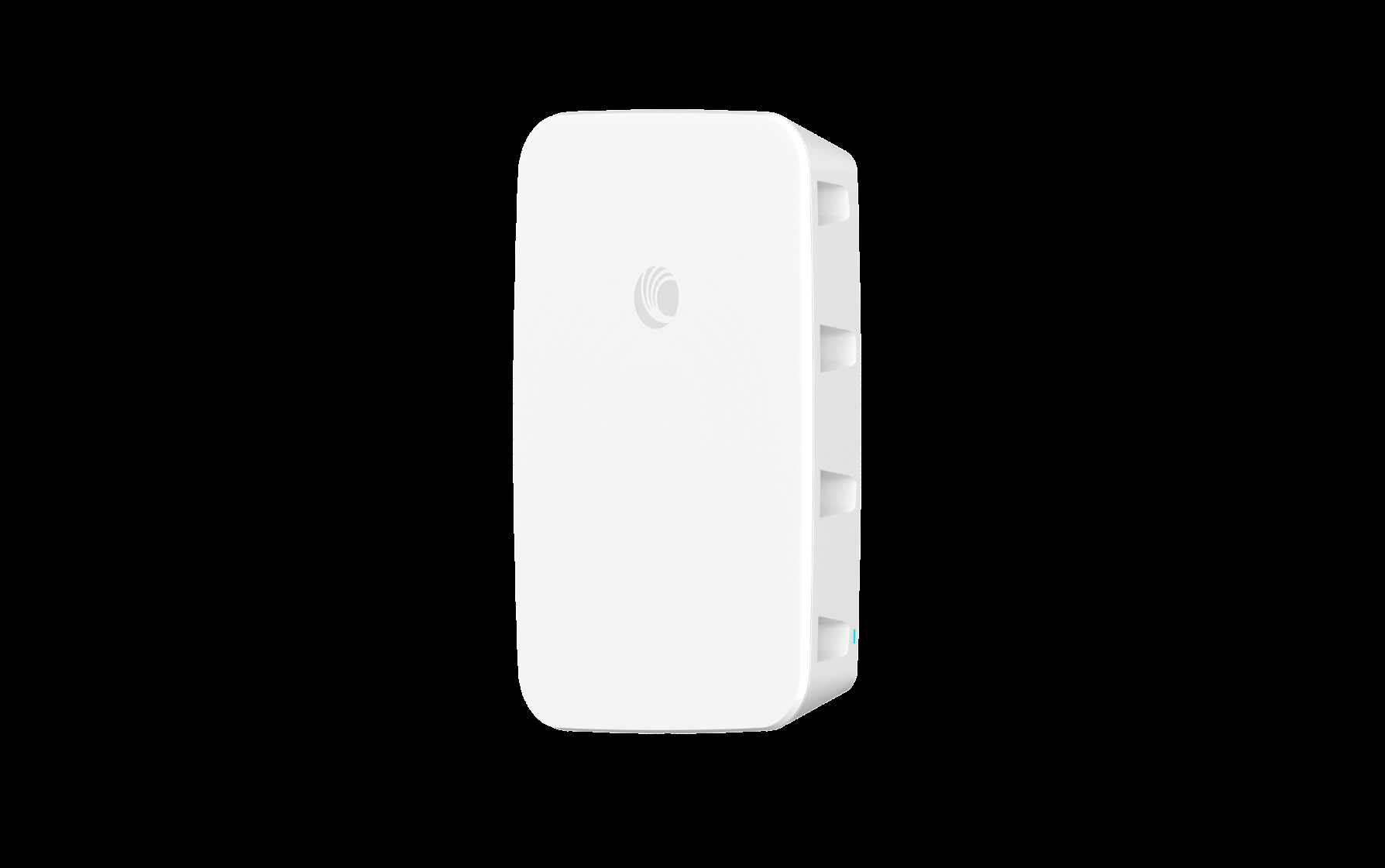

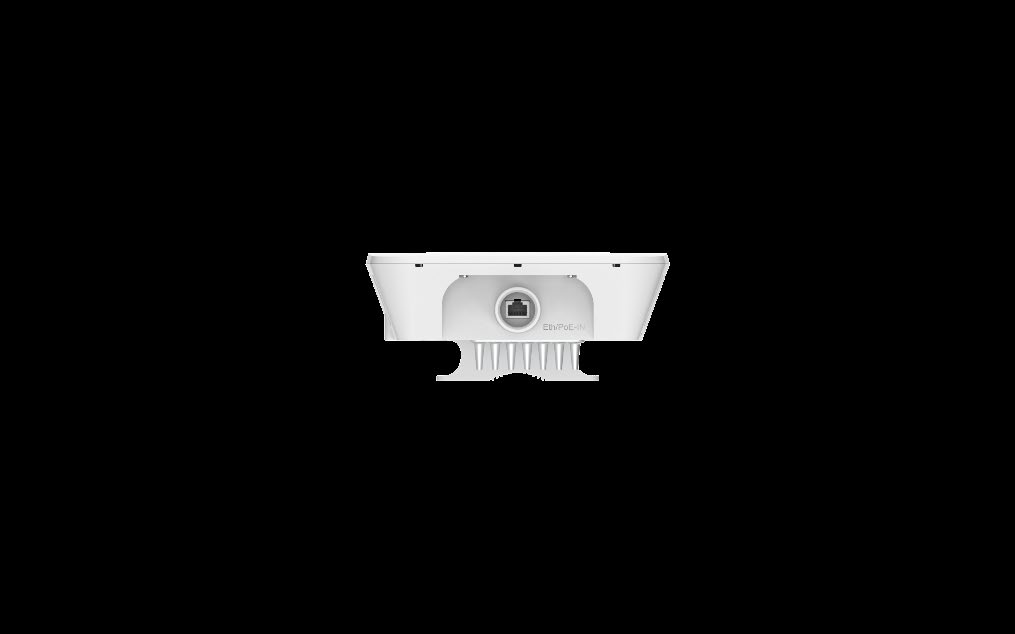

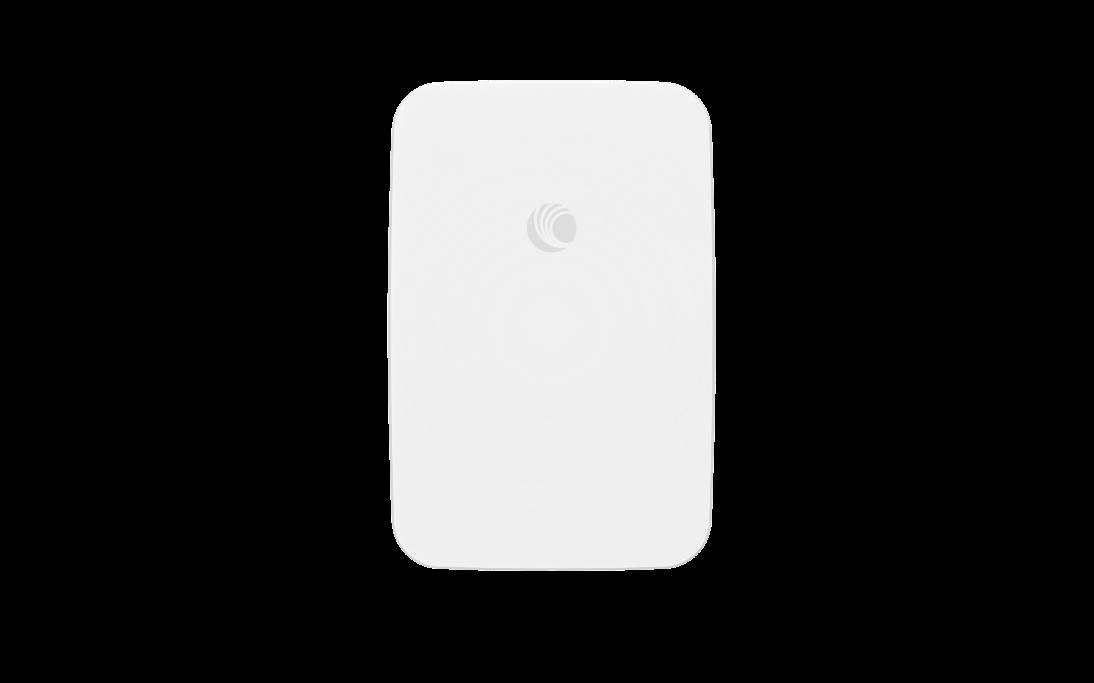

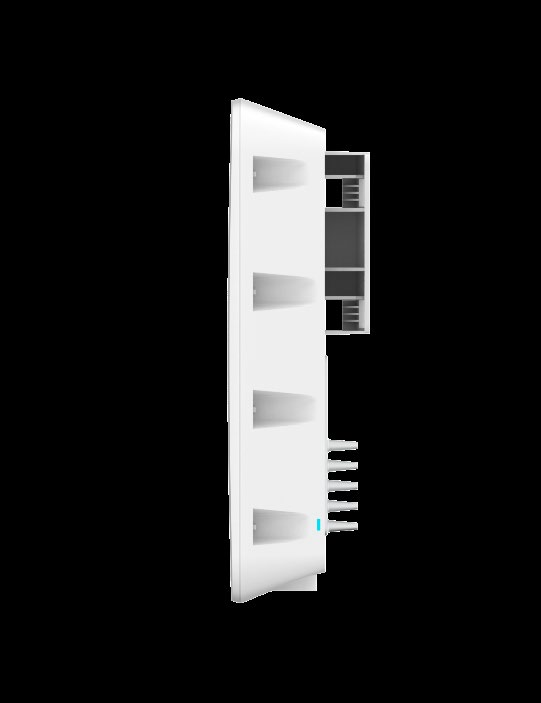

Product Images
14 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the XV2-23T to ensure compatibility with your deployment.
Access Point Specifications
Radios 5 GHz802.11 a/n/ac/ax, 2x2 Power Typical 20W, 802.3at powered device
2.4 GHz802.11 b/g/n/ax, 2x2
Wi-Fi 802.11 a/b/g/n/ac/axDimensions 300 mm x 200 mm x 84 mm (11.8 in x 7.9 in x 3.3 in)
SSID Security WPA3-SAE,WPA3-Enterprise, WPA2-PSK Weight 1,200 g (2.65 lbs)
(CCMP,AES, 802.11i), WPA2-Enterprise Security Kensington lock slot
(802.1X/EAP),OSEN, OWE, Open
Ports 1 x IEEE10/100/1000 Mbps Ethernet Pole or wall mounting. Mount Options Pole diameter: min 30 mm / max 75 mm
Antenna Gain 5 GHz10 dBi, Omni Ambient Operation -40ºC to 65ºC (-40ºF to 149ºF)
2.4 GHz7 dBi, Omni Temperature
Max EIRP* 5 GHz36 dBm Storage -40ºC to 70ºC (-40ºF to 158ºF)
2.4 GHz34 dBm Temperature
Max PHY Rate 5 GHzradio 2,402 Mbps Humidity 95% RH non-condensing radio 573.5 Mbps
Filter LTE Band 38, 40MTBF 5,077,102 hours @ 25ºC 1,224,983 hours @ 65ºC
Ch 1–11,36–48, 52-64, 100–144, 149–165 Multi-color status LEDs, dimmable, on/off
FCCLEDs
ISED Ch 1–11,36–48, 52-64, 100–116, 149–165 Certifications WiFi Alliance 802.11a/b/g/n/ac/ax, PP2.0
ETSI* Ch 1–13,36–64, 52-64, 100–140, 149-173 (compliance) FCC, CE, IC, IEC60950, IEC62368, EN50121, EN61373
ROW* Ch 1–14,36–48, 52-64, 100–144, 149–177
Wi-Fi Protocols
VHT MCSrates, 16/64/256/1024-QAM, Channel width support in 5GHz: 20/40/80/160 MHz
TransmitBeam steering, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS,
OFDM,OFDMA, UL/DL MU-MIMO XV2-23T Wi-Fi 6 Outdoor Access Point
Network Specifications
Operational ModesRF Management
Controllerlessstandalone Multi-modal RF optimization supporting Auto-RF for dynamic channel selection and
Cloud-managedcnMaestro or VM dynamic power adjustment configured via
WLANcnMaestro, performed in the intelligent
256 concurrentclients edge AP.
16 SSIDsper AP RF monitor with channel utilization/ packet error rate / interference.
Security,Band Steering Yes
Open, WPA2-AESwith PSK, ePSK and Mesh Multi-hop, either band
WPA3 withPSK (WPA3-SAE), ePSK, Scheduled WLAN On/off by day, week, time of day
Enterprise,Enterprise-CNSA, OWE Data Limit Client bitrate/time/throughput limit per SSID
(EnhancedOpen) Network
OSEN andPMF (802.11 W) TCP connection log, NAT logging firewall, DHCP server, DHCP Relay option 82, VLAN
MAC authenticationwith local database pooling, RADIUS attribute, VID VLAN per SSID
or externaldatabase using RADIUS per user, ePSK with VLAN assignment per PSK
protocol
802.1X withEAP-TTLS, EAP-TLS / Network Tools
MSCHAPv2,PEAPv0 / PEAPv1 / EAP- Wired and wireless remote packet capture, logging, WAN speed test, ZapD, remote network connectivity tools
Hotspot2.0 WEB authentication
Wi-Fi Quality ofTunnel L2TPv2, L2GRE, PPPoE
WMM (packetmarking either with
802.1p orIP DSCP), WMM-PS, U-APSD IP IPv4, IPv6
Multicastto unicast conversion VLAN 802.11Q, max 4096
Service AvailabilityManagement
Critical networkresource monitor with SSID HTTP / HTTPS web interface, SSH, Telnet Interfaces
Fast Roaming 802.11k/r/v,OKC, cnMaestro-assisted roam Security Rogue AP detection and termination(X),
Guest Access/WIDs/WIPs, DoS protection
cnMaestro-hostedEasyPass portal
Captive Portal
Multipleauthentication methods L2–L7 firewall with application visibility(X) &
supportedto onboard guest user: control(X), DNS based access control(X).
• Radius-basedauthentication ACL and AirCleaner tools
• Click-throughwith simple terms and Services Wi-Fi Calling control, NTP, Syslog, DNS
conditionsacceptance proxy, SNMP traps, SNMPv1, SNMPv2c,
• Sociallogin using Google®, Facebook® SNMPv3, TCP and DNS logging
• SMS-basedauthentication (X)
• Voucher-basedaccess
• Microsoft®Azure AD and Google
Workspace®(X)
• Sponsoredguest access (X)
• Self-registrationaccess (X)
cnMaestroAPI support for external captive
portal integration
802.11u,Hotspot 2.0
RADIUSaccounting, load balancing AAA
servers,Dynamic Authorization COA, DM
RESTfulmanagement and statistics API via
cnMaestroX, presence location push APIs
*X features available in cnMaestroX. XV2-23T Wi-Fi 6 Outdoor Access Point

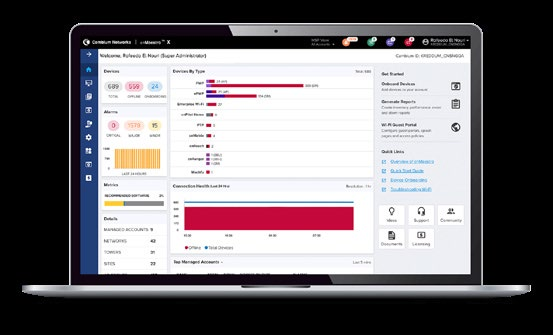

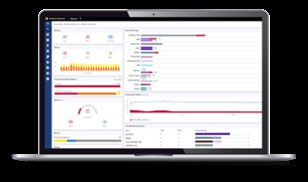

Management
cnMaestro XX Assurance • Helps to quickly identify network-wide connectivity
• Advanced device managementcapabilities issues by isolating every element of the client’s
• Deep packet inspection(DPI) application visibility lifecycle, either radio or network related
and Control for 2,400+apps • Gives an overview quality index of the network and
• RESTful managementand statistics API highlights each element’s contribution to easily identify the worst offender
Presence location pushAPIs • Provides insight of probable causes and proposes
• Graphic reports
• Webhooks• Provides individual client connectivity visibility
Cambium Care Profor 24x7 technical support throughout the entire lifecycle of its connection to
• Accelerated accessto L2 engineers and regular easily identify each connection’s result and highlight
software updatesthe failure reason, should there be any EasyPass Portal with Additional Options • Self-registration: Form-based access
Assesses the network’sconfiguration and identifies
weak security settingsand proposes a fix to ensure • Sponsored guest: Guest ambassador-based access
the network configurationis up to the top security • Paid access: Monetize the Wi-Fi access
industry standards
License-free cloud managementthat delivers a disruptive total cost of ownership (TCO) for organizations of all sizes. Includes EasyPass
for OneClick or voucher-basedconnection as well as WiFi4EU access. P339T6#y Find out more about cnMaestro XV2-23T Wi-Fi 6 Outdoor Access Point Back Front Bottom Side Front Oblique XV2-23T Wi-Fi 6 Outdoor Access Point

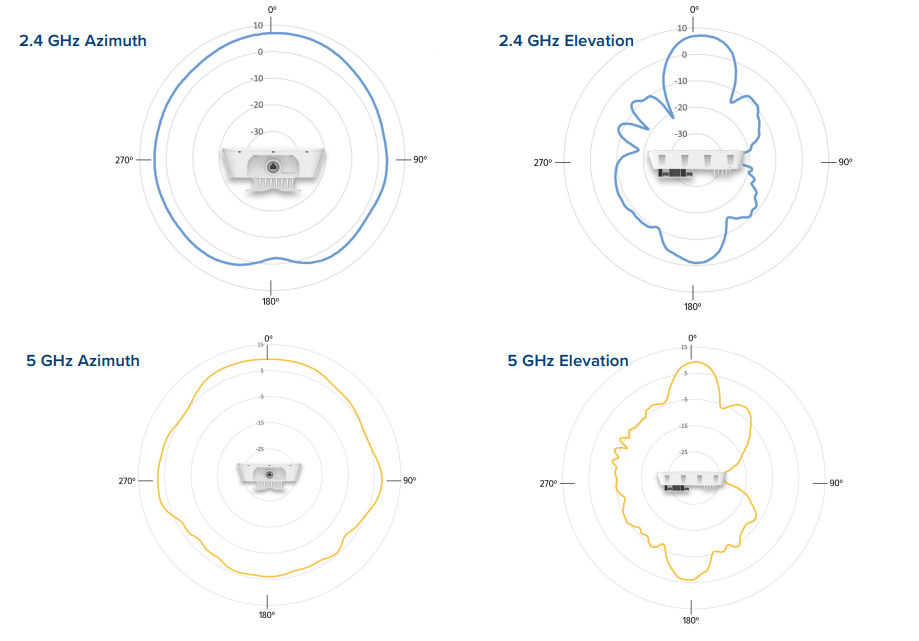

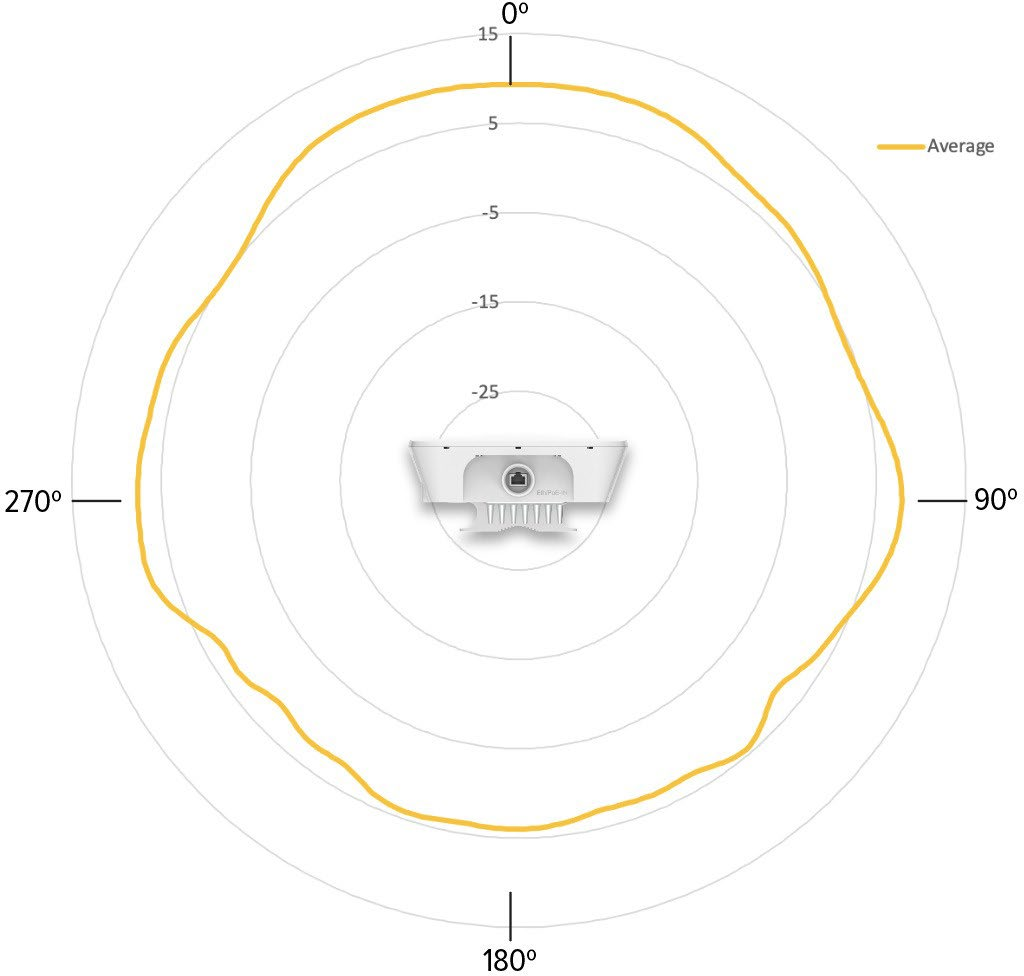

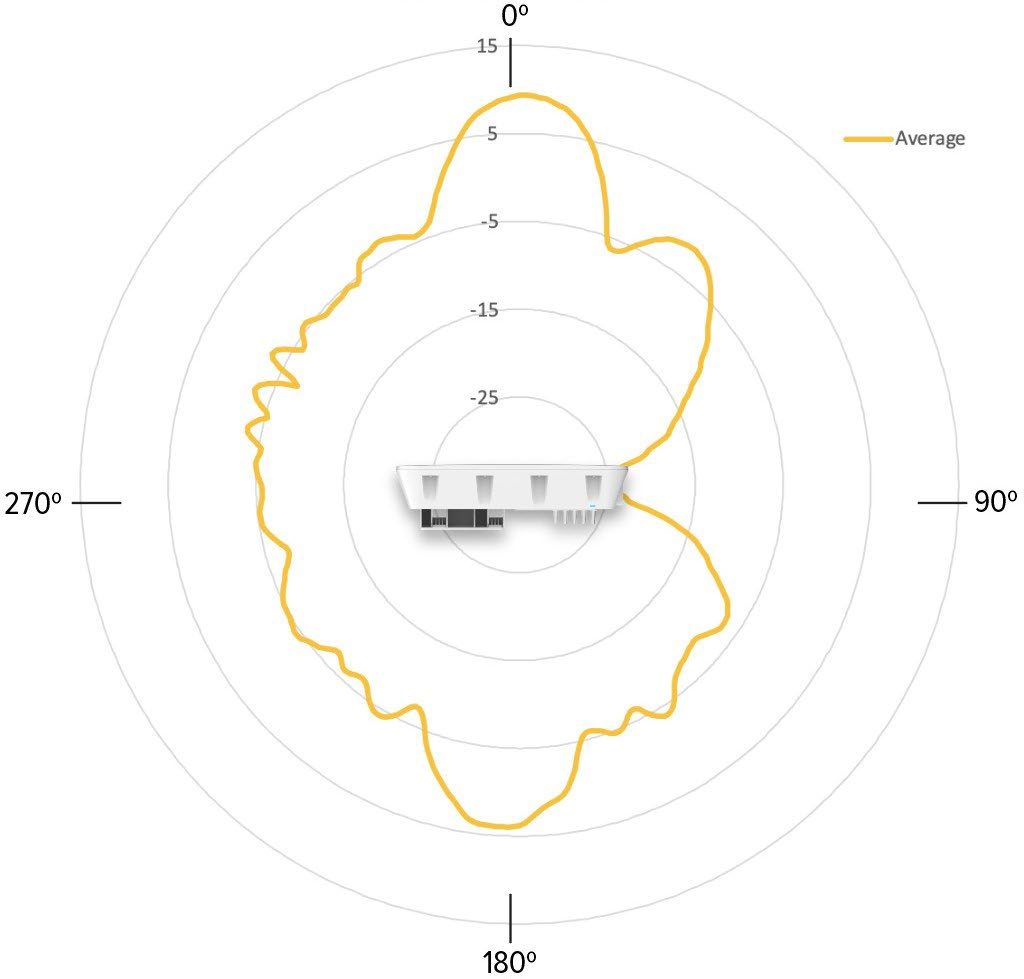

Antenna Patterns

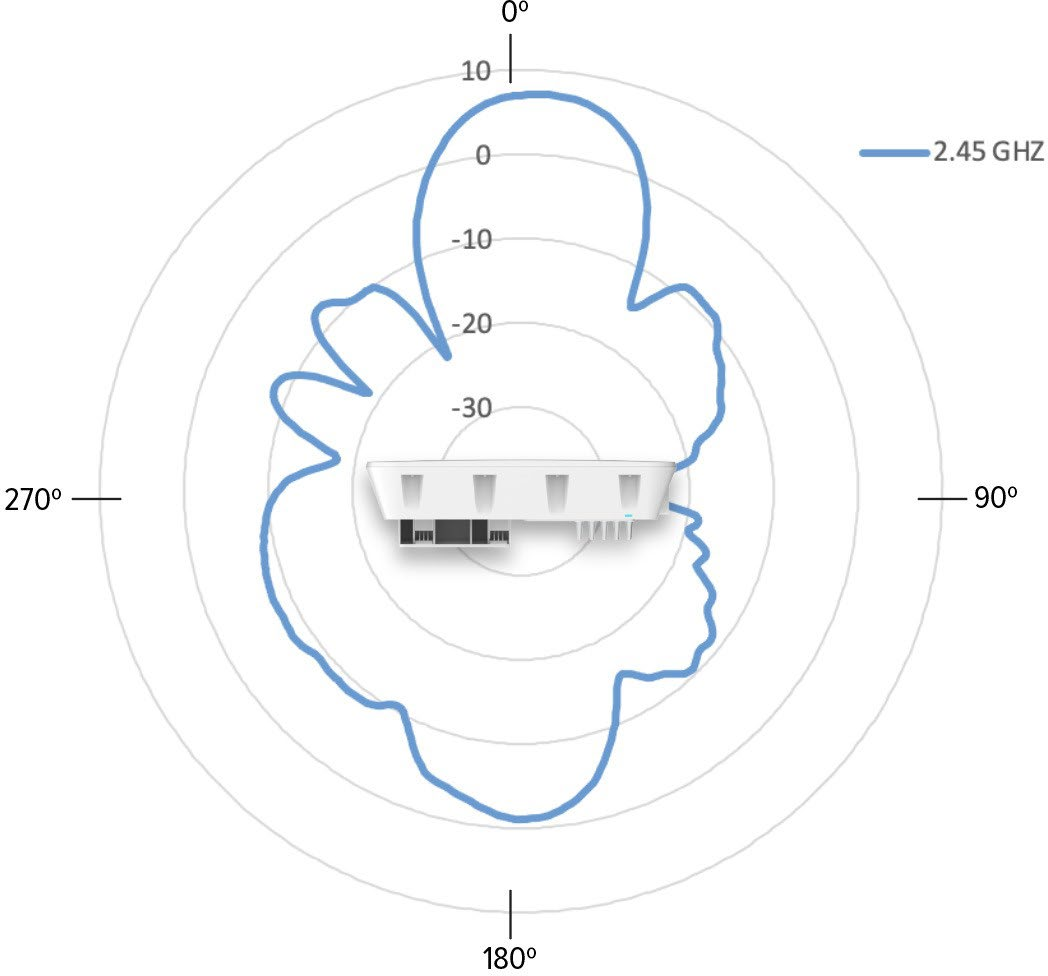

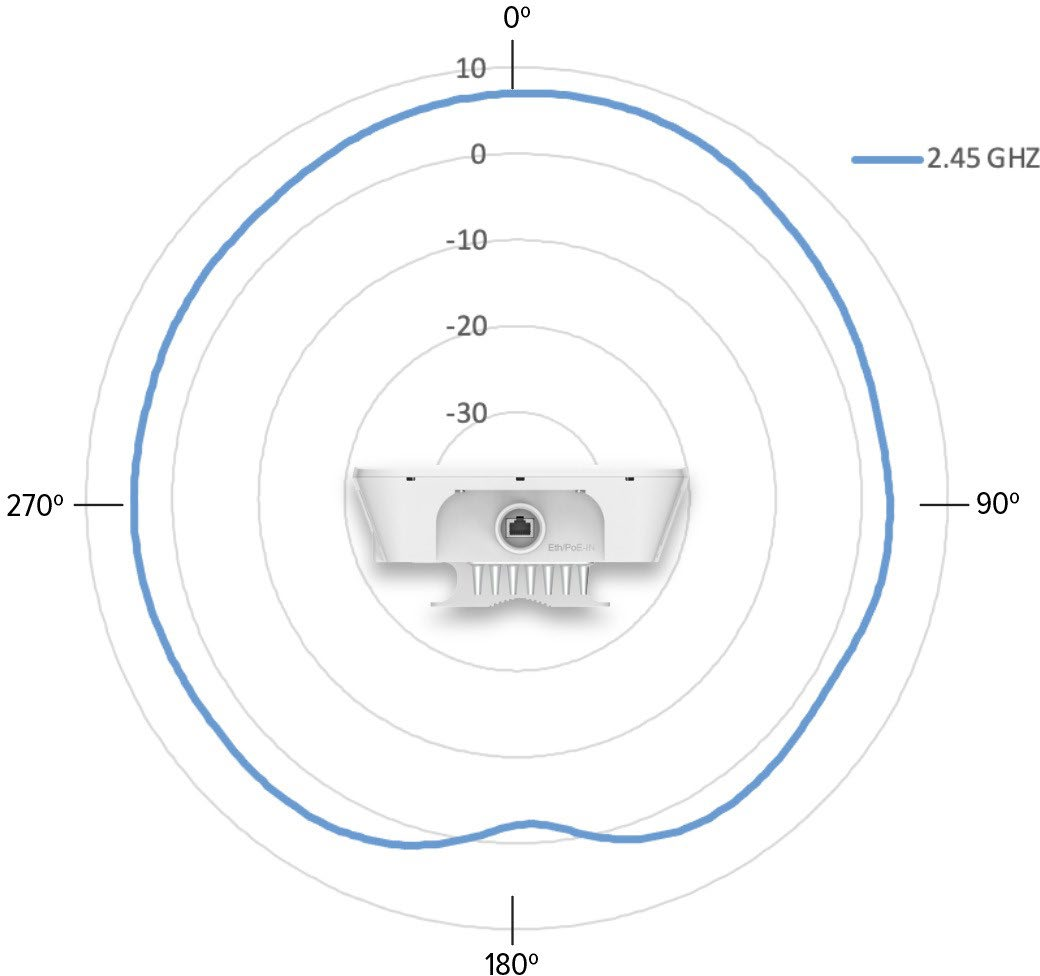

2.4GHz Azimuth 2.4 GHz Elevation
5 GHzAzimuth 5 GHz Elevation
2.4 GHz Receive Sensitivity(dBm) per Chain 2.4 GHz TX Power Target
802.11b802.11g Rate Pout (dBM)
1 Mb -991 Mb -94.5 802.11b 1Mb 27
11 Mb -9111 Mb -75.75 802.11g 6Mb 27
HT20HT40 MCS0 HT20, HT40 27, 27
MCS0 -95MCS0 -92.5 MCS7 HT20, HT40 25, 25
MCS7 -76.5MCS7 -73.5 MCS0 VHT20, VHT40 27, 27
HE20HE40 MCS11 VHT20, VHT40 23, 23 27, 27
MCS0 -94.75MCS0 -92 MCS0 HE20, HE40
MCS11 -64.25MCS11 -61.25 MCS11 HE20, HE40 23, 23
5 GHz Receive Sensitivity(dBm) per Chain 5 GHz TX Power Target
VHT20 VHT40VHT80 VHT160 Rate Pout (dBm)
MCS0 -95.5 MCS0-94 MCS0 -90 MCS0 -87.5 802.11a 27 27, 27
MCS7 -77 MCS7-74 MCS7 -71.5 MCS7 -69 MCS0 HT20, HT40
HE20 HE40HE80 HE160 MCS0 HT20, HT40 24,24
MCS0 -95.5 MCS0-93.5 MCS0 -90.5 MCS8 -65 MCS0 VHT40, VHT80, VHT160 27, 27, 27, 27 MCS11 VHT40, VHT80, VHT160 22, 22, 22, 21
MCS7 -76.5 MCS7-74 MCS7 -71.5 MCS11 -57 MCS0 HE20, HE40, HE80, HE160 27, 27, 27, 27 MCS11, HE20, HE40, HE80, HE160 22, 22, 22, 21 XV2-23T Wi-Fi 6 Outdoor Access Point
Regulatory Model
XV2-23T0B00-US XV2-23TOutdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, US
XV2-23TOutdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, EU
XV2-23T0B00-RW XV2-23TOutdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, RW
XV2-23T0B00-CA XV2-23TOutdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, CA
C000000L141A PoE,60W, 56V, 10GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
N000000L034B PoEinjector, 30.5W, 56V, 5GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
N000900L017A PoE,15.4W, 56V, GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
AX-E510RBKT-WW Shockmount bracket, Metal bracket suited for wall and ceiling mount.
Wallor Ceiling mounting bracket for Outdoor Wi-Fi access point. Adds security and allows mounting on junction
boxes.Plastic bracket.
MSX-SUB-XV2-23T-1 cnMaestroX for one XV2-23T AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 1-year subscription
MSX-SUB-XV2-23T-3 cnMaestroX for one XV2-23T AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 3-year subscription
MSX-SUB-XV2-23T-5 cnMaestroX for one XV2-23T AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 5-year subscription
Cambium Care Support
CCADV-SUP-XV2-23T-1 CambiumCare Advanced, 1-year support for one XV2-23T Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CCADV-SUP-XV2-23T-3 CambiumCare Advanced, 3-year support for one XV2-23T Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CCADV-SUP-XV2-23T-5 CambiumCare Advanced, 5-year support for one XV2-23T Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CCPRO-SUP-XV2-23T-1 CambiumCare Pro, 1-year support for one XV2-23T Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CCPRO-SUP-XV2-23T-3 CambiumCare Pro, 3-year support for one XV2-23T Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CambiumCare Pro, 5-year support for one XV2-23T Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CCADV-UPG-XV2-23T-1 CambiumCare Advanced Add-on to cnMaestro X, 1-year support for one XV2-23T. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW
CCADV-UPG-XV2-23T-3 CambiumCare Advanced Add-on to cnMaestro X, 3-year support for one XV2-23T. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW
CCADV-UPG-XV2-23T-5 CambiumCare Advanced Add-on to cnMaestro X, 5-year support for one XV2-23T. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW LIMITED WARRANTY Cambium Networks XV2-23T Wi-Fi 6 Access Point includes a limited lifetime hardware warranty for a period of 3 years.
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the XV2-23T.
Data Sheet
Download PDF →Need Help?
