Cambium Networks cnPilot e505 Wi-Fi 5 Outdoor Wireless Access Point
SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi.
Talk to a Pro
cnPilot e505
- Specs: cnPilot e505, e510, e700
- Enterprise grade 802.11 Wi-Fi access in outdoor high-density networks.
- Ideal for 360-degree coverage in Public Wi-Fi, Hospitality, Enterprise Small form factor hides easily.
- 802.11ac wave2, multi-user MIMO, beam steering, VHT rates, airtime fairness 360-degree antenna coverage UV rated IP67 enclosure Light weight – less than 800g,
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Cambium Networks Products
cnPilot Enterprise Outdoor Access Point
cnPilot e505 Outdoor AP (FCC) 802.11ac wave 2, 2x2/2x2, 5 dBi, IP67
#PL-E505X00A-US
Our Price: $417.30
Our Price: $417.30
Click here to jump to more pricing!
Product Overview

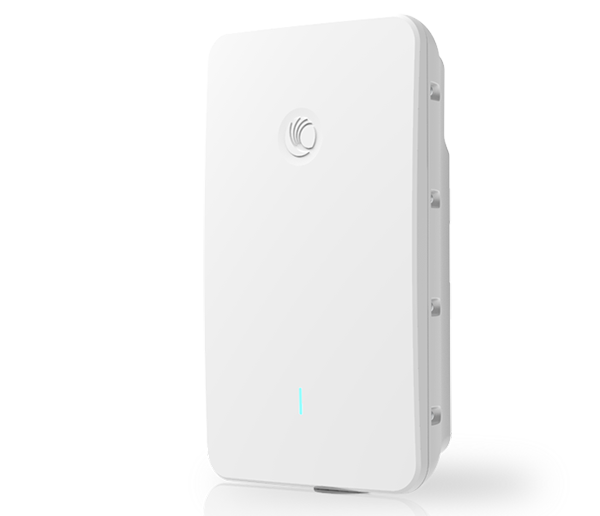

Cambium Networks cnPilot e505 Wi-Fi 5 Outdoor Wireless Access Point
Cambium Networks delivers high-performance Wi-Fi to meet the needs of the most demanding enterprises. Give users consistent, wired-like performance plus superior coverage and security depending on your needs — from a single, small office network to global, multi-site networks. Cambium management solutions offer public cloud, private cloud, and on-premises options optimized for scalability, zero-touch provisioning, and simplified operations.
Wi-Fi 5Outdoor
Product Highlights
CLOUD-MANAGED ACCESS
All cnPilot™ access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides a single-pane-of-glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.
The e505 is designed for fast, discrete deployment of outdoor Wi-Fi, ideal for an aesthetically sensitive area like a hotel pool, or unobtrusive public and community Wi-Fi. The e505 has an omni coverage internal antenna with an integrated mounting bracket.
time and throughput limits
cnMaestro Essential cloud management is included at no additional cost. There are no setup fees, license, or recurring costs. cnMaestro includes detailed network statistics, channel utilization graphs, and integrated remote troubleshooting tools to ensure service is always on.
The e510 is rail shock and vibration certified, and includes extended surge and ESD protection. Additionally, an integrated LTE filter reduces impact from nearby LTE frequencies. Operating temperature spans
The e700 provides edge intelligent services and the 4x4 MU-MIMO antenna array to deliver those services. The dual-gigabit Ethernet ports support link aggregation (LAG) for higher throughput needs, or GE2 can be enabled to deliver W of operating power for a Cambium subscriber module or any Ethernet- and PoE-powered device.
Ideal Applications
SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi. MSP-managed networks leveraging cnMaestro for zero-touch provisioning and real-time monitoring.
Product Images
25 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the cnPilot e505 to ensure compatibility with your deployment.
Access Point Specifications
e505e510 e700
US-FCC Ch 1–11,36–64, 100–140, 149–165 Ch 1–11, 36–64, 100–140, 149–165 Ch 1–11, 36–64, 100–140, 149–165
ISED Canada Ch 1–11,36–64, 100–116, 149–165 Ch 1–11, 36–64, 100–116, 149–165 Ch 1–11, 36–64, 100–116, 149–165
EU-ETSI Ch 1–13,36–64, 100–140 Ch 1–13, 36–64, 100–140 Ch 1–13, 36–64, 100–140
ROW Ch 1–13,36–64, 100–144, 149–173 Ch 1–13, 36–64, 100–144, 149–173 Ch 1–13, 36–64, 100–144, 149–173
individualcountry limits apply individual country limits apply individual country limits apply 1 x 5 GHz radio (802.11 a/n/ac Wave 2), 2x2
Radios1 x 2.4 GHz (802.11 b/g/n), 2x2 SU-MIMO / MU-MIMO: 2 streams
Wi-Fi 802.11a/b/g/n/ac 802.11 a/b/g/n/ac 802.11 a/b/g/n/ac
SSID SecurityWPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
2.4 GHzradio: 300 Mbps 2.4 GHz radio: 400 Mbps 2.4 GHz radio: 400 Mbps
Rate 5 GHzradio: 867 Mbps 5 GHz radio: 867 Mbps 5 GHz radio: 1733 Mbps
Ethernet 1 IEEEGigabit, auto sensing 1 IEEE Gigabit, auto sensing 2 IEEE Gigabit, auto sensing 1 port with Cambium 30V or 48V PoE Out
Internalomni-directional Internal omni-directional Internal omni-directional
Antenna
GHz:5 dBi GHz: 8 dBi GHz: 8 dBi
2.42.4 2.4 5 dBi 9 dB 8 dBi
5 GHz:5 GHz: 5 GHz:
2.4 GHz:26 dBm 2.4 GHz: 32 dBm 2.4 GHz: 33 dBm
5 GHz:26 dBm 5 GHz: 34.5 dBm 5 GHz: 36 dBm (EIRP limited by country regulations)
100 clientsper radio, 32 SSIDs (16 256 clients per radio, 32 SSIDs (16 512 clients per radio, 32 SSIDs (16
per radio)WPA-TKIP, WPA2 AES, per radio) WPA-TKIP, WPA2 AES, per radio) WPA-TKIP, WPA2 AES,
802.1x,802.11w PMF 802.1x, 802.11w PMF 802.1x, 802.11w PMF
Power 802.3afor 802.3at powered device 802.3af or 802.3at powered device 802.3at powered device
Typicalload: 8W, Max: 12W Typical load: 10W, Max: 12.95W Or 60 W Injector for max load with power-out Typical load: 18W, Max: 25W 40W when connected to full 802.3af load on GE 2 Canopy power out or 802.3af
Integratedpole, wall mount Integrated pole, wall mount Integrated pole 38 mm and 76 mm (1.5 in and 2.99 in) , wall mount cnPilot e505, e510, e700 Outdoor Access Points cont’d
Access Point Specifications
e505e510 e700
Dimensions 227mm x 130 mm x 70 mm 290 mm x 208 mm x 78 mm 315 mm x 215 mm x 66 mm
(8.94in x 5.12 in x 2.76 in) (11.32 in x 8.19 in x 3.07 in) (12.4 in x 8.46 in x 2.6 in)
800g (1.76 lbs) 1,100 g (2.43 lbs) 1,700g (3.75 lbs)
SingleTri-color LED Single Tri-color LED Two single color status LED
(amber,blue, green) (amber, blue, green)
Physical Lock Kensingtonslot Kensington slot Kensington Key Slot
Ambient op temp -30ºCto 60ºC -40ºC to 65ºC -40ºC to 65ºC
Storage temperature -40ºCto 70ºC -40ºC to 70ºC -40ºC to 70ºC
Humidity 95%RH non-condensing 95% RH non-condensing 95% RH non-condensing
–224 kph (139 mph) –
LTE Band filter –38, 40 38, 40
MTBF 116khours 420k hours 700k hours
–– Category 1
Certifications 802.11u,Hotspot 2.0 Wi-Fi Alliance 80211a/b/g/n/ac, Wi-Fi Alliance 802.11a/b/g/n/ac,
FCC,ETSI, CE, EN 60601-1-2, IEC60950 Passpoint 2.0 Passpoint 2.0
UL2043FCC, ETSI, CE, EN 60601-1-2, IEC60950 FCC, ETSI, CE, EN 60601-1-2, IEC60950 UL2043 UL2043 cnPilot e505, e510, e700 Outdoor Access Points
Management
OVER-THE-AIRAP & USER TRAFFIC MANAGEMENT Local breakout Power-out for SM Zero-touch provisioning
Zap perf clienttest Tunneling Controller-less Cloud dashboard KPIs cnMaestro roaming Client Location On-premises appliance API Auto RF/Channel NOC VM software MESH Interference
payment portalEmail / Webhooks notification avoidance VLAN Pooling/ NAT
CLIENTSWI-FI ACCESS POINTS INTERNET

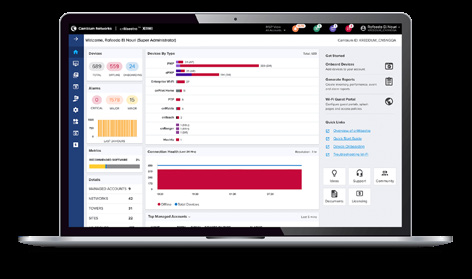

Cambium NetworkscnMaestro uses a distributed intelligence architecture with a cloud-first cnMaestro
management andedge-intelligent AP's that self-optimize for the RF environment. cnMaestro and cnPilot AP's
provide automaticRF management and seamless roaming, with a cloud-first, multi-site management for up
to 10,000 devicesand hundreds of thousands of connected clients. cnMaestro delivers single-pane-of-glass
management forCambium Networks broadband fixed wireless, cnMatrix Ethernet switches, enterprise-grade
Wi-Fi AP's andservice provider residential routers.
Interfaces HTTP / HTTPSweb interface, SSH, Telnet Hotspot 2.0 Hotspot 2.0 / Passpoint 2.0
SNMP V1,V2, V3 Accounting RADIUS accounting, load balancing AAA
Syslog, SNMPtraps, NTP servers, Dynamic Authorization COA, DM
Deployment Monetizedguest portal with design tools Service Critical network resource monitor with SSID Availabilty shutdown
Monetized,cloud managed guest portal
with designtools
Captive Portal Portal featureshosted on cnMaestro:
Design templates,customization tools
supports3rd party external portal
RADIUS/LDAP/ClickThrough authentication
Active Directory,Google, Facebook, Office
365, OAuth2.0
Data Rate/Throughputlimits, Time duration
Portal featureshosted on the AP:
supports3rd party external portal
RADIUS/LDAP/ClickThrough authentication
Data Rate/Throughputlimits, Time duration cnPilot e505, e510, e700 Outdoor Access Points
Network Specifications
Authentication 802.1xEAP-SIM/AKA/AKA’/FAST, EAP-PEAP, Network NAT, NAT logging firewall, DOS protection,
EAP-TTLS,EAP-TLS/MSCHAPv2, PEAPv0/ L2/L3/DNS ACL, DHCP server,
PEAPv1DHCP Relay option 82
MAC authenticationto local database (on LLDP, IGMP v1, v2
AP, onController) or external RADIUS. VLAN Pooling, RADIUS attribute VID
MAC authfallback to guest portal VLAN per SSID, per user Integrated WIDS (wireless intrusion
Scheduled WLAN On/off byday, week, time of day detection)
RESTfulmanagement and statistics API Band Steer Yes
Presencelocation API Load Balance
SplunkWebSocket integration, WebSocket Tunnel L2TPv2, L2GRE, PPPoE
DNS, NAT,TCP connection log Network and Out-of-band RF spectrum analysis, radio
QoS 802.11e/WMMQoS. DSCP/ToS mapping RF Management self test network assurance, RF monitor Tools
VLAN 802.11Q,max 4096 with channel/noise/interference, wired and wireless remote packet capture, ZapD
Fast Roaming 802.11r,OKC, cnMaestro assisted roam performance tool, rogue, AP detection
Sticky Client Enhancedroaming with thresholds
Multi-hop(2), either band
Auto RF:Manual, or automatic
Standards
Wi-Fi VHT MCS rates,256-QAM, HT20/40/80 MHz
Protocols
Transmit beamsteering,Airtime Fairness, Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC, 802.11k,
MIMO PowerSave, MRC, BPSK, QPSK, CCK, DSSS, OFDM. IEEE 802.11d/e/h/i/k/r/u/v cnPilot e505, e510, e700 Outdoor Access Points

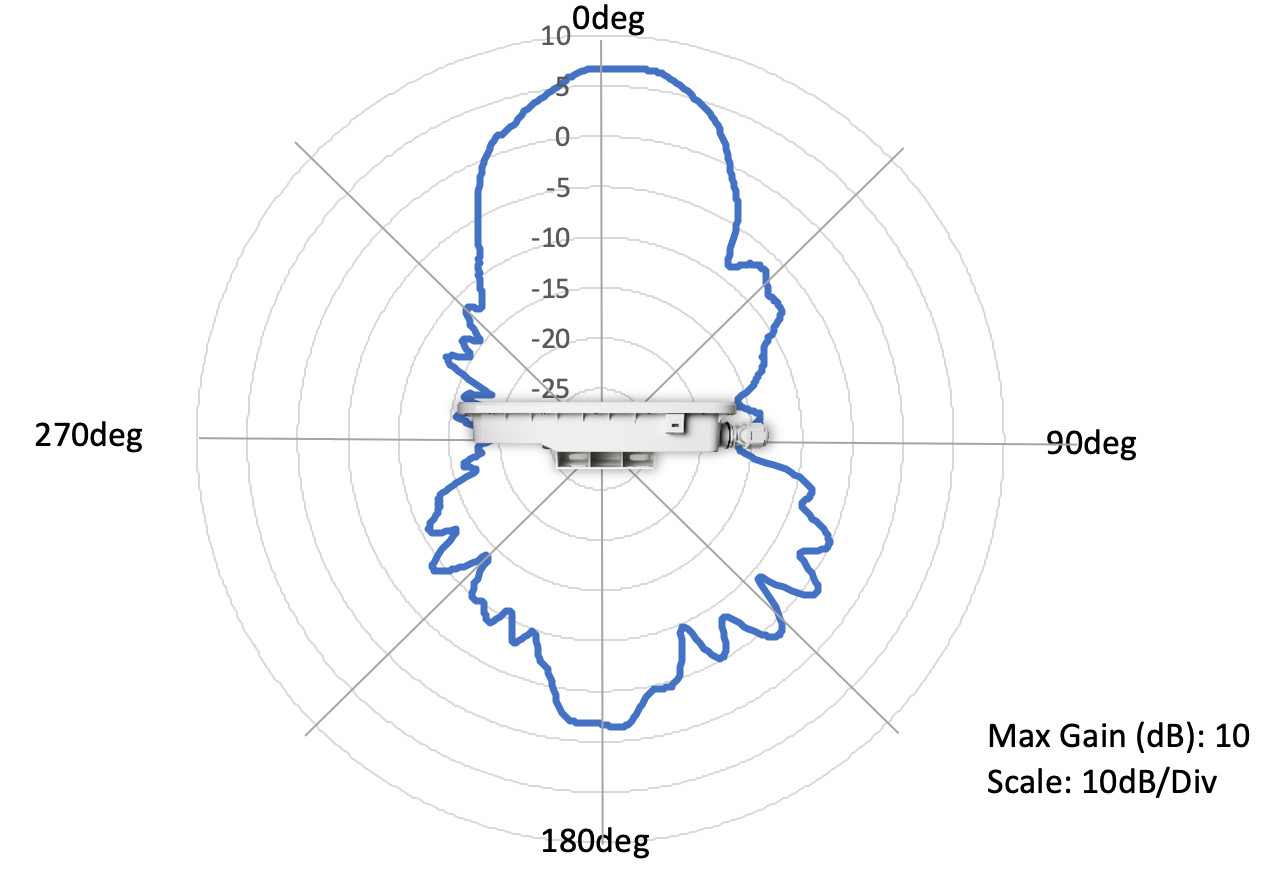

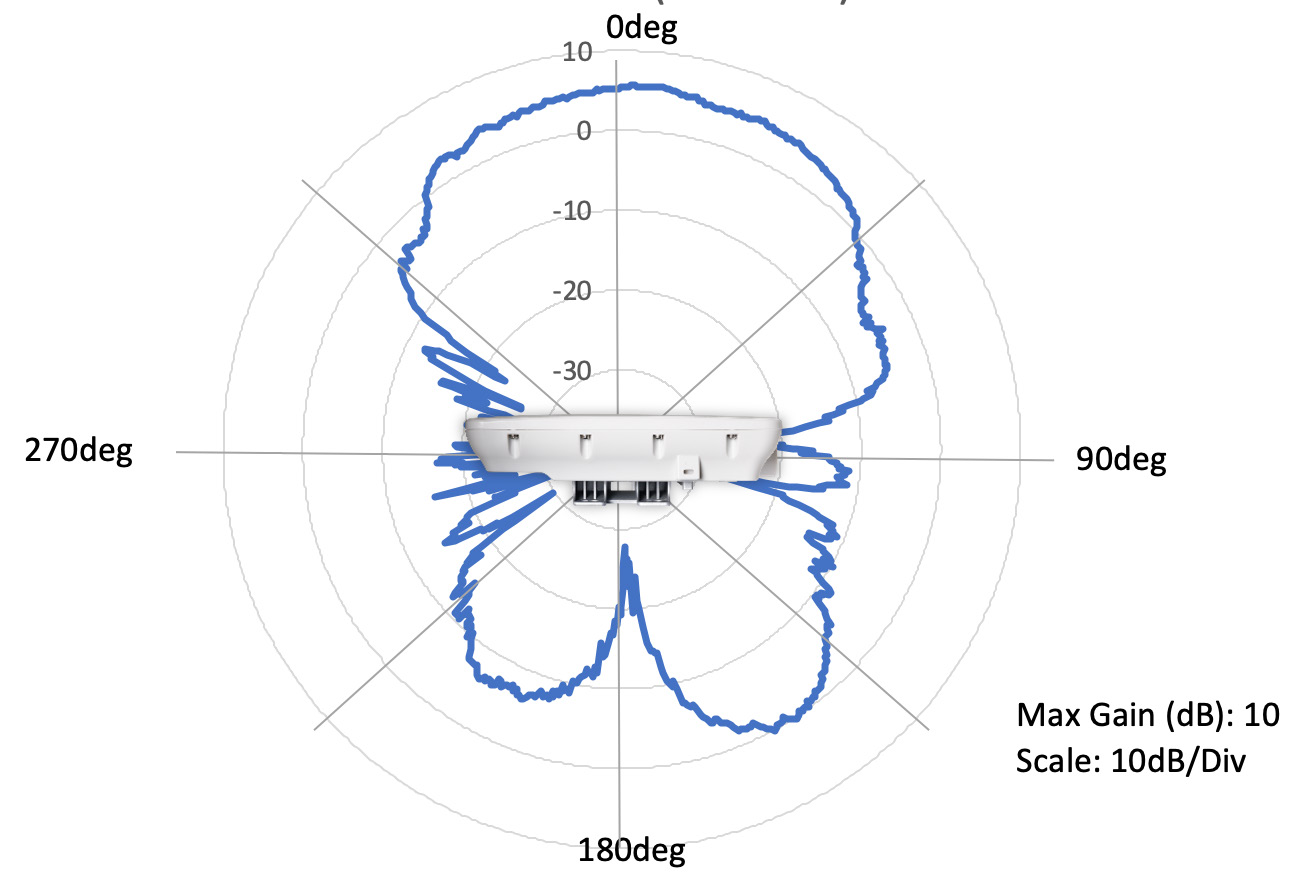

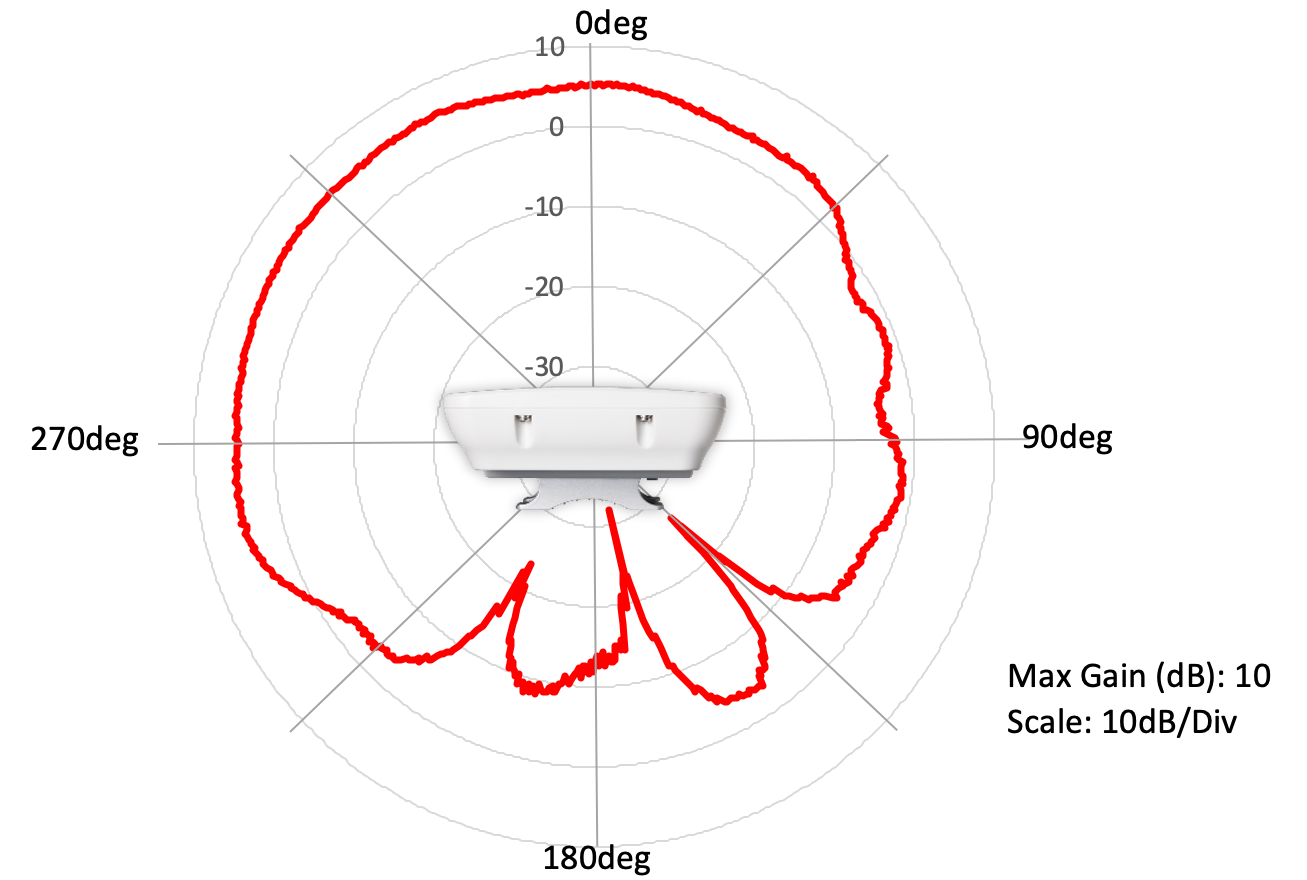

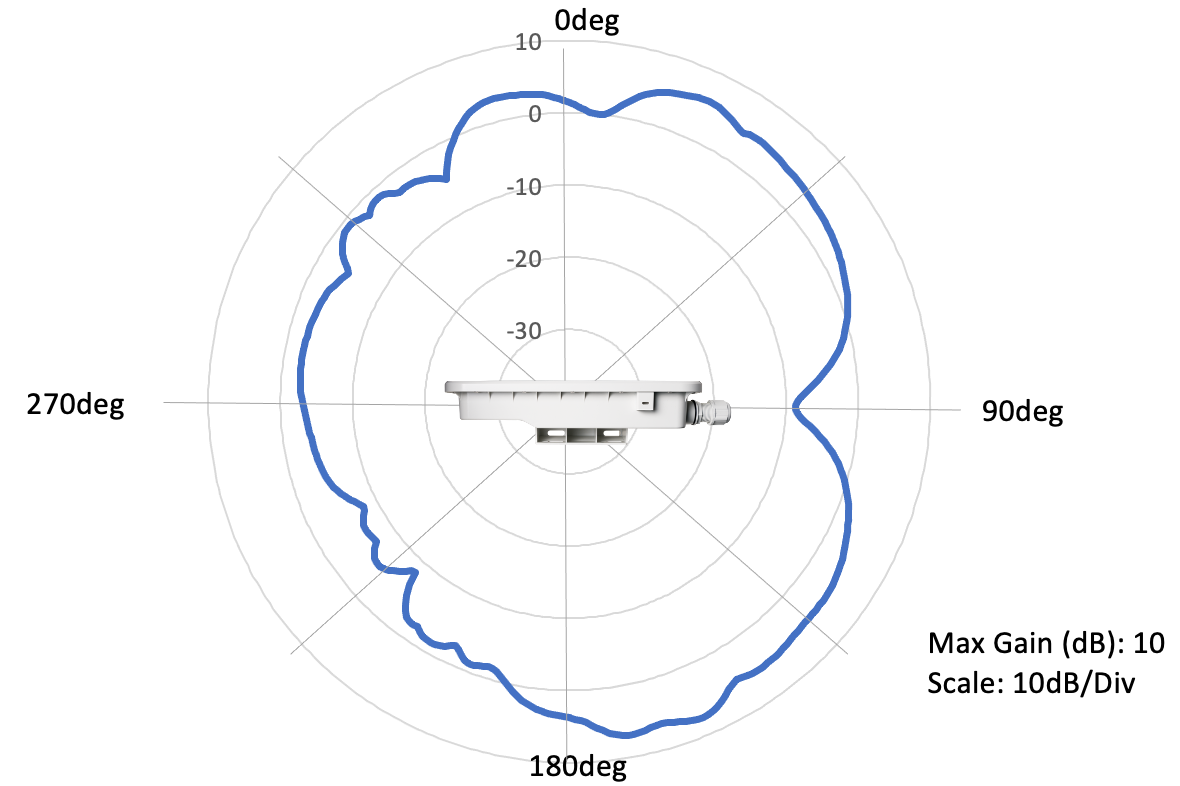

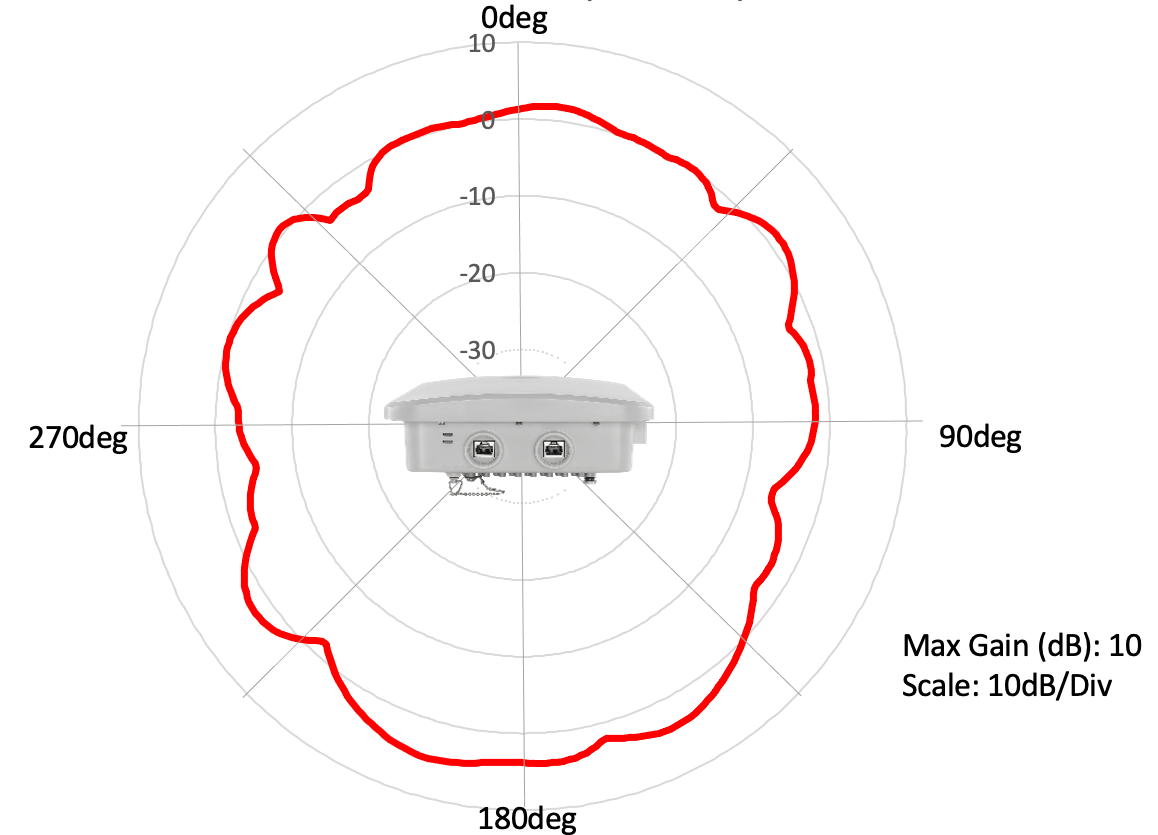

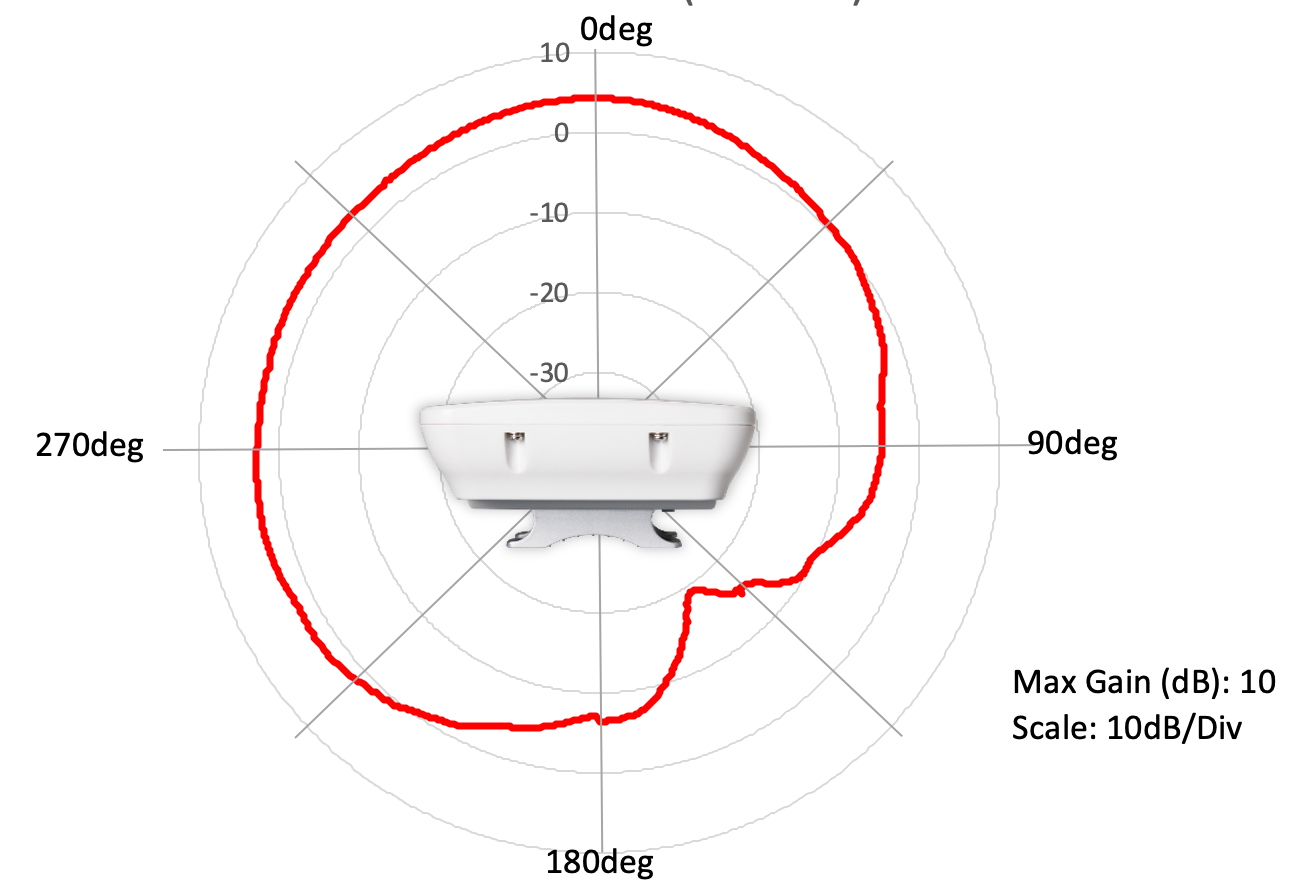

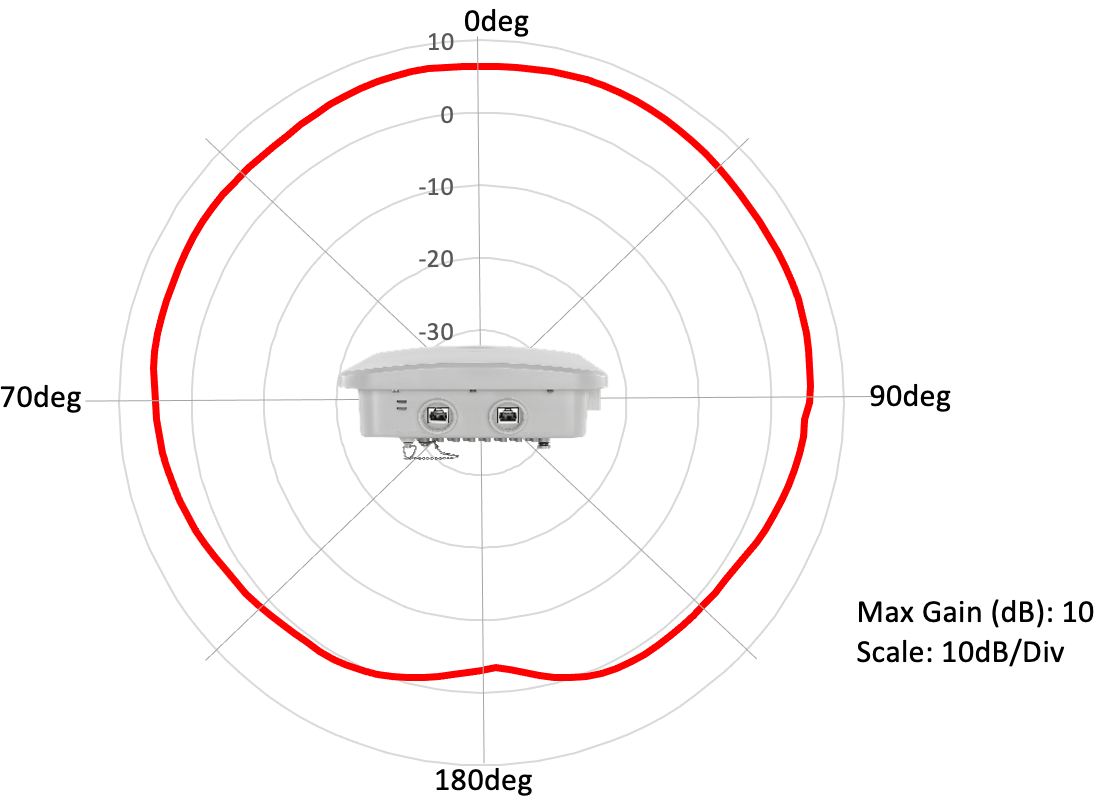

Antenna Patterns - e505
2.4 GHzAzimuth 2.4 GHz Elevation
5 GHzAzimuth 5 GHz Elevation cnPilot e505, e510, e700 Outdoor Access Points

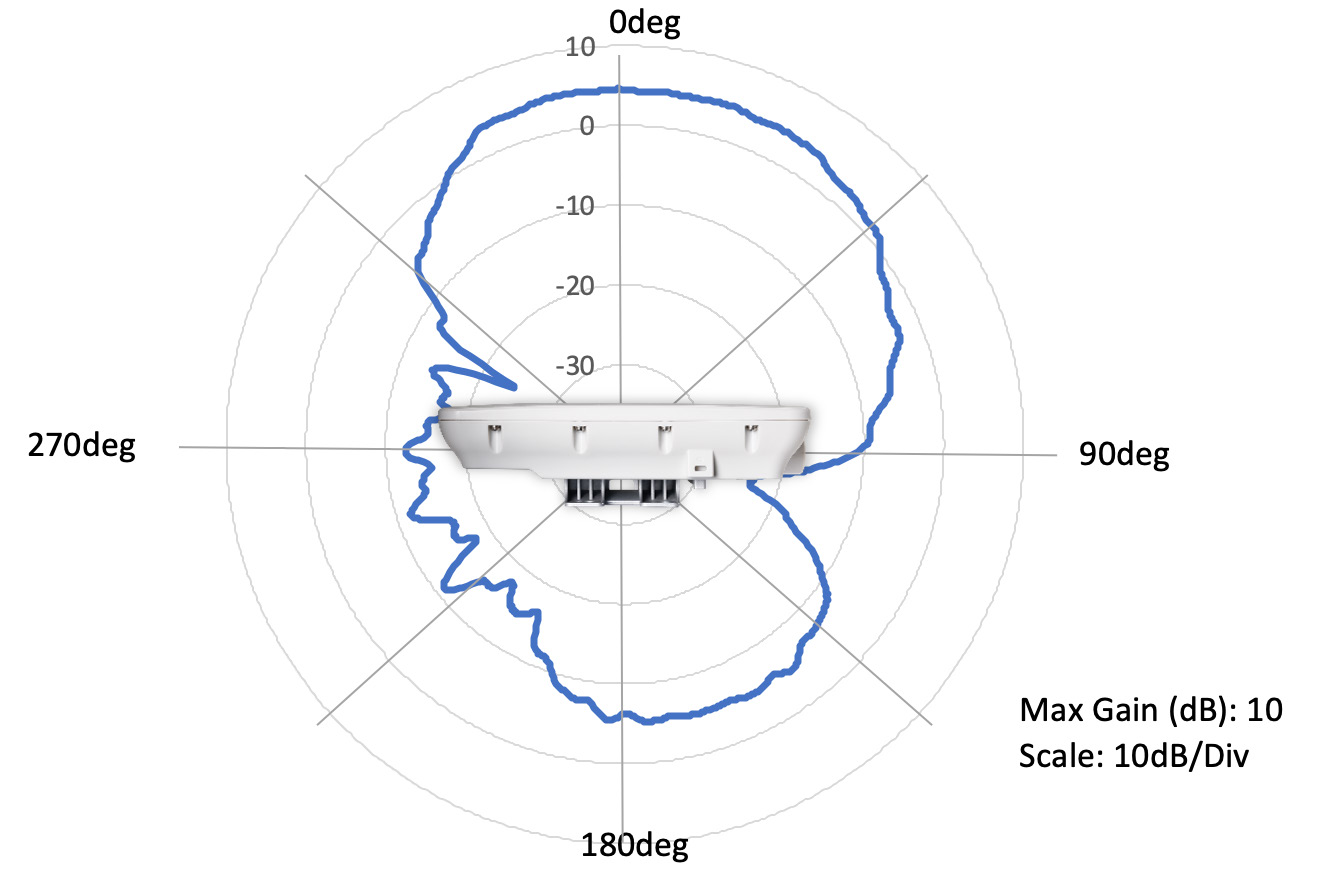

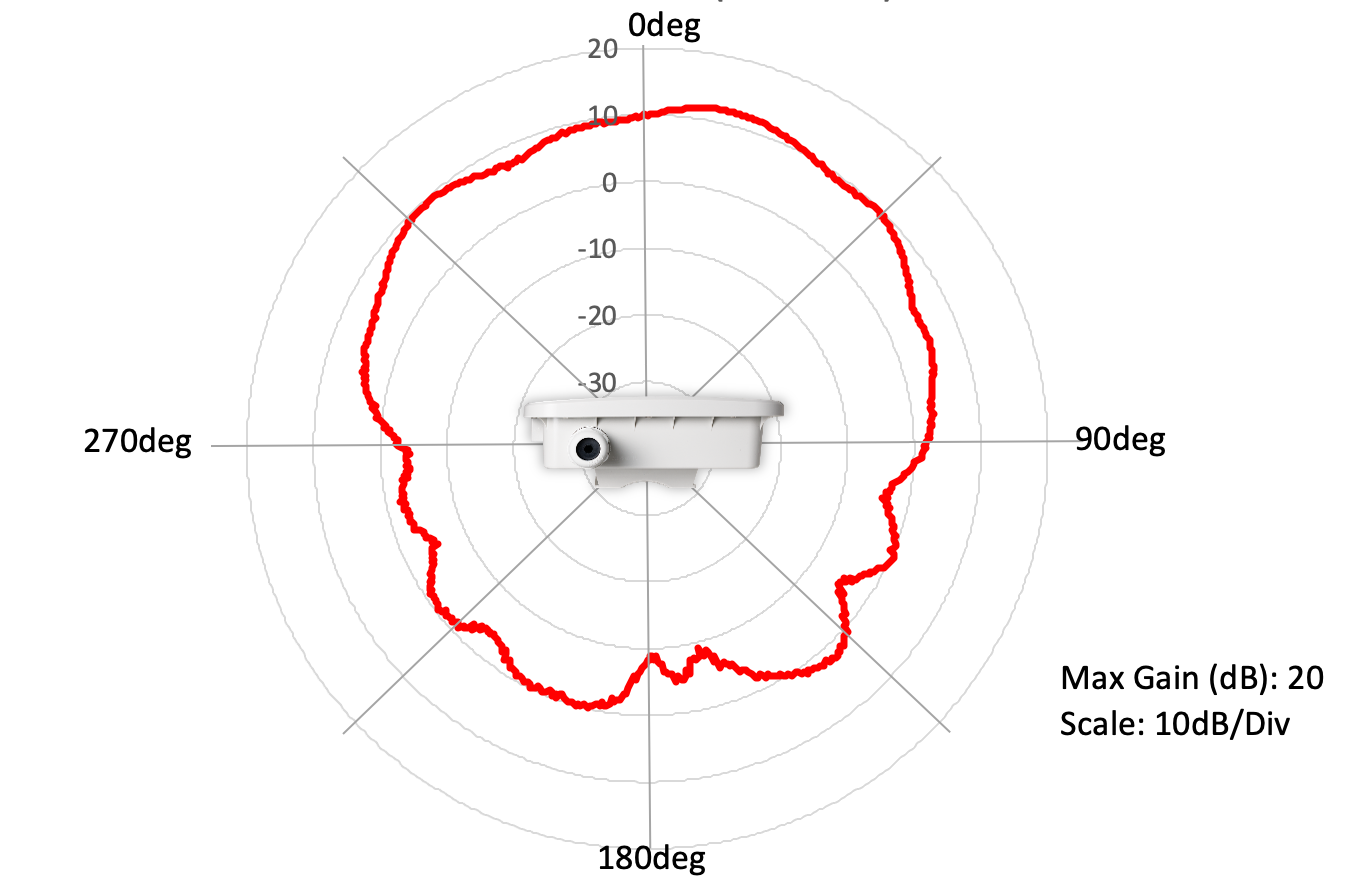

Antenna Patterns - e510
2.4 GHzAzimuth 2.4 GHz Elevation
5 GHzAzimuth 5 GHz Elevation cnPilot e505, e510, e700 Outdoor Access Points

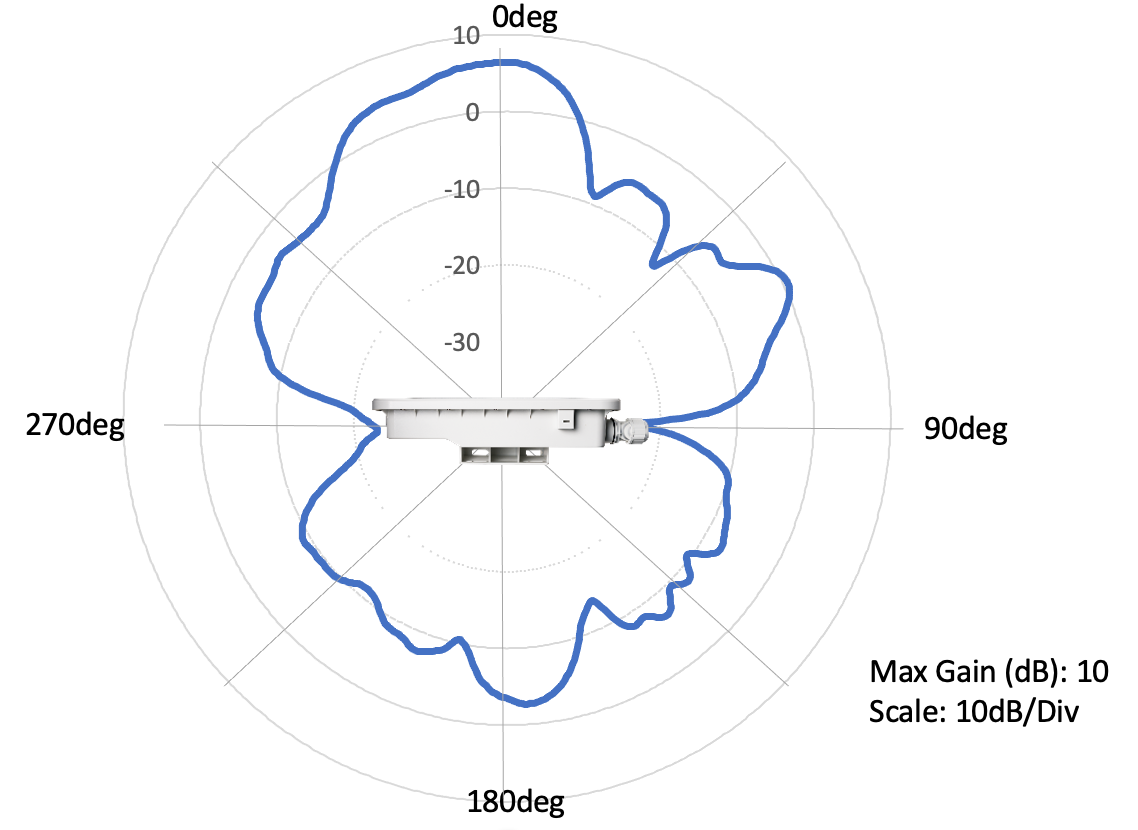

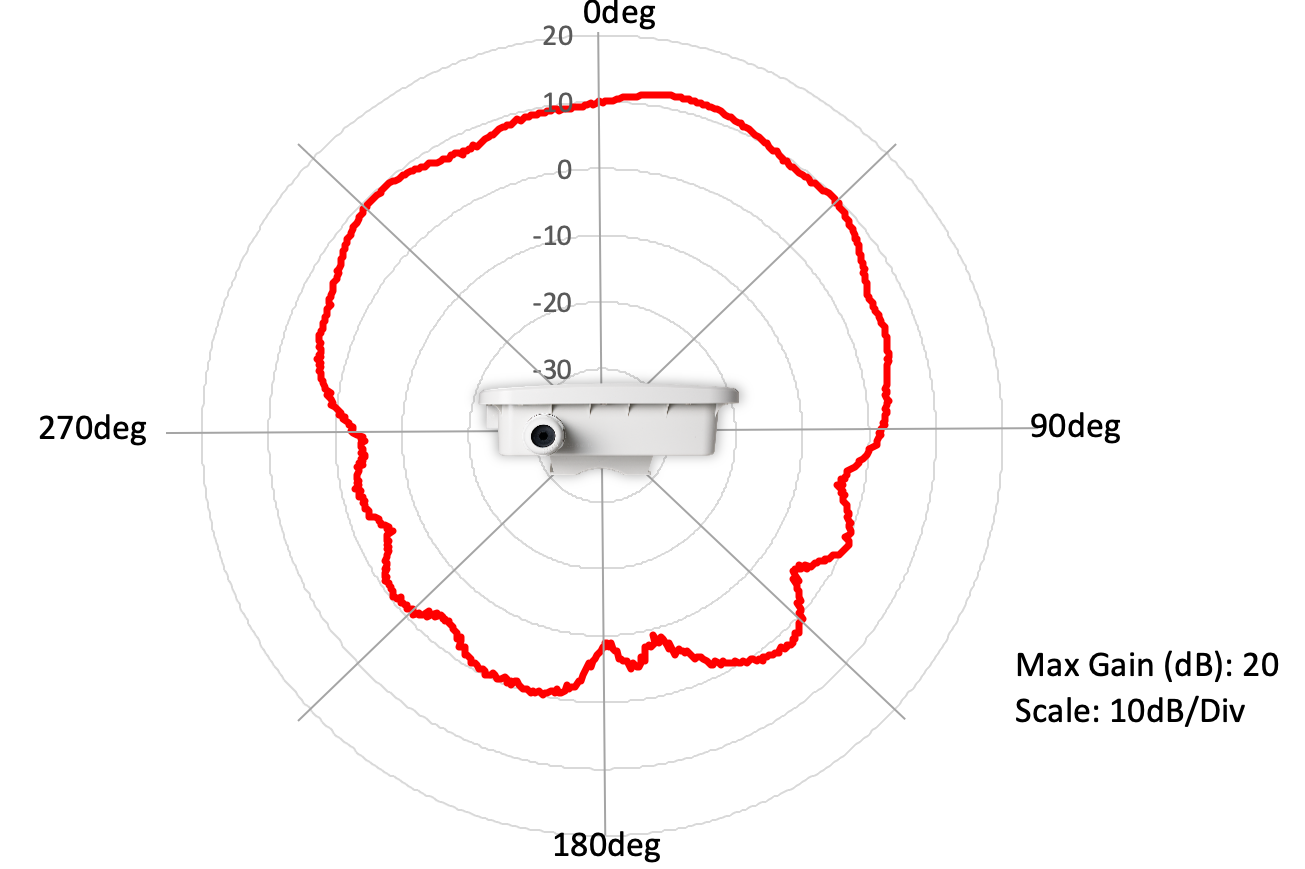

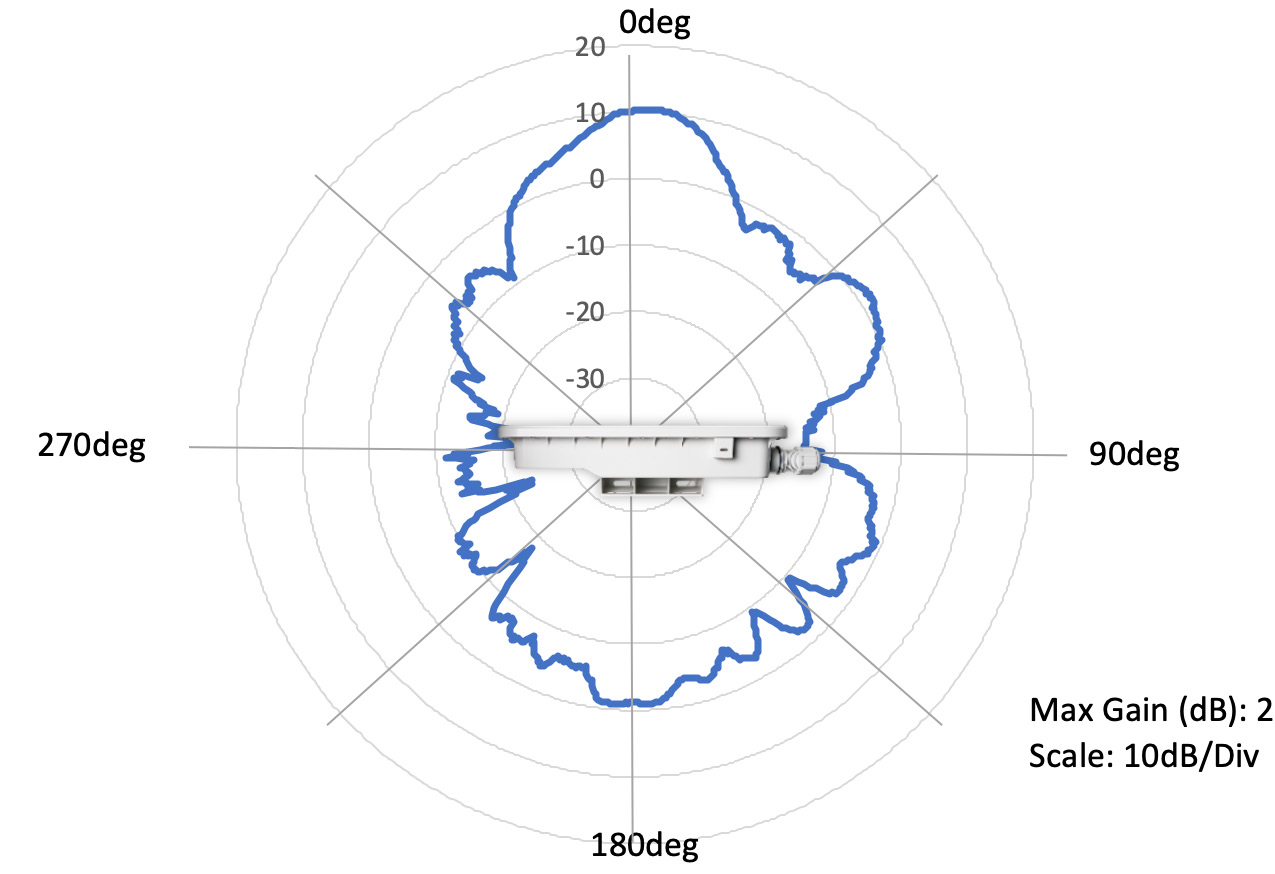

Antenna Patterns - e700
2.4 GHzAzimuth 2.4 GHz Elevation
5 GHzAzimuth 5 GHz Elevation cnPilot e505, e510, e700 Outdoor Access Points Bottom

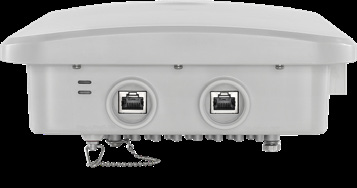

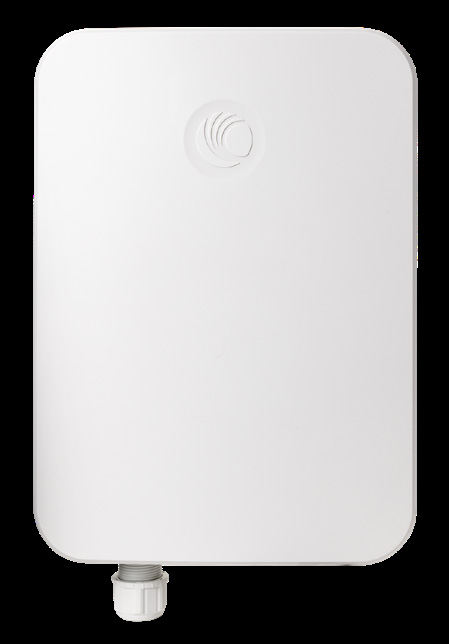

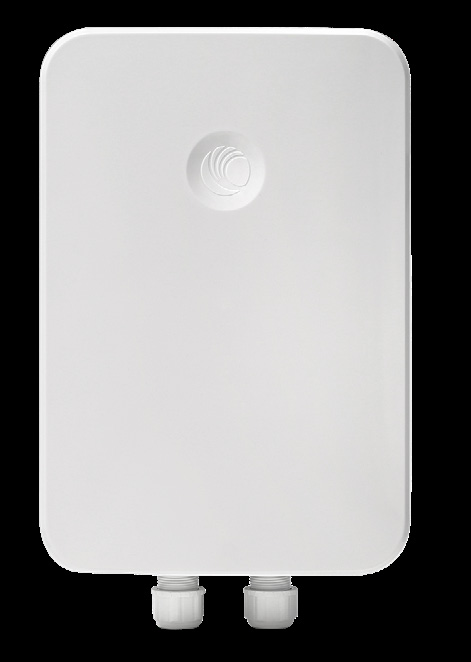

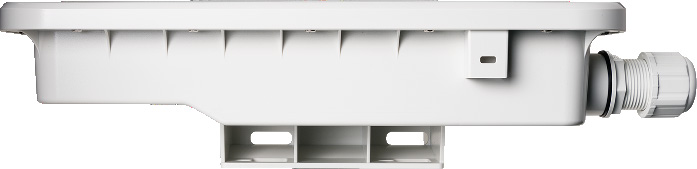

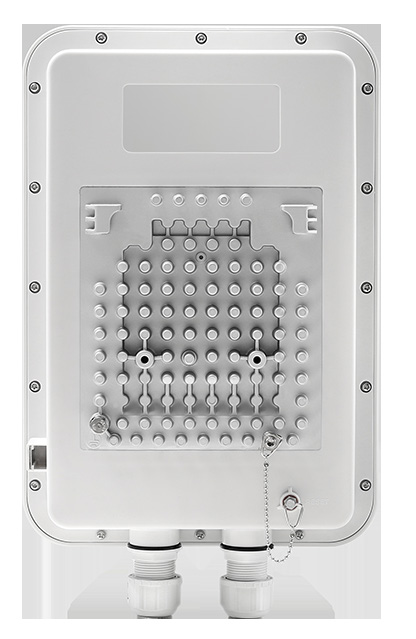

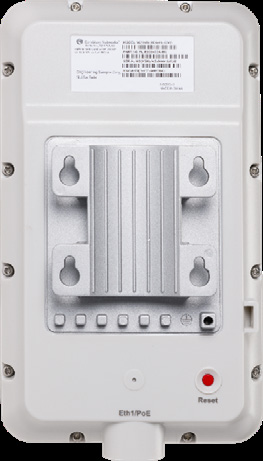

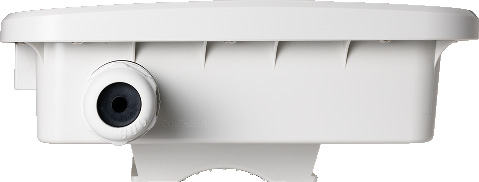

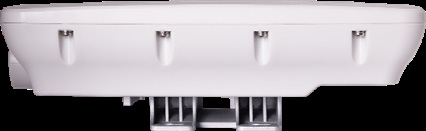

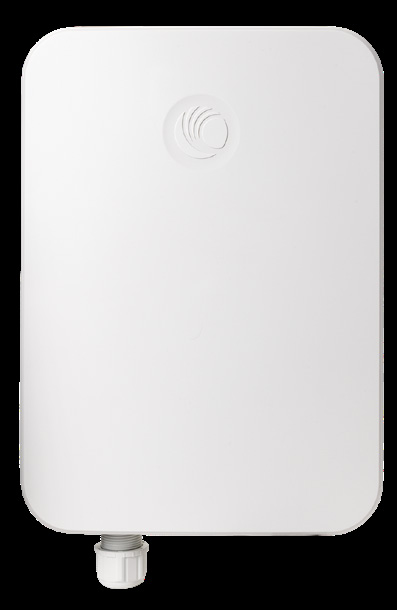

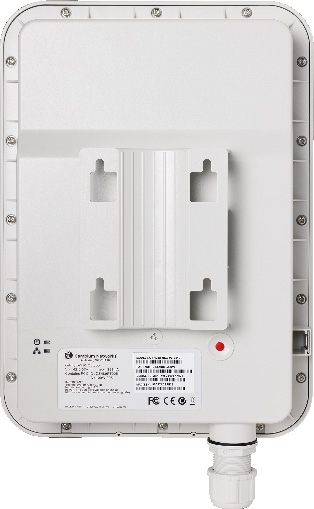

FrontBack Side Bottom

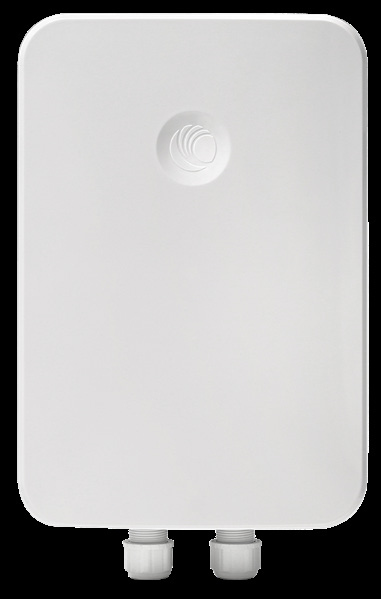

FrontBack Side Bottom
FrontBack cnPilot e505, e510, e700 Outdoor Access Points
PL-E505X00A-US e505Outdoor (FCC) 802.11ac Wave 2, 2x2, 5 dBi Omni AP, IP55
e505Outdoor (EU) 802.11ac Wave 2, 2x2, 5 dBi Omni AP, IP55
PL-E505X00A-RW e505Outdoor (ROW) 802.11ac Wave 2, 2x2, 5 dBi Omni AP, IP55
N000000L034A Powersupply, 30W, 56W, RJ45 – Gbps support. C5 AC port. AC line cord sold separately
PL-E510X00A-US e510Outdoor (FCC) 802.11ac Wave 2, 2x2, 8 dBi, WLAN AP
PL-E510X00A-EU e510Outdoor (EU) 802.11ac Wave 2, 2x2, 8 dBi, WLAN AP
PL-E510X00A-RW e510Outdoor (ROW) 802.11ac Wave 2, 2x2, 8 dBi, WLAN AP
Shockmount bracket for e510
PL-E700X00A-US e700Outdoor (FCC) 802.11ac Wave 2, 2x2/4x4, AP
e700Outdoor (EU) 802.11ac Wave 2, 2x2/4x4, AP
PL-E700X00A-RW e700Outdoor (ROW) 802.11ac Wave 2, 2x2/4x4, AP
cnMaestro X OrderingInformation
cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 1-year term
MSX-SUB-T3-3 cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 3-year term
MSX-SUB-T3-5 cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 5-year term
MSX-SUB-T3-M cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 1-month term cnPilot™ e505, e510, e700 Outdoor Access Points
Cambium Care OrderingInformation Cambium Care Advanced, 1-year support for one cnPilot e505, e510 or e700 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW Cambium Care Advanced, 3-year support for one cnPilot e505, e510 or e700 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW Cambium Care Advanced, 5-year support for one cnPilot e505, e510 or e700 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW Cambium Care Pro, 1-year support for one cnPilot e505, e510 or e700 AP. 24x7 TAC support and SW updates Cambium Care Pro, 3-year support for one cnPilot e505, e510 or e700 AP. 24x7 TAC support and SW updates Cambium Care Pro, 5-year support for one cnPilot e505, e510 or e700 AP. 24x7 TAC support and SW updates
Not all SKUs areavailable at first release. Consult your Cambium Networks distributor for country availability. LIMITED WARRANTY Cambium Networks cnPilot e505, e510, e700 are covered by an extended hardware warranty for a period of 3 years after point of sale.
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital experiences,
and device connectivity, withcompelling economics. Our ONE Network platform simplifies management of Cambium Networks wired and
wireless broadband and networkedge technologies. Our customers can focus more resources on managing their business rather than the
network. We make connectivitythat just works.
