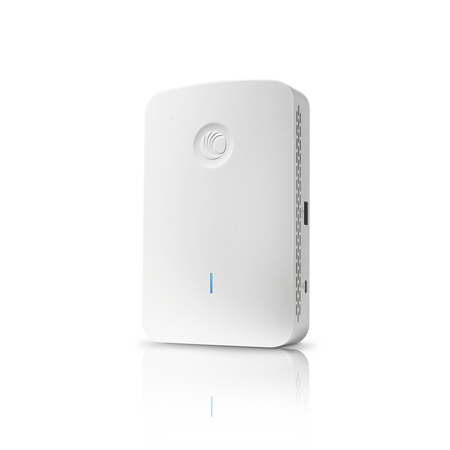

Cambium Networks cnPilot e425H Wi-Fi 5 Indoor Wall Plate

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi.

Talk to a Pro

cnPilot e425H

Specs: cnPilot e425, e430 Wall Plate

The Cambium Networks cnPilot™ e425H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Cambium Networks Products

cnPilot Enterprise Indoor Wi-Fi

cnPilot e425H

#PL-E425H00A-US
Our Price: $248.40

Click here to jump to more pricing!

Product Overview

Cambium Networks cnPilot e425H Wi-Fi 5 Indoor Wall Plate

Cambium Networks delivers high-performance Wi-Fi to meet the needs of the most demanding enterprises. Give users consistent, wired-like performance plus superior coverage and security depending on your needs — from a single, small office network to global, multi-site networks. Cambium management solutions offer public cloud, private cloud, and on-premises options optimized for scalability, zero-touch provisioning, and simplified operations.

Wi-Fi 5IndoorWall Plate

Product Highlights

GHz (2x2), 2.4 GHz (2x2)

e425: passive PoE out; e430: 802.3af compliant PoE out

DO-NOT-DISTURB HOTEL DESIGN

Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the cnPilot™ e425 and e430 wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS.

CLOUD-MANAGED ACCESS

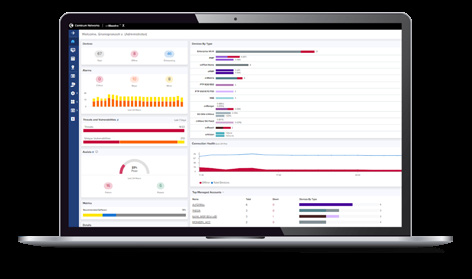

All cnPilot access points are managed by cnMaestro™ from the cloud, an on-premises VM or a private datacenter. cnMaestro provides single-pane- of- glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.

DESIGNED FOR FAST INSTALLATION

e425 and e430 install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. e425 has three gigabit Ethernet ports, while the e430 has four gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer routing, DHCP, and firewall. Deliver watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.

managed guest portal with social login, vouchers, rate, time and throughput limits cnMaestro Essential cloud management is included at no additional cost. There are no setup fees, licenses or recurring costs. cnMaestro includes detailed network statistics, channel utilization graphs, and integrated remote troubleshooting tools to ensure service is always on. Wall plate AP’s are ideal for hotels, dormitory housing, MDU, and micro-cell Wi-Fi where fast installation and discreet aesthetics are desired.

Ideal Applications

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi. MSP-managed networks leveraging cnMaestro for zero-touch provisioning and real-time monitoring.

Product Images

13 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the cnPilot e425H to ensure compatibility with your deployment.

Access Point Specifications

e425e430

US-FCC Ch 1-11,36-64, 100-144, 149-165 Ch 1-11, 36-64, 100-144, 149-165

ISED Canada Ch 1-11,36-64, 100-116, 149-165 Ch 1-11, 36-64, 100-116, 149-165

EU-ETSI Ch 1-13,36-64, 100-140 Ch 1-13, 36-64, 100-140

ROW Ch 1-13,36-64, 100-144, 149-173 Ch 1-13, 36-64, 100-144, 149-173

Individualcountry limits apply Individual country limits apply

Radios 1 x 5GHz radio (802.11a/n/ac Wave 2), 2x2 1 x 5 GHz radio (802.11a/n/ac Wave 2), 2x2

1 x 2.4GHz (802.11b/g/n), 2x2 1 x 2.4 GHz (802.11b/g/n), 2x2

SU-MIMO/ MU-MIMO: 2 streams SU-MIMO / MU-MIMO: 2 streams Integrated Bluetooth Smart radio

802.11a/b/g/n/ac Wave 2 802.11 a/b/g/n/ac Wave 2 WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open

SSID Security

Max PHY Rate2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps

Ethernet ThreeIEEE Gigabit Ethernet auto sensing Four IEEE Gigabit Ethernet auto sensing

USB port Yes-

Internalomni-directional Internal omni-directional

Antenna

2.4 GHz:3.84 dBi 5 GHz: 4.08 dBi 2.4 GHz: 3.57 dBi 5 GHz: 4.96 dBi 27 dBm 25 dBm 26 dBm 25 dBm

2.4 GHz:5 GHz: 2.4 GHz: 5 GHz:

(EIRPlimited by country regulations) (EIRP limited by country regulations)

100 clientsper radio,32 SSIDs (16 per radio) 256 clients per radio, 32 SSIDs (16 per radio)

WPA-TKIP,WPA2 AES, 802.1x, 802.11w PMF WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF

Power 802.3afor 802.3at powered device Typical load, no power out: 9W (12.95W max) Typical load, with 15.4W power out: 25W (25.5W max)

Typicalload, no power out: 8W (12.95W max) Power out: 15.4W when input is 802.3at

Typicalload, with 15.4W power out: 24W (25.5W max) 2.1 mm DC barrel connector, 48V

MTBF 511k hoursat 25ºC; 121.79k hours 45ºC 261k hours at 25ºC, 121.79k hours 45ºC

147 mmx 94 mm x 32 mm 147 mm x 94 mm x 32 mm

(5.79in x 3.7 in x 1.26 in) (5.79 in x 3.7 in x 1.26 in)

268 g(0.59 lb) 390 g (0.86 lb)

Kensingtonlock slot, secure bracket Kensington lock slot, secure bracket

Security

LEDs Tri-colorstatus LEDs Tri-color status LEDs

0ºC to40ºC (32ºF to 104ºF) 0ºC to 40ºC (32ºF to 104ºF)

-40ºCto 70ºC (-40ºC to 158ºF) -40ºC to 70ºC (-40ºC to 158ºF)

Humidity 95%RH non-condensing 95% RH non-condensing

Network Specifications

Authentication 802.1x EAP-SIM/AKA/AKA’/FAST,EAP-PEAP, Network NAT, NAT logging firewall, DOS protection,

EAP-TTLS,EAP-TLS/MSCHAPv2, PEAPv0/ L2/L3/DNS ACL, DHCP server, DHCP Relay

PEAPv1option 82

MAC authenticationto local database (on AP, LLDP, IGMP v1, v2

on Controller)or external RADIUS. MAC auth VLAN Pooling, RADIUS attribute VID

fallbackto guest portal VLAN per SSID, per user Integrated WIDS (wireless intrusion

Scheduled WLAN On/off byday, week, time of day detection)

RESTfulmanagement and statistics API Band Steer

Presencelocation API Yes Load Balance

SplunkWebSocket integration, WebSocket

DNS, NAT,TCP connection log Tunnel L2TPv2, L2GRE, PPPoE

QoS 802.11e/WMMQoS. DSCP/ToS mapping Network and Out-of-band RF spectrum analysis, RF RF Management monitor with channel/noise/interference,

VLAN 802.11Q,max 4096 Tools wired and wireless remote packet capture,

Fast Roaming 802.11r,OKC, cnMaestro assisted roam ZapD performance tool, rogue AP detection

Enhancedroaming with thresholds

Multi-hop(2), either band

Auto RF:Manual, or automatic

Management

HTTP / HTTPSweb interface, SSH, Telnet Portal features hosted on cnMaestro:

InterfacesCaptive Portal

SNMP V1,V2, V3 Design templates, customization tools

Syslog, SNMPtraps, NTP supports 3rd party external portal RADIUS/LDAP/Click Through authentication

Deployment cnMaestroCloud, cnMaestro on-premises, Active Directory, Google, Facebook, Office

StandaloneAP 365, OAuth 2.0 Data Rate/Throughput limits, Time duration

Services Monetizedguest portal with design tools Portal features hosted on the AP: supports 3rd party external portal RADIUS/LDAP/Click Through authentication Data Rate/Throughput limits, Time duration Hotspot 2.0 802.11u, HotSpot 2.0 Accounting RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM Service Critical network resource monitor with SSID Availabilty shutdown cnPilot e425, e430 Indoor Wi-Fi Access Points

e430H Solution ArchitectureView Wi-Fi Devices

Role BasedAccess Control PoE Powered IP Phone Eth: IPTV Set-top Box Eth connected clients APIs Pass-thru non-IP devices

e430H Radio Unit andAccessories Wall bracket slots Eth1/In-wall unit Pass-thru port Kensington lock slot Pass-thru port Eth4: 802.3af PoE-out Eth2, 3: Ethernet ports

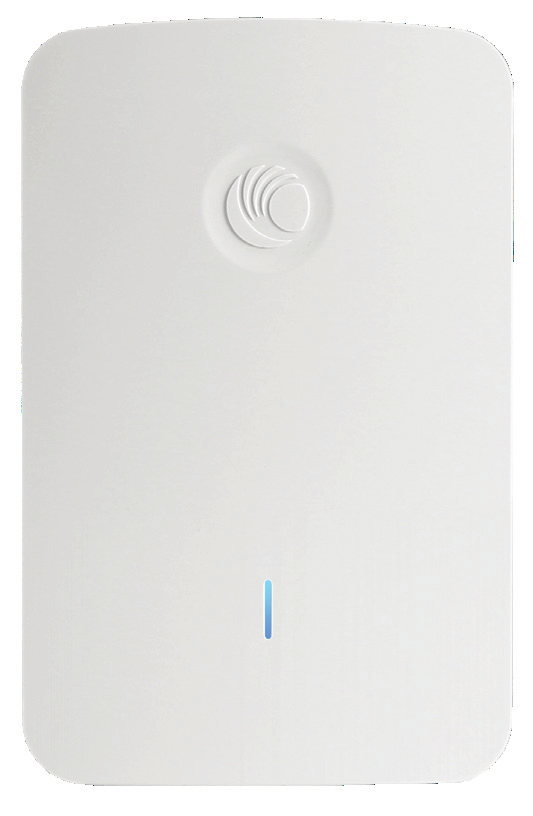

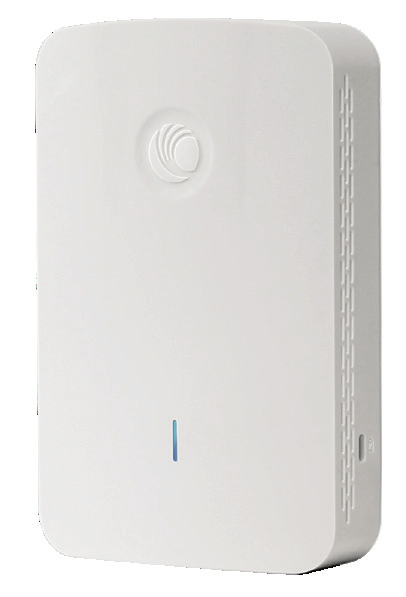

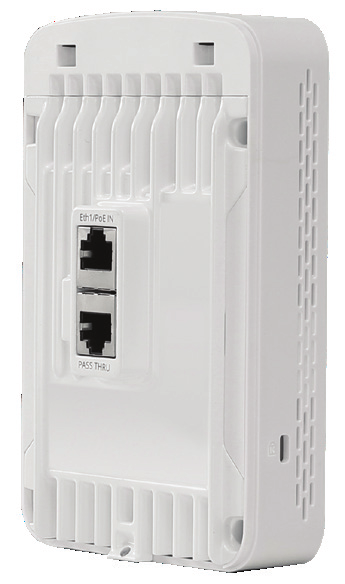

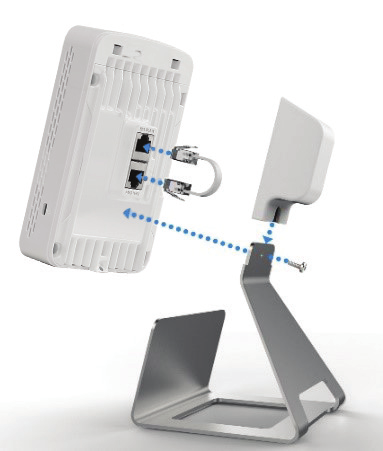

e430H Radio FrontFacing e430H Radio Rear Facing Optional Accessory: Desktop Stand

Optional Accessory:Optional Accessory: Optional Accessory:

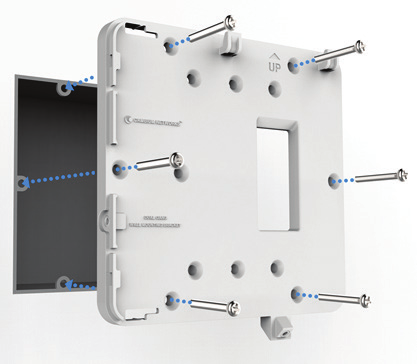

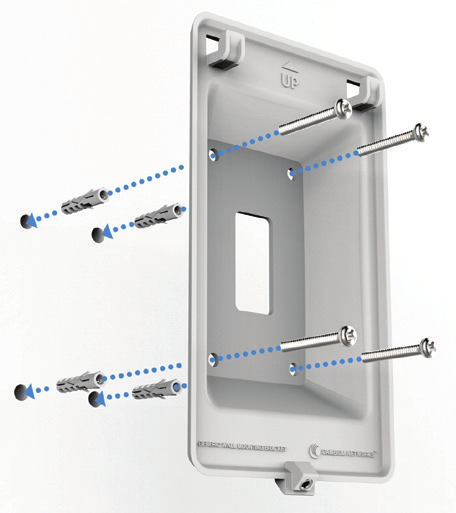

Single-GangBracket Dual-Gang Bracket Generic Wall Bracket

The e430H is designedto be powered by an external PoE injector. Alternatively, it may be powered by an external 48V/1A DC

adapter (sold separately).Other optional accessories are available for separate purchase. cnPilot e425, e430 Indoor Wi-Fi Access Points

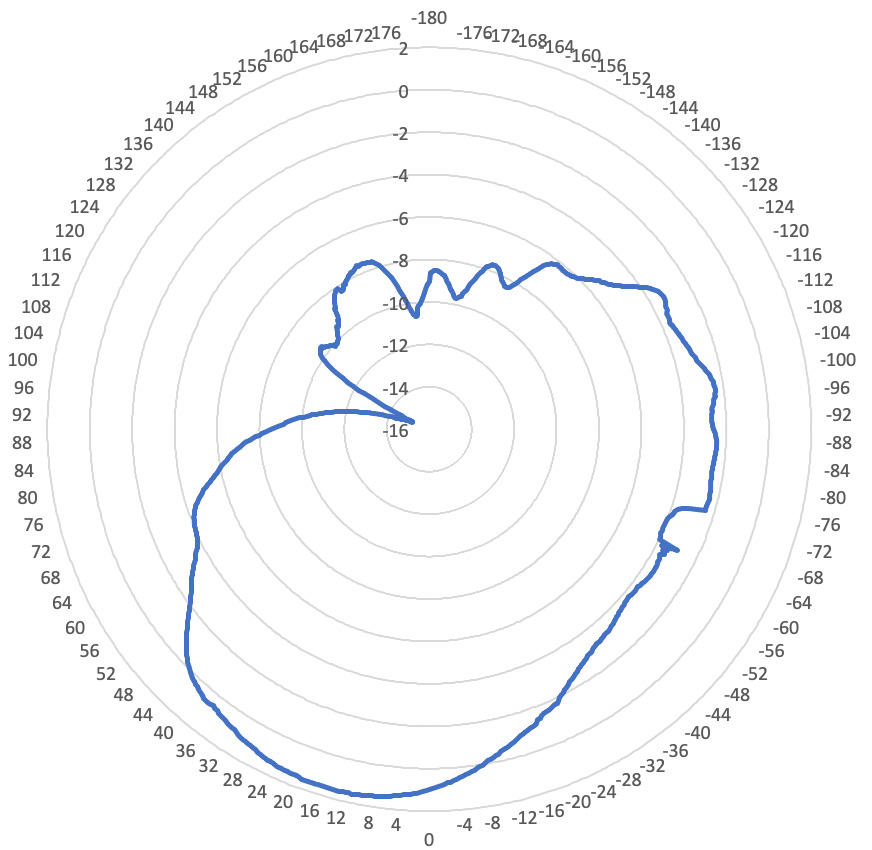

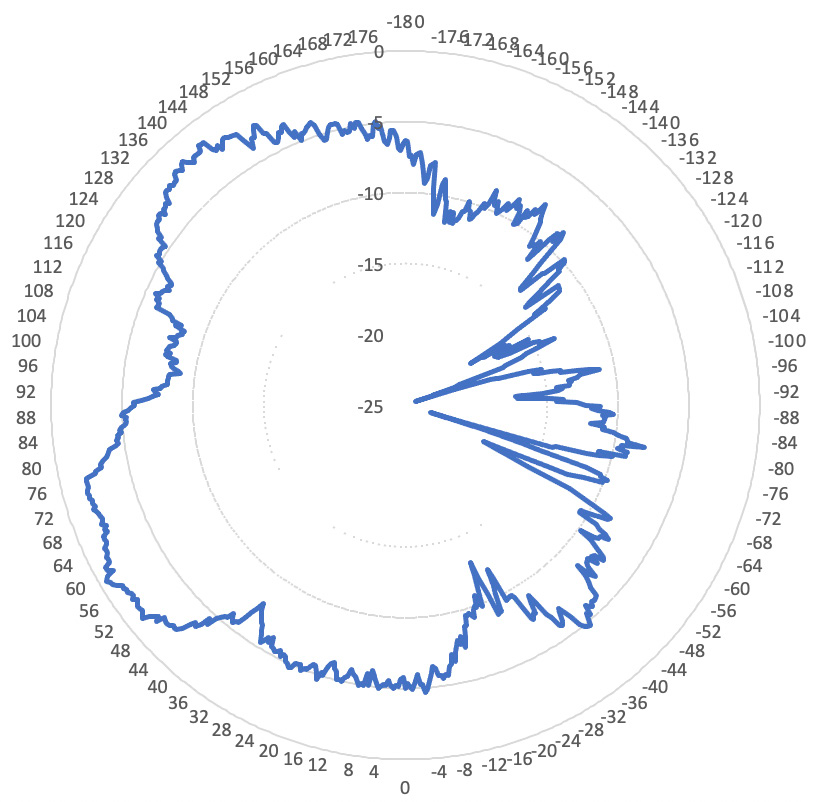

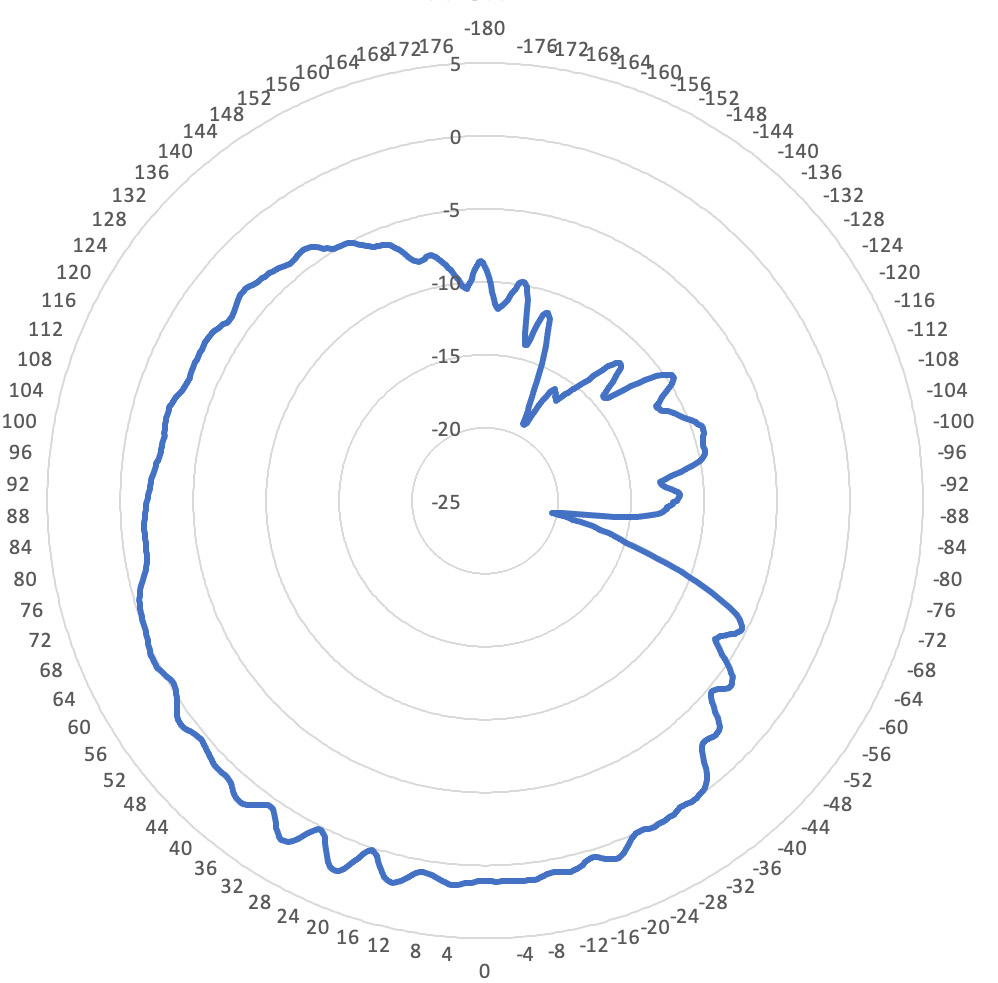

e425 Antenna Patterns

2.4 GHzElevation 2.4 GHz Azimuth

5 GHzElevation 5 GHz Azimuth cnPilot e425, e430 Indoor Wi-Fi Access Points

e430 Antenna Patterns

GH2.z45E_Elelevvaa(cid:11)tioonn

2.42.4 GHz Azimuth 2.45 GHz Azimuth

Angle0

10Bo(cid:8)omSide 10.0

-30-30 30 30 Front Side

55.0

00.0

-60-60 60

-560 -5.0

-10-10.0

-15-15.0

-90 -2090 -90 -20.0

-120120 120 -120 TopSide

-150150 -150 150 E430_2.45_Eleva(cid:11)on E430_2.45_Azimuth

180180

5.5 GHzEleva(cid:9)on

5 GHz Elevation5 GHz Azimuth 5.5GHz Azimuth

Angle 0 Bo(cid:129)omSide -30 30 Front Side

-6060 -60 60 -5 -10 -15

-2090 -90 -20 -120 TopSide

-150150 -150 150

180E430_5.5_Eleva(cid:9)on E430_5.5_Azimuth

Standards

Wi-Fi VHT MCS rates,16/64/256-QAM, HT20/40/80 MHz

Protocols

Transmit beamsteering,Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC

MIMO PowerSave, MRC, BPSK, QPSK, CCK, DSSS, OFDM. IEEE 802.11d/e/h/i/k/r/u/v cnPilot e425, e430 Indoor Wi-Fi Access Points

PL-E425H00A-USe425H Indoor (FCC) 802.11ac Wave 2, Wall plate WLAN AP w/ single-gang wall bracket e425H Indoor (EU) 802.11ac Wave 2, Wall plate WLAN AP w/ single-gang wall bracket e425H Indoor (ROW) 802.11ac Wave 2, Wall plate WLAN AP w/ single-gang wall bracket

PL-E425H00A-ILe425H Indoor (Israel) 802.11ac Wave 2, Wall plate WLAN AP w/ single-gang wall bracket

PL-E425H00A-CAe425H Indoor (Canada) 802.11ac Wave 2, 2x2, Wall plate AP with single-gang wall bracket

PL-E425H00A-USe425H Indoor (FCC) 802.11ac Wave 2, Wall plate WLAN AP w/ single-gang wall bracket e430H Indoor (FCC) 802.11ac Wave 2, 2x2, Wall plate WLAN AP with single-gang wall bracket e430H Indoor (EU) 802.11ac Wave 2, 2x2, Wall plate WLAN AP with single-gang wall bracket

PL-E430H00A-RWe430H Indoor (ROW) 802.11ac Wave 2, 2x2, Wall plate WLAN AP with single-gang wall bracket

PL-E430H00A-EGe430H Indoor (EG) 802.11ac Wave 2, 2x2, Wall plate WLAN AP with single-gang wall bracket

PL-DUWLGNGB-WWe430H Wall bracket single gang junction box e430H Wall bracket single gang junction box e430H Wall bracket generic wall mounting of AP

AX-ETHJMPRA-WWFlat Cat6 Ethernet Cable, 50mm

PL-DTSTANDB-WWe430H Desktop Stand

cnMaestro X OrderingInformation

cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 1-year term

MSX-SUB-T3-3 cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 3-year term

MSX-SUB-T3-5 cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 5-year term

MSX-SUB-T3-M cnMaestroX for Enterprise: Advanced management and includes Cambium Care Pro Support; 1-month term cnPilot™ e425, e430 Indoor Wi-Fi Access Points

Cambium Care OrderingInformation Cambium Care Advanced, 1-year support for one cnPilot cnPilot e425 or e430 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW Cambium Care Advanced, 3-year support for one cnPilot cnPilot e425 or e430 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW Cambium Care Advanced, 5-year support for one cnPilot cnPilot e425 or e430 AP. 24x7 TAC support, SW updates, and NBD advance replacement for HW Cambium Care Pro, 1-year support for one cnPilot cnPilot e425 or e430 AP. 24x7 TAC support and SW updates Cambium Care Pro, 3-year support for one cnPilot cnPilot e425 or e430 AP. 24x7 TAC support and SW updates Cambium Care Pro, 5-year support for one cnPilot cnPilot e425 or e430 AP. 24x7 TAC support and SW updates LIMITED WARRANTY Cambium Networks cnPilot e425 and e430H are covered by a limited lifetime hardware warranty for a period of 5 years after point of sale.

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital experiences,

and device connectivity, withcompelling economics. Our ONE Network platform simplifies management of Cambium Networks wired and

wireless broadband and networkedge technologies. Our customers can focus more resources on managing their business rather than the

network. We make connectivitythat just works.
