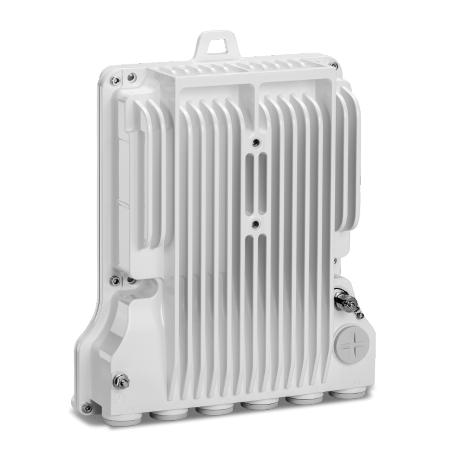

Cambium Networks PTP 850E

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses.

Cambium Networks PTP 850E
Talk to a Pro
Contact Us 855-958-0754 Email Sales
PTP 850E
  • Specs: Capable of 512 QAM with ACM
  • All outdoor, 71-86 GHz, up to 10 Gbps

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
Cambium Networks Products
PTP Series
PTP850E All-Outdoor Radio 80GHz ODU, 10Gbps, High, Tx 81-86GHz, Rx 71-76GHz
#C800085B001A
Our Price: $4,095.00
PTP850E All-Outdoor Radio 80GHz ODU, 10Gbps, Low, Tx 71-76GHz, Rx 81-86GHz
#C800085B002A
Our Price: $4,095.00
PTP850E All-Outdoor Radio 80GHz ODU with 43 dBi Antenna, 10Gbps, High, Tx 81-86GHz, Rx 71-76GHz
#C800085B003A
Our Price: $6,142.50
PTP850E All-Outdoor Radio 80GHz ODU with 43 dBi Antenna, 10Gbps, Low, Tx 71-76GHz, Rx 81-86GHz
#C800085B004A
Our Price: $6,142.50

Click here to jump to more pricing!

Product Overview

Cambium Networks PTP 850E

All outdoor, 71-86 GHz, up to 10 Gbps

PTP

Product Highlights

Features

BPSK to QAM with hitless ACMB (Adaptive Coding 1+0, 2+0 (XPIC), 1+1 HSB

*Roadmap feature

Port 4: QSFP – x 1/10 GE or x GE traffic interface (QSFP+); option for SFP+ (1 x GE) with adaptor Port 5: SFP, GE (SFP+) NOTE: SFP+ and QSFP+ devices must be of industrial grade (-40°C to +85°C)

Built-in frequency scanner to determine the current Multiband with PTP 820C, PTP 820C HP, PTP 820S, Adaptive bandwidth notification (EOAM)* Supports E-stabilizer antenna

Port 2: RJ45, GE/management/PoE

Port 3: SFP28 cage, 1/2.5 GE multiband port

MTU 9,612 bytes

Quality of Service Multiple classification criteria (VLAN ID, p-bits, IPv4 CoS queues per port Deep buffering (configurable up to Mbit per queue)

VLAN add/remove/translate

Network Protocols MSTP, ERP (ITU-T G.8032) Y.1731 Ethernet OAM Y.1731 Ethernet bandwidth notification (ETH-BN)

Ideal Applications

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses. Mobile network backhaul and enterprise campus connectivity requiring carrier-grade link reliability.

Product Images

2 photos

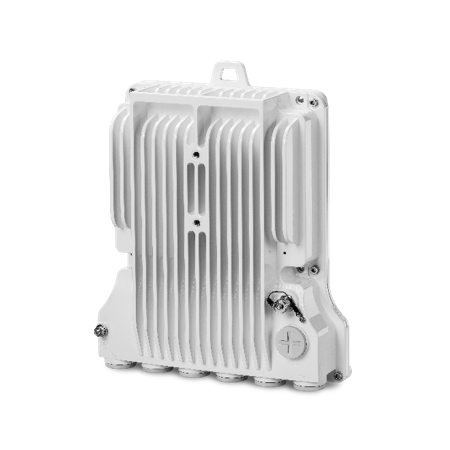

Product image 1
Product image 2
Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 850E to ensure compatibility with your deployment.

Management SNMP

Protocols SDN support:NETCONF/YANG
Enhanced Ethernet equipmentclock (eEEC) Specification (G.8262.1)
PTP telecom boundary clock(T-BC) and time save clock (T-TSC) specification (G.8273.2)
PTP telecom transparent clock(T-TC) specification (G.8273.3)
Enhanced SyncE network limits(G.8261, clause 9.2.1)
Enhanced PTP network limits(G.8271.1)
Ethernet synchronization messagingchannel (ESMC) (G.8264, clause 11)
PTP telecom profile for time(full timing support) (G.8275.1)
Precision time protocol (version2, IEEE1588-2008)

Security

Secured protocols (HTTPS, SNMPV3,SSH, SFTP)
TACACS+ authentication andauthorization (session based)

Standard

CarrierEthernet 2.0
10/100/1000base-T/X(IEEE 802.3)

Standards:

Optical10Gbase-LR (IEEE 802.3ae)
EthernetVLANs (IEEE 802.3ac)
VirtualLAN (VLAN, IEEE 802.1Q)
Class ofservice (IEEE 802.1p)
Providerbridges (Q-in-Q – IEEE 802.1ad)
Link aggregation(IEEE 802.1ax)
Auto MDI/MDIXfor 1000baseT
RFC 1349:IPv4 TOS
RFC 2474:IPv4 DSCP
RFC 2460:IPv6 traffic classes PTP 850E Microwave Radio

Standards Compliance

Radio Spectral EN 302217-2
Certificationordinance (Japan)
Compliance EMC: EN301 489-1, EN 301 489-4, Class A(Europe)
FCC 47CFR, part 15, subpart B, class A(US)
ICES-003,Class A(Canada)
TEC/SD/DD/EMC-221/05/OCT-16,Class A (India)
Surge EN61000-4-5,Class 4 (for PWR and ETH1/PoE ports)
Safety: EN 60950-1,EN 62368-1, IEC 60950-1, IEC 62368-1, UL60950-1, UL 62368-1, CAN/CSA C22.2 NO 60950-1,
CAN/CSAC22.2 NO 62368-1, EN60950-22, IEC 60950-22, UL 60950-22, CAN/CSA C22.2 NO 60950-22
Storage ETSI EN300 019-1-1 Class 1.2
Transportation ETSI EN300 019-1-2 Class 2
Dimensions: Direct 322 mmx 227/270 mm x 86 mm, 5.5 kg
12.67 inx 8.93/10.62 in x 3.38 in, 12.12 lb
Dimensions: 43 dBi 341 mmx 270/276 mm x 103 mm, 7 kg

Integrated Antenna

13.42 inx 10.62/10.86 in x 4.05 in, 15.43 lb
Pole Diameter 8.89 cm– 11.43 cm
3.5 in –4.5 in
Environmental -33°C to+55°C (-45°C to +60°C)
-27°F to+131°F (-49°F to 140°F)

Standard Input -48 VDC

DC Input Range -40.5 to-60 VDC
Redundancy Powerredundancy option by using both a DC power input and a passive PoE injector simultaneously
Power Active withXPIC: 73W
Active withoutXPIC: 63W
Standby:51W

Transmit Power (dBm)

Channel Size 62.5 MHz125 MHz 250 MHz 500 MHz 750 MHz 1000 MHz 1250 MHz 1500 MHz 1750 MHz 2000 MHz
¼ BPSK –– 20 20 20 20 20 20 20 20
–20 20 20 20 20 20 20 20 20
2020 20 20 20 20 20 20 20 20
4 QAM 2020 20 20 20 20 20 20 20 20
8 QAM 1818 18 18 18 18 18 18 18 18
1717 17 17 17 17 17 17 17 16
1717 17 17 17 17 17 17 17 16
1616 16 16 16 16 16 16 16 15
128 QAM 1616 16 16 16 16 16 16 16 15
1515 15 15 15 15 15 – – –
–14 14 14 – – – – – – PTP 850E Microwave Radio
Channel Size 62.5 MHz125 MHz 250 MHz 500 MHz 750 MHz 1000 MHz 1250 MHz 1500 MHz 1750 MHz 2000 MHz
–– -81.8 -78.8 -76.5 -75.8 -74.0 -74.0 -73.0 -73.4
½ BPSK –-81.8 -78.8 -75.8 -73.5 -72.8 -71.0 -71.0 -70.0 -70.4
-80.0-78.8 -75.8 -72.8 -70.5 -69.8 -68.0 -68.0 -67.0 -67.4
-78.0-76.7 -73.7 -70.5 -68.5 -67.6 -66.0 -65.5 -60.0 -59.9
-73.2-72.1 -69.1 -65.8 -63.5 -62.8 -61.0 -60.5 -60.0 -59.9
16 QAM -71.3-70.3 -67.3 -64.3 -62.5 -61.2 -60.0 -59.5 -58.0 -58.6
32 QAM -70.0-67.8 -64.8 -60.7 -60.0 -58.6 -57.0 -56.5 -56.0 -55.5
-68.3-65.5 -61.9 -57.6 -57.5 -55.7 -55.0 -53.5 -53.0 -52.4
-64.1-63.0 -58.9 -54.7 -54.5 -52.6 -52.0 -50.5 -50.0 -48.0
256 QAM -61.0-59.5 -56.0 -50.4 -51.5 -49.8 -48.5 – – –
512 QAM –-55.4 -52.4 -49.4 – – – – – –
Channel Size 62.5 MHz125 MHz 250 MHz 500 MHz 750 MHz 1000 MHz 1250 MHz 1500 MHz 1750 MHz 2000 MHz
37-4839-51 46-60 92-120 136-176 185-239 231-299 271-351 303-392 323-419
77-9981-104 92-120 186-241 271-351 370-480 476-616 557-722 621-804 663-859
BPSK 116-150163-211 186-241 372-482 557-722 761-985 952-1233 1114-1443 1242-1609 1326-1717
4 QAM 155-201246-318 373-484 766-992 1115-1444 1524-1974 1905-2468 2232-2892 2487-3222 2652-3436
195-252328-425 576-746 1150-1489 1673-2167 2287-2962 2859-3703 3349-4339 3733-4836 4128-5347
234-303421-546 768-994 1533-1986 2232-2892 3050-3951 3813-4939 4467-5787 4979-6450 5505-7131
32 QAM 273-354505-654 960-1244 1916-2482 2790-3614 3813-4939 4768-6176 5584-7234 6224-8062 6869-8897
64 QAM 313-405590-764 1153-1494 2301-2980 3348-4337 4575-5927 5721-7410 6697-8675 7453-9655 8241-9882
–674-873 1346-1743 2684-3476 3907-5061 5339-6916 6675-8646 7804-9882 8691-9882 9882-9940
–759-983 1538-1993 3068-3975 4416-5784 6101-7904 7612-9861 – – –
512 QAM –– 1730-2242 3452-4472 – 185-239 231-299 271-351 303-392 323-419

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
