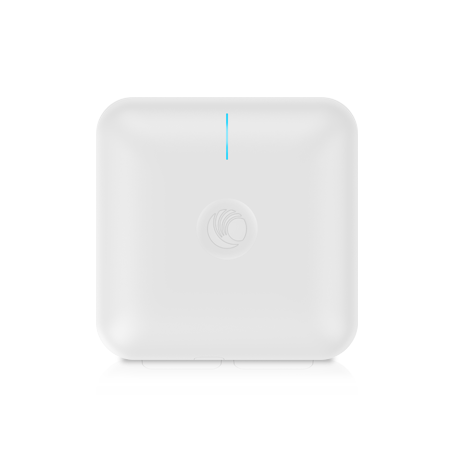

Cambium Networks cnPilot e600 Wi-Fi 5 Indoor Wireless Access Point

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi.

Cambium Networks cnPilot e600 Wi-Fi 5 Indoor Wireless Access Point
Talk to a Pro
Contact Us 855-958-0754 Email Sales
cnPilot e600
  • Specs: cnPilot e410, e600 Indoor
  • Stay on top of the latest standards with the high-powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 e600 access point with a 4×4 antenna array.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
Cambium Networks Products
cnPilot Enterprise Indoor Wi-Fi
cnPilot E600 Indoor (FCC) 802.11ac Wave 2, 4x4, Access Point
#PL-E600X00A-US
Our Price: $502.80

Click here to jump to more pricing!

Product Overview

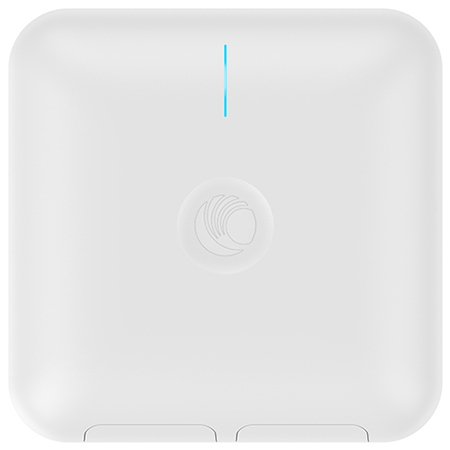

Cambium Networks cnPilot e600 Wi-Fi 5 Indoor Wireless Access Point

Cambium Networks delivers high-performance Wi-Fi to meet the needs of the most demanding enterprises. Give users consistent, wired-like performance plus superior coverage and security depending on your needs — from a single, small office network to global, multi-site networks. Cambium management solutions offer public cloud, private cloud, and on-premises options optimized for scalability, zero-touch provisioning, and simplified operations.

Wi-Fi 5Indoor

Product Highlights

802.11 a/b/g/n/ac Wave P P

GHz / 2.4 GHz streams 2x2 / 2x2 4x4 / 2x2

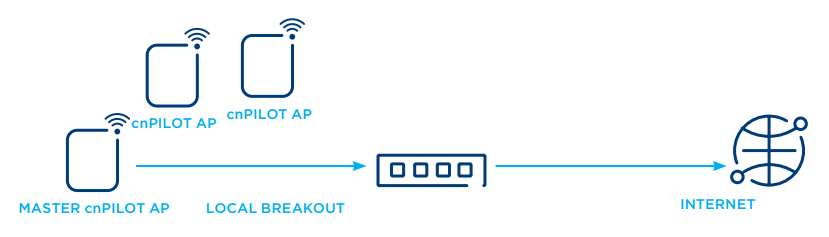

CONTROLLER-LESS ROAMING, POWERFUL SIMPLICITY cnPilot™ e410 and e600 include controller-less distributed intelligence for seamless roaming and enhanced roaming for up to 1,000 devices. cnMaestro management provides end-to-end visibility and zero-touch provisioning across thousands of sites.

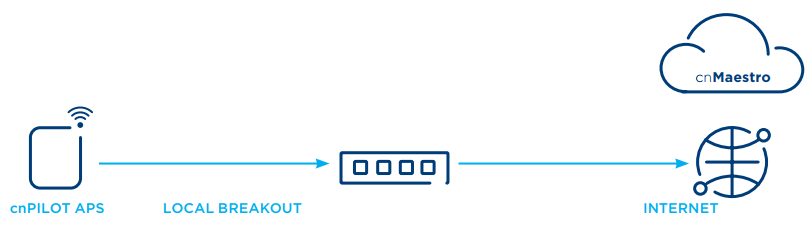

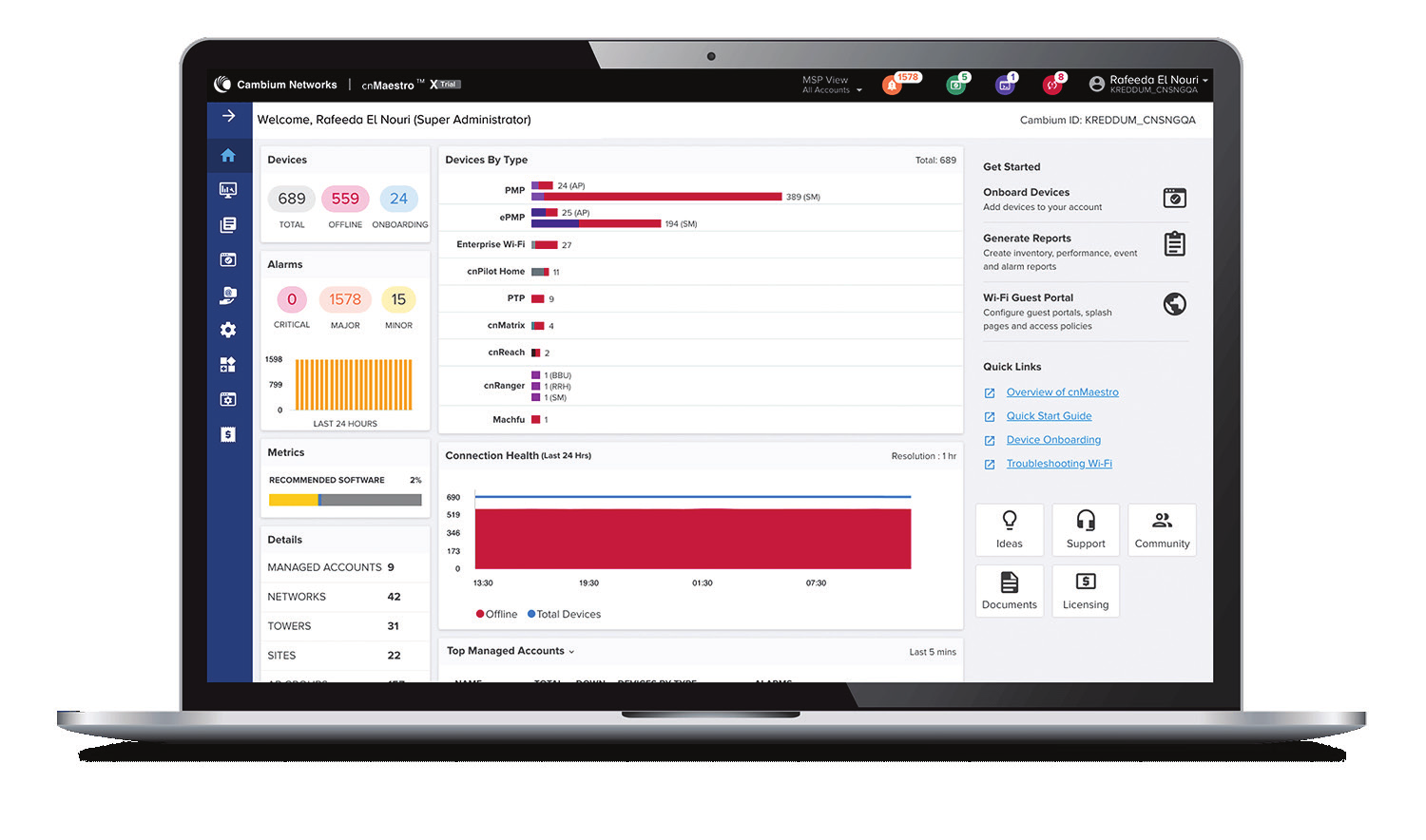

CLOUD-MANAGED ACCESS

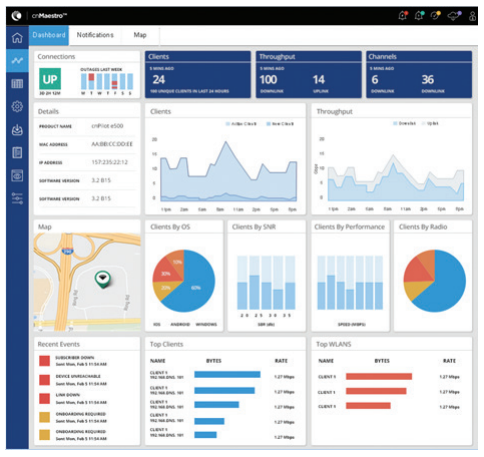

cnMaestro™ provides end-to-end cloud Dashboard for Wi-Fi, Ethernet, and fixed wireless broadband:

MONETIZE: VOUCHERS. SOCIAL LOGIN

A hotspot portal can be designed in the cloud and distributed to each site’s access point with a single touch. Wi-Fi hotspot capabilities support splash page hosting, social login, temporary access vouchers, and multiple credit card payment gateways. Control time, rate and data volume traffic profiles.

Hierarchical device organization

cnMaestro Essential cloud management is included at no additional cost. No setup fee, no license, and no recurring cost.

HIGH CAPACITY AND RELIABILITY

Airtime fairness, standardized beamsteering, and MU-MIMO increase network capacity while automatic RF management monitors performance and optimizes the network to avoid interference. Detailed network statistics, utilization graphs, and integrated troubleshooting ensure service is always on.

Ideal Applications

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi. MSP-managed networks leveraging cnMaestro for zero-touch provisioning and real-time monitoring.

Product Images

15 photos
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Technical Details

Hardware Specifications

Comprehensive technical data for the cnPilot e600 to ensure compatibility with your deployment.

Access Point Specifications

e410e600 (Hardware specs subject to change)
CH1–11, 36–64, 100–144, 149–165 CH 1–11, 36–64, 100–144, 149–165
ISED Canada CH1–11, 36–64, 100–116, 149–165 CH 1–11, 36–64, 100–116, 149–165
EU-ETSI CH1–13, 36–64, 100–140 CH 1–13, 36–64, 100–140
CH1–13, 36–64, 100–144, 149–165 CH 1–13, 36–64, 100–144, 149–165
2400-2483.5MHz, 5150-5850 MHz 2400-2483.5 MHz, 5150-5850 MHz
Individualcountry limitations apply Individual country limitations apply
DFS Channelsto be released later
1 x5 GHz radio (802.11 a/n/ac Wave 2), 2x2 1 x 5 GHz radio (802.11 a/n/ac Wave 2), 4x4
1 x2.4 GHz (802.11 b/g/n), 2X2 1 x 2.4 GHz (802.11 b/g/n), 2x2
SU-MIMO/ MU-MIMO: 2 streams SU-MIMO / MU-MIMO: 4 streams
Wi-Fi 802.11a/b/g/n/ac 802.11 a/b/g/n/ac
SSID SecurityWPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate 2.4GHz: 400 Mbps 5 GHz: 867 Mbps 2.4 GHz: 400 Mbps 5 GHz: 1733 Mbps
Ethernet OneIEEE Gigabit Ethernet auto sensing Two IEEE Gigabit Ethernet auto sensing
USB Ports –1 USB 2.0 port
Internalomni-directional Internal omni-directional

Antenna

2.4GHz: 5.24 dBi 5 GHz: 5.47 dBi 2.4 GHz: 5.28 dBi 5 GHz: 6.11 dBi
2.4GHz: 29.50 dBm 5 GHz: 30 dBm 2.4 GHz: 29.28 dBm 5 GHz: 34.11 dBm
(EIRPlimited by country regulations) (EIRP limited by country regulations)
256clients per radio, 32 SSIDs (16 per radio) 512 clients per radio, 32 SSIDs (16 per radio)
WPA-TKIP,WPA2 AES, 802.1x, 802.11w PMF WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
802.3afpowered device 802.3af or 802.3at powered device
Typicalload: 9 W, Max: 11.5 W Typical load: 12 W, Max: 22 W 2.1 mm 12 VDC barrel connector
Desktop,Wall, cieling tile mount - included T-bar mount Desktop, Wall, cieling tile mount - included T-bar mount
14mm x 24 mm x 38 mm (0.55 in x 0.94 in x 1.5 in) 14 mm x 24 mm x 38 mm (0.55 in x 0.94 in x 1.5 in)
CeilingTile mount included Ceiling Tile mount included
Kensingtonlock slot Kensington lock slot
180mm x 180 mm x 42mm (7.09 in x 7.09 in x 1.65 in) 180 mm x 180 mm x 42mm (7.09 in x 7.09 in x 1.65 in)
384g (0.85 lb) 400 g (0.88 lb)
LEDs SingleTri-color LED (amber, blue, green) Single Tri-color LED (amber, blue, green)
0ºCto 50ºC (32ºF to 122ºF) 0ºC to 50ºC (32ºF to 122ºF)
-40ºCto 70ºC (-40ºC to 158ºF) -40ºC to 70ºC (-40ºC to 158ºF)
Humidity 95%RH non-condensing 95% RH non-condensing
1.5mhours 1m hours
Certifications Wi-FiAlliance 802.11 a/b/g/n/ac, Passpoint 2.0 Wi-Fi Alliance 802.11 a/b/g/n/ac, Passpoint 2.0
FCC,ETSI, CE, EN 60601-1-2, IEC62368 FCC, ETSI, CE, EN 60601-1-2, IEC62368
UL2043UL2043 cnPilot e410 and e600 Indoor Wi-Fi Access Points

Management

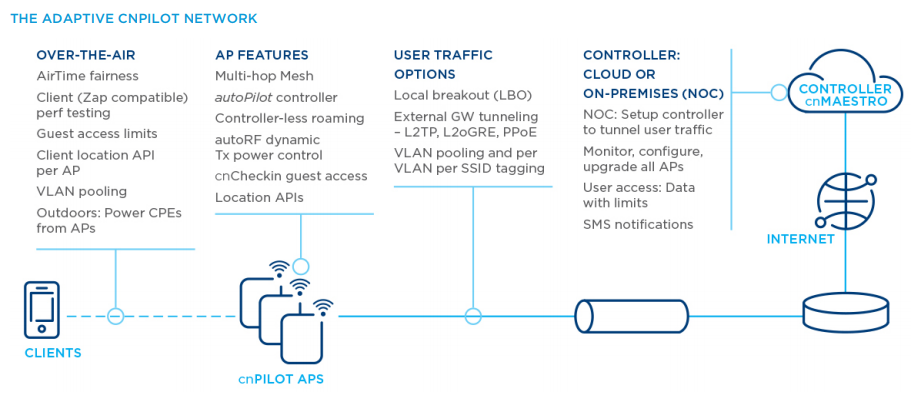

OVER-THE-AIRAP & USER TRAFFIC MANAGEMENT Local breakout Controller-less Zero-touch provisioning roaming
Zap perf clienttest Tunneling Cloud dashboard KPIs cnMaestro Auto-RF/Channel Client Location On-premises appliance API Interference NOC VM software avoidance MESH
payment portalEmail / Webhooks notification VLAN Pooling/ NAT
CLIENTSWI-FI ACCESS POINTS INTERNET

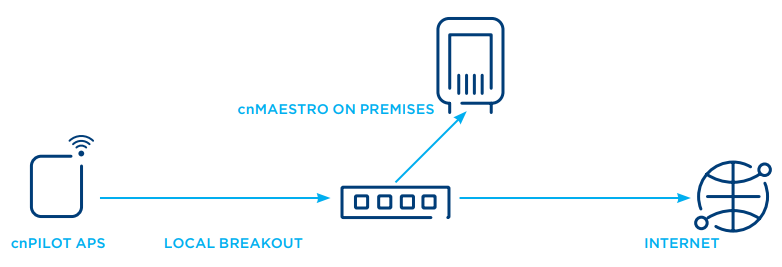

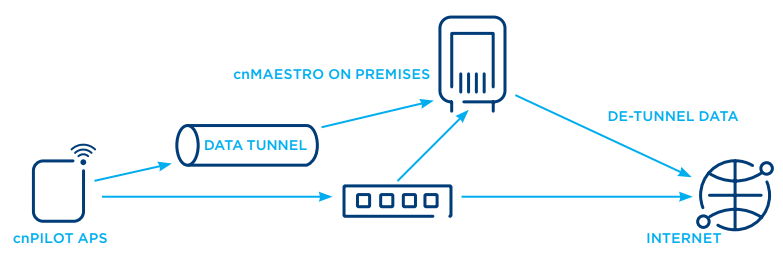

Cambium cnMaestrouses a distributed intelligence architecture with a cloud-first cnMaestro management and
edge-intelligentaccess points that self-optimize for the RF environment. cnMaestro and cnPilot access points
provide automaticRF management and seamless roaming, with a cloud-first, multi-site management for up
to 10,000 devicesand hundreds of thousands of connected clients. cnMaestro delivers single pane-of-glass
management forCambium broadband fixed wireless, cnMatrix Ethernet switches, enterprise-grade Wi-Fi
access points andservice provider residential routers.
Interfaces HTTP / HTTPSweb interface, SSH, Telnet Captive Portal features hosted on cnMaestro: Portal
SNMP V1, V2,V3 Design templates, customization tools
Syslog, SNMPtraps, NTP supports 3rd party external portal RADIUS/LDAP/Click Through authentication
Deployment cnMaestroCloud, cnMaestro on-premises, Active Directory, Google, Facebook, Office 365,
StandaloneAP OAuth 2.0
Monetizedguest portal with design tools Data Rate/Throughput limits, Time duration Portal features hosted on the AP: supports 3rd party external portal RADIUS/LDAP/Click Through authentication Data Rate/Throughput limits, Time duration Hotspot 2.0 Hotspot 2.0/Passpoint 2.0 RADIUS accounting, load balancing AAA servers, Accounting Dynamic Authorization COA, DM Service Critical network resource monitor with SSID Availabilty shutdown cnPilot e410 and e600 Indoor Wi-Fi Access Points
WLAN And NetworkSpecifications
AuthenticationNetwork NAT, NAT logging firewall, DOS protection,
802.1x EAP-SIM/AKA/AKA’/FAST,EAP-PEAP, L2/L3/DNS ACL, DHCP server, DHCP Relay
EAP-TTLS,EAP-TLS/MSCHAPv2, PEAPv0/ option 82 LLDP, IGMP v1, v2
MAC authenticationto local database (on AP, VLAN Pooling, RADIUS attribute VID
on Controller)or external RADIUS. VLAN per SSID, per user
MAC authfallback to guest portal Wireless Intrusion Detection
On/off byday, week, time of day Band Steer Yes Load Balance
QoS 802.11e/WMMQoS. DSCP/ToS mapping L2TPv2, L2GRE, PPPoE Tunnel
VLAN 802.11Q,max 4096 Network Out-of-band RF spectrum analysis, RF and RF
Fast Roaming 802.11r, OKC,cnMaestro assisted roam monitor with channel/noise/interference, Management wired and wireless remote packet capture,
Enhancedroaming with thresholds
Sticky ClientTools ZapD performance tool, rogue AP detection
Mesh Multi-hop(2), either band
Auto RF:manual or automatic
APIs RESTful managementand statistics API
Presencelocation API
Splunk WebSocketintegration, WebSocket
DNS, NAT,TCP connection log

Standards

Wi-Fi VHT MCS rates,16-QAM, 64-QAM, 256-QAM, HT20/40/80 MHz

Protocols

Transmit beamsteering,Airtime Fairness, Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC, 802.11k, 802.11v
MIMO PowerSave, MRC, BPSK, QPSK, CCK, DSSS, OFDM. IEEE 802.11d/e/h/i/k/r/u/v cnPilot e410 and e600 Indoor Wi-Fi Access Points

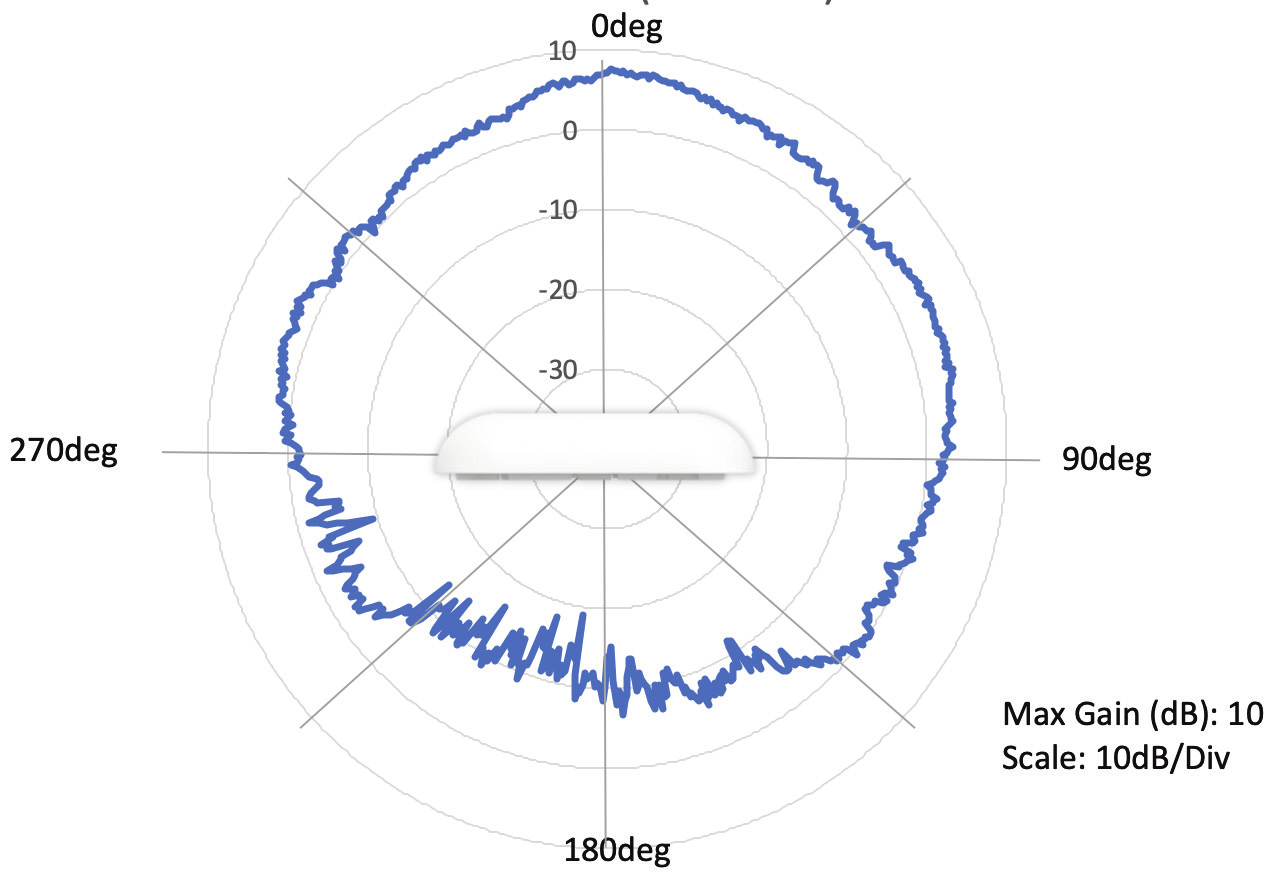

Antenna Patterns - e410

2.4 GHzAzimuth 2.4 GHz Elevation
5 GHzAzimuth 5 GHz Elevation cnPilot e410 and e600 Indoor Wi-Fi Access Points

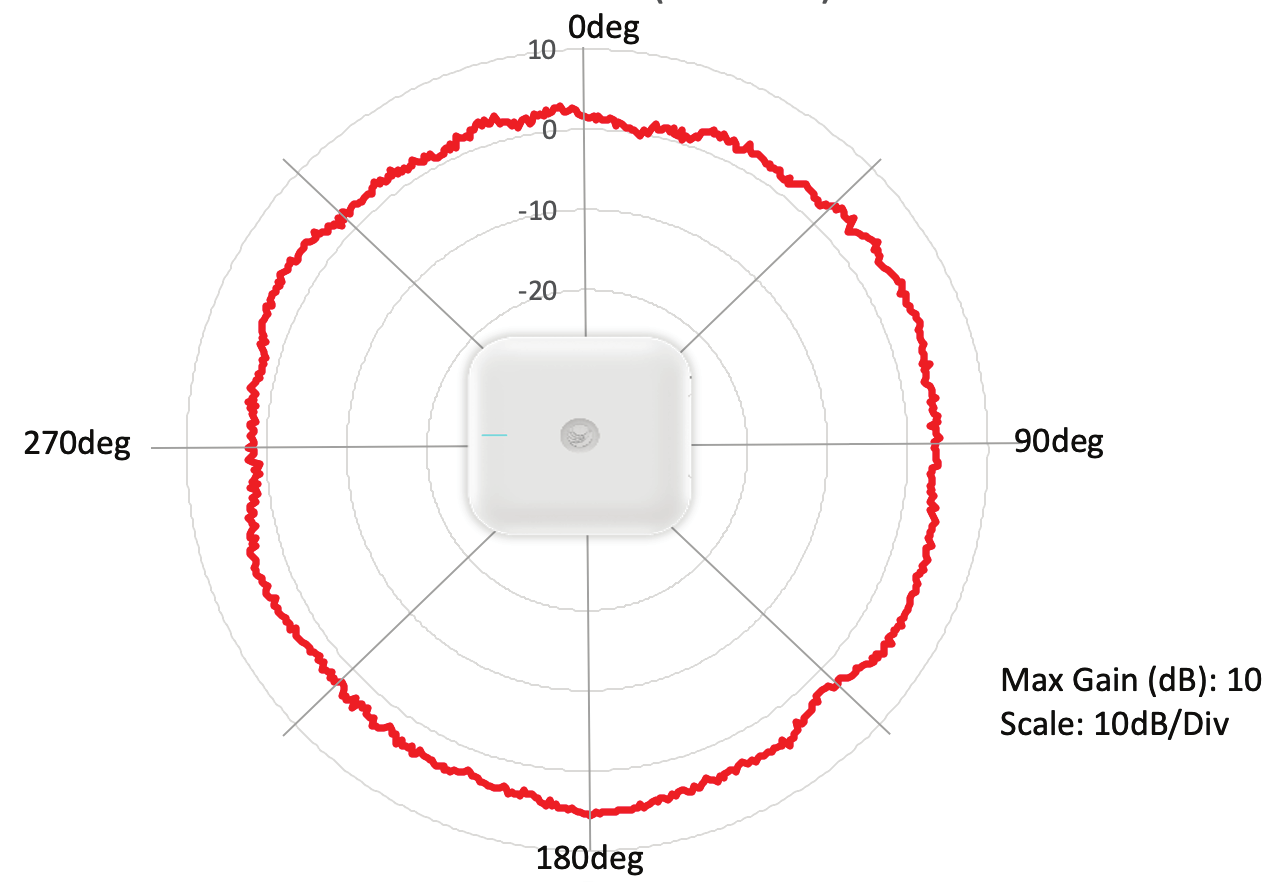

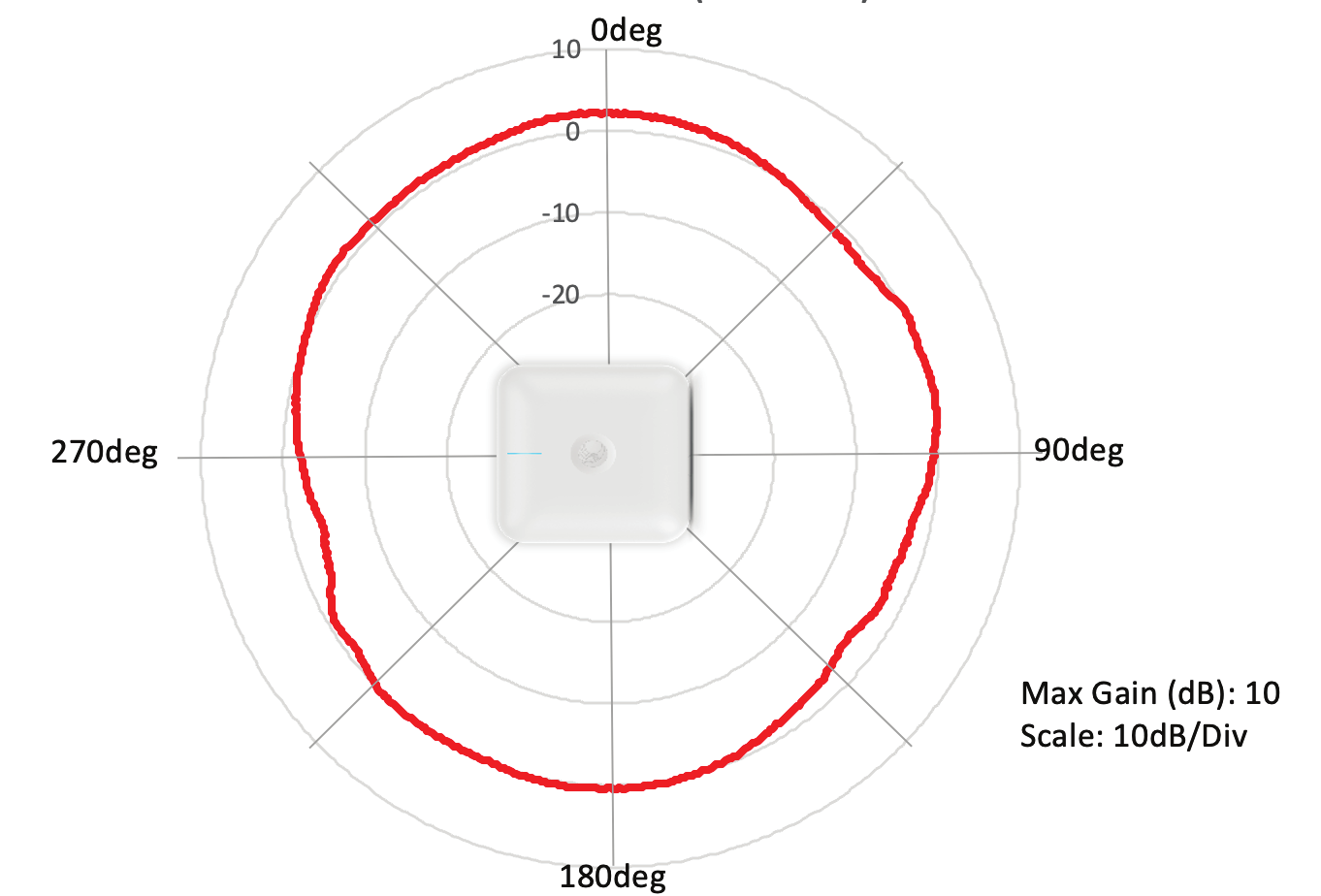

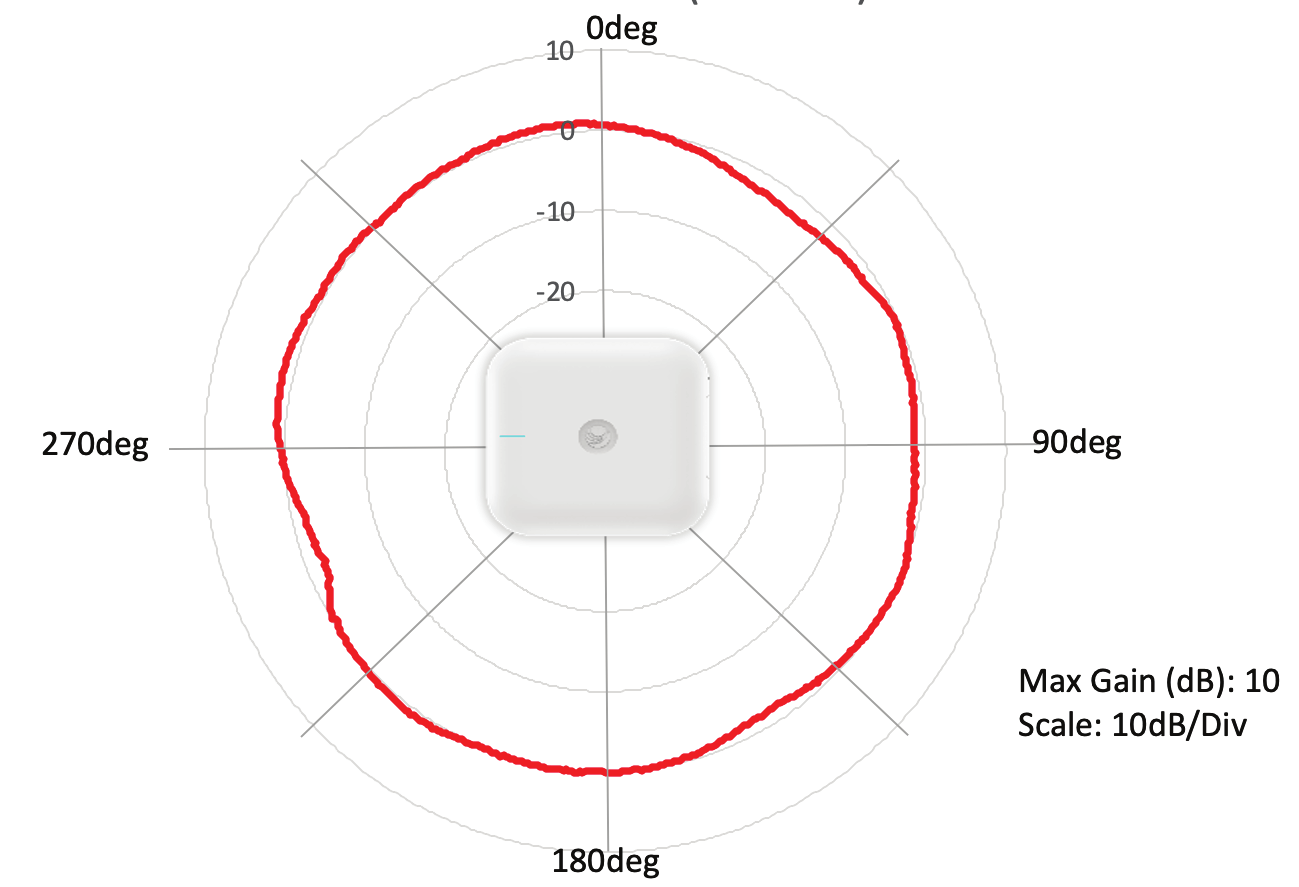

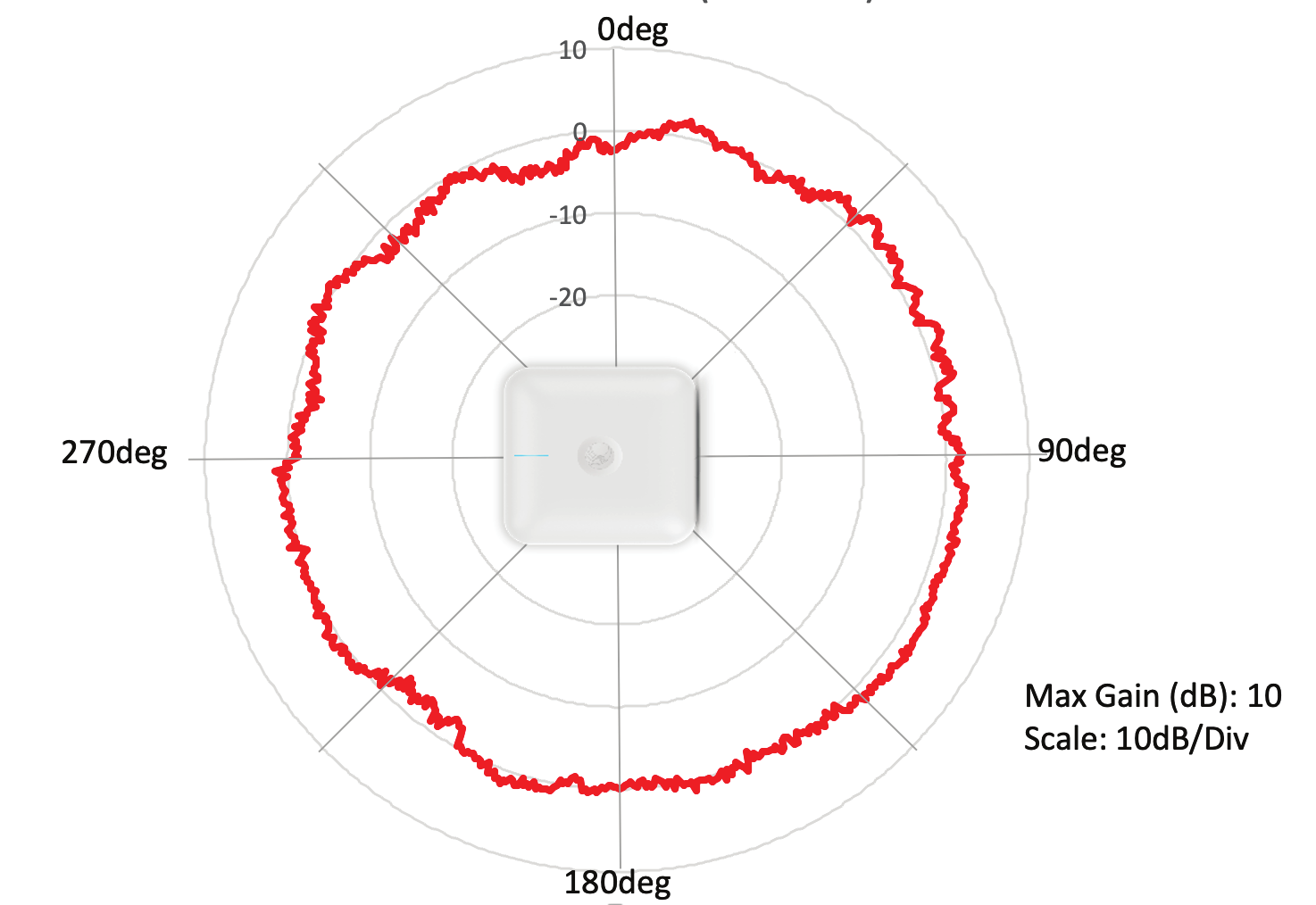

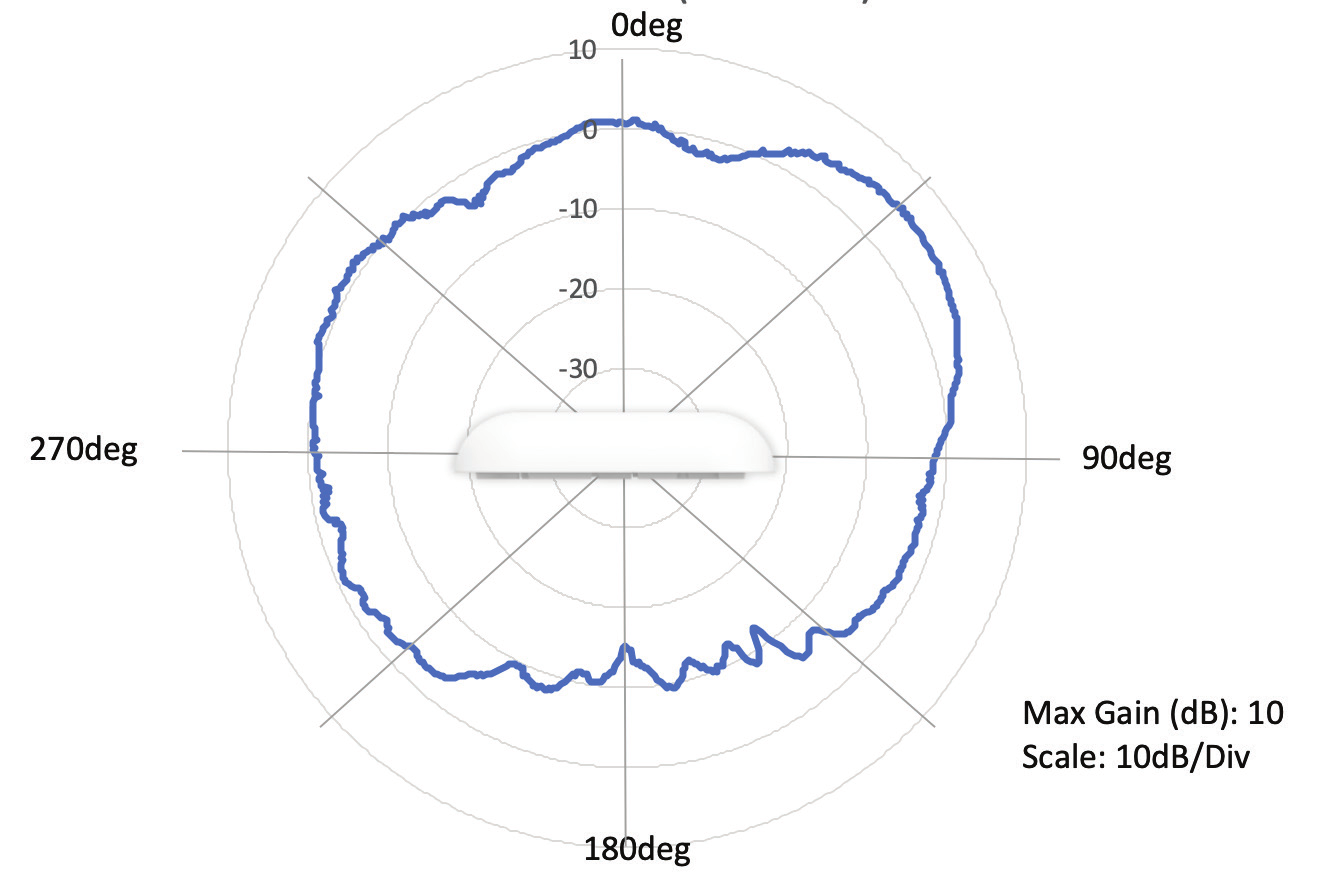

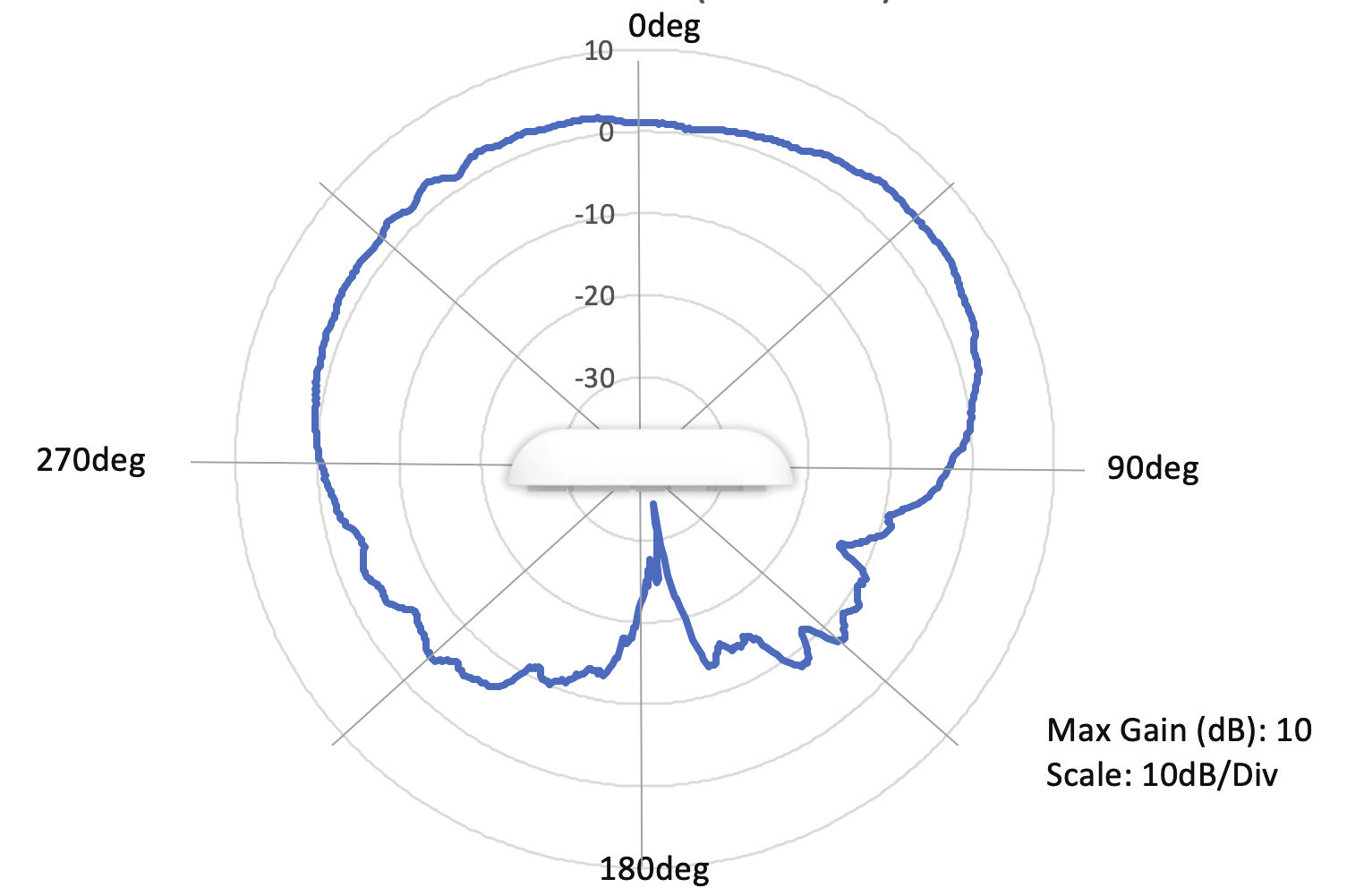

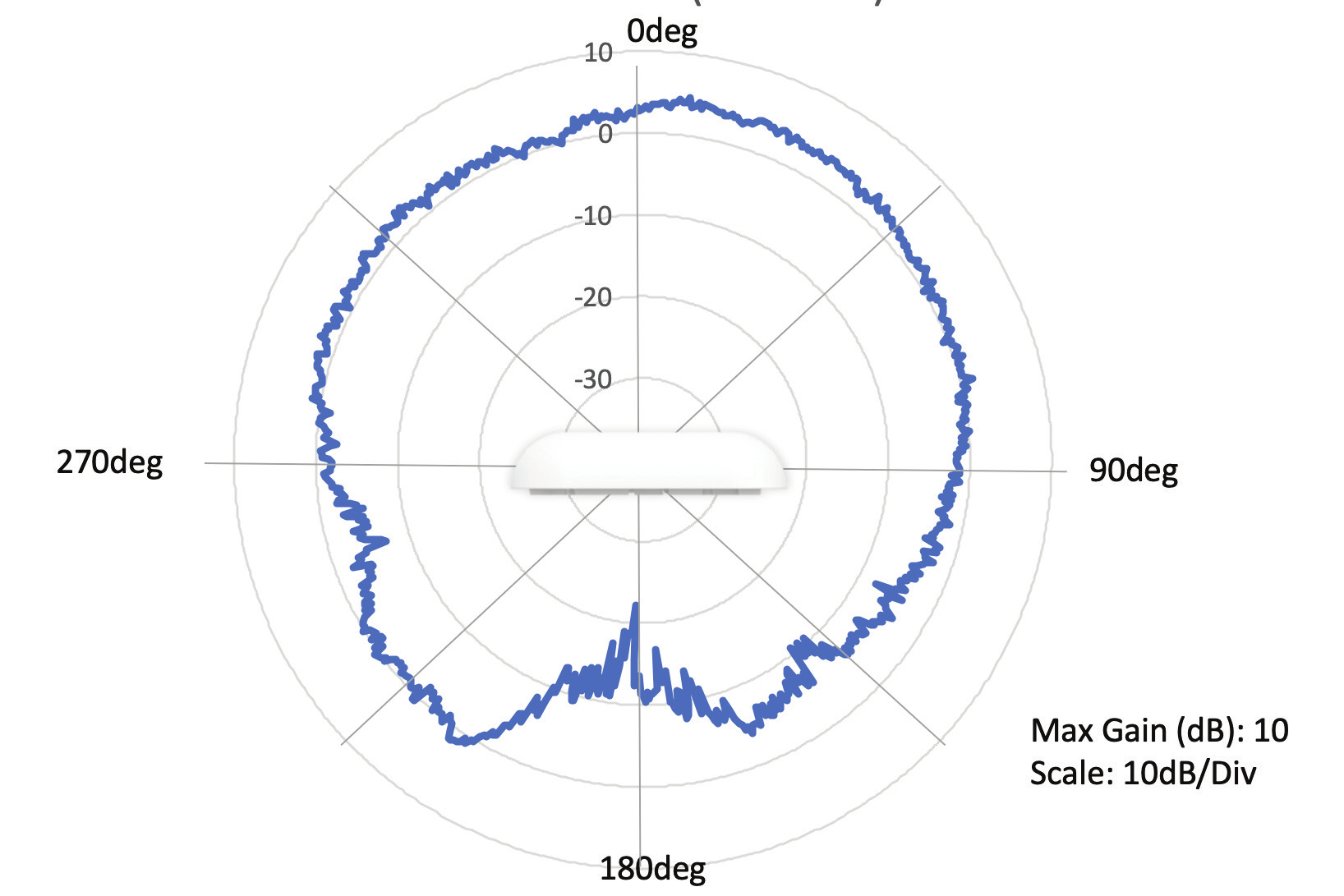

Antenna Patterns - e600

2.4 GHzAzimuth 2.4 GHz Elevation
5 GHzAzimuth 5 GHz Elevation cnPilot™ e410 and e600 Indoor Wi-Fi Access Points e410 e600 cnPilot e410 Indoor (FCC) 802.11ac Wave 2, 2x2, AP cnPilot e410 Indoor (EU) 802.11ac Wave 2, 2x2, AP
PL-E410X00B-RWcnPilot e410 Indoor (ROW) 802.11ac Wave 2, 2x2, AP
PL-E410X00B-CAcnPilot e410 Indoor (IC) 802.11ac Wave 2, 2x2, AP
e600 OrderingInformation
PL-E600X00A-UScnPilot e600 Indoor (FCC) 802.11ac Wave 2, 4x4, AP
PL-E600X00A-EUcnPilot e600 Indoor (EU) 802.11ac Wave 2, 4x4, AP
PL-E600X00A-RWcnPilot e600 Indoor (ROW) 802.11ac Wave 2, 4x4, AP Power supply, 30 W, 56 W, RJ45 – Gbps support. C5 AC port. AC line cord sold separately
Not all SKUs areavailable at first release. Consult your Cambium Networks distributor for country availability. LIMITED WARRANTY Cambium Networks cnPilot e410 and e600 are covered by a limited lifetime hardware warranty for a period of 5 years after point of sale.

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital experiences,
and device connectivity, withcompelling economics. Our ONE Network platform simplifies management of Cambium Networks wired and
wireless broadband and networkedge technologies. Our customers can focus more resources on managing their business rather than the
network. We make connectivitythat just works.
Downloads

Documentation & Resources

Download datasheets and technical documentation for the cnPilot e600.

Data Sheet

Download PDF →

Need Help?

Talk to a Pro →

Pricing Notes:

  • Pricing and product availability subject to change without notice.
Cambium Networks Products
cnPilot E600 Indoor (FCC) 802.11ac Wave 2, 4x4, Access Point
#PL-E600X00A-US
Our Price: $502.80
cnPilot Extended Warranty
cnPilot E6XX Extended Warranty, 1 Additional Year
#EW-E1PLE6XX-WW
Our Price: $10.50
cnPilot E6XX Extended Warranty, 2 Additional Years
#EW-E2PLE6XX-WW
Our Price: $18.50
cnPilot E6XX Extended Warranty, 3 Additional Years
#EW-E3PLE6XX-WW
Our Price: $24.50
cnPilot E6XX Extended Warranty, 4 Additional Years
#EW-E4PLE6XX-WW
Our Price: $28.00
cnPilot E6XX Limited Lifetime Warranty
#EW-LLPLE6XX-WW
Our Price: $35.50
cnPilot Accessories
Cable, UL power supply cord set, 720mm, U.S. plug for N000900L017A and N000000L034A PoE injectors
#N000900L031A
Our Price: $5.40
