Cambium Networks cnPilot r195Wr
Cloud Managed Residential Access Point

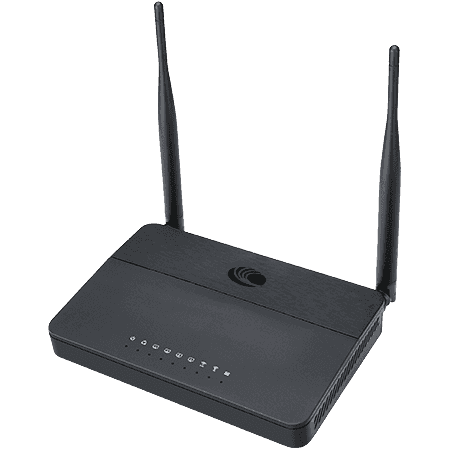

Cambium Networks cnPilot r195W


Cambium Networks Products
cnPilot Home and Small Business Wi-Fi
r195W Type A P/S, 802.11n/AC Dual Band 2x2 WLAN access point
#PL-R195WUSA-US
Our Price: $55.00

Click here to jump to more pricing!

Overview:

Extend Broadband Wireless For Residential WLAN

The cnPilot r195W provides a low cost and robust performance home WLAN solution to extend the end-to-end broadband service all the way into the subscriber home. With five Gigabit Ethernet ports and dual WLAN radios, the r195W easily connects all the devices in a home for an optimal experience streaming movies, sharing social media or Internet browsing.

Part of the Cambium Networks wireless Fabric

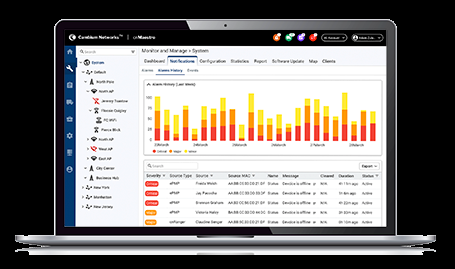

Service providers that leverage the power of cnMaestroâ„¢ to manage a broadband network will be able to integrate the r195W into the wireless fabric. Through cnMaestro web-first interface the r195W features zero touch configuration, stateful alarms and dashboard KPIs, device health and inventory reports.

As always, cnMaestro Essentials management is offered at no charge for cloud management or private cloud management.

Residential & Small Business Access Point

802.11AC, 2x2, high gain antennas
Hardware accelerated NAT Firewall
Managed by cnMaestro; Cloud, MSP, On-Premises

Specifications:


cnPilot r195W Specifications
Access Point Specifications
SSID Security WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max Phy Rate 2.4 GHz radio: 300 Mbps
5 GHz radio: 867 Mbps

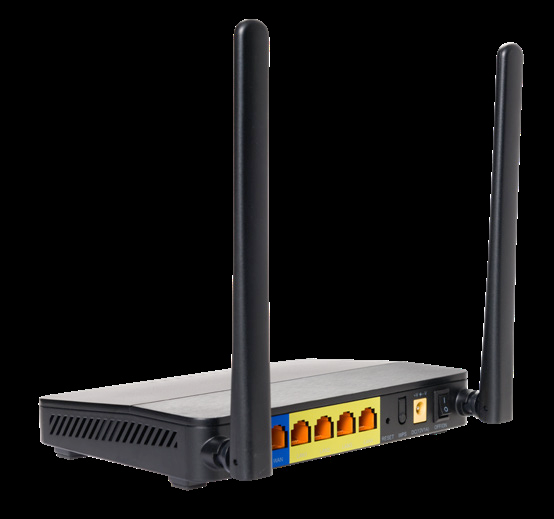

Ethernet Ports Five IEEE Gigabit Ethernet auto sensing
Antenna External duplexed antenna, 5dBi
Max EIRP 2.4 GHz: 20 dBm
5 GHz: 20 dBm
Power 12VDC, 1a. 2.1mm x 5.5mm DC barrel connector
Physical Environmental 190mm x 135mm x 40mm 0.900g
Status LEDs
0C - + 50C ambient op temp
-40C - + 70C storage temperature 95% RH non-condensing
Certifications FCC, ETSI, CE, EN 60601-1-2, IEC60950
WLAN and Network Specifications
Controller modes Cloud managed cnMaestro
HTTP/HTTPS web interface
WLAN 64 clients, 8 SSIDs
WPA-TKIP, WPA2 AES, 802.1x
Authentication 802.1x EAP-SIM/AKA, EAP-PEAP, EAP- TTLS, EAP-TLS
MAC authentication to external RADIUS
Accounting Yes. Supports RADIUS based accounting to multiple AAAs
Subscriber QoS WMM
Fast Roaming 802.11r, OKC, Enhanced roaming
Management
  • Firmware Upgrade
  • Web Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level SNMP v2
  • Telnet
  • TR069
  • System Log: local log and remote log
Network
  • Support NAT mode and Bridge mode
  • Support DDNS
  • MAC address cloning
  • Built-in Wired speed NAT Router
  • DHCP Server and Client
  • IP conflict detection
  • Port Forwarding, DMZ, SuperDMZ
  • 802.1Q VLAN/802.1p, DSCP, Rate Limiting
  • VPN (PPTP,L2TP, IPSec) Passthrough
  • SNTP
  • IGMPv2
  • Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
Protocols
  • DHCP/PPPoE
  • HTTP Server for Web Management
  • TFTP/HTTP for Auto Provisioning
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • IEEE802.1Q VLAN/802.1p and IP DSCP
  • SNTP

Documentation:

Download the Cambium Networks cnPilot r195W Datasheet (.PDF)

Pricing Notes:

Cambium Networks Products
cnPilot Home and Small Business Wi-Fi
r195W Type A P/S, 802.11n/AC Dual Band 2x2 WLAN access point
#PL-R195WUSA-US
Our Price: $55.00
cnPilot Extended Warranty
cnPilot R1XX Extended Warranty, 1 Additional Year
#EW-E1PLR1XX-WW
Our Price: $2.00
cnPilot R1XX Extended Warranty, 2 Additional Years
#EW-E2PLR1XX-WW
Our Price: $3.50
cnPilot R1XX Extended Warranty, 3 Additional Years
#EW-E3PLR1XX-WW
Our Price: $4.25
cnPilot R1XX Extended Warranty, 4 Additional Years
#EW-E4PLR1XX-WW
Our Price: $5.00
cnPilot R1XX Limited Lifetime Warranty
#EW-LLPLR1XX-WW
Our Price: $6.00
