Cambium Networks cnPilot e430W Indoor
802.11ac Wave 2, Indoor Wall Plate


Cambium Networks cnPilot e430W Indoor

Cambium Networks Products
cnPilot Enterprise Indoor Wi-Fi
cnPilot e430W 802.11ac wave 2 Wall Plate WLAN
#PL-E430W00A-US
List Price: $295.00
Our Price: $251.00

Click here to jump to more pricing!

Overview:

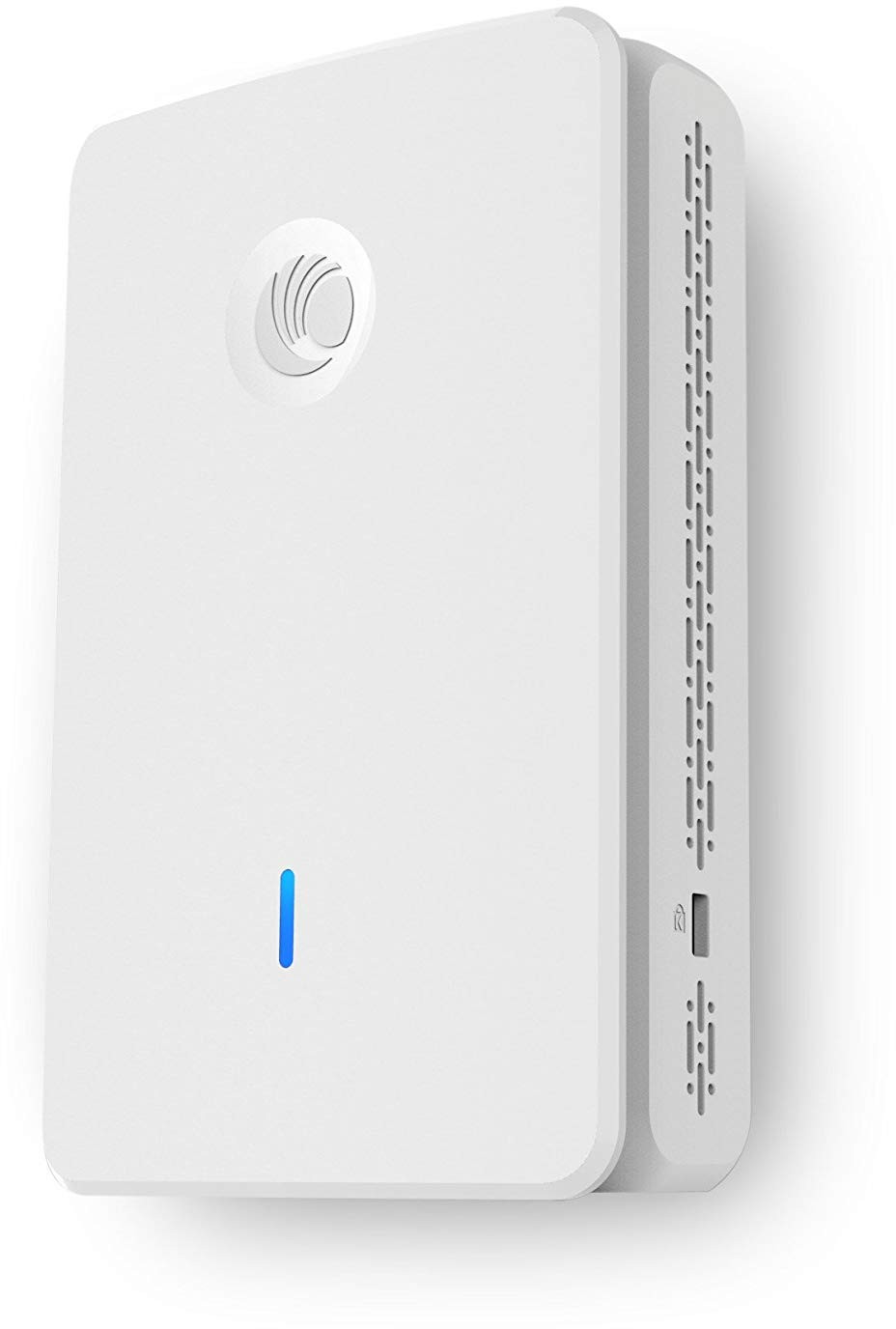

The Cambium Networks cnPilot™ e430H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.

The cnPilot e430 Enterprise class Indoor Wall Plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts (Hospitality) and multi-dwelling units (MDUs).

Features:

Controller Managed + Autonomous

Managed by Cambium Networks’ cnMaestro™ cloud controller or On-premises controller, the cnPilot e430H management includes:

  • Zero touch onboarding
  • Inventory tracking
  • Monitoring
  • Mass Configuration
  • Dashboard views with Alarms
  • Mass upgrade
  • Troubleshooting
  • Wireless and Wired port splash page guest portal

Controller-Less Roaming. Powerful Simplicity

The e430H supports network wide seamless roaming for up to 1,000 clients. Host the hotspot portal on the AP for controller-less simplicity, or on cnMaestro for a powerful network wide portal.

Monetize: Vouchers. Social Login

Monetize your Wi-Fi service: cnMaestro’s guest access feature supports splash page hosting, social login and payment gateway for wired and wireless clients. Built-in power packed features available right on the controller. These features along with the ability to create time, rate and volume limited traffic profiles along with vouchers for temporary guest access makes the e430H ideal for hotels, coffee shops, campgrounds, and office guest Wi-Fi.

Service Aware WLANs. Better User Experience.

Nothing is more frustrating than connecting to an AP, but not getting to the internet because the WAN link is down. When connection to a critical resource such as an external Gateway or AAA is down, the e430H monitors the uplink Gigabit interface for network outage. If an outage is detected, the impacted WLANs are disabled enabling client devices to select a neighboring AP.

Wi-Fi Mesh. Flexibility.

Indoor meshing across multiple e430Hs or indoor/ outdoor meshing across the e430H indoor and an outdoor Cambium Networks APs (like the e500) offers a convenient way to easily expand Wi-Fi coverage without wires.

Coverage, Capacity. Speed.

The e430H packs strong transmit power and the flexible controls needed to control transmit power for high density deployments. Throughput management via airtime fairness, increased performance from automatic channel scanning (ACS), and higher client device speeds from band steering ensure your e430H network can adapt to the dynamics of ever changing client profiles.

High Density, Highly Available

A capacity of 256 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the e430H combines high density with high availability.

Low Total Cost of Operations (TCO) License Free Option

All cnPilot access points offer total management flexibility. The e430H can be managed as a standalone access point, from an on-premises cnMaestro controller, or a cloud accessed cnMaestro account. cnPIlot access points even support AutoPilot, allowing one access point to become a controller for a small network with all the advantages of a controller and none of the effort, time or cost.

Accessorize

The e430H package comes with a single-gang wall mount bracket. Optional accessories also include dual gang wall bracket or a desktop stand for small room table top retail outlets or dorm rooms installs

Adaptive Wi-Fi Architecture:

architecture 1 architecture 2

The e430H is designed to be powered by an external PoE injector. Alternatively, it may be powered by an external 48V/1A DC adaptor (sold separately). Other optional accessories are available for separate purchase

Specifications:


cnPilot e430W Specifications
Access Point Specifications
Operating RF Frequency 2.4 GHz to 2.4835 GHz
5.15 GHz – 5.875 GHz
SSID Security WPA2 (802.11i)
WPA2 Enterprise (802.1x/EAP)
WPA PSK
Open
Max Phy Rate 2.4 GHz radio: 400 Mbps
5 GHz radio: 867 Mbps
BLE Integrated BLE radio

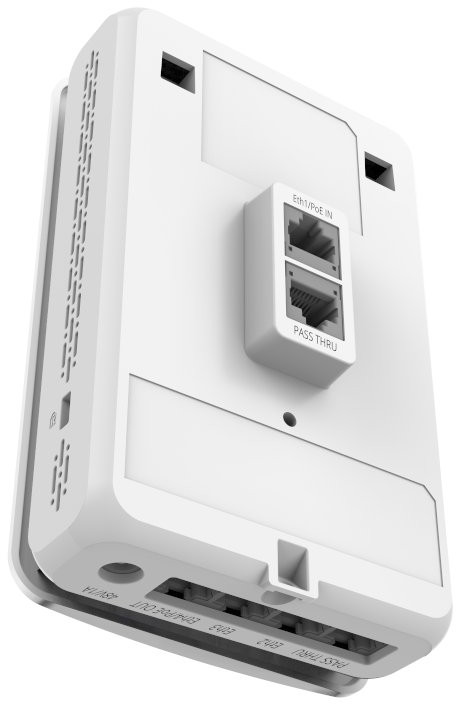

RJ45 Ports Four IEEE Gigabit Ethernet auto sensing
Two pass-through shielded ports
Antenna Integrated dual polarized, omni
3.57 dBi (2.4 GHz), 4.96 dBi (5 GHz)
Max EIRP 2.4 GHz: 25.57 dBm
5 GHz: 25.96 dBm
EIRP may be limited by individual country regulation
Physical Environmental 147mm x 94mm x 34mm
390 g
Kensington lock slot
Tri color status LED
0C - + 45C ambient op temp
-20C - + 70C storage temperature
95% RH non-condensing
Power PoE In: 802.3at compliant. PSE port enabled
PoE In: 802.3af compliant. PSE port enabled
Auxiliary 48VDC input power, 2.5mm
Typical: 9.6w
Max: 25.5w at max duty with full load
802.3af compliant PSE port GE4
Certifications WiFi Alliance 80211a/b/g/n/ac, Passpoint 2.0
FCC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043
WLAN and Network Specifications
Controller modes Controller-less standalone
AutoPilot heterogeneous network
Cloud managed cnMaestro
On-premises cnMaestro VM
WLAN 256 clients, 16 SSIDs
WPA-TKIP, WPA2 AES, 802.1x, 802.11i
802.11w PMF, client isolation
Captive Portal/ Guest Access Hosted on cnMaestro Controller
On-AP hosted guest portal
Redirect to HTTP/RADIUS
Server DNS logging
Authentication Hotspot 2.0/Passpoint 2.0
802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS
MAC authentication to local database or external RADIUS
Accounting RADIUS accounting, multiple AAA
Scheduled W On/off by day, week, time of day
Guest Access Vouchers
Rate Limit
Splash page hosted on AP or cnMaestro
Client isolation per SSID, per network
Data Limit Client rate limit per SSID
Subscriber WMM
Fast Roaming 802.11r, OKC, Enhanced roaming
Mesh Multi-hop, either band
Channel Selection autoTune: Manual, or automatic
Selectable off-channel scan
Auto TX Power AutoRF: controller-less transmit power
Network NAT, NAT logging firewall, DHCP server
L2, L3 or DNS based access control
VLAN Pooling, RADIUS attribute VID
VLAN per SSID per user
Band Steer Load Balancer Yes
Tunnel L2TP, L2oGRE, PPPoE
Tools Remote Packet capture
Channel/noise/interference analyzer
auto logging
ZapD performance test tool
rogue AP detection
Services NTP
Syslog
SNMP traps
DNS proxy
auto-off on WAN failure
API RESTful management and statistics API
Presence location APIs

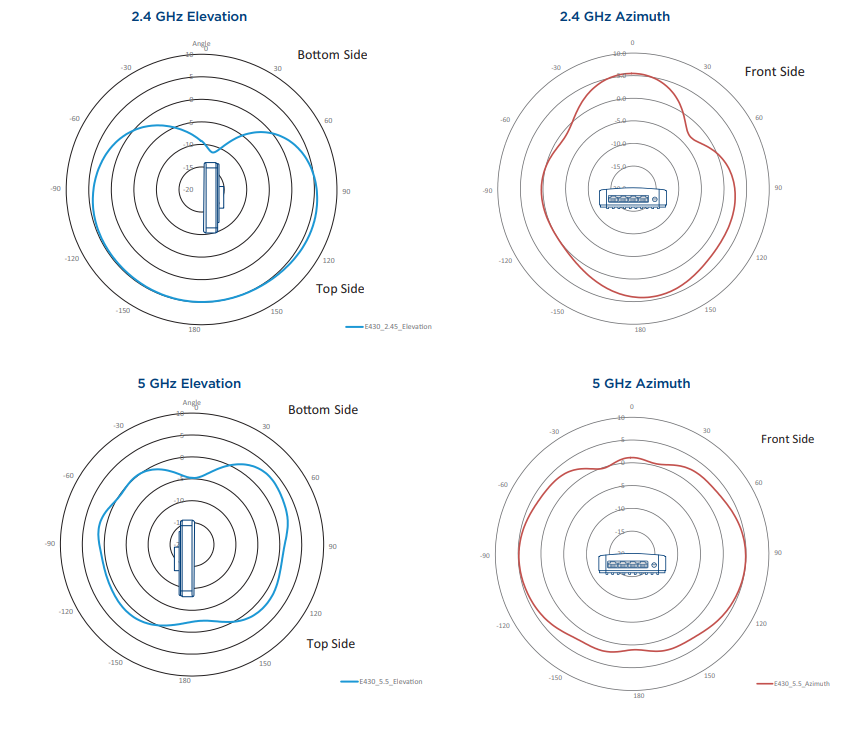

Antenna Patterns:

pattern

Documentation:

Download the Cambium Networks cnPilot e430W Indoor Datasheet (.PDF)
