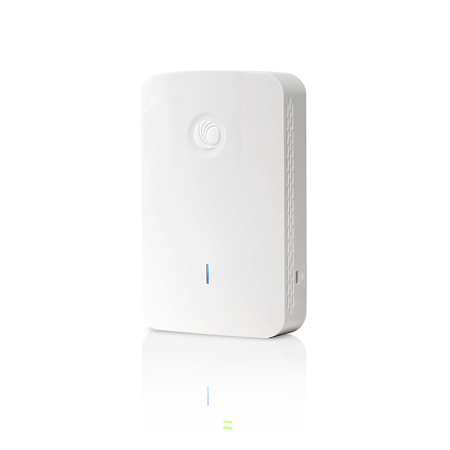

Cambium Networks cnPilot e430H Indoor
802.11ac Wave 2, Indoor Wall Plate


Cambium Networks cnPilot e430H Indoor

Cambium Networks Products
cnPilot Enterprise Indoor Wi-Fi
cnPilot E430H Indoor (FCC) 802.11ac wave 2, 2x2, Wall plate WLAN AP with single-gang wall bracket
#PL-e430H00A-US
Our Price: $295.00

Click here to jump to more pricing!

Overview:

The Cambium Networks cnPilot™ e430H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E portsto drive indoor Wi-Fi and wired port network access managed via portals.

The cnPilot e430 Enterprise class Indoor Wall Plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts (Hospitality) and multi-dwelling units (MDUs).

Features:

Controller Managed + Autonomous

Managed by Cambium Networks’ cnMaestro™ cloud controller or On-premises controller, the cnPilot e430H management includes:

  • Zero touch onboarding
  • Inventory tracking
  • Monitoring
  • Configuration
  • Dashboard views with Alarms
  • Mass upgrade
  • Troubleshooting
  • Wireless and Wired port splash page guest portal

Controller-Less Roaming. Powerful Simplicity

TheThe e430H supports network wide seamless roaming for up to 2,048 clients. Host the hotspot portal on the AP for controller-less simplicity, or on cnMaestro for a powerful network wide portal.

Monetize: Vouchers. Social Login

Monetize your Wi-Fi service: cnMaestro’s guest access feature supports splash page hosting, social login and payment gateway for wired and wireless clients. Built-in power packed features available right on the controller. These features along with the ability to create time, rate and volume limited traffic profiles along with vouchers for temporary guest access makes the e430H ideal for hotels, coffee shops, campgrounds, and office guest Wi-Fi.

Service Aware WLANs. Better User Experience.

Nothing is more frustrating than connecting to an AP, but not getting to the internet because the WAN link is down. When connection to a critical resource such as an external Gateway or AAA is down, the e430H monitors the uplink Gigabit interface for network outage. If an outage is detected, the impacted WLANs are disabled enabling client devices to select a neighboring AP.

Wi-Fi Mesh. Flexibility.

Meshing is supported across e430Hs as well as with any other indoor or outdoor Cambium Networks AP Enterprise AP, for a convenient way to expand Wi-Fi coverage without laying out cabling.

Coverage, Capacity. Speed.

The e430H packs strong transmit power and the flexible controls needed to control transmit power for high density deployments. Throughput management via airtime fairness, increased performance from autoRF, and higher client device speeds from band steering ensure your e430H network can adapt to the dynamics of ever changing client profiles.

High Density, Highly Available

A capacity of 256 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the e430H combines high density with high availability.

Low Total Cost of Operations (TCO) License Free Option

All cnPilot access points offer total management flexibility. The e430H can be managed as a standalone access point, from an on-premises cnMaestro controller, or a cloud accessed cnMaestro account. cnPIlot access points even support AutoPilot, allowing one access point to become a controller for a small network with all the advantages of a controller and none of the effort, time or cost.

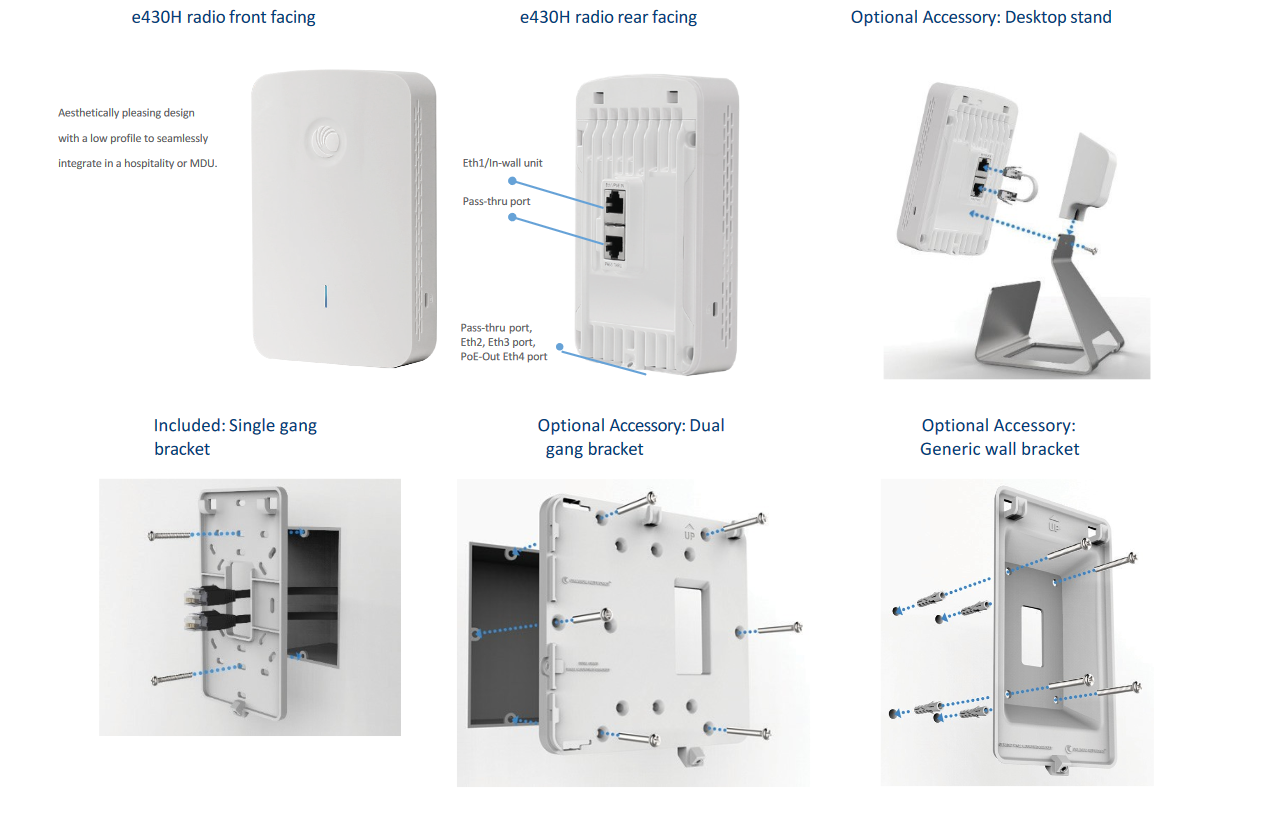

Accessorize

The e430H package comes with a single-gang wall mount bracket. Optional accessories also include dual gang wall bracket or a desktop stand for small room table top retail outlets or dorm rooms installs

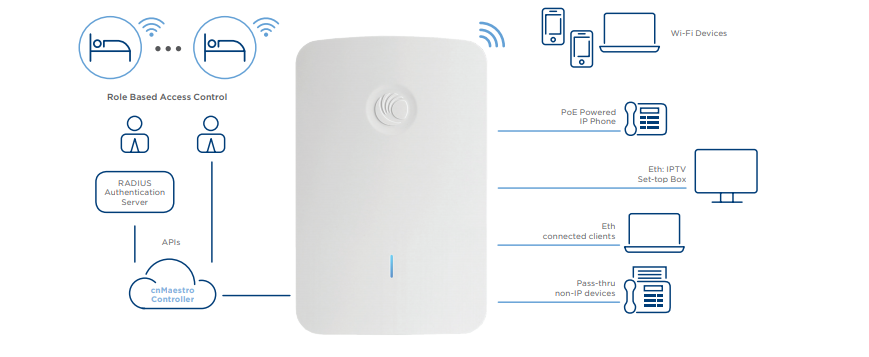

The e430H Solution Architecture View:

architecture 1 architecture 2

The e430H is designed to be powered by an external PoE injector. Alternatively, it may be powered by an external 48V/1A DC adaptor (sold separately). Other optional accessories are available for separate purchase

Specifications:


cnPilot e430H Specifications
Access Point Specifications
Standards IEEE 802.11a/b/g/n/ac Wave2
IEEE 802.11d/e/h/i/k/r/u/v/w
Modulation: BPSK, QPSK, CCK, 16/64/256-QAM
Radio modes : DSSS, OFDM
Frequency Bands 2.400 to 2.2484 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
MIMO, Streams 2x2:2 MU-MIMO Power Supply 802.3af PoE Injector, or PoE switch. 48V DC.
802.3at or PoE+ if using PoE-Out
Beamforming Supported Dimensions 14.7 x 9.4 x 3.4 cm (5.7 x 3.7 x 1.3 Inch)
Channel Width 20MHz, 40MHz, 80MHz Weight 390 g (0.86 lb)
Concurrent Clients 256 Operating Temperature 0°C to +45°C (+32°F to +113°F)
SSIDs 16 Operating Humidity 5% to 95% non-condensing
Transmit Power 2.4GHz : 23dBm
5GHz : 21dBm
Power Consumed 9W (typical)
25W (max, with PoE-out)
Antenna Gain 2.4GHz : 3.5dBi
5GHz : 4.9dBi
LED Tri-color software controlled LED
Max Data Rate 2.4GHz : 400Mbps
5GHz : 867Mbps
Secure Mounting Kensington Key Slot
Antenna Omnidirectional, integrated MTBF 1,025,801 hrs at 50C, 2,828,686 hrs at 25C
Bluetooth Bluetooth 4 BLE Radio, 3.3dBi antenna
Ethernet Ports Four auto-sensing MDIX Gigabit Ethernet (10/100/1000 Mbps). One pass-through Port. Reset Button Supported
Radio Features Maximum ratio combining (MRC)
Cyclic delay/shift diversity (CDD/CSD)
Space-time blocking coding (STBC)
Low-density parity check (LDPC)
Packet Aggregation: A-MPDU, A-MSDU
Certifications FCC, CE, IC, UL, WEEE/RoHS compliance
Wi-Fi Alliance Wi-Fi certified a,b,g,n, ac
WPA2 – Enterprise, Personal
WMM
Mounting Options In wall single-gang bracket included.
Accessories available: dual gang bracket, on-wall bracket, desktop stand.
Wi-Fi Features
Management Modes cnMaestro cloud managed
cnMaestro on-premises VM controller managed
Autopilot (AP as controller)
Standalone with AP GUI (http/https), CLI (telnet/ssh)
Wireless Security WPA-TKIP, WPA2-AES, 802.11i
WPA-PSK, WPA2-PSK, WPA2-Enterprise
802.1x Authentication with various EAP types (EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAPAKA, EAP-AKA’, EAP-FAST
Protected Management Frames (802.11w)
RF Management AutoRF automatically manages channel and power Dynamic SSID Service By time/date, by monitored host.
Guest Access Captive Portal cnMaestro Controller Portal.
Integrates with 3rd party Guest Access Portals.
Built-in Portal on AP.
LDAP & RADIUS authentication.
Walled Garden with DNS whitelist.
Wireless and Wired Clients supported.
MAC Authentication On-AP MAC filtering list.
On-Controller MAC filtering list.
RADIUS MAC Authentication.
MAC Authentication fallback to Captive Portal
Rate Limiting Per-client, Per-WLAN static and dynamic rate limiting Access Control Lists Layer-2, Layer-3, DNS
Client Isolation On AP, Network-wide. 3G/4G/LTE Offload Passpoint (Hotspot 2.0)
Fast Roaming 802.11r, Opportunistic Key Caching, Enhanced Roaming DHCP Relay Supported, with Option-82 customization
Airtime Airtime Fairness, Band Steering, Band Balancing NMS Monitoring SNMP v1, v2c, v3
AAA Support RADIUS Authentication, Accounting, Dynamic Authorization (CoA, DM). Server failover, load-balancing Client APIs Client Presence/Location API DNS, NAT and TCP Connecting Logging
QoS 802.11e/WMM QoS. DSCP/ToS mapping. Time Synchronization Auto (from controller), NTP
Ethernet (L2) Services 802.1p/802.q, RADIUS assigned VLAN, VLAN per SSID, VLAN pooling. LLDP. IGMP Snooping (V1/V2/V3). Troubleshooting Tools Packet Capture, Spectrum Analyzer, Ping, Traceroute, Syslogs
Mesh WDS Mesh with Single and Multiple radio hops. Traffic Tunnels L2TP, L2oGRE, PPPoE
Network Services NAT, DHCP Server

Antenna Patterns:

pattern

Documentation:

Download the Cambium Networks cnPilot e430H Indoor Datasheet (.PDF)
