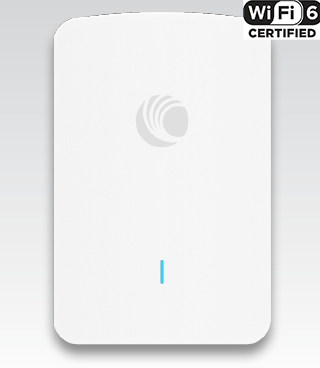

Cambium Network XV2-22H Wi-Fi 6 Wall Plate Access Point
802.11ax, Dual-radio, 2x2, with Multi-Function Ethernet Ports

Cambium Networks XV2-22H Wi-Fi 6 Wall Plate Access Point

Cambium Networks Products
XV2-22H Wi-Fi 6 Wallplate AP
XV2-22H Wall Plate Dual radio WiFi 6 AP, 2x2, 3 x GbE, 48V PoE out, BLE/Zigbee
Our Price: $438.84

Click here to jump to more pricing!


XV2-22H Wi-Fi 6 Wall Plate Access Point At a Glance

The XV2-22H Indoor wall and desk mount 2x2 Wi-Fi 6 AP offers 2.97 Gbps of bandwidth and an integrated switch. Ideal for hospitality, MDU, education and small/medium business applications.

Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.

  • Wallplate 802.11ax, 2x2
  • 3 x GbE Ethernet, one with PoE out
  • RJ45 electrical pass-through ports
  • BLE/Zigbee/Thread/Matter
  • Limited lifetime warranty

Cloud-Managed Access

cnMaestro X is a simple, yet sophisticated cloud-first, next generation network management solution for Cambium Networks wireless and wired solutions. cnMaestro X offers elastic scalability and singlepane-of-glass management to deliver secure, end-to-end network and wireless lifecycle management with zero-touch provisioning, monitoring and troubleshooting capabilities. It simplifies operations and ongoing maintenance.

  • Single console for your entire Cambium network – Wi-Fi, Switching, Fixed Wireless
  • Simple and easy-to-navigate user interface for fast time-to-productivity
  • Powerful troubleshooting tools for drill down and rapid problem resolution
  • Flexible integration via APIs and Webhooks for third party extensibility and customization
  • Includes Cambium Care Pro software support with 24x7 L2 engineer access and all software updates for cnMaestro and managed devices

Do-Not-Disturb Hotel Design

Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the XV2-22H wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS

Designed for fast installation

XV2-22H install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. XV2-22H has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 10 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.

IoT Ready

Integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee based door access control systems or temperature control or enable BLE for close point of presence location services

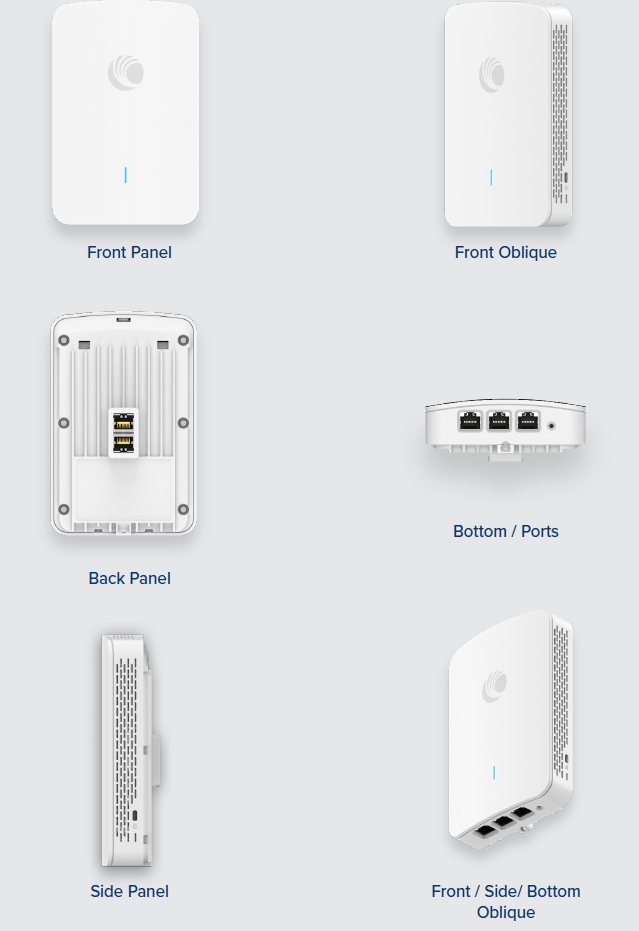

XV2-22H Wi-Fi 6 Wall Plate Access Point Views

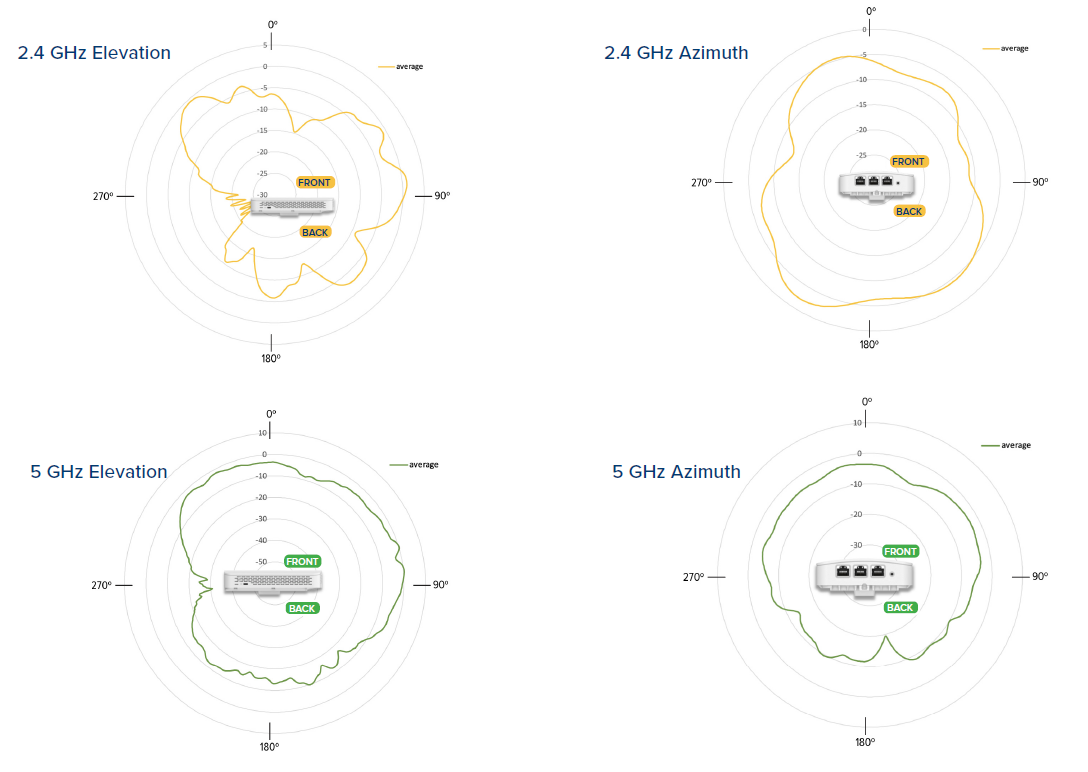

Antenna Patterns:

XV2-22H Wi-Fi 6 Wall Plate Access Point Antenna Pattern Views



Radios 1 x 5 GHz radio (802.11ax Wi-Fi 6), 2x2:2
1 x 2.4 GHz 802.11ax Wi-Fi 6), 2x2:2
1 x 802.15.4 or 1 x 802.15.1 IoT transceiver,
SU-MIMO / MU-MIMO: 2 streams
Wi-Fi 802.11 ax Wi-Fi 6
SSID Security WPA3-SAE, WPA3-Enterprise, WPA2 (802.11i), WPA2 AES, WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate 5 GHz 2402 Mbps
2.4 GHz 574 Mbps
Ethernet 1 x GE WAN
2 x GE LAN
PoE out (up to 10W)
USB Ports No
Antenna Internal omni-directional
2.4 GHz: 4.47 dBi   5 GHz: 5.56 dBi
IoT Antenna Gain: 5.18 dBi
Max EIRP 5 GHz: 28 dBm
2.4 GHz: 30 dBm
WLAN 16 WLAN profiles per radio
128 clients per radio
MTBF 511k hours at 25ºC; 121.79k hours 45ºC
Power 802.3af or 802.3at powered device
Typical load, no power out: 10W
Typical load, with 10W power out: 20W
Dimensions 160 mm x 105 mm x 32 mm
(6.3 in x 4.1 in x 1.26 in)
Weight 417 g (0.92 lb)
Security Kensington lock slot, secure bracket
LEDs Tri-color status LEDs
Ambient Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)
Humidity 95% RH non-condensing
Certifications 802.11u, HotSpot 2.0, Passpoint 3.0, 802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, PP2.0 FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950

Network Specifications

Authentication Encryption 802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP, EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/ PEAPv1 MAC authentication to local database (on AP, on Controller) or external RADIUS. MAC auth fallback to guest portal
Scheduled WLAN On/off by day, week, time of day
APIs RESTful management and statistics API Presence location API Webhooks
QoS 802.11e/WMM QoS. DSCP/ToS mapping
VLAN 802.11Q, max 4096
Fast Roaming 802.11r, OKC, cnMaestro assisted roam
Mesh Multi-hop, either band
Channel Selection Auto RF: Manual, or automatic
Sticky Client Enhanced roaming with thresholds
Network TNAT, NAT logging firewall, DOS protection, L2/L3/DNS ACL, DHCP server, DHCP Relay option 82 LLDP, IGMP v1, v2 VLAN Pooling, RADIUS attribute VID VLAN per SSID, per user Integrated WIDS (wireless intrusion detection)
Band Steer Load Balance Yes
Tunnel L2TPv2, L2GRE, PPPoE
Network and RF Management Tools Out-of-band RF spectrum analysis, RF monitor with channel/noise/interference, wired and wireless remote packet capture, ZapD performance tool, rogue AP detection
IP IPv4, IPv6


Interfaces HTTP / HTTPS web interface, SSH, Telnet SNMP V1, V2, V3 Syslog, SNMP traps, NTP
Deployment cnMaestro Cloud, cnMaestro on-premises, XMS-Cloud, Standalone AP
Services Monetized guest portal with design tools
Hotspot 2.0 802.11u, HotSpot 2.0
Accounting RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM
Service Availabilty Critical network resource monitor with SSID shutdown
Captive Portal Portal features hosted on cnMaestro: Design templates, customization tools supports 3rd party external portal RADIUS/LDAP/Click Through authentication Active Directory, Google, Facebook, Office 365, OAuth 2.0 Data Rate/Throughput limits, Time duration
Portal features hosted on the AP: supports 3rd party external portal RADIUS/LDAP/Click Through authentication Data Rate/Throughput limits, Time duration

Pricing Notes:

Cambium Networks Products
XV2-22H Wi-Fi 6 Wallplate AP
XV2-22H Wall Plate Dual radio WiFi 6 AP, 2x2, 3 x GbE, 48V PoE out, BLE/Zigbee
