Cambium Network XV2-21X Indoor Wi-Fi 6 Access Point
Enterprise grade software-defined access point
Our Price: $375.24
Click here to jump to more pricing!
Overview:
XV2-21X Indoor Wi-Fi 6 Access Point At a Glance
The XV2-21X indoor ceiling mount 2×2 Wi-Fi 6 AP offers 2.97 total Gbps of bandwidth. Ideal for hospitality, MDU and small and medium business applications.
802.11ax Dual-Radio Indoor Access Point. Cambium Networks’ XV2-21X Wi-Fi 6 indoor AP delivers a high-performance to price ratio that is attractive to any market.
- Dual Radio Wi-Fi 6
- 5 GHz (2×2), 2.4 GHz (2×2)
- 1 GbE RJ45 interface
- Managed by cnMaestro and/or Swift
- Limited lifetime warranty
Value-Tier Wi-Fi for any market
Cambium Networks XV2-21X Wi-Fi 6 Indoor access point delivers a high-performance to price ratio attractive to any market.
The XV2-21X can be adopted and managed by any of the Cambium Networks management systems, cnMaestro™ Cloud, cnMaestro™ X, cnMaestro™ onpremises, or Swift app-based management. Choose the management type you need, and change it at any time. Unlike other value-tier access points, the XV2-21X is never locked into just one management selection.
Designed for fast installation
The XV2-21X offers multiple installation methods included in the same shipping box. Mount the AP to a ceiling tile using the included steel plate, mount to an existing junction box with 83mm center-to-center holes, twist lock the AP onto a 36mm, 24mm and 14mm T-bar, or simply mount it to any flat surface using the included wall anchors. No accessory brackets are needed.

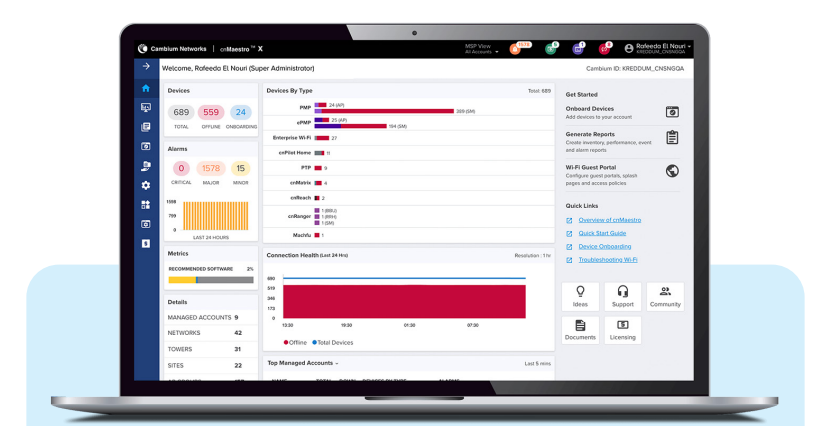

Management
To serve a growing market for advanced management and services functionality, Cambium Networks offers cnMaestro™ in two different management tiers:
cnMaestro Essentials
License-free management that delivers a disruptive Total Cost of Ownership (TCO) for organizations of all sizes.
cnMaestro X
Paid subscription that includes:
- Advanced device management capabilities./li>
- Cambium Care Pro for 24x7 technical support.
- Accelerated access to L2 engineers and regular software updates.
- Upgrades for advanced features.
Views:

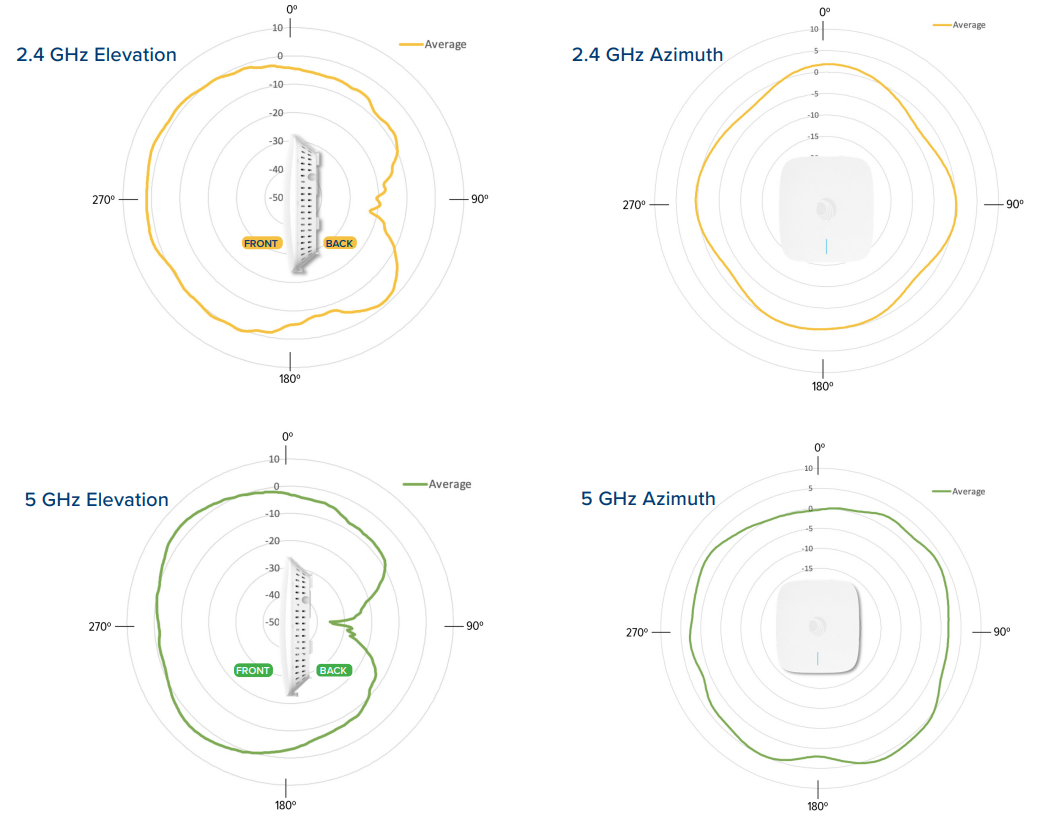

Antenna Patterns:
Specifications:
ACCESS POINT SPECIFICATIONS
| Radios | 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2:2 2.4 GHz 802.11 b/g/n/ax, 2x2:2 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3-SAE, WPA3-Enterprise, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WEP, Open |
| Max PHY Rate | 5 GHz radio 2402 Mbps 2.4 GHz radio 573.5Mbps |
| Ports | 1 x IEEE 10/100/1000 Mbps |
| Antenna | 5 GHz: 6 dBi 2.4 GHz: 5 dBi |
| Max EIRP | 5 GHz: 33 dBm 2.4 GHz: 32 dBm |
| Power | Typical 11W, Maximum 12.95W 802.3af powered device |
| Dimensions | 155 mm x 155 mm x 37 mm (6.1 in x 6.1 in x 1.46 in) With Bracket: 155 x 155 x 46 mm (6.1 x 6.1 x 1.81 in) |
| Weight | 475g (1.05 lbs) |
| LEDs | Multi-color status LEDs, dimmable, on/of |
| Ambient Operating Temperature | 0ºC to 50ºC (32ºF to 122ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| MTBF | 1,980,244 hours at 50ºC ambient (estimated) |
| Mount Options | Wall or ceiling, T-bar with included locking bracket, ceiling tile plate |
| Certifications | Passpoint 3.0, 802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, PP2.0 FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043, EN 61373 |
Network Specifications
| Operational Modes | Controller-less standalone Cloud-managed cnMaestro, VM |
| WLAN | 16 WLAN profiles per radio 128 clients per radio, 16 SSIDs, WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF |
| Guest Access/ Captive Portal | cnMaestro, On-AP hosted guest portal Social login, Voucher based login, SMS gateway, Payment gateway support. Supports radius based authentication. cnMaestro API support for external captive portal integration. |
| Authentication Encryption | Hotspot 2.0, 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS, MAC Authentication local database or RADIUS |
| Scheduled WLAN | On/off by day, week, time of day |
| Data Limit | Client bitrate/time/throughput limit per SSID |
| Subscriber QoS | WMM |
| Fast Roaming | 802.11r, OKC, cnMaestro assisted roam |
| Mesh | Multi-hop, either band |
| Channel Selection | Multi-modal channel selection with AutoChannel and autotune (cnMaestro) |
| RF Management | Multi-Modal RF optimization supporting AutoRF (cnMaestro) performed in the intelligent edge AP. Out of band RF spectrum analysis, RF monitor with chn/ noise/interference |
| Network | TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user |
| Band Steer Load Balance | Yes |
| Tunnel | L2TPv2, L2GRE, PPPoE |
| Network Tools | Wired and wireless remote packet capture, logging, ZapD |
| Network and RF Management Tools | Wired and wireles remote packet capture, ZapD performance tool, rogue AP detection |
| Services | L2-L7 application visibility & control, WiFi Calling control, WIDs/WIPs, NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure |
| API | RESTful management and statistics API Presence location APIs |
| IP | IPv4, IPv6 |
Documentation:
Download the Cambium Network XV2-21X Indoor Wi-Fi 6 Access Point Datasheet (PDF).
