Overview:

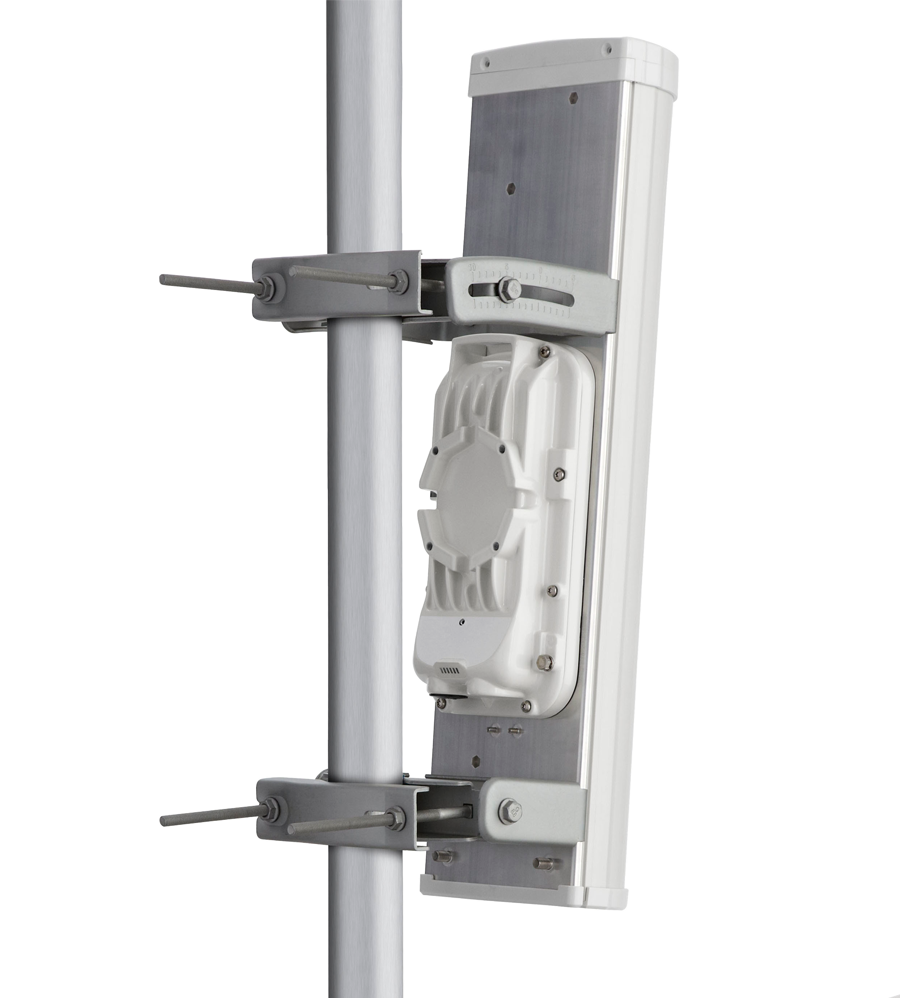

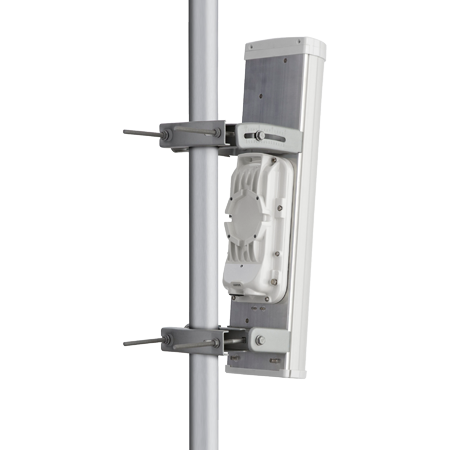

Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The PMP 450i Access Point product platform is the most scalable industrial-grade wireless broadband solution available.

ULTRA-WIDE BAND RADIOS

Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.

RUGGED METAL ENCLOSURE

Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.

DYNAMIC INTERFERENCE FILTERING

Provides industryleading noise isolation for improved performance.

Features:


MULTIFUNCTION AUX PORT

Allows for greater flexibility for deployment by adding a camera or other PoE directly

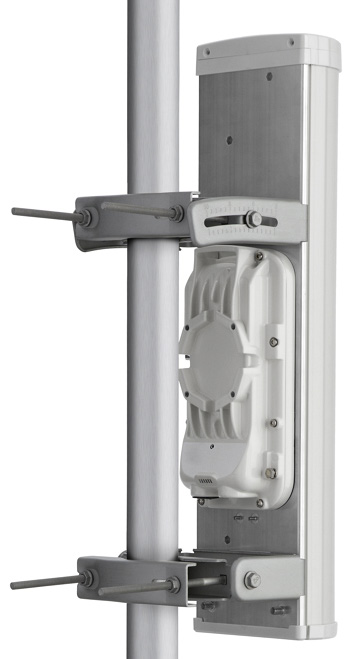

OPTIONS FOR INTEGRATED 90° SECTOR ANTENNA

optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance, or Integrated 10° sector antenna for highly directional sectors.

INCREASE THROUGHPUT

Now capable of up to 300 Mbps per sector in a 40 MHz channel.

Specifications:


Physical

3 GHz

5 GHz

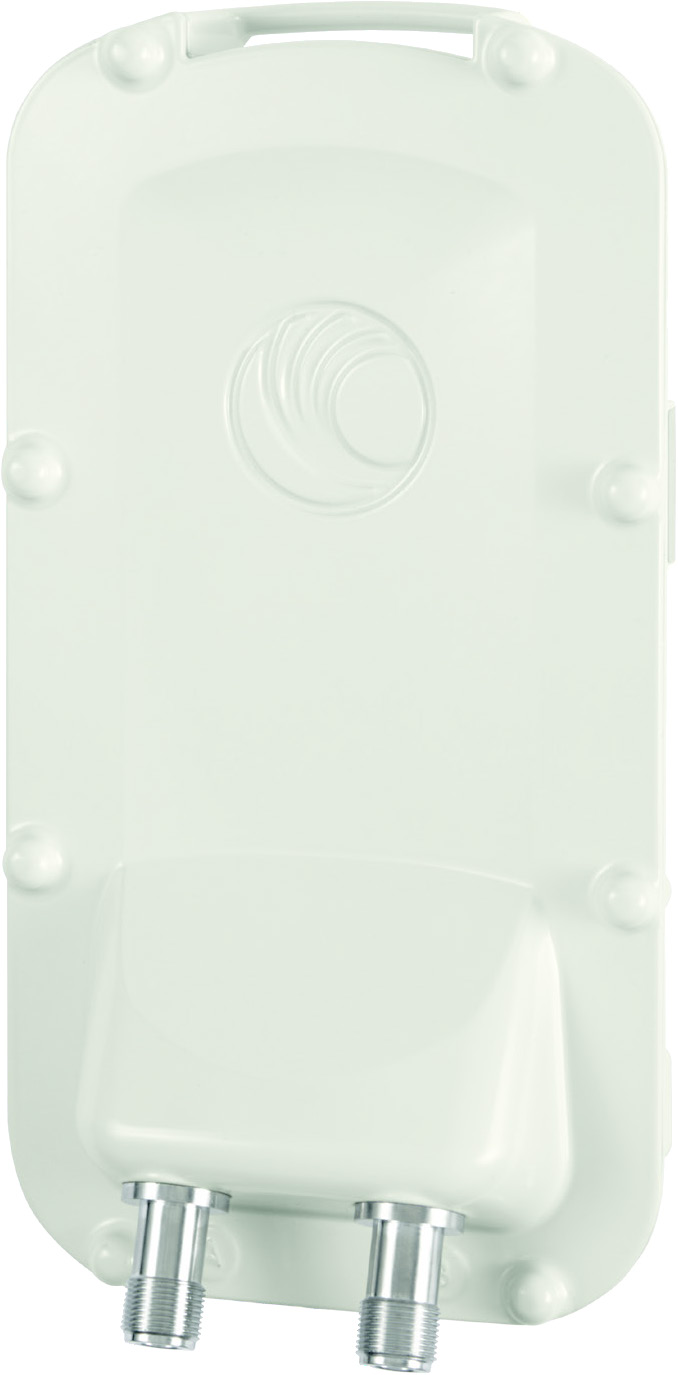

Antenna Connection



50 ohm, N-Type (Connectorized version only)

Surge Suppression (LPU fitted)





EN61000-4-5: 1.2us/50us, 500 V voltage waveform

Recommended external surge suppressor: Cambium Networks Model # C000000L033A

Mean Time Between Failure



>40 Years

Dust and Water Ingress Protection Rating



IP67,

IP66

Temperature / Humidity



-40°C to +75°C (-40°F to +167°F), 0-100% condensing

Weight

Connectorized

Approx. 2.0 kg (4.5 lbs)                            Approx. 2.0 kg (4.5 lbs)



Integrated

Approx. 7 kg (15.5 lbs)                             Approx. 6.8 kg (15 lbs)

Wind Survival



322 km/h (200 mi/h)

Vibration



NEMA TS2 Section 2.1.9

and Section 2.2.3

Shock



NEMA TS2 Section 2.1.10 and Section 2.2.4

Interface

MAC (Media Access Control) Layer

Cambium Networks proprietary

Physical Layer

2x2 MIMO OFDM

Ethernet Interface

100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Network Management

IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM

MTU

1700 bytes

VLAN

802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Performance

Subscriber Per Sector

Up to 238 - *Lite models limited to 20 Subscribers,

License Key (C000045K010A) available to remove this limit

ARQ

Yes



Modulation Levels (Adaptive)

MCS

Signal to Noise Required (SNR, in dB)

2x

QPSK

10

4x

16QAM

17

6x

64QAM

24

8x

256QAM

32

Maximum Deployment Range

Up to 40 miles (64 km)



Latency

3 - 5 ms, typical



GPS Synchronization

Yes, via Autosync (CMM5 or UGPS)

Quality of Service

Diffserve QoS



Link Budget

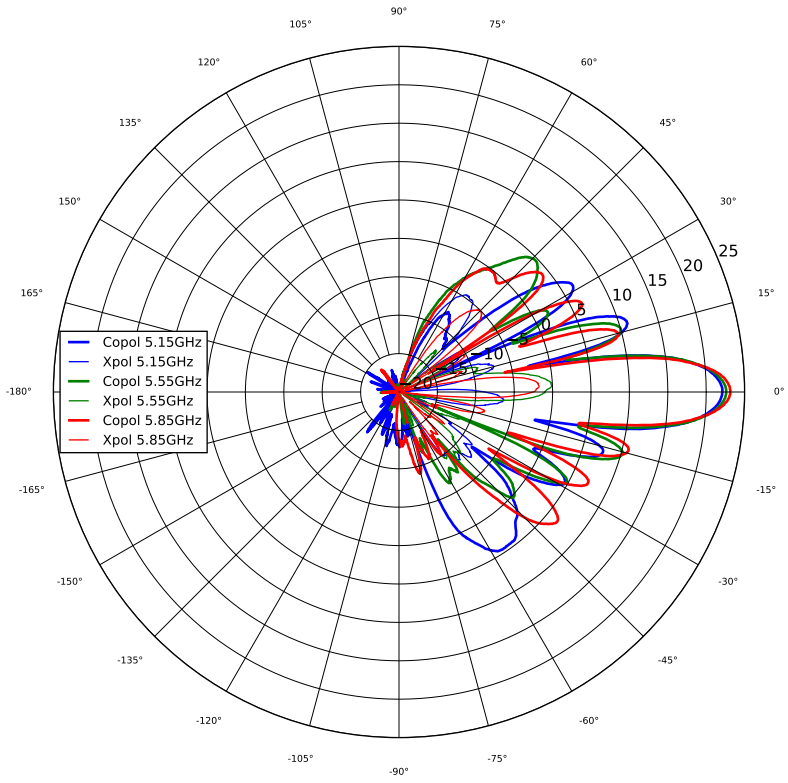

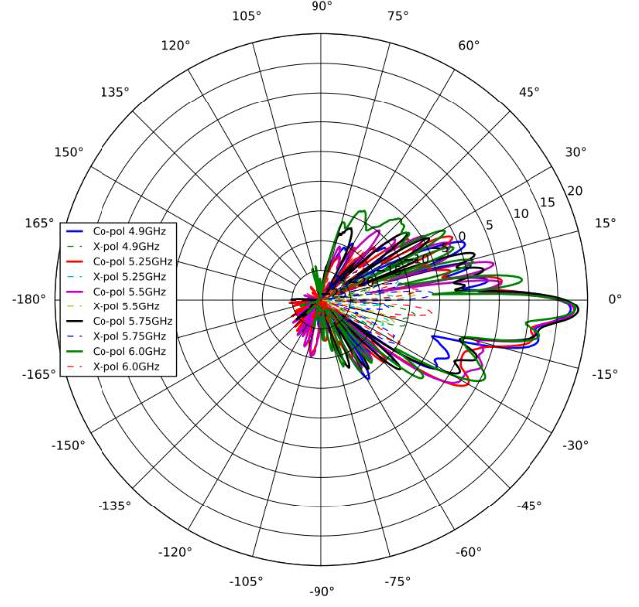

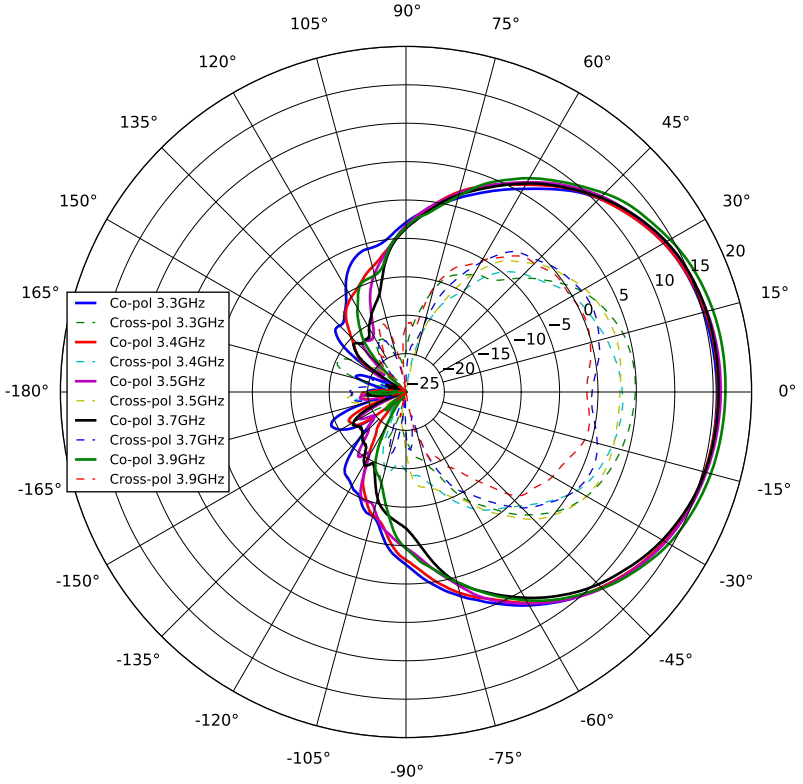

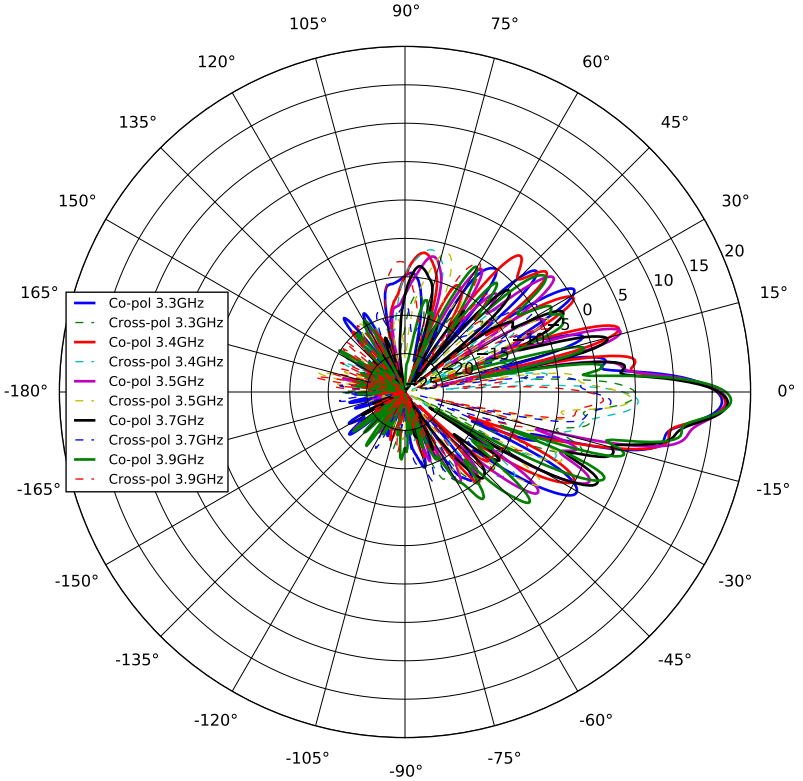

Integrated Sector Antenna

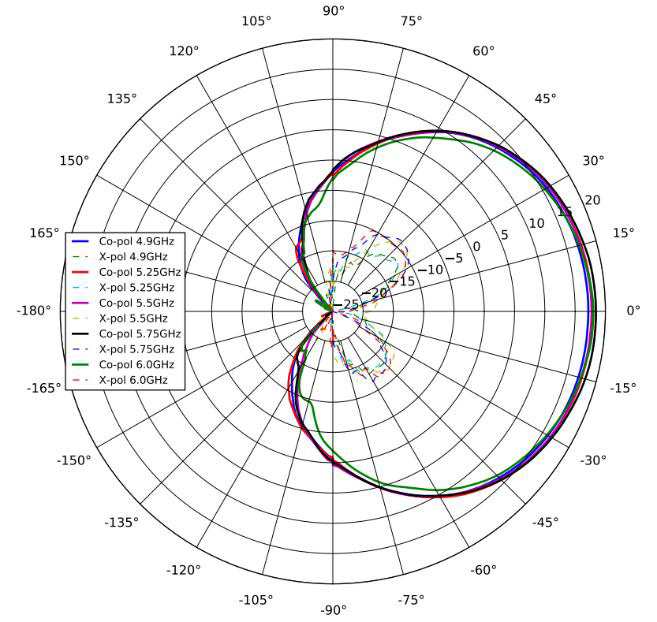

90° Azimuth, 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual polarity, or

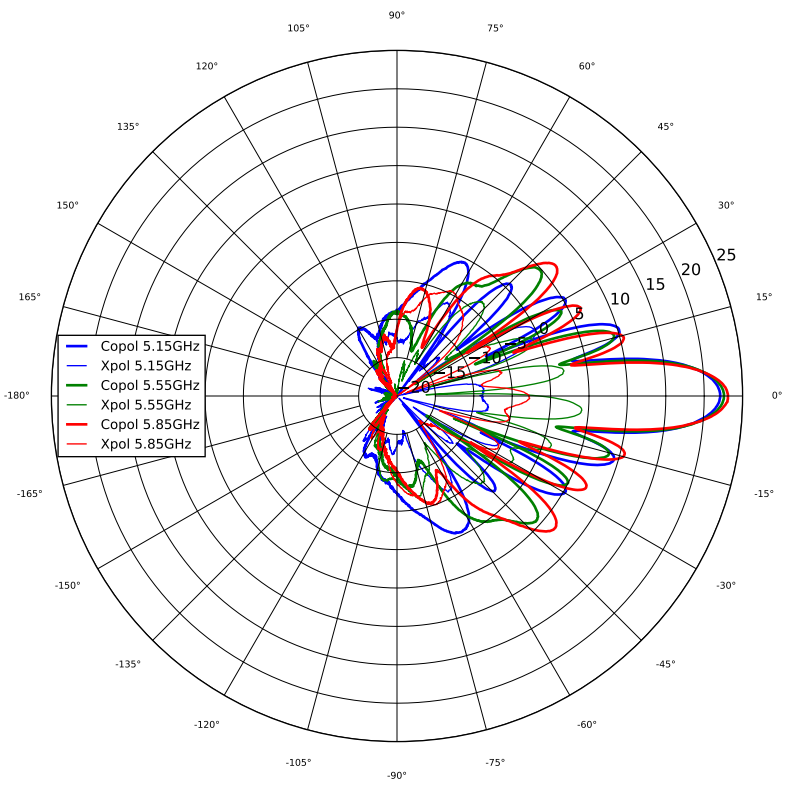

10° Azimuth, 10° Elevation (3dB rolloff), Dual polarity

Antenna Gain

17 dBi ± integrated 90° sector , 23 dBi ± 1 dBi integrated 10° sector

Maximum Transmit Power

+28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations)

Maximum EIRP

+43 dBm combined output (may be limited by regulations)

VSWR

1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB

Power Control

ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC

Documentation:

Download the Cambium Networks PMP 450i Datasheet (.PDF)
