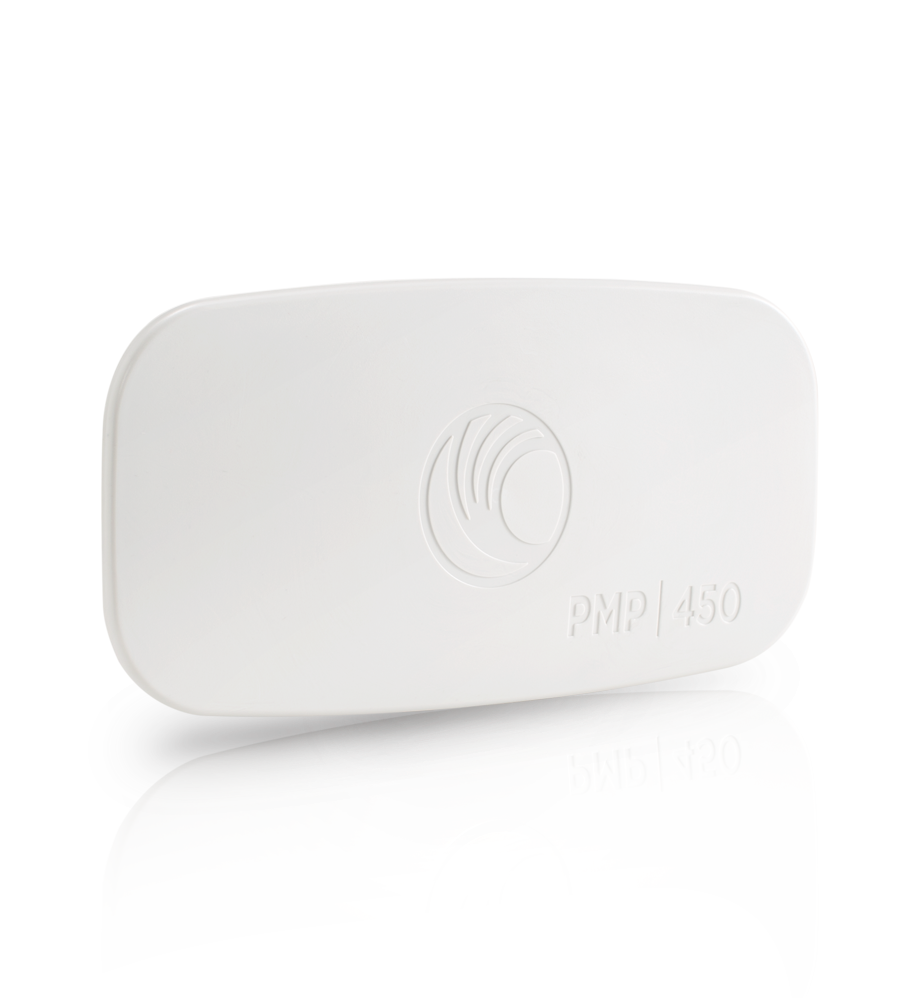

Cambium Networks PMP 450b
Subscriber Module and Backhaul

Cambium Networks PMP 450b

Cambium Networks Products
PMP Products
5 GHz 450b - Mid-Gain WB SM
#C050045C011A
Our Price: $309.00
5 GHz 450b - High Gain WB SM - Radio Only - SPARE
#C050045C012A
Our Price: $339.00

Click here to jump to more pricing!

Overview:


The PMP 450b Subscriber Module supports frequencies from 4.9 – 5.925 GHz and provides 300 Mbps aggregate throughput in a 40 MHz channel.

Key Features

  • Gigabit Ethernet Interface provides the maximum transfer rates to the device.
  • 3.5 mm audio jack allows direct connection of headphones without any adapters.
  • 450b Subscriber and Backhaul
  • New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM.
  • Capable of up to 300 Mbps aggregate in a 40 MHz channel.
  • Backhaul radios can function as a Point-to-Point (PTP) link or as a Subscriber Module (SM), except for Global models.

Specifications:


SPECIFICATIONS

SECURITY





Encryption

FIPS-197 128-bit AES, 256-bit AES (optional)



PERFORMANCE





PPS

50,000



ARQ

Yes



Modulation Levels (Adaptive)

MCS

Signal to Noise Required (SNR, in dB)

2X

QPSK

10

4X

16-QAM

17

6X

64-QAM

24

8X

256-QAM

32

ANTENNA

MID-GAIN (17 dBi)

HIGH GAIN (24 dBi)

Integrated Antenna Peak Gain

17 dBi

24 dBi

3 dB Beamwidth - Azimuth

15° Azimuth, 30° Elevation

7° Azimuth, 7° Elevation

Polarization

Dual linear, H + V

Dual linear, H + V

Front-To-Back Isolation

>20 dB

>25 dB

Cross Polarization

15 dB

15 dB

PHYSICAL





Antenna Accessories

N/A

Optional Radome: N000900L021A

Surge Suppression

EN 61000-4-5: 10x700us, 4Kv

EN 61000-4-2: ESD 30kV contact / 30kV air

EN 61000-4-5: 10x700us, 4Kv

EN 61000-4-2: ESD 30kV contact / 30kV air

Mean Time Between Failure

> 40 Years

> 40 Years

Environmental

IP 55

IP 67

Temperature / Humidity

-40°C to +60°C (-40°F to +140°F), 0-95% non-condensing

-40°C to +60°C (-40°F to +140°F), 0-100% condensing

Weight

0.6 kg (1.4 lb.) (includes mounting bracket)

3.1 kg (7 lb.) (includes mounting bracket)

Wind Survival

200 km/hour (124 mi/hour)

200 km/hour (124 mi/hour)

Dimensions (HxWxD) (including mount)

12.5 x 24.8 x 12 cm (4.9” x 9.8” x 4.7”)

45 cm diameter x 28 cm (17.8” diameter x 11.2”)

Pole Diameter Range / Mechanical Tilt

2.5 to 4.1 cm (1” to 1.6”) w/ included clamp (to 5.7 cm (2.25”)

2.5 - 7.6 cm (1” to 3”)

(w/ included mount)

w/ larger clamp

± 20 degrees mechanical tilt

± 20 degrees mechanical tilt

Power Consumption

9 W nominal, 12 W peak

9 W nominal, 12 W peak

Input Voltage

20 - 32 V DC

20 - 32 V DC

CERTIFICATIONS





Canada (ISED)

109W-0032

109W-0042

FCC ID

Z8H89FT0032

Z8H89FT0042

ETSI

EN 301 893 v1.8.1, EN 301 893 v2.1.1 Clause 4.8

EN 302 502 v2.1.1

EN 301 893 v1.8.1,EN 301 893 v2.1.1 Clause 4.8

EN 302 502 v2.1.1

Documentation:

Download the Cambium Networks PMP 450b Datasheet (.PDF)
