PTP 820S
  • Specs: Outdoor core radio capable of 2048
  • All outdoor, single core, up to 600Mbps

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
Product Overview

Cambium Networks PTP 820S

All outdoor, single core, up to 600Mbps

PTP

Product Highlights

Ethernet Interfaces

Traffic Interfaces – x 10/100/1000Base-T (RJ-45) and x 1000base-X (SFP) or x 10/100/1000 Base-T (electrical SFP)

Optical SFP Types - Optical 1000Base-LX (1310 nm) or SX Note: SFP devices must be of industrial grade (-40°C to +85°C) Ethernet Features MTU – Bytes Quality of Service Multiple Classification criteria (VLAN ID, p-bits, IPv4, DSCP, IPv6 TC, MPLS EXP) priority queues Deep buffering (configurable up to Mbit per queue)

VLAN add/remove/translate

Frame Cut Through – controlled latency and PDV for delay sensitive applications Header De-Duplication – Capacity boosting by eliminating inefficiency in all layers (L2, MPLS, L3, L4, Tunneling – GTP for LTE, GRE) Y.1731 Ethernet OAM Y.1731 Ethernet Bandwidth Notification (ETH-BN) Adaptive Bandwidth Notification (ABN)

Ideal Applications

Dense enterprise environments leveraging the clean, uncongested 6 GHz band for interference-free, low-latency connectivity. Healthcare, education, and hospitality networks requiring reliable high-throughput wireless across large deployments.

Product Images

1 photo

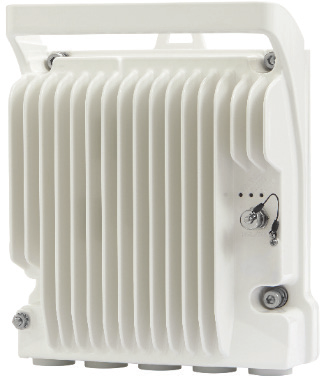

Product image 1
Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 820S to ensure compatibility with your deployment.

Radio

Frequency 6-38 GHz
1+0, 1+1 HSB, 2+0
Protection 1+1 HSB, QPSK to 2048 QAM w/ACM
Features Advanced Frequency Reuse (AFR)

Ethernet

Traffic Interfaces 1 x 10/100/1000Base-T (RJ-45) and 2 x 1000base-X (SFP) or 2 x 10/100/1000 Base-T (electrical SFP)
Management Interfaces 1 x 10/100 Base-T (RJ-45)
Optical SFP Types Optical 1000Base-LX (1310 nm) or SX (850nm)

Security

Radio Encryption AES 256
Secured Protocols HTTPS, SNMPv3, SSH, SFTP

Physical

Dimensions (HxWxD) 230 x 233 x 98mm (9.05 x 9.07 x 3.86in)
Weight 6kg (13.23 lbs)
Pole Diameter Range (for Remote Mount Installation) 8.89 cm – 11.43 cm; 3.5” – 4.5”
Environmental -33°C to +55°C (-45°C to +60°C extended); -27°F to +131°F (-49°F to +140°F extended)

Power Input

Standard Input -48 VDC
IDU DC Input Range -40 to -60 VDC

Power Consumption

Maximum Power Consumption 6-11 GHz: 35W; 13-38 GHz: 42W
