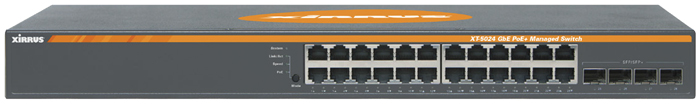

Cambium Network Xirrus XT-5024
24 port Enterprise-Class L2+ Gigabit Managed Access Switch with 802.3at PoE+, and 4 1/10G SFP+ Ports

Benefits:

“Single Pane of Glass” Management of Wired and Wireless Networks

The Cambium Network Xirrus unified access layer is managed by the Cambium Network Xirrus Management System (XMS), providing single pane of glass management for both Cambium Network Xirrus wired and wireless networks. The XMS is a comprehensive platform that provides in-depth visibility into users, devices, applications, and traffic on the network, in addition to complete configuration management of the wired and wireless networks. The XMS is available in onpremise and cloud-hosted options.

Ample Power for Unified Access Networks

The XT Series access switches provide Power-over-Ethernet (PoE/PoE+) to power IP-based devices such as IP phones, wireless APs, and IP video cameras. The XT-5024 provides up to 370 W and XT-5048 up to 779W of power. The intelligent power management scheme built into the switches optimizes the power distribution based on the capabilities of the end IP devices. Power is dynamically pooled from the power supply across all the ports. The XT-5048 switches also support external redundant power supplies (RPS) for high availability.

Auto Activation and Zero-Touch Provisioning

The XT Series access switches support* Cambium Network Xirrus Mobilize—a cloud-based provisioning service that automates and simplifies IT deployment with plug-and-play networking. Upon initial power up at installation, Cambium Network Xirrus switches are auto-discovered by Mobilize which automatically updates to latest firmware levels and provides initial configuration. This zero-touch provisioning completely eliminates manual IT intervention, streamlining processes to configure and provision the switches. Cambium Network Xirrus Mobilize can be implemented with or without the XMS across a unified wired and wireless Cambium Network Xirrus network.

Scalable Network Edge with Stacking

Multiple switches can be stacked together to simplify management using one IP address. Switches can be added into the stack as the capacity demand grows, for a maximum of eight nodes per stack.

Advanced Security

The XT Series access switches provide advanced security features, particularly essential to support guest access and onboarding of non-IT issued devices. The switches support AAA based on RADIUS and 802.1x. IP spoofing with IP source guard blocks undesirable traffic with ACLs and provides port security with port/MAC locking.

Easy to Deploy

The Cambium Network Xirrus XT enterprise-class switches simplify integration with existing wired network infrastructure and deliver a reliable, robust, high performance Gigabit wired access network.

Unified Management

The Cambium Network Xirrus Management System manages the unified wired and wireless Cambium Network Xirrus network – Enterprise on Hyper-V or VMware, providing an easy-to-use, single view management console to simplify IT operations.

Scalable Capacity

Switches can be stacked together to simplify management with a single IP address. Network capacity can be added into the stack as the demand for bandwidth and connectivity grows, up to eight nodes per stack. Cambium Network Xirrus XT switches support up to 40Gbps of high bandwidth access to the core of the network.

Intelligent Power Over Ethernet

Intelligent power management optimizes power distribution based on end device capability and provides Power over Ethernet for IP-based devices including IP phone, Wi-Fi APs and IP video.

Specifications:

Models:	XT-5024	XT-5024
Physical Specifications
Dimension	17.4" (W) X 1.73" (H) X 15.15" (D)	17.4" (W) X 1.73" (H) X 15.15" (D)
Interfaces	Uplink: 4 SPF+ 1/10Gbps Downlink: 24 ports – 10/100/1000Mbps RJ-45 DB9 Console Port	Uplink: 4 SPF+ 1/10Gbps Downlink: 48 ports – 10/100/1000Mbps RJ-45 DB9 Console Port
Weight	8.16 lbs	11lbs
Standard Features
Line Rate Switching (64 byte packets)	95.23Mpps	130.94Mpps
Line Rate Switching (Gigabits per sec)	128Gbps	176Gbps
Copper Interfaces	24 10/100/1000Mbps	48 10/100/1000Mbps
PoE Budget (Pooled across all ports)	370 Watts 802.3af/802.3at on all ports Up to 38W on first 12 ports	779 Watts 802.3af/802.3at on all ports Up to 38W on first 12 ports
VLANs	4096	4096
Concurrent Active VLANs	4000	4000
Redundant Power	No	External RPS
Power	100-240 VAC 50-60 Hz	100-240 VAC 50-60 Hz
Certification	CE Mark UL 60950-1:2003 EN 60950:2000 FCC Class A	CE Mark UL 60950-1:2003 EN 60950:2000 FCC Class A
Operating Temperature	0˚ to 40˚ C	0˚ to 40˚ C
Storage Temperature	-20°C to +70°C	-20°C to +70°C
Operating Humidity	10% to 90% (non-condensing)	10% to 90% (non-condensing)
Green	802.3az Auto port on/off Cable Length Detection	802.3az Auto port on/off Cable Length Detection
Layer 2 Switching
General	Jumbo Frame Support – 9KB MAC Table – 32,000 entries
Spanning Tree	Spanning Tree 802.1d Rapid Spanning Tree 802.1w Multiple Spanning Tree 802.1s
Discovery	LLDP (Link Layer Discovery Protocol) 802.1AB with LLDP-MED Extensions
Trunking	LACP 802.3ad 26 groups total 8 ports per group
VLAN	Port-based VLANs 802.1q tag-based VLANs MAC-based VLANs Management VLAN Private VLAN Edge (PVE) Voice VLAN Generic VLAN Registration (GVRP)
IGMP	IGMP Snooping – v1 / v2 / v3 IGMP Querier IGMP Proxy MLDv1 / v2 Snooping
IP	IPv4 IPv6
Security	802.1x IGMP-RADIUS based 802.1x Dynamic VLANs Layer 2 Isolation Private VLAN Edge (PVE) Port Security – MAC / port mapping lock IP Source Guard RADIUS TACACS+ Access Control List (ACL) – 256 entries
QoS	Hardware Queues – 8 queues Scheduling – Weighted Round Robin (WRR) Scheduling – Strict Priority Queue Assignment – DSCP Queue Assignment – 802.1p / CoS Classification – Port-based Classification – 802.1p VLAN Priority-based Classification – IPv4/v6 Precedence Classification – Type of Service (ToS) Classification – DSCP-based Classification – DiffServ
Rate Limiting	Ingress Policer Egress Shaping and Rate Control Per VLAN Per Flow Per Port
Management
Management Interface	CLI via SSH v1 / v2 CLI via DB9 console port Web GUI Interface Manageable by Cambium Network Xirrus XMS-Enterprise* Manageable by Cambium Network Xirrus XMS-Cloud (2015)* Firmware Upgrade – HTTP(S) / TFTP
SNMP	SNMP v1, v2c, v3

*Roadmap Item
