Cambium Networks PTP 450v 4×4

Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.

Talk to a Pro

PTP 450v 4×4

Specs: PMP 450v 4x4 Fixed Wireless Subscriber

Operates from 5.15 GHz to 7.125 GHz
4x4 subscriber module with carrier aggregation
Can be deployed as point-to-point (PTP) backhaul link

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Product Overview

Cambium Networks PTP 450v 4×4

Both the 2×2 PTP 450v and 4×4 PTP 450v support up to 2×40 MHz of operating spectrum to deliver over 500 Mbps of data.

PTP

Product Highlights

Frequency Flexibility

Achieve flexibility in spectrum usage with GHz or GHz frequency

N000045L003A N000045L003A

were produced in a different factory.

Mechanical Assembly

GPS Active Antenna For GHz Operation

Spectrum

Channel Spacing Configurable on 2.5 MHz increments

Frequency Range 5.150 GHz–7.125 GHz

Total Occupied Bandwidth Up to MHz*

*Future release

**Note that model numbers ending in “A” are equivalent in form, fit and function, but

Ideal Applications

Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale. ISP last-mile buildouts requiring scalable point-to-multipoint architecture with high spectral efficiency.

Product Images

4 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 450v 4×4 to ensure compatibility with your deployment.

Spectrum

Channel Spacing Configurable on 2.5 MHz increments

Frequency Range 5.150 GHz–7.125 GHz

Total Occupied Bandwidth Up to 120 MHz

Interface

MAC (Media Access Control) Layer Cambium Networks proprietary

Input/Output Main Ethernet port, SFP port, 3.5mm TRRS port

Physical Layer 2x2 MIMO OFDM

Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

Protocols Used IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Network Management IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro

MTU 1700 bytes

VLAN 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Performance

Subscriber Per Sector 100,000

ARQ Yes

Ultimate Sensitivity -94 dBM

Maximum Deployment Range Up to 40 mi (64 km), in PMP mode, up to 124 mi (200 km) in PTP mode

Latency 3–5 ms, typical

GPS Synchronization Yes, via embedded GPS

Quality of Service Diffserv QoS

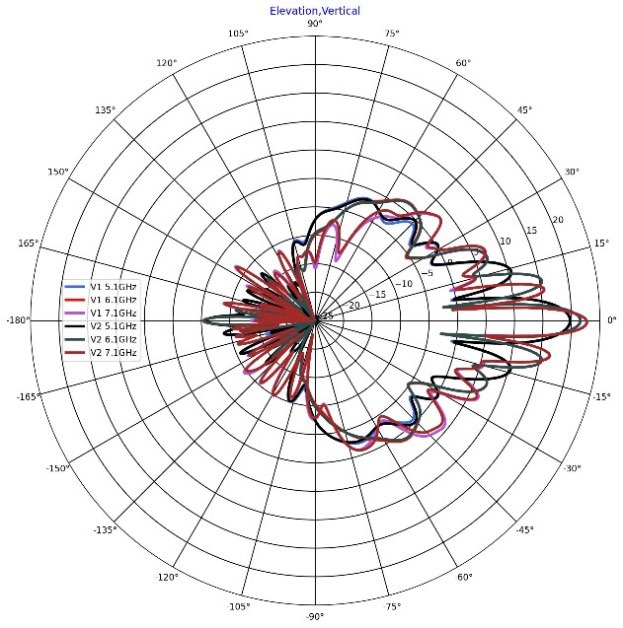

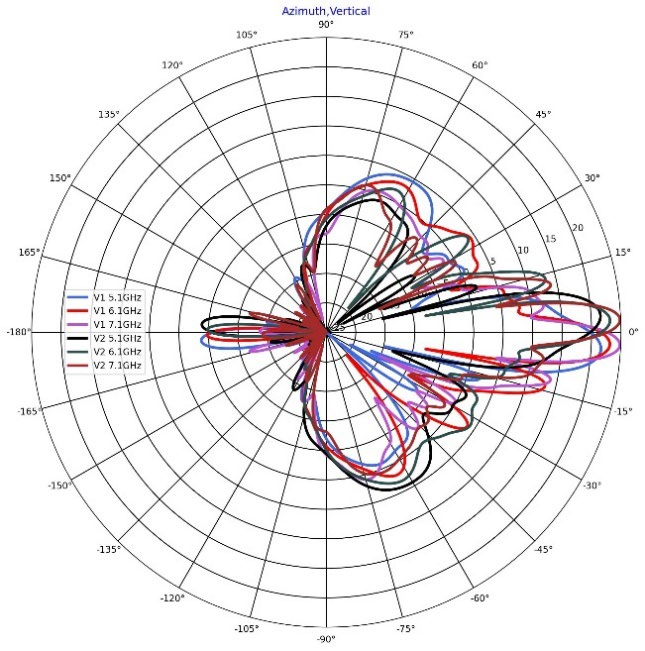

Antenna

Integrated Antenna Peak Gain 22 dBi

3 dB Beamwidth – Azimuth 7°

3 dB Beamwidth – Elevation 7°

Polarization Dual linear, H + V

Front-to-Back Isolation > 30 dB ( > 25 dB at sector edge)

Cross Polarization 15 dB

VSWR < 2

Link Budget

Maximum Transmit Power +28 dBm (MIMO, combined H+V) for 5 GHz, +20 dBm for 6 GHz

Maximum EIRP +50 dBm combined output (may be limited by regulations) for 5 GHz, +44 dBm for 6 GHz

Power Control ATPC (Automatic Transmit Power Control) at system level, all subscribers implement ATPC

Security

Radio Encryption FIPS-197 128-bit AES, 256-bit AES (requires optional license)

Physical

Antenna Connection N/A - Integrated Dish antenna, separately purchased part number N060045D201A

Surge Suppression EN 61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air

Dimensions (Diameter x Depth) 462 mm diameter x 264 mm depth (18.1 in diameter x 10.4 in depth)

Weight 4.5 kg (9.9 lb), 6.5 kg (14.3 lb) with bracket

Wind Survival 200 kph (124 mph)

Environmental IP67, IP66

Temperature -40°C to +60°C (-40°F to +140°F), 0%–95% condensing

Input Voltage 48-59 VDC, 802.3bt type 4 class 8 (also accepts passive PoE)

Power Consumption

Typical Power Consumption 45 W

Maximum Power Consumption 55 W

Downloads

Documentation & Resources

Download datasheets and technical documentation for the PTP 450v 4×4.

Data Sheet

Download PDF →
