Cambium Networks PMP 450v 4×4 Fixed Wireless Subscriber Module and PTP Backhaul

Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.

Talk to a Pro

PMP 450v 4×4

Specs: PMP 450v 4x4 Fixed Wireless Subscriber

Operates from 5.15 GHz to 7.125 GHz
4x4 subscriber module with carrier aggregation
Can be deployed as point-to-point (PTP) backhaul link

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Product Overview

Cambium Networks PMP 450v 4×4 Fixed Wireless Subscriber Module and PTP Backhaul

Deliver higher performance to business and residential locations. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth.

PMP 450Subscriber

Product Highlights

Frequency Flexibility

Achieve flexibility in spectrum usage with GHz or GHz frequency

N000045L003A N000045L003A

were produced in a different factory.

Mechanical Assembly

GPS Active Antenna For GHz Operation

Spectrum

Channel Spacing Configurable on 2.5 MHz increments

Frequency Range 5.150 GHz–7.125 GHz

Total Occupied Bandwidth Up to MHz*

*Future release

**Note that model numbers ending in “A” are equivalent in form, fit and function, but

Ideal Applications

Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale. ISP last-mile buildouts requiring scalable point-to-multipoint architecture with high spectral efficiency.

Product Images

4 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the PMP 450v 4×4 to ensure compatibility with your deployment.

Specifications

PMP 450v4x4 Fixed Wireless Subscriber Module & PTP Backhaul

Interface

MAC (Media Access Control) LayerCambium Networks proprietary

Input/OutputMain Ethernet port, SFP port, 3.5mm TRRS port

Physical Layer2x2 MIMO OFDM

Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Protocols Used

Network ManagementIPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro

MTU1700 bytes

VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID 100,000

ARQYes

Modulation Levels (Adaptive)MCS Signal to Noise Required (SNR, in dB)

2xQPSK 10

3x8QAM 13

4x16QAM 17

5x32QAM 21 64QAM 24

7x128QAM 28 256QAM 32

Ultimate Sensitivity-94 dBM

Maximum Deployment RangeUp to 40 mi (64 km), in PMP mode, up to 124 mi (200 km) in PTP mode

Latency3–5 ms, typical

GPS SynchronizationYes, via embedded GPS

Quality of ServiceDiffserve QoS

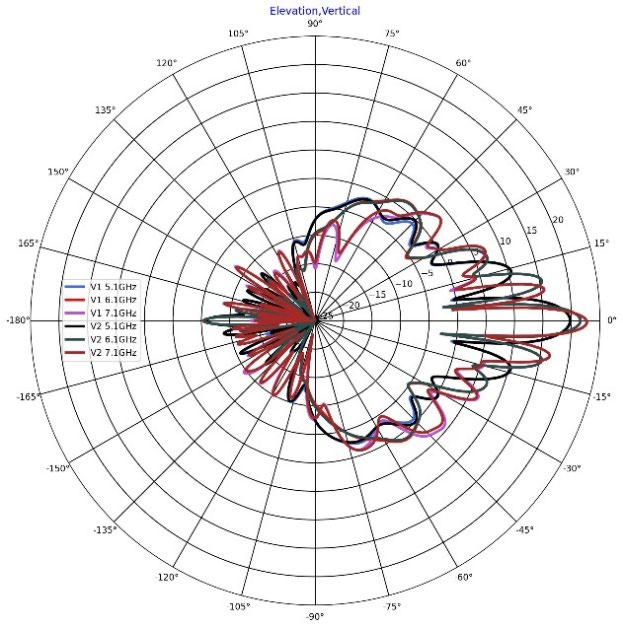

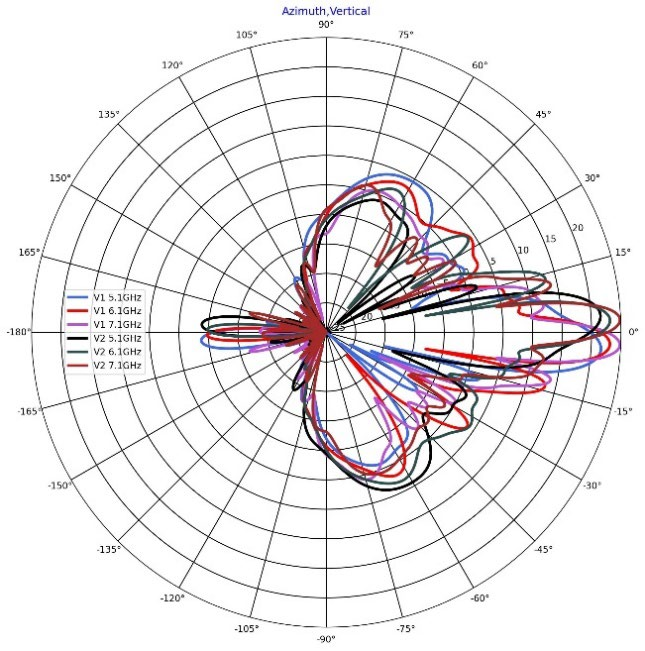

Antenna

Integrated Antenna Peak Gain22 dBi

3 dB Beamwidth – Azimuth7°

3 dB Beamwidth – Elevation7°

PolarizationDual Linear, H+V

Front-to-Back Isolation>30 dB (>25 dB at sector edge) 15 dB

VSWR<2

PMP 450v4x4 Fixed Wireless Subscriber Module & PTP Backhaul

Maximum Transmit +28dBm (MIMO, combined H+V) for 5 GHz, +20 dBm for 6 GHz

Maximum EIRP +50dBm combined output (may be limited by regulations) for 5 GHz, +44 dBm for 6 GHz

Power Control ATPC(Automatic Transmit Power Control) at system level, all subscribers implement ATPC

Antenna Connection

Surge SuppressionEN 61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air Recommended external surge suppressor: Cambium Model # C000000L033A

Mean Time Between>40 Years

Dust and Water IngressIP67, IP66

Temperature / Humidity-40°C to +60°C (-40°F to +140°F), 0%–95% condensing

Weight4.5 kg (9.9 lb), 6.5 kg (14.3 lb) with bracket

Wind Survival200 kph (124 mph)

VibrationIEC60068-2-64:2008 Random Vibration Test ESTN EN 300 019-2-4 V2.3.1

Dimensions (Diameter x462 mm diameter x 264 mm depth (18.1 in diameter x 10.4 in depth)

Power Consumption45W typical, 55W max – Recommended Power Supply, C000000L141A

Input Voltage48-59 VDC, 802.3bt type 4 class 8 (also accepts passive PoE)

Certifications

ISED Canada109W-0082

FCC IDZ8H89FT0082

CETBD

PMP 450v4x4 Fixed Wireless Subscriber Module & PTP Backhaul

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital

experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium

Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing

their business rather than thenetwork. We make connectivity that just works.

Downloads

Documentation & Resources

Download datasheets and technical documentation for the PMP 450v 4×4.

Data Sheet

Download PDF →
