Cambium Networks PMP 450b6 Subscriber Module
Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage.
Talk to a Pro
PMP 450b6
- Specs: Subscriber Module
- Low-cost entry point into 6 GHz
- Re-banded PMP 450b radio to
- Capable of up to 300 Mbps
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview
Cambium Networks PMP 450b6 Subscriber Module
Up to 300 Mbps in a 40 MHz channel. Frequency range is 5.7 – 6.3 GHz
PMP 450Subscriber
Product Highlights
Gigabit Ethernet interface provides the
maximum transfer rates to the device
Ideal Applications
Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage. Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.

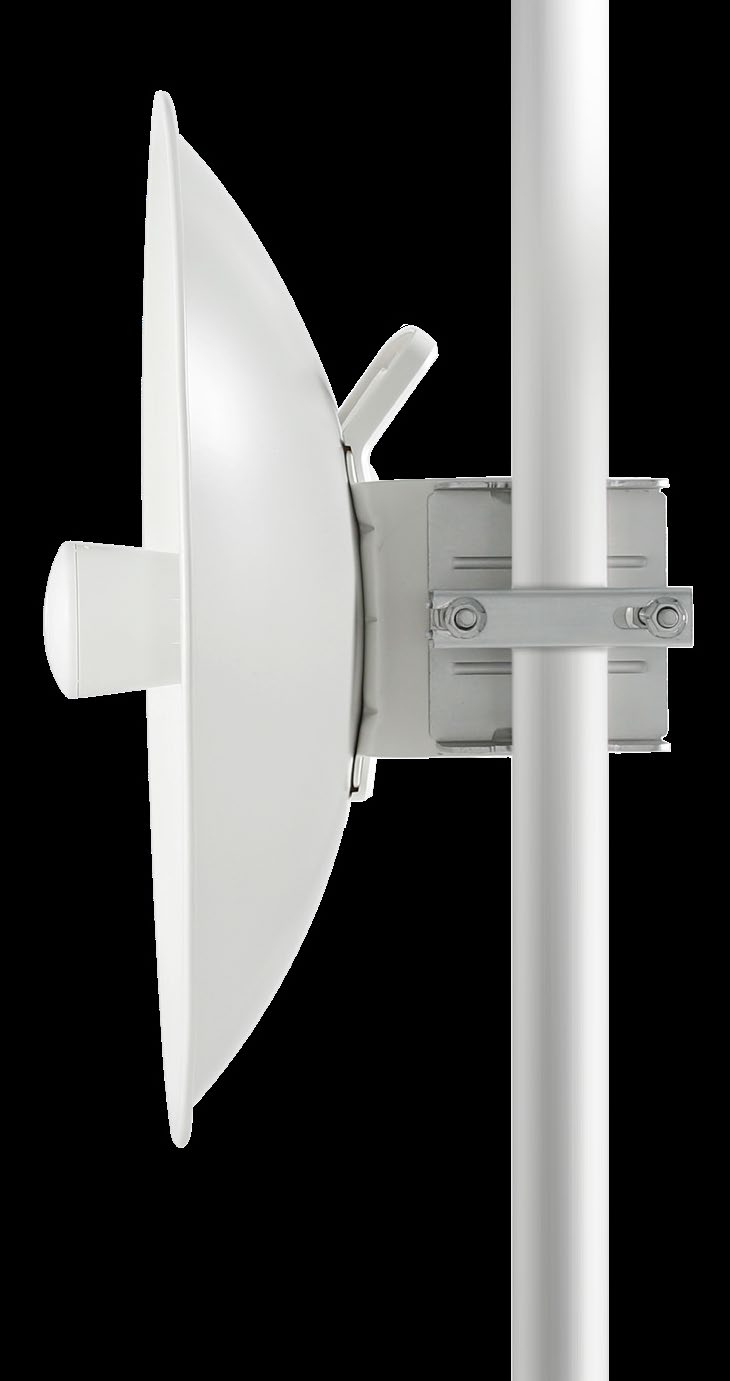

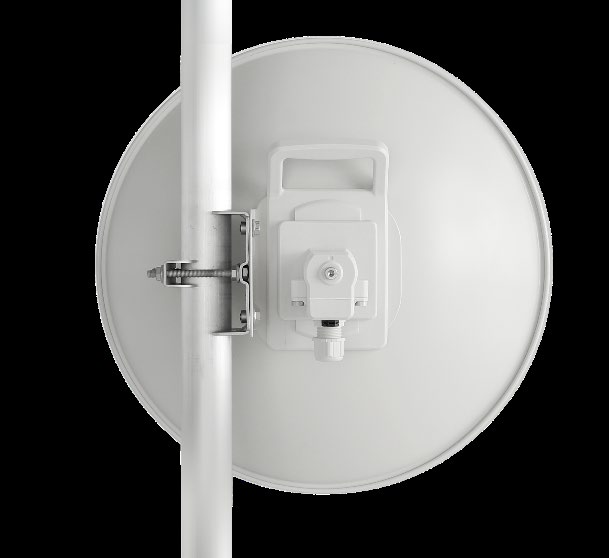

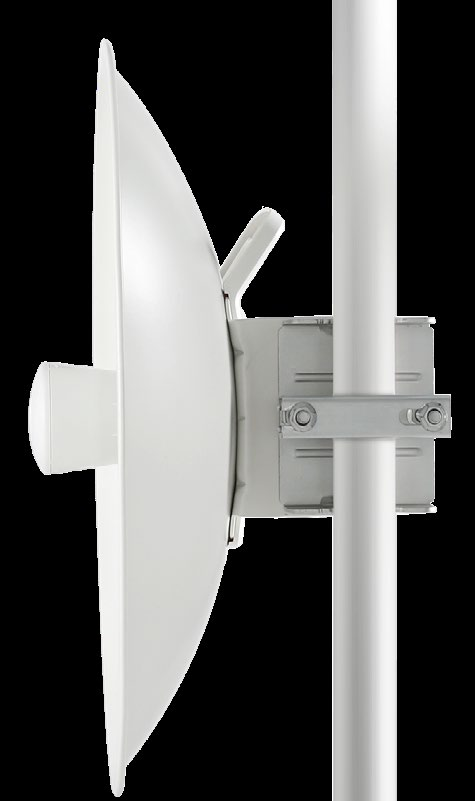

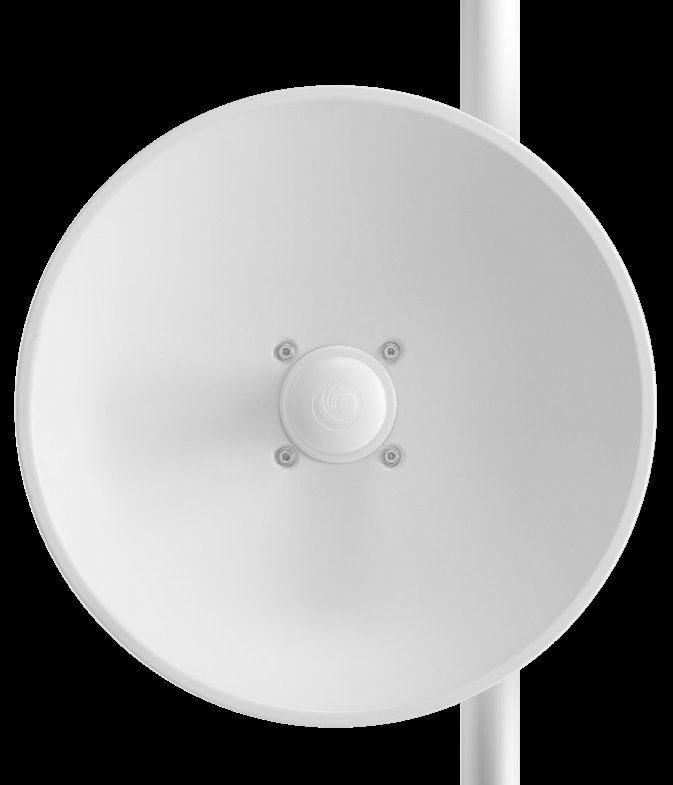

Product Images
8 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the PMP 450b6 to ensure compatibility with your deployment.
Specifications
Radio Model NumberSpectrum
High-Gain (radio only)C060045C012A Channel Spacing Configurable on 2.5 MHz increments
4-Pack High-Gain AssemblyN050045D002A Frequency Range 5725–6300 MHz Channel Width 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
Interface
MAC (Media Access CambiumNetworks proprietary
Physical Layer 2x2 MIMOOFDM
Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Protocols Used IPv4, IPv6,UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

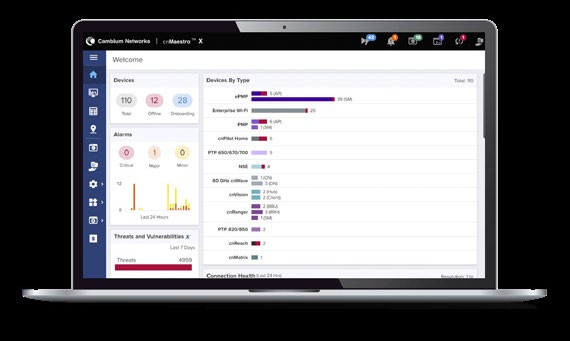

Network IPv4/IPv6(dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro™
Management
VLAN 802.1ad(DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Security
Encryption FIPS-197128-bit AES, 256-bit AES (requires optional license for attached access point)
Modulation Levels (Adaptive)MCS Signal-to-Noise Required (SNR in dB)
2xQPSK 10
4x16QAM 17
6x64QAM 24
8x256QAM 32
Maximum Up to 64km (40 mi) in point-to-multipoint (PMP) mode, up to 200 km (124 mi) in point-to-point (PTP) mode
Latency 3–5 ms,typical
GPS Yes, synchronizedby access point or via 3.5 mm port using cnPulse (for PTP mode)
Quality of Service DiffserveQoS PMP 450b6 Subscriber Module
Physical
Optionalradome: N000900L021A
Antenna
Surge Suppression EN 61000-4-5:10x700 μs, 4 kV, EN 61000-4-2: ESD 30 kV contact / 30 kV air
Environmental IP55, Optionalglands to enhance to IP67 (N000000L135A)
Wind Survival 200 kph(124 mph)
Temperature / -40°C to60°C (-40°F to 140°F), 0–100% non-condensing
Weight 3.1 kg (7lb)
includingmounting bracket
Diameter45 x 28 cm
(17.8 inx 11.2 in)
Pole Diameter 2.5 cmto 7.6 cm (1 in to 3 in)
± 20 degreesmechanical tilt
9 W typical,12 W peak
Input Voltage 20–32VDC
Integrated Antenna 24 dBi
Polarization Dual linear,H + V
Transmit Power 54 dB dynamicrange (to EIRP limit by region) (1 dB step)
Maximum Transmit +27 dBm(MIMO, combined V+H)
Power Control ATPC (AutomaticTransmit Power Control) at system level; all subscribers implement ATPC
Certifications
ETSI EN 301893 v2.1.1
EN 302502 v2.1.1 PMP 450b6 Subscriber Module

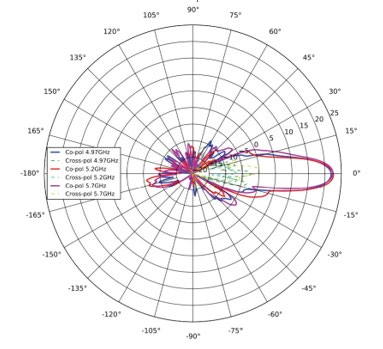

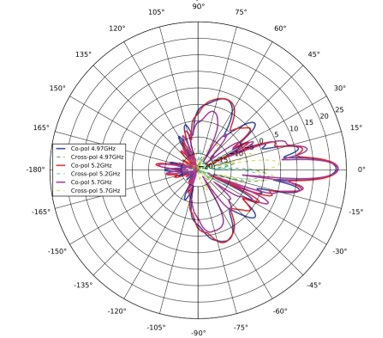

Antenna Patterns
Azimuth,Vertical Elevation, Vertical
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the PMP 450b6.
Data Sheet
Download PDF →Need Help?
Talk to a Pro →Pricing Notes:
- Pricing and product availability subject to change without notice.
