Cambium Networks PMP 450b Omnidirectional Fixed Wireless Subscriber Module
Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.
Talk to a Pro
PMP 450b Omnidirectional
- Specs: PMP 450b Omnidirectional
- Ultra-wide-band radio: 4.9 GHz to 5.925 GHz
- Capable of up to 300 Mbps aggregate in a
- Omnidirectional antenna, well-suited for
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview
Cambium Networks PMP 450b Omnidirectional Fixed Wireless Subscriber Module
Up to 300 Mbps aggregate in a 40 MHz channel. Frequency range is 4.9 – 5.925 GHz.
PMP 450Subscriber
Product Highlights
existing platform devices to extend
coverage to obstructed or hard-to-reach areas.
Ideal Applications
Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale. ISP last-mile buildouts requiring scalable point-to-multipoint architecture with high spectral efficiency.
Product Images
4 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the PMP 450b Omnidirectional to ensure compatibility with your deployment.
Specifications
PMP450b Omnidirectional Fixed Wireless Subscriber Module
Omni (9 dBi) C050045B201B(global)
Channel Spacing Configurableon 2.5 MHz increments
Frequency Range 4900–5925MHz
Channel Width 5 MHz,10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz Text
Interface
MAC (Media Access CambiumNetworks proprietary
2x2 MIMOOFDM
Physical Layer
100/1000BaseT,full duplex, rate auto-negotiated, 802.3 compliant
Ethernet Interface
IPv4, IPv6,UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Protocols Used
IPv4/IPv6(dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, cnMaestro
Management
VLAN 802.1ad(DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Security
Encryption FIPS-197128-bit AES
256-bitAES (requires optional license)
Modulation Levels (Adapative)MCS Signal to Noise Required (SNR, in dB)
2xQPSK 10
4x16QAM 17
6x64QAM 24
8x256QAM 32
Maximum Up to 10km (6 mi) – May be limited by total link budget
Latency 3–5 ms,typical
Quality of Service DiffserveQoS
PMP450b Omnidirectional Fixed Wireless Subscriber Module
Physical
Surge Suppression EN 61000-4-5:10x700us, 4Kv, EN 61000-4-2: ESD 30kV contact / 30kV air
Environmental IP67
Temperature -40C to60C (-40F to 140F)
Humidity 0–100%non-condensing
Weight 1.2 kg (2.65lb) (including mounting bracket)
Wind Survival 200 kph(124 mph)
Dimensions 56 cmx 9 cm x 9 cm (22 in x 3.5 in x 3.5 in)
mountstandoff 11 cm (4.3 in)
Power 9W typical,12W peak
Input Voltage 46–59VDC, 802.3af compatible
Integrated Antenna 9 dBi
Polarization Dual linear,H + V
Transmit Power 56 dB dynamicrange (to EIRP limit by region) (1 dB step)
Maximum Transit +27 dBm(MIMO, combined V + H) (+22 dBm @ 256 QAM)
Power Control ATPC (AutomaticTransmit Power Control) at system level; all subscribers implement ATPC
Certifications
ETSI EN 301893 v2.1.1
EN 302502 v2.1.1
PMP450b Omnidirectional Fixed Wireless Subscriber Module

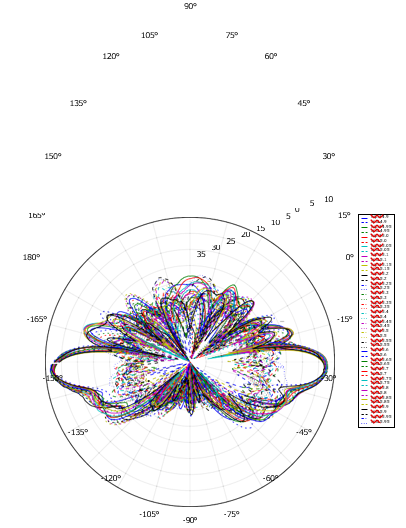

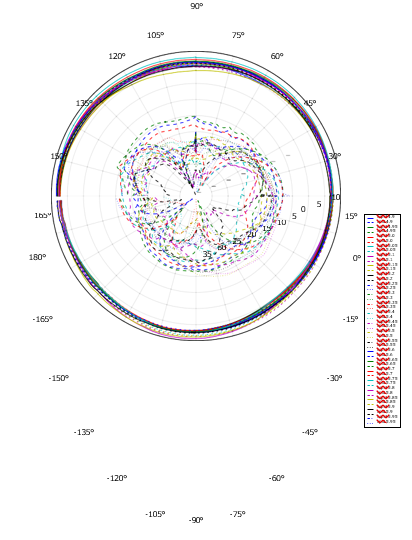

Antenna Patterns
OmniAzimuth Omni Elevation
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the PMP 450b Omnidirectional.
Data Sheet
Download PDF →Need Help?
