Cambium Networks Network Indoor Unit
Indoor modem unit for Cambium PTP outdoor radios.
Talk to a Pro
Network Indoor Unit
- Specs: The PTP 650 Network Indoor Unit (NIDU) is a hardware device which enables the passing of T1/E1 TDM circuits over PTP 650 fixed wireless broadband connections.
- The PTP 650 Network Indoor Unit (NIDU) is a hardware device which enables the passing of T1/E1 TDM circuits over PTP 650 fixed wireless broadband connections.
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview

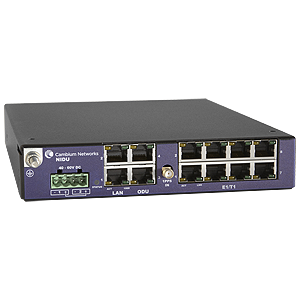

Cambium Networks Network Indoor Unit
The PTP 650 Network Indoor Unit (NIDU) is a hardware device which enables the passing of T1/E1 TDM circuits over PTP 650 fixed wireless broadband connections.
Indoor
Product Highlights
circuits as demand changes. The Network IDU is managed from within the PTP ODU’s existing web or SNMP-based interfaces. The TDM and IP traffic co-exist with PoE on a single drop cable from the PTP to the NIDU.
Ideal Applications
Indoor modem unit that pairs with Cambium PTP outdoor radios to deliver power, data handoff, and management to the IT room.
Product Images
5 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the Network Indoor Unit to ensure compatibility with your deployment.
Specifications
DiagramsSPECIFICATION SHEET: PTP 650 NETWORK INDOOR UNIT (NIDU)
Specifications
HARDWARE SALES MODELC000065L043A
8-PORT E1/T1 TDM SOFTWARE LICENSEC000065K049A
REGULATORY MODELPTP-NIDU
TDM SUPPORT AND NETWORKING

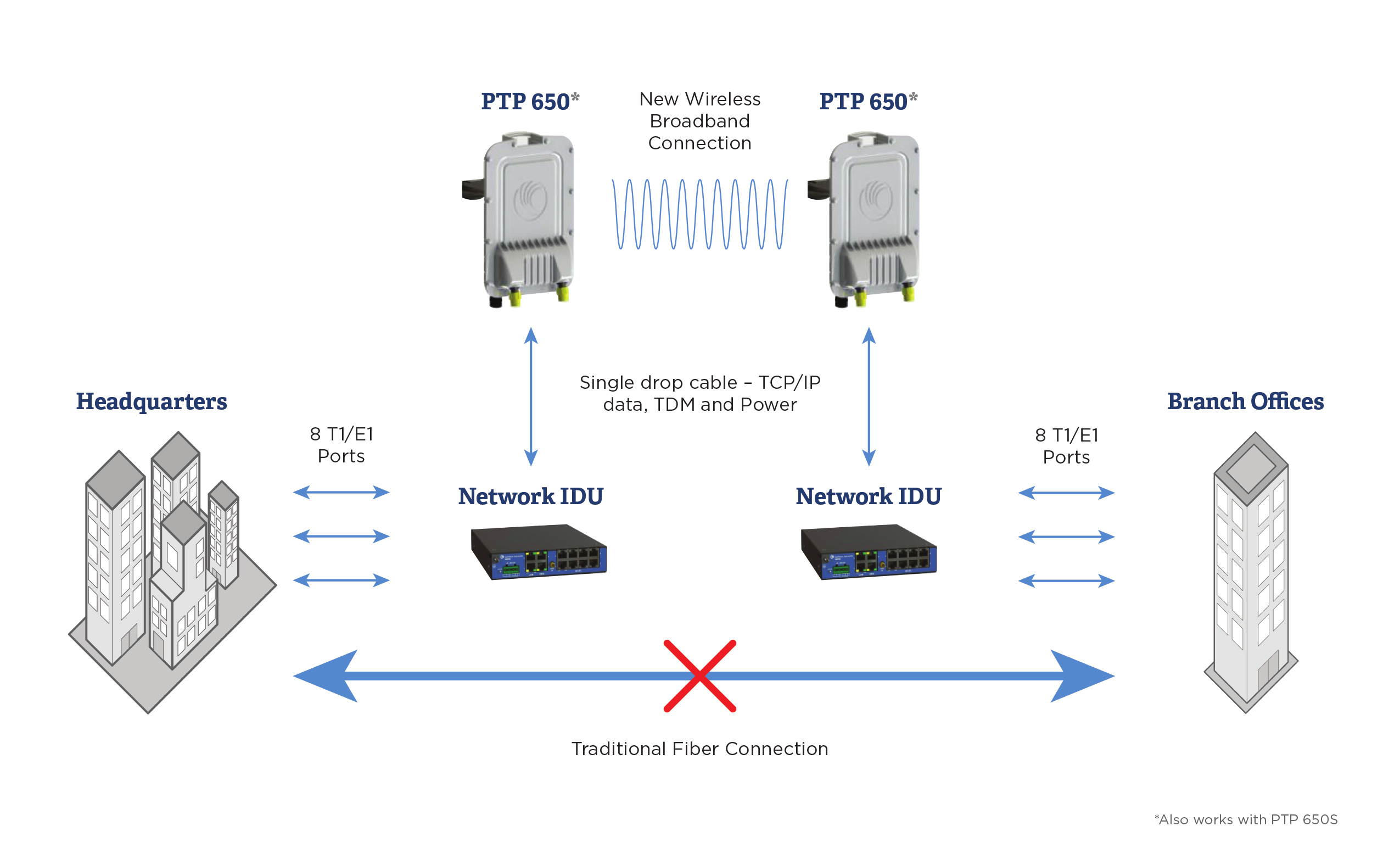

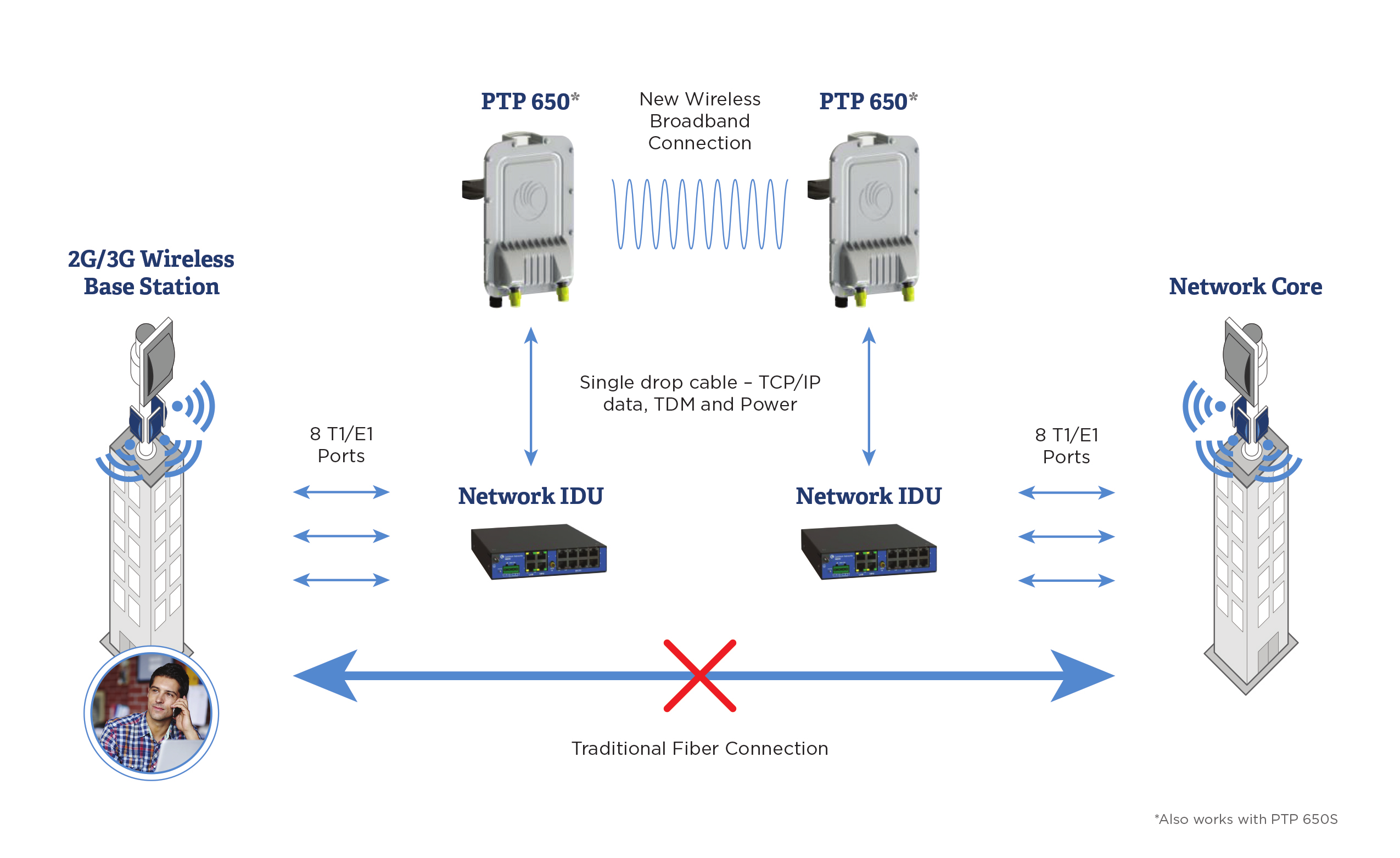

SYSTEM TOPOLOGYOne Network IDU per END for up to 8 ports of T1/E1 traffic. Shares power with ODU from Cambium AC+DC Power Injector. Single drop cable from ODU to NIDU delivers TCP/IP and TDM traffic. Compatible with PTP 650 and PTP 650S.
# OF TDM PORTS8 E1 or 8 T1
TIMING STANDARD (JITTER AND WANDER)G.823/G.824
TIMINGIndependent timing on each port compliant to G.823/G.824 Jitter/Wander specifications
LINE CODINGAMI, B8ZS/HDB3
LINE IMPEDANCE100 / 120 Ohm
T1/E1 LATENCY (ONE WAY)2 to 4 ms typical depending on range, bandwidth, modulation mode and number of T1/E1 ports; accurate T1/E1 latency figures can be determined for any given configuration using the Cambium PTP LINKPlanner
TIMING TRANSPORTLeverages precision timing capabilities in PTP 650 platform
MANAGEMENT & INSTALLATION
LED INDICATORSEthernet: Link/Activity/Alarm ODU: Link/Activity/Alarm E1/T1: TDM signal / TDM activity
NETWORK MANAGEMENTAll Network IDU management performed at ODU using existing ODU management interfaces (IPv6/v4 dual-stack management; Web Access via browser using HTT or HTTPS/TLS; SNMP v1, v2c, v3, MIB-II and and proprietary PTP MIB)
LOOPBACKLocal and Far end
MOUNTINGIndoor unit; optional rack-mount kit available from Cambium
NETWORK CONNECTIONSStandard CAT-5E
CONNECTIONStandard RJ-45; Total distance between ODU and NIDU is up to 330 feet (100meters). Total distance between NIDU and customer network connection is up to 330 feet (100meters).
COMPATIBILITYInteroperates with PTP 650 and PTP 650S
PHYSICAL PORTS (I/O)
POWER4-pin DC input (one 4-pin connector included in kit)
E1/T18 E1/T1 RJ-45 ports
LANOne Gigabit Ethernet RJ-45 (add’l spare for future applications)
ODUOne Gigabit Ethernet RJ-45 (add’l spare for future applications)
PHYSICAL AND ENVIRONMENTAL
DIMENSIONS218 mm X 172 mm X 32 mm; 8.6“ X 6.8” X 1.3”
WEIGHT.88kg; 1.95 lb
OPERATING TEMPERATURE-40C to +60C, -40F to 140F
HUMIDITY0 to 95%, non-condensing
POWER SUPPLYDC feed from AC+DC power injector or 3rd party DC power supply
OPERATING VOLTAGE40-60 VDC
POWER CONSUMPTION<8 W
E1/T1 SURGE SUPPRESSIONLine side : 40V breakdown differential mode protection, complying with GR1089-Intrabuilding, IEC 61000-4-5 and TIA-968-A and -B (formerly known as FCC Part 68). IC side : 25V breakdown (differential) complying with standards as above Common mode protection provided via transformer with 1500Vrms isolation.
REGULATORY
PROTECTION AND SAFETYIEC60950-1 2nd Edition, EN60950-1, UL 60950-1 2nd Edition; CSA-22.2 No. 60950-1-07 2nd Edition
EMCFCC Part 15 Subpart B - Class B; EN55022/CISPR22 Class B; EN301 489-1
