ePMP Force 300 CSM Connectorized
  • Specs: ePMP Force 300 Series
  • Cambium Networks’ ePMP Force CSM is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
Product Overview

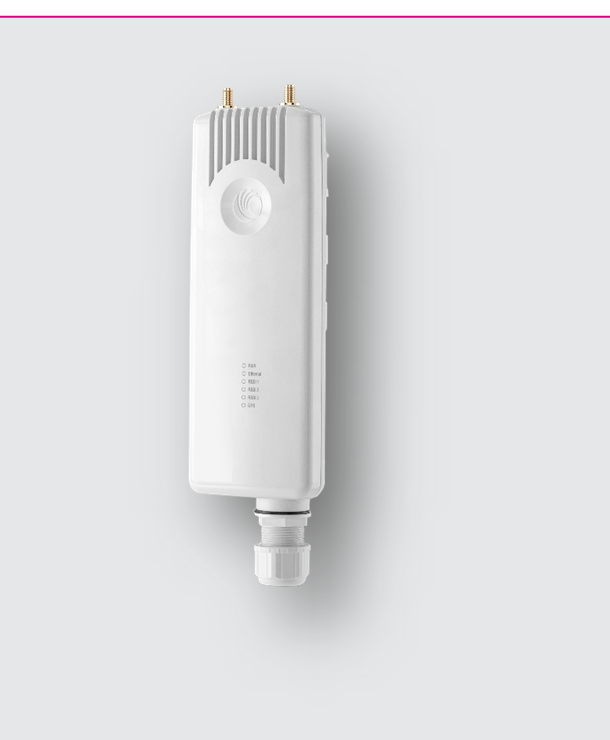

Cambium Networks ePMP Force 300 CSM Connectorized Subscriber Module

Cambium Networks’ ePMP Force CSM is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

ePMPSubscriber

Product Highlights

Interoperability with the ePMP 3000, which uses MU-MIMO to achieve 1.2 Gbps per sector by transmitting to Force SMs simultaneously

Multiple levels of QoS (quality of service) for voice, video, and data applications supporting a wide variety of service packages for both residential and enterprise users

Ideal Applications

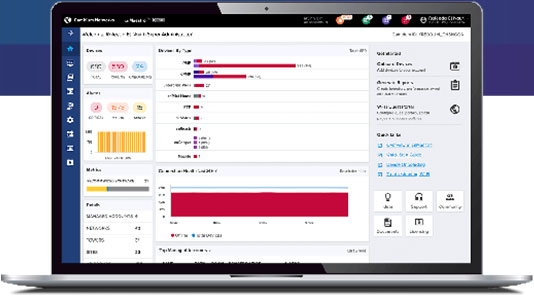

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi. MSP-managed networks leveraging cnMaestro for zero-touch provisioning and real-time monitoring.

Product Images

17 photos

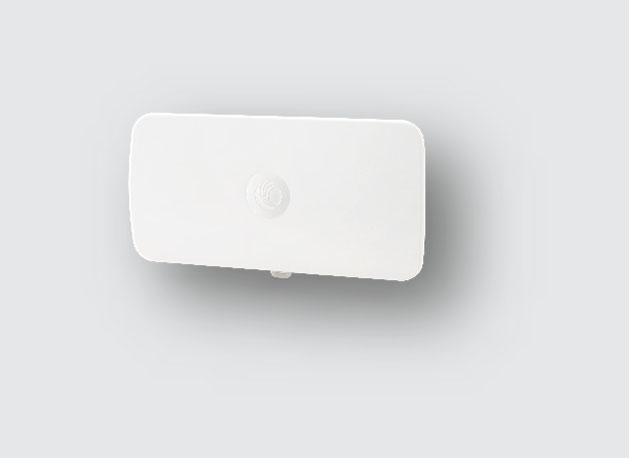

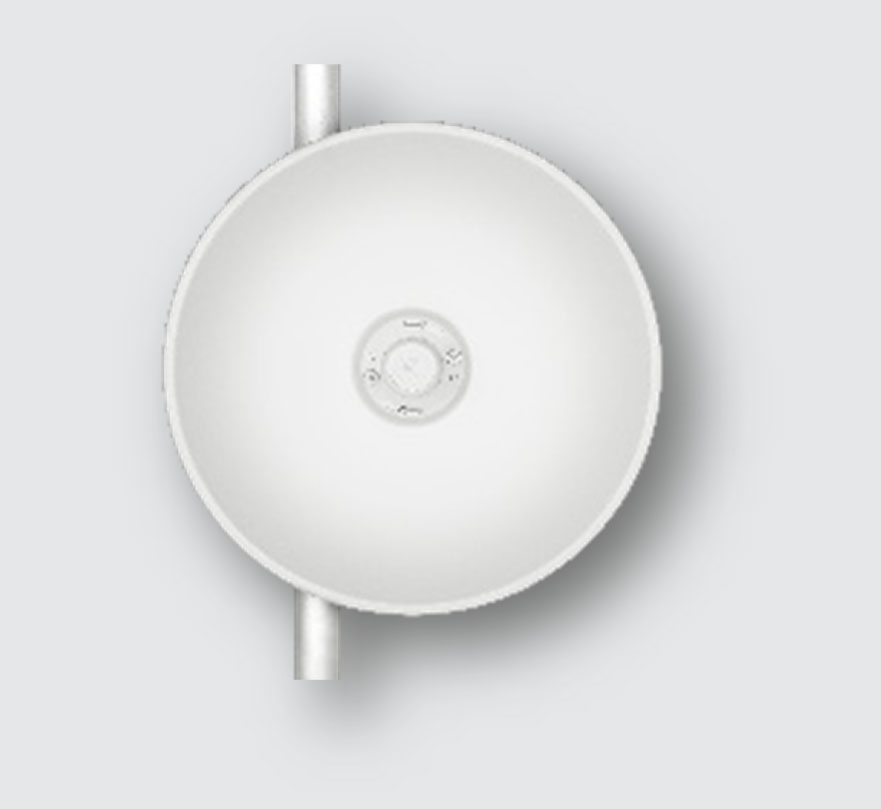

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP Force 300 CSM Connectorized to ensure compatibility with your deployment.

Spectrum

Channel Spacing Configurable on 5 MHz increments
Frequency Range Wide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width 20, 40 or 80 MHz

Interface

MAC (Media Access Control) Layer Cambium Networks proprietary
Proprietary Physical Layer 2x2 MIMO OFDM
Ethernet Interface 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro
VLAN 802.1Q with 802.1p priority

Performance

ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS9 (256QAM5/6)
Transmit Power Range 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)

Security

Encryption 128-bit AES (CCMP mode)

Physical

Surge Suppression 1 joule integrated
Dimensions (H x W x D) 84 x 223 x 32 mm (3.3 x 8.8 x 1.3 in) with mounting bracket attached
Weight 0.5 kg (1.1 lb) Includes mounting bracket
Environmental IP67 & IP68
Temperature -30°C to 60°C (-22°F to 140°F)
Wind Survival 180 km/h (112 mi/h)
Pole Diameter Range 2.5–3 in (6.4–7.6 cm) with included clamp

Antenna

Frequency Range 4910–6080 MHz
Antenna Type Connectorized
Connectors 2 x 50 ohm, RP-SMA (reverse polarity SMA) compatible with RFElements TwistPort Adaptor
