ePMP Force 300-25L
  • Specs: ePMP Force L Series
  • Cambium Networks’ ePMP™ Force 300-25L is designed to operate in high interference environments and provides superior throughput of over 400 Mbps of real user data.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

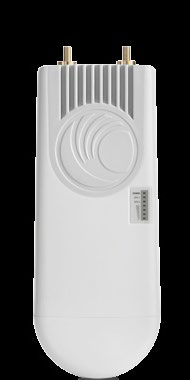

Cambium Networks ePMP Force 300-25L

Cambium Networks’ ePMP™ Force 300-25L is designed to operate in high interference environments and provides superior throughput of over 400 Mbps of real user data.

ePMPCPE

Product Highlights

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The ePMP™ Force L Series of subscriber modules (SM) meets this demand offering high performance, scalability, and low latency across both point- to-point (PTP) and point-to-multipoint (PMP) deployments, while providing a rapid return on investment.

The Force L Series

is based on 802.11ac Wave technology enabling MU-MIMO performance when used with the ePMP Access Point.

based on 802.11n technology. Force features an integrated dBi antenna and Force 200L has an integrated dBi dish antenna.

Ideal Applications

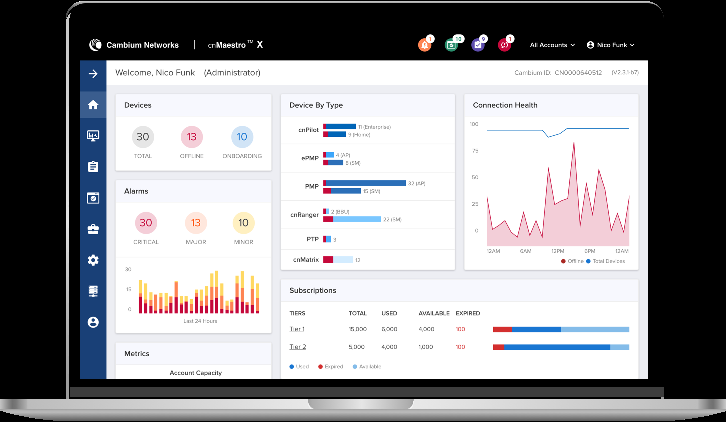

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi. MSP-managed networks leveraging cnMaestro for zero-touch provisioning and real-time monitoring.

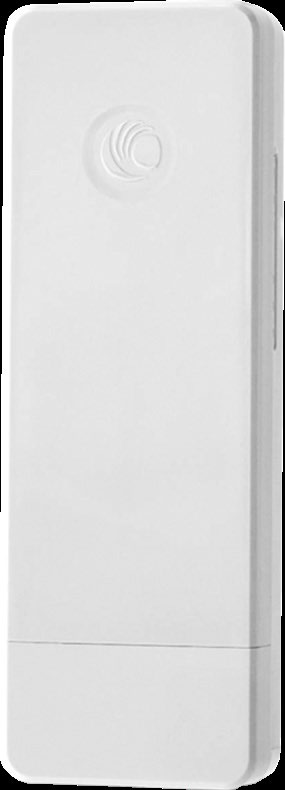

Product Images

22 photos
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP Force 300-25L to ensure compatibility with your deployment.

Spectrum

Channel Spacing Configurable on 5 MHz increments
Frequency Range Wide Band Operation 4910–6200 MHz
Channel Width 20, 40 or 80 MHz

Interface

MAC (Media Access Control) Layer Cambium Networks proprietary
Physical Layer 2x2 MIMO OFDM
Ethernet Interface 10/100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts
Protocols Used IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH
Network Management HTTPS, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority

Performance

ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS0 -89 dBm;
MCS7 = -62 dBm
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0 = -86 dBm;
MCS7 = -60 dBm
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0 = -84 dBM;
MCS9 = -57 dBm
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS9 (256 QAM 5/6)
Transmit Power Range +3 to 24 dBm (combined, to regional EIRP limit) (1 dB interval)

Security

Encryption 128-bit AES (CCMP mode)

Physical

Surge Suppression 1 joule integrated
Dimensions (H x W x D) 280 x 470 x 470 mm (11.0 x 18.5 x 18.5 in)
Weight 1.6 kg (3.5 lb)
Environmental IP55
Temperature -30°C to 55°C (-22°F to 122°F)
Wind Survival 200 km/h (124 mph)
Pole Diameter Range 2.5–7.5 cm (1.0–3.0 in)

Antenna

Frequency Range 4.920–6.200 MHz

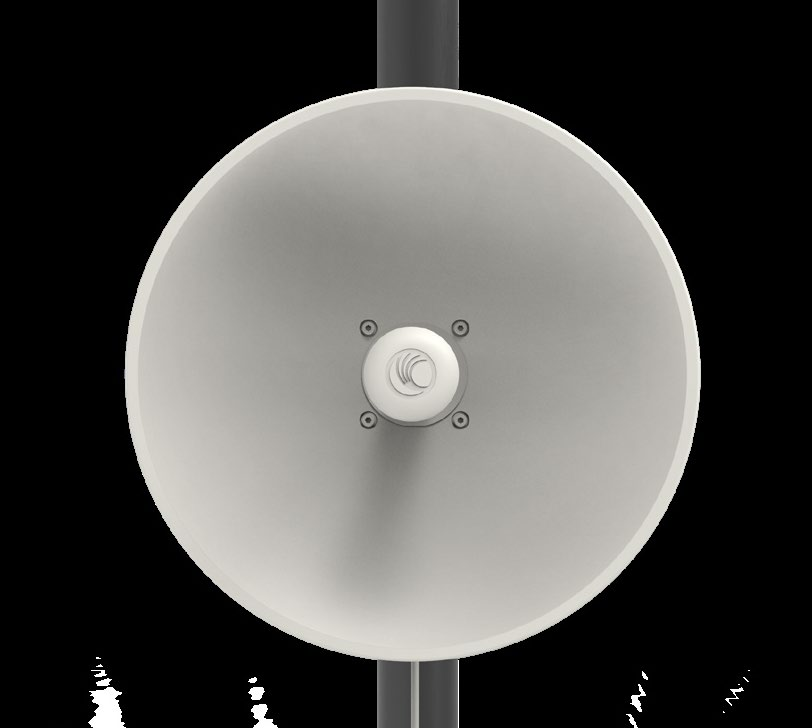

Antenna Type Integrated Dish
Peak Gain 25 dBi
3 dB Beamwidth – Azimuth 6° to 10°
3 dB Beamwidth – Elevation 6° to 10°
Front-to-Back Isolation 25 dB
Cross Polarization 25 dB
