Cambium Networks ePMP Force 200L

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi.

ePMP Force 200L
  • Specs: High-performance subscriber modules for PTP
  • Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
Product Overview

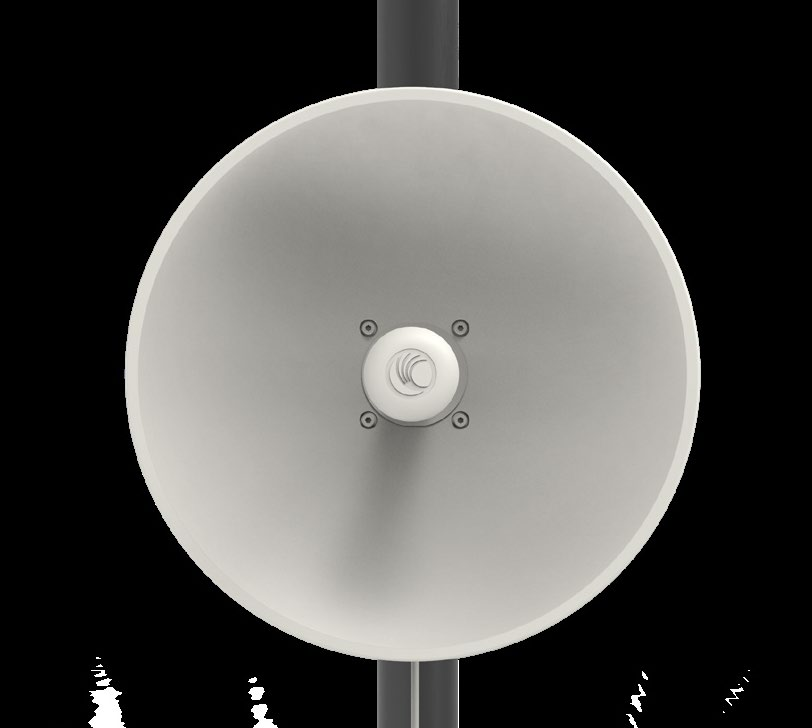

Cambium Networks ePMP Force 200L

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments.

ePMPCPE

Product Highlights

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The ePMP™ Force L Series of subscriber modules (SM) meets this demand offering high performance, scalability, and low latency across both point- to-point (PTP) and point-to-multipoint (PMP) deployments, while providing a rapid return on investment.

The Force L Series

is based on 802.11ac Wave technology enabling MU-MIMO performance when used with the ePMP Access Point.

based on 802.11n technology. Force features an integrated dBi antenna and Force 200L has an integrated dBi dish antenna.

Ideal Applications

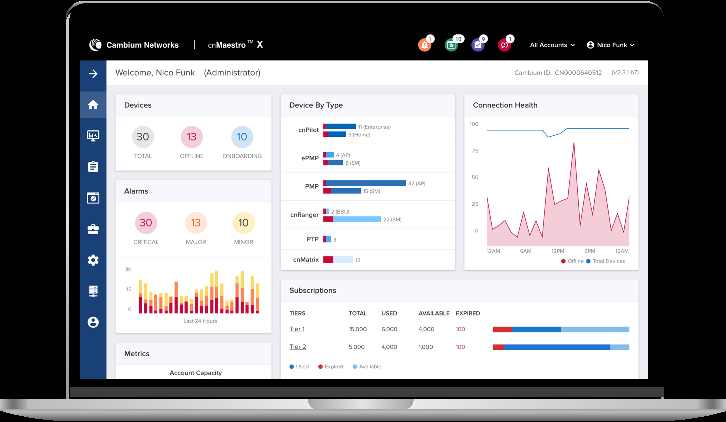

SMB, hospitality, and MDU deployments requiring cost-effective cloud-managed Wi-Fi. MSP-managed networks leveraging cnMaestro for zero-touch provisioning and real-time monitoring.

Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP Force 200L to ensure compatibility with your deployment.

Spectrum

Channel Spacing Configurable on 5 MHz increments
Frequency Range Wide Band Operation 4920- 5970 MHz
Channel Width 5, 10, 20 or 40 MHz

Interface

MAC (Media Access Control) Layer Cambium Networks proprietary
Physical Layer 2x2 MIMO OFDM
Ethernet Interface 10/100/1000 BaseT
Protocols Used IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH
Network Management HTTPS, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority

Performance

ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS0 -88 dBm;
MCS7 = -70 dBm
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0 = -86 dBm;
MCS7 = -68 dBm
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel N/A
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS7 (64QAM 5/6)
Transmit Power Range +3 to 28 dBm (combined, to regional EIRP limit) (1 dB interval)

Security

Encryption 128-bit AES (CCMP mode)

Physical

Surge Suppression 1 joule integrated
Dimensions (diameter x depth) 470 x 260 mm (18.5 x 10.24 in)
Weight 1.6 kg (3.5 lb)
Environmental IP55
Temperature -30°C to 55°C (-22°F to 122°F)
Wind Survival 200 km/h (124 mph)
Pole Diameter Range 2.5–7.5 cm (1.0–3.0 in)

Antenna

Frequency Range 4.920–5.950 MHz
Antenna Type Integrated Dish
Peak Gain 25 dBi
3 dB Beamwidth – Azimuth 6° to 10°
3 dB Beamwidth – Elevation 6° to 10°
Front-to-Back Isolation 25 dB
Cross Polarization 20 dB
