ePMP Force 200 2.4 GHz
  • Specs: The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 2.4 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data.
  • The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 2.4 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks ePMP Force 200 2.4 GHz

The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 2.4 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data.

ePMPCPE

Product Highlights

FEATURES:

Cambium Networks’ ePMP Force is designed to operate in high interference environments and provides superior throughput of Mbps of real user

Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as – ms.

QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels of traffic priority.

PRODUCT

Numbers See below for complete list of part

SPECTRUM

Channel Spacing Configurable on MHz increments

Ideal Applications

Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity. Challenging RF environments where beam-forming and MU-MIMO improve link quality and consistency.

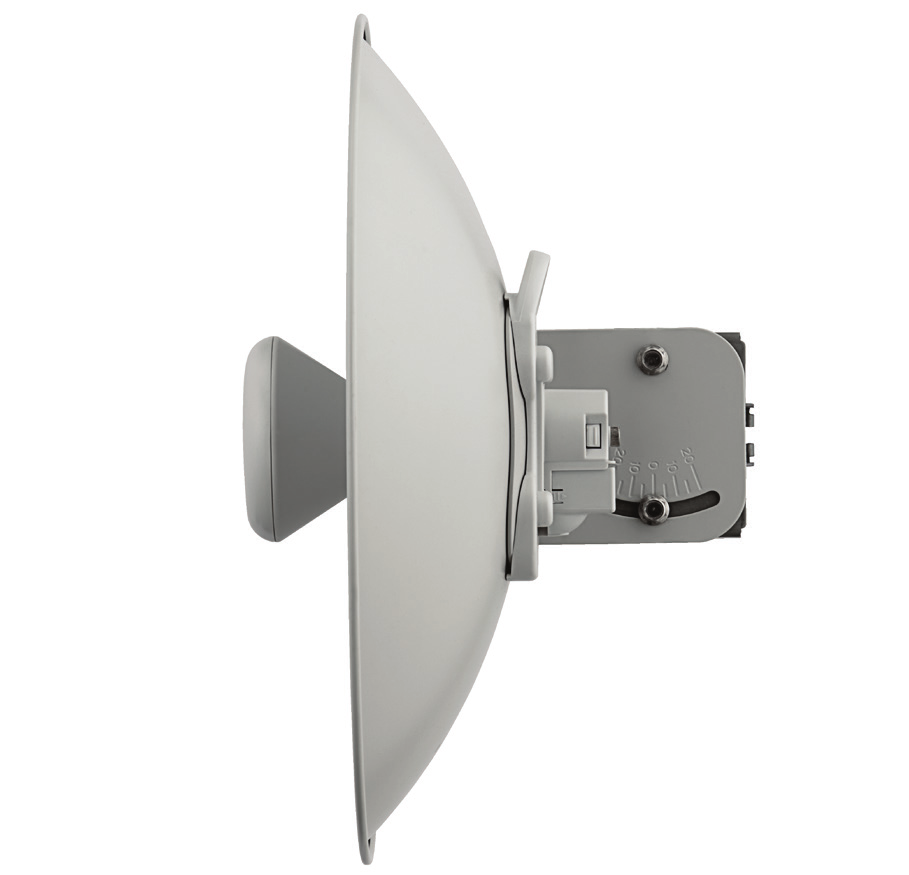

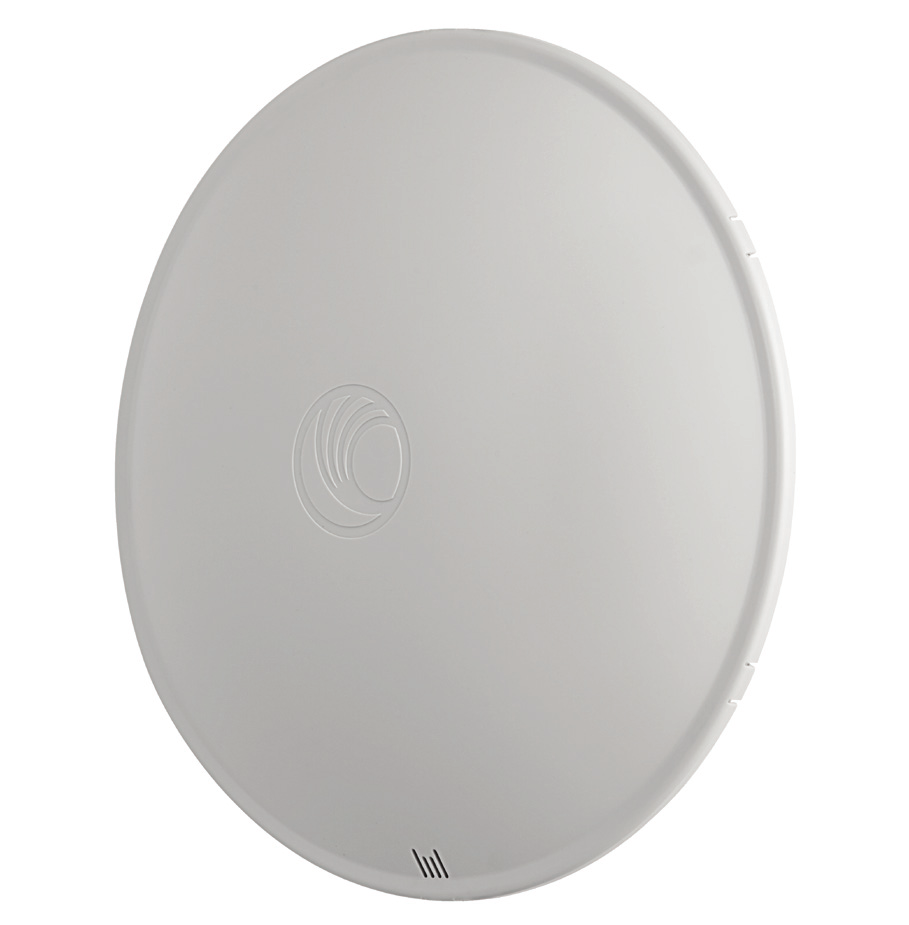

Product Images

10 photos
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP Force 200 2.4 GHz to ensure compatibility with your deployment.

INTERFACE

MAC (Media Access Control) LayerCambium Proprietary
Physical Layer2x2 MIMO/OFDM
Ethernet Interfaced10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols UsedIPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network ManagementHTTPs, SNMPv2c, SSH
VLAN802.1Q with 802.1p priority
ARQYes MCS0 = -92 dBm to MCS15 = -68 dBm (per branch) MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive)MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of ServiceThree level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range-15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

PHYSICAL

Surge Suppression1 Joule Integrated
EnvironmentalIP55
Temperature-30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Weight2.8 kg (6.2 lbs) 2.4 GHz Model: 5 GHz Model: 2.3 kg (5.1 lbs)
Wind Survival145 km/hour (90 mi/hour)
Dimensions (Dia x Depth)47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range6.4 cm - 7.6 cm (2.5 in - 3 in)
Power Consumption10 W Maximum, 5 W Typical
Input Voltage10 to 30 V

SECURITY

Encryption128-bit AES (CCMP mode)

CERTIFICATIONS

FCCIDZ8H80FT0019 5 GHz: Z8H80FT0015 2.4 GHz: /
Industry Canada Cert109W-0019 2.4 GHz: / 5 GHz: 109W-0015
CE5 GHz: EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1 ePMP Force 200 PART and MODEL NO
PART NOMODEL NO Description
(for ordering)(for regulatory)
C058900C062AePMP 5 GHz Force 200AR5-25 High Gain Radio (FCC) (US cord) C058900P062A
C050900C061AePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (no cord) C050900P061A
C050900C063AePMP 5 GHz Force 200AR5-25 High Gain Radio (EU) (EU cord) C050900P061A
C050900C161AePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (US cord) C050900P061A
C050900C261AePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (EU cord) C050900P061A
C024900C161AePMP 2.4 GHz Force 200AR2-25 High Gain Radio (US cord) C024900P161A
C024900C261AePMP 2.4 GHz Force 200AR2-25 High Gain Radio (EU cord) C024900P161A
N000900L021AePMP Force 200 Radome na

Specifications

ANTENNA SPECIFICATIONS2.4 GHZ SPECIFICATION
Frequency Range2402 – 2472 MHz
Antenna TypeDish
Peak Gain17 dBi
3dB Beamwidth-Azimuth17°
3dB Beamwidth-Elevation17°
Front-To-Back Isolation>20 dB
Cross Polarization>15 dB

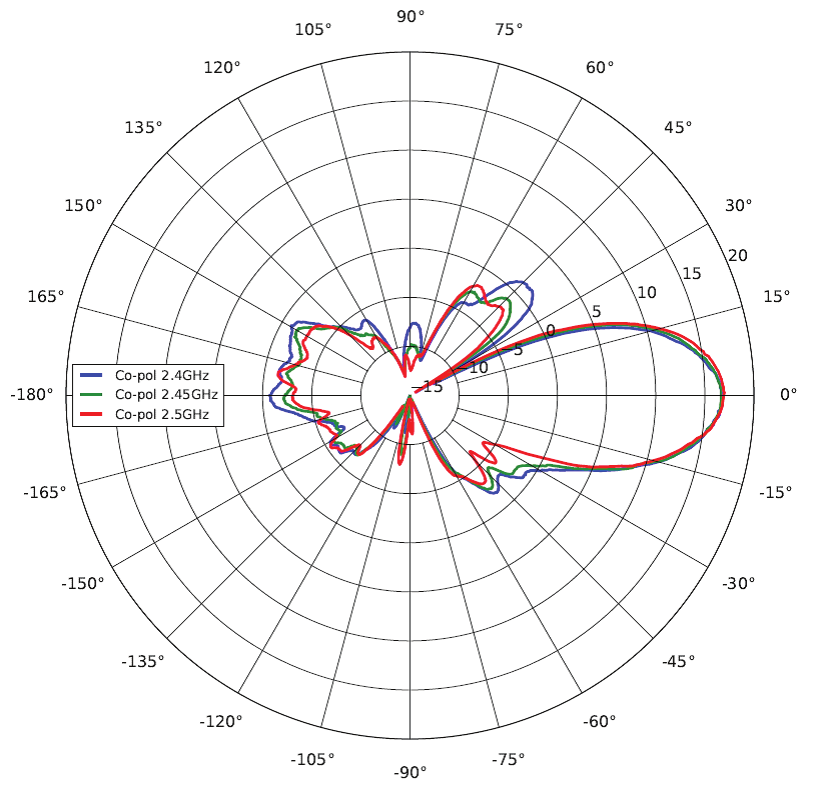

2.4 GHzePMP Force 200 2.4 GHz ePMP Force 200

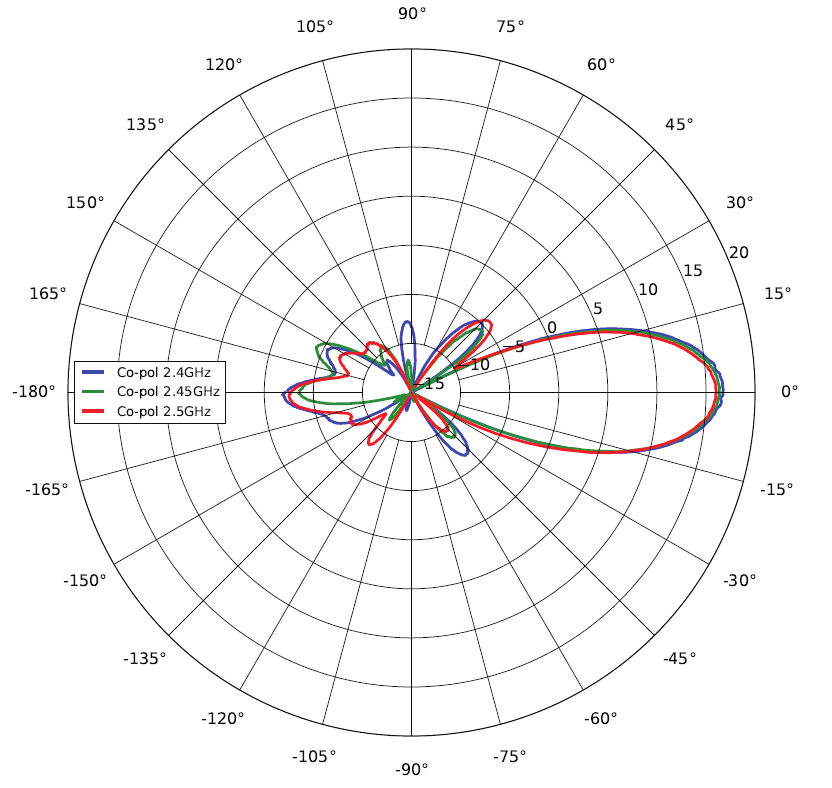

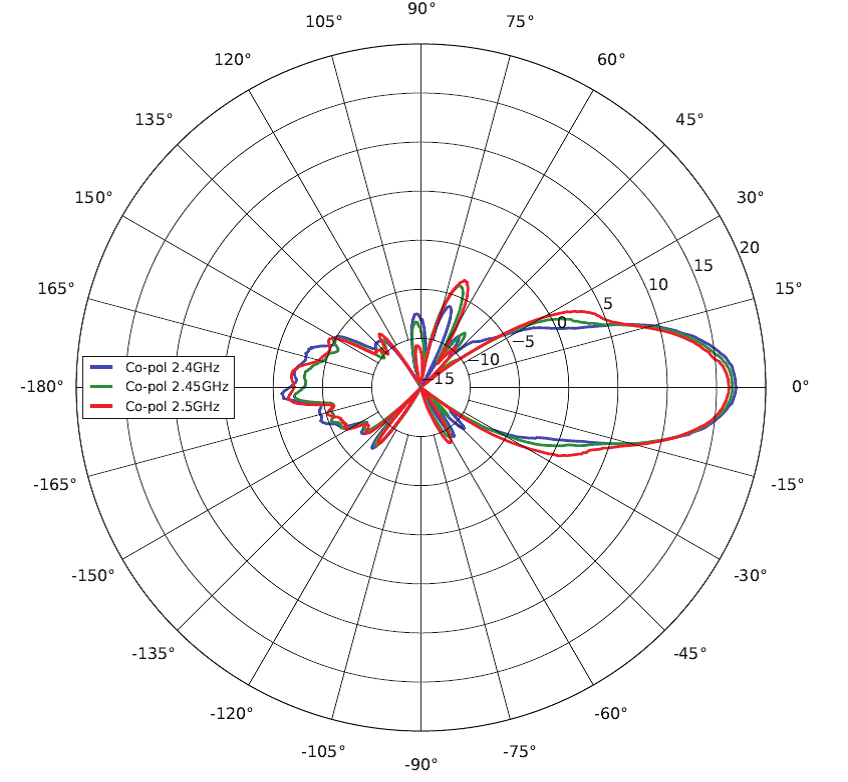

AzimuthPatterns Elevation Patterns
H-POL ELEVATIONGAIN (dBi) FOR ZERO AZIMUTH H-POL AZIMUTH GAIN (dBi) FOR ZERO ELEVATION
V-POL ELEVATIONGAIN (dBi) FOR ZERO AZIMUTH V-POL AZIMUTH GAIN (dBi) FOR ZERO ELEVATION

Specifications

ANTENNA SPECIFICATIONS5 GHz SPECIFICATION
FREQUENCY RANGE5150 – 5970 MHz
ANTENNA TYPEDISH
PEAK GAIN25 dBi
3dB BEAMWIDTH-AZIMUTH7°
3dB BEAMWIDTH-ELEVATION7°
FRONT-TO-BACK ISOLATION>25 dB
CROSS POLARIZATION>15 dB
Azimuth & ElevationPatterns SPECIFICATION SHEET: ePMP FORCE 200
ePMP Force200 ePMP Force 200

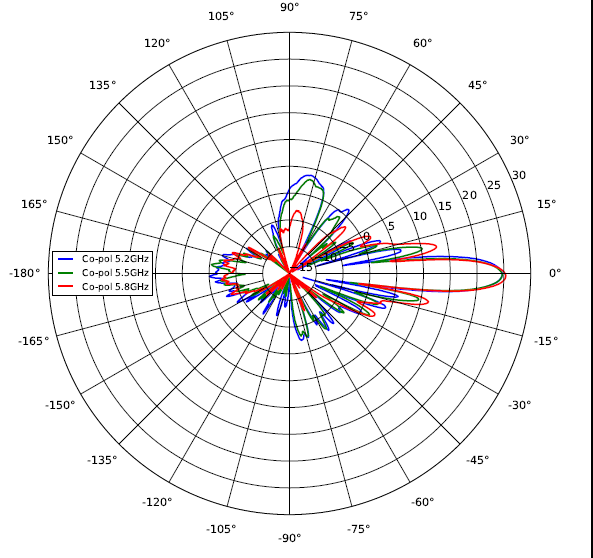

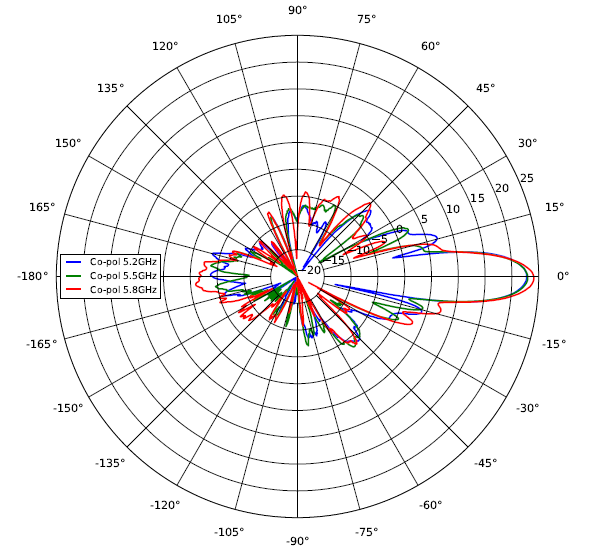

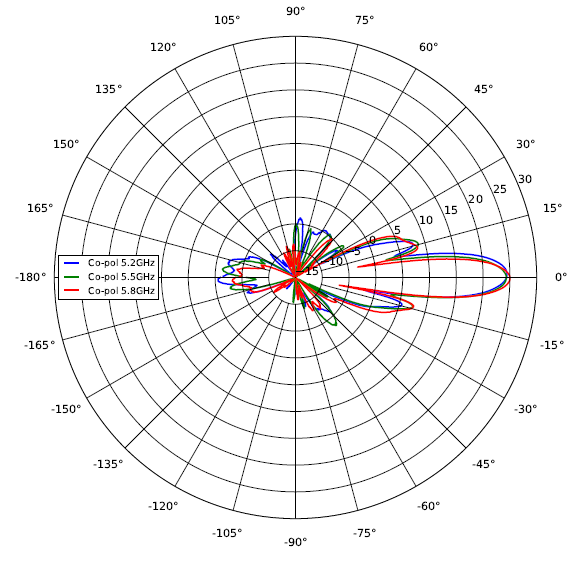

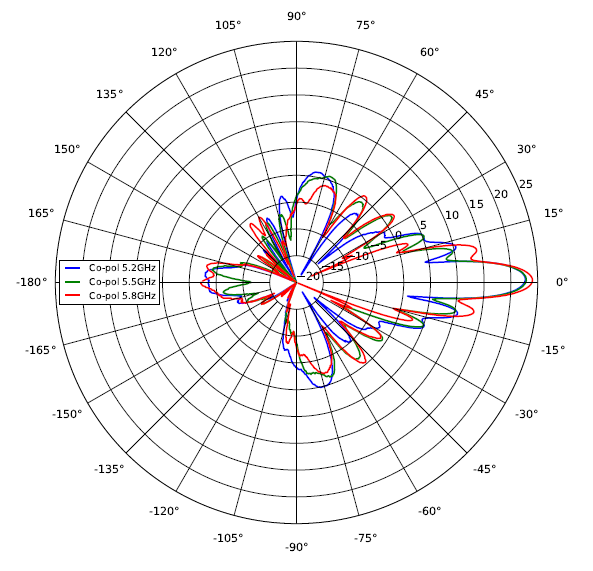

AzimuthPatterns Elevation Patterns
H-POL ELEVATIONGAIN (dBi) FOR ZERO H-POL AZIMUTH GAIN (dBi) FOR ZERO
AZIMUTHELEVATION --XXXXXXXXXXXXXXXXXXXXXXXXXX
V-POL ELEVATIONGAIN (dBi) FOR ZERO V-POL AZIMUTH GAIN (dBi) FOR ZERO
AZIMUTHELEVATION
