Cambium Networks ePMP Bridge-in-a-Box
Plug-n-Play Outdoor Wireless Ethernet Bridge

Cambium Networks ePMP Bridge-in-a-Box

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

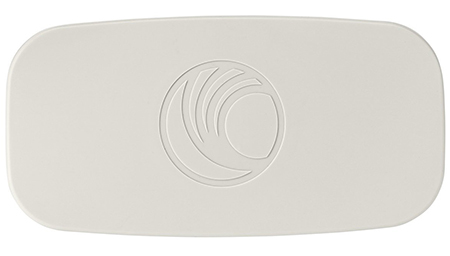

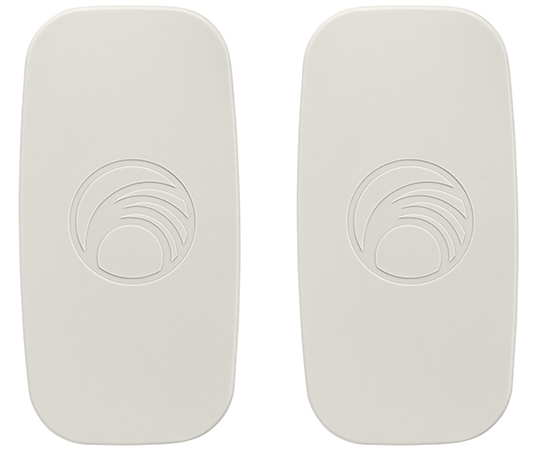

ePMP Bridge-in-a-Box is a pre-paired Point-to-Point (PTP) link comprised of two ePMP Force 180 devices designed to extend networks between two locations (up to 10 miles apart).

The Bridge-in-a-Box solution may be quickly installed to:

Extend a local network to a remote building
Extend your Wi-Fi link to a new location
Provide a cost-effective solution to backhauling CCTV networks
Support any application requiring network extension!

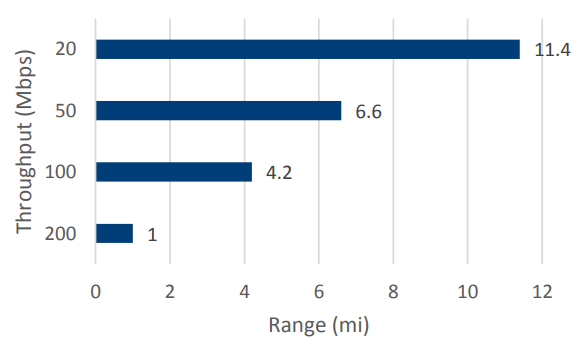

Line of Sight Range

Expected performance based on Line of Sight (LOS) between the two units. Trees, buildings, and other obstructions will result in lower range and performance.

Line of Sight Range

Features:

ePMP Bridge-in-a-Box Features

Frequency: 4910-5970 MHz
Throughput: up to 200 MBps
Flexible Channel Width: 5, 10, 20, 40 MHz channels
Security: AES128 data encryption and RADIUS-based authentication

Plug-n-Play Outdoor Wireless Ethernet Bridge

Extend a local network to a remote building
Extend your Wi-Fi link to a new location
Provide a cost-effective solution to backhauling CCTV networks
Support any application requiring network extension

Specifications:

Bridge-in-a-Box Specifications
Wireless Standard	ePTP proprietary protocol. Supports longer ranges, lower latency, and greater performance. Optional Standard Wi-Fi mode of operation available.
Wired Interface	Gigabit / Fast Ethernet
Functions	Traffic prioritization using ePMP QoS (Quality of Service), WEP security.
Power	24-56V PoE at device
Radio Transmit Power	Up to 30 dBm
Environmental	Outdoor IP55 -4 to 131 deg F (-20 to +55 deg C)
Antenna	16 dBi integrated antenna

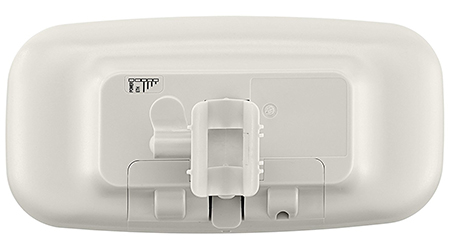

Mounting	Flexible pole mount. Supports diameters from 1-3 inches (2.5 – 7.5 cm)
Security	AES128 data encryption and RADIUS-based authentication
Spectrum
Frequency Range	4910 – 5970 MHz
Channel Spacing	Configurable on 5 MHz increments
Frequency Range	5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width	5 \| 10 \| 20 \| 40 MHz
Physical Layer	2x2 MIMO/OFDM
Ethernet Interface	10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8)
Protocols Used	IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management	HTTPs, SNMPv2c, SSH
VLAN	802.1Q with 802.1p priority
Performance
ARQ	Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel	MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel	MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Quality of Service	Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Physical
Transmit Power Range	-17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Surge Suppression	2 Joule Integrated
Weight	0.50 kg (1.1 lb.) (includes mounting bracket)
Wind Survival	145 km/hour (90 mi/hour) with antenna
Dimensions (H x W x D)	12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
Pole Diameter Range	1 – 1.6 in (2.5 – 4.1 cm) with included clamp ; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption	10 W Maximum, 5 W Typical
Input Voltage	10 to 30 V
