Cambium Networks ePMP 6 GHz Force 4616 Series Subscriber Module
Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity.
Talk to a Pro
ePMP 6 GHz Force 4616
- Specs: Subscriber Module
- Gbps capacity leveraging 160 MHz channels and 802.11ax technology spanning from 5.925 GHz to 7.125 GHz.
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview
Cambium Networks ePMP 6 GHz Force 4616 Series Subscriber Module
Gbps capacity leveraging 160 MHz channels and 802.11ax technology spanning from 5.925 GHz to 7.125 GHz.
ePMPSubscriber
Product Highlights
High Performance, Low Latency
Service providers face ever-increasing demand for capacity in a limited amount of spectrum.
Provides up to Gbps capacity in PTP applications, meeting the requirements of enterprise, industrial, government, and service provider users
Ideal Applications
Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity. Challenging RF environments where beam-forming and MU-MIMO improve link quality and consistency.
Product Images
6 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the ePMP 6 GHz Force 4616 to ensure compatibility with your deployment.
Spectrum
Channel Width MHz20 | 40 | 80 | 160 MHz
Proprietary Physical LayerePMP air interface with 2x2 MIMO/OFDMA
Channel SpacingConfigurable in 5 MHz increments
Frequency RangeForce 4616: 5925–7125 MHz*
MAC LayerCambium proprietary
Ethernet Interface100/1000 BaseT, rate auto negotiated
Protocols UsedIPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP snooping
Network ManagementHTTP/HTTPS, SNMPv1/2, SNMPv3, SSH
VLAN802.1Q with 802.1p priority
*Allowable frequencies and bandsare dictated by individual country regulations. Operation under AFC (Automatic Frequency Coordination) control in FCC
ARQYes
Nominal Receive SensitivityMCS 0 = -92 dBm to MCS 11
(w/FEC) @20 MHz Channel(1024 QAM-5/6) = -61 dBm (per chain)
Nominal Receive SensitivityMCS 0 = -89 dBm to MCS 11
(w/FEC) @40 MHz Channel(1024 QAM-5/6) = -58 dBm (per chain)
Nominal Receive SensitivityMCS 0 = -86 dBm to MCS 11
(w/FEC) @80 MHz Channel(1024 QAM-5/6) = -55 dBm (per chain)
Nominal Receive SensitivityMCS 0 = -86 dBm to MCS 11
(w/FEC) @160 MHz Channel(1024 QAM-5/6) = -51 dBm (per chain)
Modulation Levels (Adaptive)MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
GeolocationBuilt-in or external USB GPS receiver (optional)
Transmit Power Range+3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
QoS (Quality of Service)Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast, and station priority
Physical
Surge Suppression1 Joule Integrated
EnvironmentalIP55 -30°C to 55°C (-22°F to 131°F) 0.5 kg (1 lb)
Dimensions124 x 251 x 119 mm (4.9 x 9.9 x 4.7 in)
Pole Diameter RangeCenter: 2.5 to 4.1 cm (1. to 1.6 in)
Power Consumption13W (up to 15W in extreme cold temperatures when heater is activated)
Input Voltage22V–56V
Antenna16 dBi Integrated Panel Force 4616 Subscriber Module
Certifications
FCC Regulatory Part #TBD

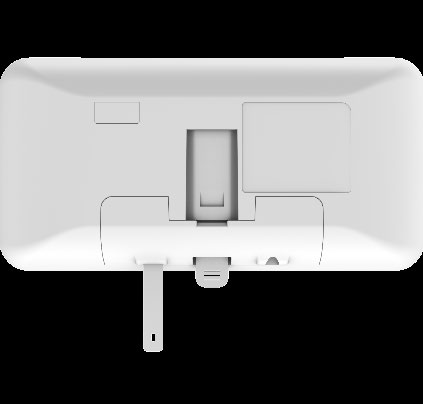

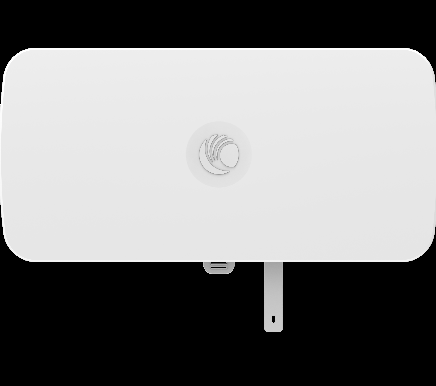

Industry Canada CertTBD Front Back Side Bottom

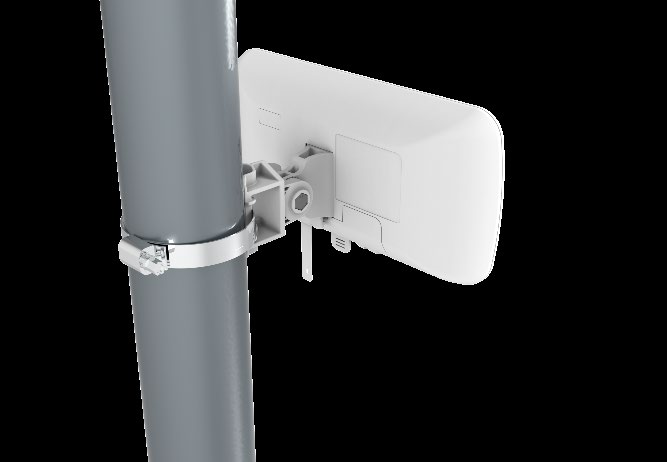

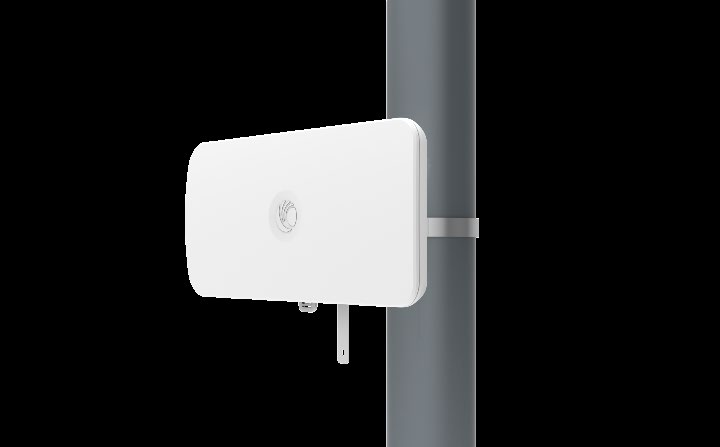

Front,Pole Mount Back, Pole Mount Force 4616 Subscriber Module
C060940C131A ePMP6 GHz Force 4616 SM Radio (ROW) (US cord)
C060940C231A ePMP6 GHz Force 4616 SM Radio (ROW) (EU cord)
C060940C233A ePMP6 GHz Force 4616 SM Radio (EU) (EU cord)
C060940C236A ePMP6 GHz Force 4616 SM Radio (Indonesia) (EU Cord)
ePMP6 GHz Force 4616 SM Radio (ROW) (UK cord)
ePMP6 GHz Force 4616 SM Radio (EU) (UK cord)
C060940C431A ePMP6 GHz Force 4616 SM Radio (ROW) (India cord)
C060940C435A ePMP6 GHz Force 4616 SM Radio (India) (India Cord)
C060940C531A ePMP6 GHz Force 4616 SM Radio (ROW) (China cord)
C060940C631A ePMP6 GHz Force 4616 SM Radio (ROW) (Brazil cord)
C060940C731A ePMP6 GHz Force 4616 SM Radio (ROW) (Argentina cord)
C060940C831A ePMP6 GHz Force 4616 SM Radio (ROW) (ANZ cord)
C060940C931A ePMP6 GHz Force 4616 SM Radio (ROW) (South Africa cord)
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the ePMP 6 GHz Force 4616.
Data Sheet
