ePMP 5 GHz Force 4518
  • Specs: ePMP Force 4518 Subscriber Module
  • High-performance for PTP and PMP
  • Gbps capacity leveraging 80 MHz
  • Compatible with ePMP™ 4500 Series
  • 3-year hardware warranty

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks ePMP 5 GHz Force 4518 Series Fixed Wireless Subscriber Module

Multi-Gbps capacity leveraging 80 MHz channels and 802.11ax technology spanning from 5150–5920 MHz

PMP 450Subscriber

Product Highlights

Service providers face ever-increasing demand for capacity in a Modules (SM) meet this demand by offering high performance and point (PTP) deployments.

Interoperability with the ePMP 4500, which uses MU- MIMO to achieve up to multiple Gbps per sector by transmitting to ePMP SMs simultaneously

Ideal Applications

Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale. ISP last-mile buildouts requiring scalable point-to-multipoint architecture with high spectral efficiency.

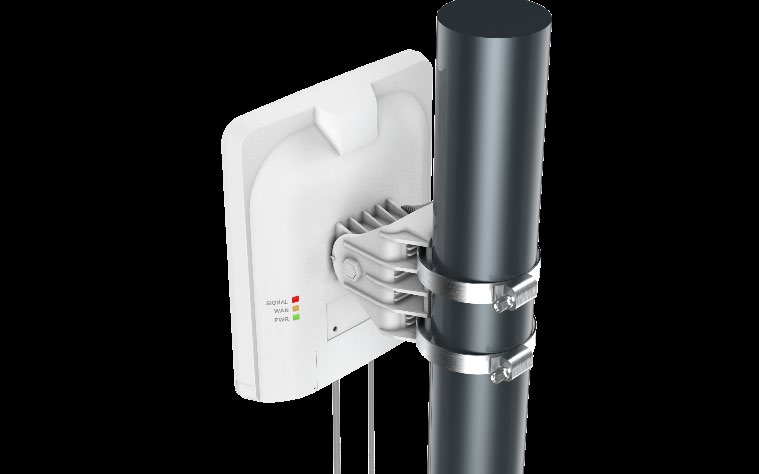

Product Images

3 photos
Product image 1
Product image 2
Product image 3
Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP 5 GHz Force 4518 to ensure compatibility with your deployment.

Spectrum

20| 40 | 80 MHz Yes
Channel Width MHzARQ
Proprietary Physical 2x2MIMO/OFDMA Nominal Receive MCS 1 = -84 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain)
LayerSensitivity (w/FEC) @20 MHz Channel
Configurablein 5 MHz increments
Frequency Range* Wideband operation 5150–5920 MHz Nominal Receive MCS 1 = -82 dBm to MCS 11 Sensitivity (w/FEC) @40 (1024 QAM-5/6) = -52 dBm (per chain)
MAC Layer Cambiumproprietary MHz Channel
Ethernet Interface 100/1000BaseT, compatible with Nominal Receive MCS 1 = -80 dBm to MCS 11
CambiumPoE & standard PoE Sensitivity (w/FEC) (1024 QAM-5/6) = -50 dBm (per chain) @80 MHz Channel
Protocols Used IPv4/IPv6(Dual Stack), UDP, TCP, Modulation Levels MCS 1 (QPSK) to MCS 11 (1024 QAM-
ICMP,SNMPv2c, NTP, STP, IGMP, SSH (Adaptive) 5/6)
Network Management IPv4/IPv6,HTTPs, SNMPv2c, SSH, Transmit Power Range +3 to +28 dBm (combined, to regional
cnMaestroEIRP limit) (1 dB interval)
VLAN 802.1Qwith 802.1p priority QoS Three level priority (voice, high, low) (Quality of Service) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast and station priority, MIR/CIR* support
*Allowable frequencies and bands are dictatedby individual country regulations.
PhysicalCertifications
1 jouleintegrated Z8H89FT0088
Surge SuppressionFCCID
Environmental IP55Industry Canada Cert 109W-0088
Temperature -30°Cto 55°C (-22°F to 131°F) CE See Cambium website for Declaration of Conformity
Weight 0.66kg (1.45 lb)
Wind Survival 200km/hr (124 mi/hr)
Dimensions (Dia x 180x 210 x 39 mm
Depth) (7.08x 8.27 x 1.54 in)
Pole Diameter Range Center:3.1 to 7.6 cm
(1.25to 3.0 in)

Power Consumption 13W

Input Voltage PassivePoE 27–59V

Security

Encryption 128-bitAES (CCMP mode), 256-bit AES optional, where allowed ePMP Force 4518 Subscriber Module
C050940C031A ePMP5 GHz Force 4518 SM Radio (ROW) (no cord)
C050940C131A ePMP5 GHz Force 4518 SM Radio (ROW) (US cord)
C050940C231A ePMP5 GHz Force 4518 SM Radio (ROW) (EU cord)
ePMP5 GHz Force 4518 SM Radio (EU) (EU cord)
C050940C331A ePMP5 GHz Force 4518 SM Radio (ROW) (UK cord)
C050940C333A ePMP5 GHz Force 4518 SM Radio (EU) (UK cord)
C050940C431A ePMP5 GHz Force 4518 SM Radio (ROW) (India cord)
C050940C435A ePMP5 GHz Force 4518 SM Radio (India) (India Cord)
C050940C531A ePMP5 GHz Force 4518 SM Radio (ROW) (China cord)
ePMP5 GHz Force 4518 SM Radio (ROW) (Brazil cord)
C050940C731A ePMP5 GHz Force 4518 SM Radio (ROW) (Argentina cord)
C050940C831A ePMP5 GHz Force 4518 SM Radio (ROW) (ANZ cord)
C050940C931A ePMP5 GHz Force 4518 SM Radio (ROW) (South Africa cord)
C050940C236A ePMP5 GHz Force 4518 SM Radio (Indonesia) (EU Cord)
C058940C132A ePMP5 GHz Force 4518 SM Radio (FCC) (US Cord)
C058940C134A ePMP5 GHz Force 4518 SM Radio (IC) (Canada/US cord)

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital experiences
and device connectivity withcompelling economics. Our ONE Network platform simplifies management of Cambium Networks’ wired and wireless
broadband and network edgetechnologies. Our customers can focus more resources on managing their business rather than the network. We
make connectivity that justworks.
Downloads

Documentation & Resources

Download datasheets and technical documentation for the ePMP 5 GHz Force 4518.

Data Sheet

Download PDF →
