Cambium Networks ePMP™ 3000 Dual Horn MU-MIMO Antenna

Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage.

Talk to a Pro

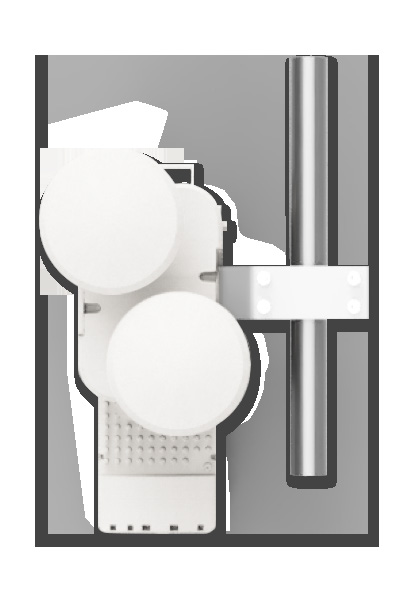

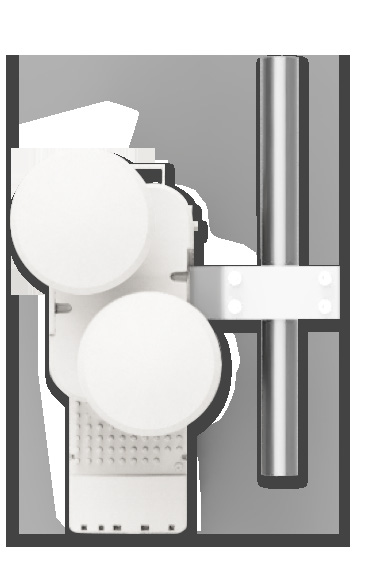

ePMP™ 3000 Dual Horn MU-MIMO Antenna

Specs: ePMP™ 3000 Antenna Series

Now with the Dual-Horn MU-MIMO sector, operators can combine the interference mitigation advantages of a horn antenna pattern with the high data rates and performance of 4×4 MU-MIMO.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Product Overview

Cambium Networks ePMP™ 3000 Dual Horn MU-MIMO Antenna

Now with the Dual-Horn MU-MIMO sector, operators can combine the interference mitigation advantages of a horn antenna pattern with the high data rates and performance of 4×4 MU-MIMO.

ePMP

Product Highlights

high frequency reuse

Cambium Networks has deployed millions of radios around the world achieving unparalleled degrees of scalability and performance. A key aspect to a successful point-to-multipoint deployments is the antenna selection that is optimized to maximize the overall system gain, spectral efficiency and interference rejection. Cambium Networks has designed a series of sector antennas especially well-suited for ePMP and 3000L Access Points. For the ePMP 3000, an optional smart beamforming antenna can be added for improved uplink interference rejection.

Frequency Reuse

Designed for ABAB channel reuse (two channels cover four sectors).

Consistent coverage

Excellent null fill and smooth azimuth patterns allow for broad geographical cover, including near the tower and out to the sector

Designed for the Installer

Small, compact designs with integrated radio mounting for reliable and safe installations.

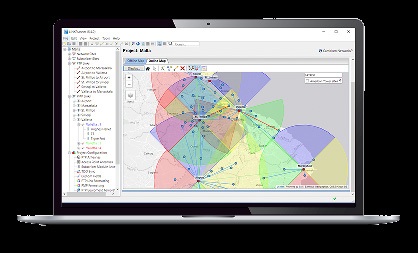

LINKPlanner Support

Cambium Networks planning tool offers precise 3D modeling of each sectors, elevation and azimuth, enabling predictable capacity and availability of each subscriber location.

Ideal Applications

Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage. Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity.

Product Images

12 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP™ 3000 Dual Horn MU-MIMO Antenna to ensure compatibility with your deployment.

Antenna Specifications

ePMP 3000ePMP 3000 ePMP 3000L ePMP 3000 Smart

MU-MIMOSector Dual Horn MU-MIMO 2x2 Sector Beamforming Module

Frequency Range 4.9 GHz to5.97 GHz 5.1 GHz to 6.1 GHz 4.9 GHz to 5.97 GHz

Gain 17 dBi12 dBi 18 dBi

70ºn/a 90º

6ºn/a 120º

n/a60º n/a

Electrical Downtilt -2ºn/a -2º

Polarization 2 x Horizontal,2 x Vertical 2 x Horizontal, 2 x Vertical Horizontal and Vertical

Port-to-Port

> 20 dB> 15 dB > -30 dB

Front-to-Back Ratio 30 dB28 dB 35 dB

5 W5 W 5 W

Input Power

Imput Impedance 50 ohms50 ohms 50 ohms

4 x RP SMA4 x RP SMA 2 x RP SMA

Includedfor mounting to Included for mounting to mast Included for mounting to

Hardware mast diameters5 cm to 10 cm diameters 30mm – 75 mm mast diameters 5 cm to 10 cm

(2 in to 4in) (1.25 in to 3.0 in) (2 in to 4 in)

-10º to +5ºtilt Hardware included to connect -10º to +5º tilt ePMP access point to back of

Hardwareincluded to connect Hardware included to connect antenna body

ePMP accesspoint to back of ePMP access point to back of

antenna bodyantenna body

594 x 157x 110 mm 305 x 215 x 231 mm 594 x 157 x 110 mm (12 x 8.5 x 9.1 in)

H x W x D (23.4 x 9.6x 3.25 in) (23.4 x 9.6 x 3.25 in) As mounted with ePMP 3000 With ePMP 3000L Access Point Access Point: and Mounting Brackets: 445 x 356 x 231 mm 594 x 157 x 150 mm (17.5 x 14 x 9.1 in) (23.4 x 9.6 x 5.9 in)

AntennaBody: 3.7 kg (8.0 lbs) Antenna body with bracket: Antenna Body: 4.0 kg (8.8 lbs) 4.2 kg (9.4 lbs)

w/ ePMP3000 Access Point with ePMP 3000L Access Point

and MountingBrackets: As mounted with and Mounting Brackets:

6.3 kg (13.8lbs) ePMP 3000 AP: 6.6 kg (14.6 lbs) 5.5 kg (12.1 lbs)

Environmental IP65IP55 IP65

Radome Material UV ProtectedABS UV Protected ABS UV Protected ABS

-40ºC to 60ºC(-40ºF to 140ºF) -40ºC to 60ºC (-40ºF to 140ºF) -40ºC to 60ºC (-40ºF to 140ºF)

n/aOperational at ≤ 145 km/hr (90.1 mph), Survival at ≤ 209 km/hr (129.87 mph) ePMP™ 3000 Antenna Series

ePMP 3000 Sector AntennaPatterns

Channel 0 VerticalPolarization Azimuth Channel 0 Vertical Polarization Elevation

Channel 1 VerticalPolarization Azimuth Channel 1 Vertical Polarization Elevation ePMP™ 3000 Antenna Series

ePMP 3000 Sector AntennaPatterns - continued

Channel 2 VerticalPolarization Azimuth Channel 2 Vertical Polarization Elevation

Channel 3 VerticalPolarization Azimuth Channel 3 Vertical Polarization Elevation ePMP™ 3000 Antenna Series

ePMP 90º Sector AntennaPatterns

Azimuth,Horizontal Azimuth, Vertical ePMP™ 3000 Antenna Series

ePMP 300090º Sector Dual-Horn MU-MIMO

Sector AntennaAntenna Antenna

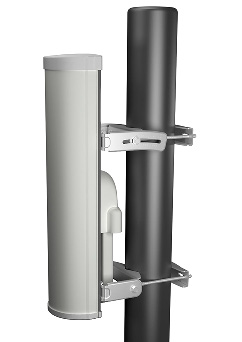

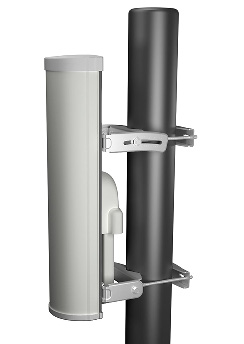

C050910D301A ePMP3000 MU-MIMO Sector Antenna

C050900D021A ePMP3000L 2x2 Sector Antenna

C050900D025A ePMP3000 Dual-Horn MU-MIMO Sector Antenna

C050900D020A ePMP3000 Smart Beamforming Module

ABOUT CAMBIUM NETWORKS

Cambium Networks empowersmillions of people with wireless connectivity worldwide. Its wireless portfolio is used by commercial and

government network operatorsas well as broadband service providers to connect people, places and things. With a single network architecture

spanning fixed wireless andWi-Fi, Cambium Networks enables operators to achieve maximum performance with minimal spectrum. End-to-end

cloud management transformsnetworks into dynamic environments that evolve to meet changing needs with minimal physical human

intervention. Cambium Networksempowers a growing ecosystem of partners who design and deliver gigabit wireless solutions that just work.

Downloads

Documentation & Resources

Download datasheets and technical documentation for the ePMP™ 3000 Dual Horn MU-MIMO Antenna.

Data Sheet

Download PDF →
