Cambium Networks ePMP Force 300-25
High-Gain 802.11AC Wave 2 Solution - 500+ Mbps Peak Throughput


Cambium Networks ePMP Force 300-25

Cambium Networks Products
ePMP 2000 Interferences
ePMP Force 300-25 5 GHz High Gain Radio (FCC)
#C058910C102A
List Price: $169.00
Our Price: $152.00
ePMP Force 300-25 5 GHz High Gain Radio (RoW)
#C050910C101A
List Price: $169.00
Our Price: $152.00

Click here to jump to more pricing!

Overview:

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300‐25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.

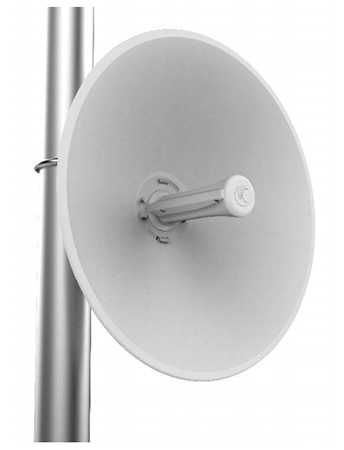

Force 300‐25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300‐25 also supports an always on spectrum analyzer and local WiFi management to take advantage of mobile installation applications.

Features:

  • Cambium Networks’ ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
  • The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
  • The Force 300-25 supports a local Wi-Fi connection to allow easy installation, configuration, and monitoring from any Wi-Fi enabled device.
  • The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
  • Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
  • QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.

ePMPePMP 2000 Solutions:

So long, interference

Cambium Networks’ ePMP 2000 takes interferencetolerant, high performance, and reliable wireless broadband to a new level with innovative technology and proven, deployed-worldwide equipment, keeping you and your customers happy for an affordable price.

ePMP 2000 is built from the ground up to provide high performance, reliably, in real-world interference-heavy environments. Powered by innovative Hypure™ technology, ePMP 2000 incorporates Smart Beamforming and Intelligent Filtering to help you deliver the services your customers expect in the face of heavy interference.

With the feature-rich ePMP foundation including frequency reuse enabled by GPS Synchronization, eFortify, 120 active subscribers per access point and 200+ Mbps of real-world achievable throughput, ePMP 2000 is designed, built and tested to reliably connect people, places, and things.

Example Use Cases

Wireless Service Providers (WISPs)

  • Rural connectivity
  • Municipal connectivity
  • Enterprise and campus connectivity

Enterprise

  • Wireless video surveillance networks
  • Industrial and mining applications
  • LAN extension

End-to-End Performance

ePMP encompasses a comprehensive range of subscriber modules, access points, and sector antennas to make sure your network performs at its best, from end-to-end.

Top Line Specifications

  • Reliable, consistent performance in real-world conditions
  • 5, 10, 20, and 40 MHz channel bandwidths
  • 200+ Mbps of real-world throughput
  • Up to 120 active subscribers per access point
  • Secure over-the-air communications (128-bit AES encryption)
  • Industry leading frequency reuse via GPS Synchronization
  • Configurable QoS for voice, video, and data
  • Up to 64km deployment range
  • Point-to-point and point-to-multipoint options (software configurable)

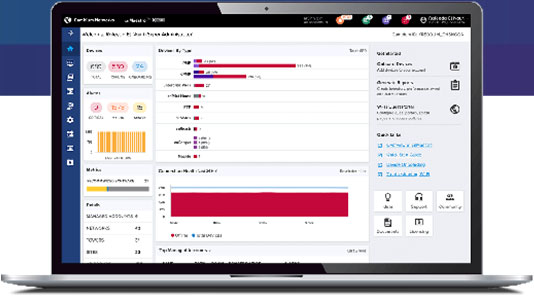

  • End-to-end cloud management with cnMaestro™

Why ePMP?

Consistent Performance
With industry-leading tolerance to handle outside interference, Automatic Transmit Power Control to control self-interference, and a proven worldwide ePMP MAC scheduling algorithm, ePMP provides consistent performance, no matter how many subscribers are connected. And thanks to Air Fairness, when one subscriber is performing poorly, it doesn’t drag the rest down.

Frequency Refuse
Take that precious spectrum and multiply it across your network. With frequency reuse enabled by GPS Synchronization, ePMP scales to more customers with less spectrum, letting you expand your business while keeping your customers happy. Deployed worldwide and proven over years, it’s the secret ingredient to a scalable network.

Return on Investment
Many operators find when they deploy a network, as it expands over time, they have to redesign it with new equipment once the number of subscribers reaches a certain point, ruining their return on investment plans. With ePMP, affordable doesn’t mean cheap; build your network to last, from the start.

Application Flexibility
Configurable Quality of Service for voice, video, and data lets you offer the services your customers want at the level of service they need. Combined with adaptable modes of configuration that let you support many combinations of bandwidth allocation and latency, a network built on ePMP can handle any application.

Security
Wireless networks are insecure, right? Well, they don’t have to be. With 128-bit AES encryption for all data transmitted across the wireless link, L2 and L3 firewall functionality, and secure management interfaces, ePMP won’t be the weak link in your security chain.

Reliability
By combining highly reliable software, hardware and protocols, ePMP is designed to provide the best service possible for your customers for the long term. Industrial design and industrial-grade components mean your network stays up.

What is Hypure?

ePMP 2000 uses innovative Hypure technology from Cambium Networks. It’s comprised of Smart Beamforming and Intelligent Filtering.


Smart Beamforming

With the optional ePMP 2000 Smart Antenna, Smart Beamforming virtually eliminates the impact of uplink co-channel interference. This has a dramatic effect on the network capacity, with up to 8x uplink throughput increases over ePMP 1000 in real-world conditions. By improving the uplink capacity, overall network performance is substantially increased.

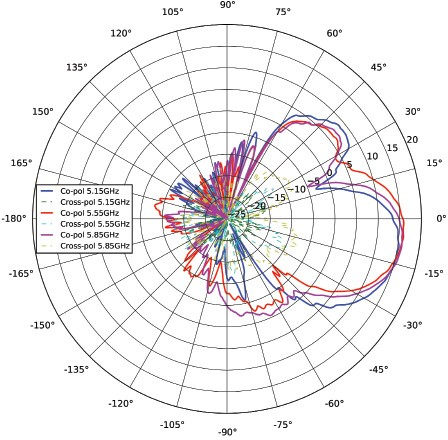

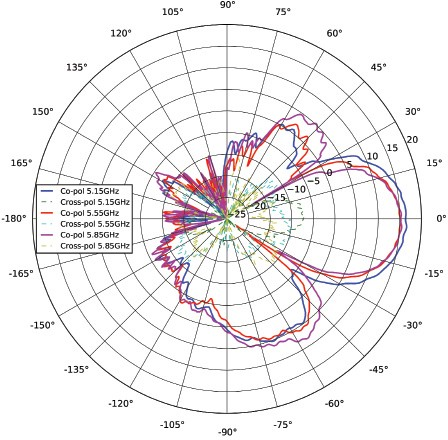

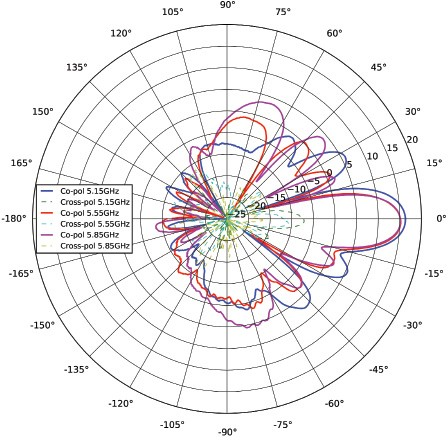

Smart Beamforming dynamically creates a narrow, targeted beam to each subscriber, blocking out interference from other sources.

Smart Beamforming


Intelligent Filtering

Built into the ePMP 2000 Access Point, Intelligent Filtering offers up to 20% uplink throughput increases over ePMP 1000 in real-world conditions. By blocking out adjacent channel interference, your network can focus on the signals it wants to hear rather than being distracted by all the noise around them.

Intelligent Filtering creates a dynamic filter, which wraps around the channel in use, shielding it from others.

Intelligent Filtering


Specifications:


ePMP Force 300-25 Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range Wide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width 20 | 40 | 80 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary and optionally standard 802.11ac
Physical Layer 2x2 MIMO/OFDM
Ethernet Interface 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv6/IPv4 Management, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -85 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80MHz Channel MCS0 = -82 dBm to MCS9 (256QAM-5/6) = -56 dBm (per chain)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS9 (256QAM 5/6)
GPS Synchronization Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Transmit Power Range 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)
Physical
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -22°F to +140°F (-30°C to +60°C)
Wind Survival 180 km/hour (112 mi/hour)
Weight 2.4 kg (5.3 lbs)
Dimensions (Dia x Depth) 47 cm x 31 cm (18.5 in x 12.2 in)
Pole Diameter Range 6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption 12 Watts
Input Voltage 30 Volts
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID TBD
Industry Canada Cert TBD
CE TBD

Antenna Patterns:


Antenna Specifications 5 GHz Specifications
Frequency Range 5.150 – 5.970 MHz
Antenna Type Dish
Peak Gain 25 dBi
3dB Beamwidth-Azimuth 6-10 degrees
3dB Beamwidth-Elevation 6-10 degrees
Front-To-Back Isolation 25 dB
Cross Polarization 20 dB

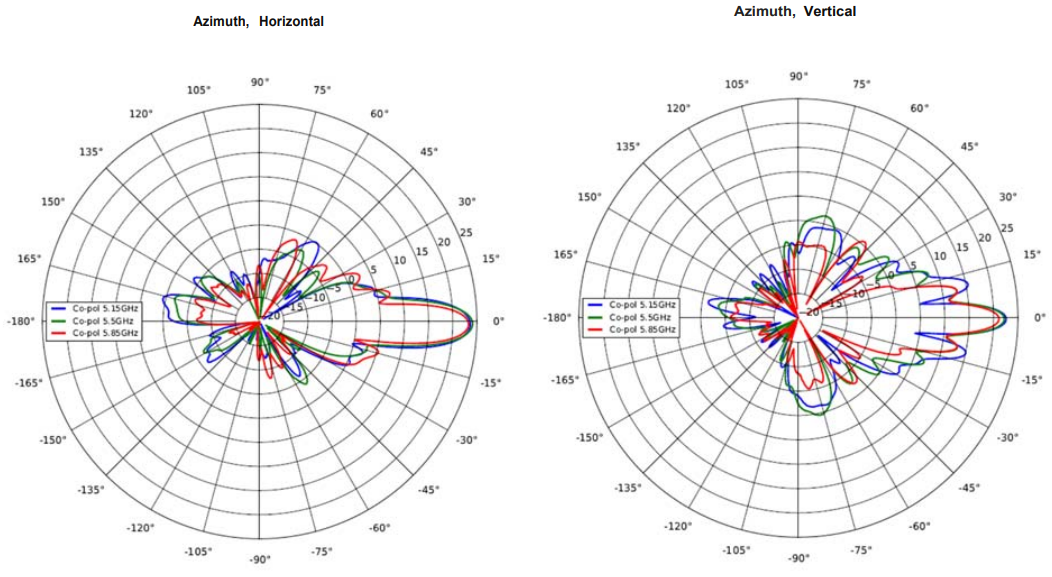

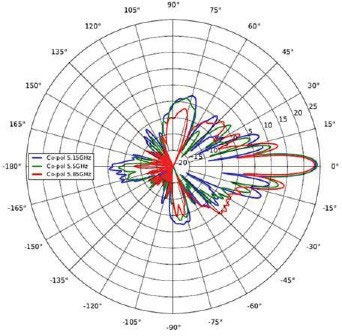

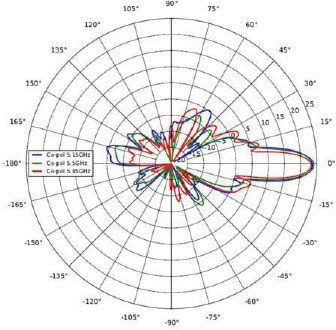

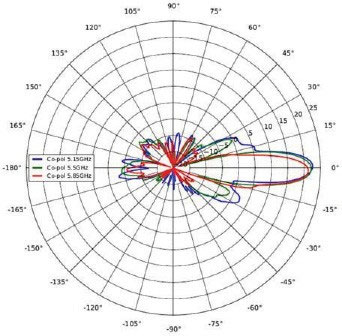

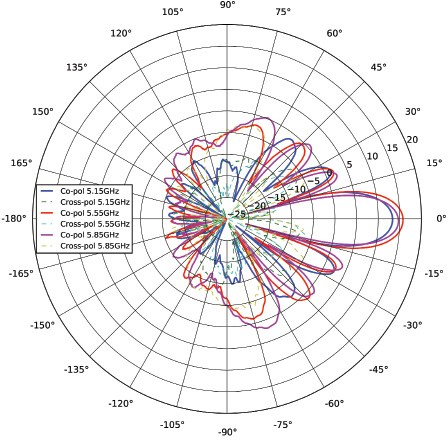

Azimuth Antenna Patterns

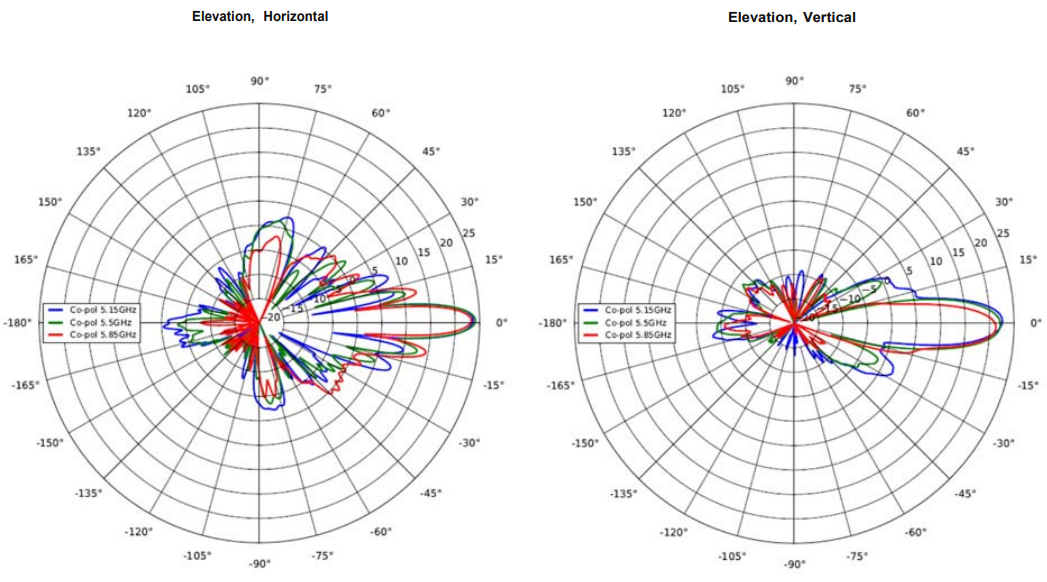

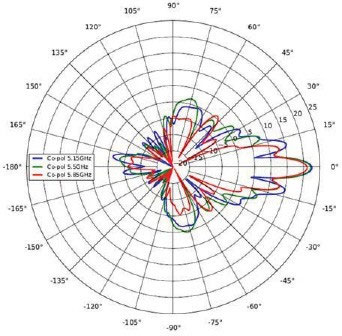

Elevation Antenna Patterns

Documentation:

Download the Cambium Networks ePMP Force 300-25 Datasheet (.PDF)
