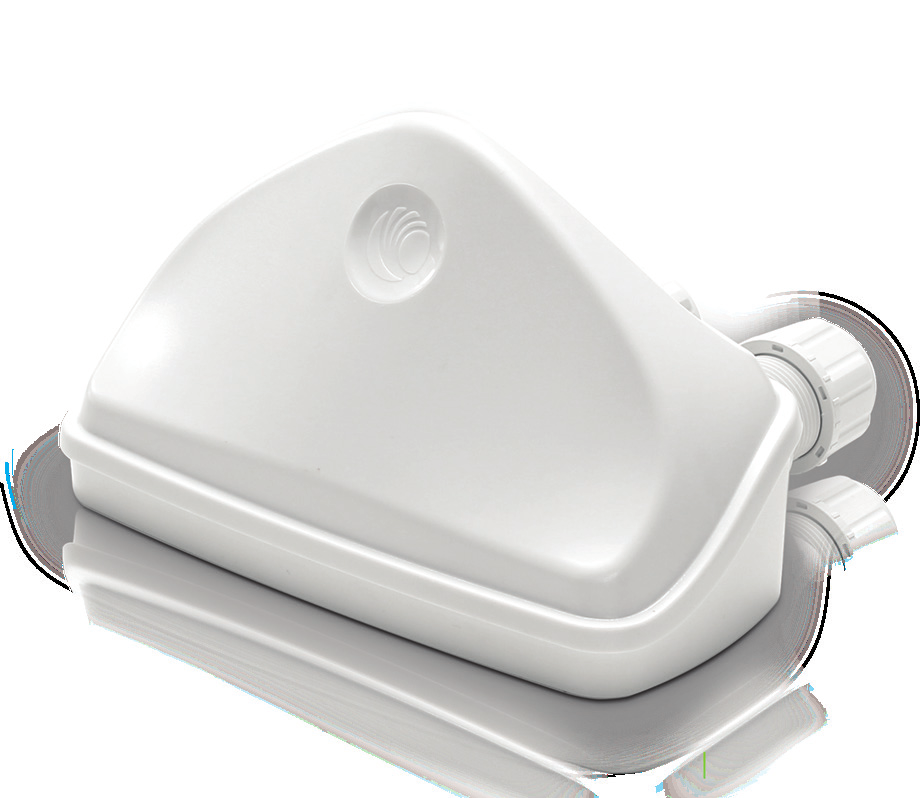

Cambium Networks cnPulse Sync Generator

networks, whether in a PTP or PMP topology. One typical source for synchronization is the GPS satellite signal which carries a precise one pulse per second (1PPS) clock. Using this clock, PMP and PTP networks can synchronize the start and stop time of all transmissions. By synchronizing the transmit and receive signals, each AP or Access Point isn’t transmitting while its neighbor is

cnPulse can be deployed in two alternative ways as shown in the table below. Note that a single cnPulse can provide synchronization to two AP’s by leveraging mode on the first ODU and mode on the second ODU.

Model Number C000000L066A

cnPulse Operation Mode 1: AUX Serial mode (uses cnPulse cnPulse derives power input from the radio Typically used on CMM5, cnReach and the

port 1)

or CMM port and returns the 1PPS signal and satellite statistics on port 1. AUX ports on PMP 450i, PMP450m or PTP 450i

Mode 2: CambiumSYNC In-line mode

cnPulse is deployed in-line with the radio’s power injector on port 3. cnPulse port then used on PTP 550.

(uses cnPulse port and port 3) CAT-5 drop cable. cnPulse receives power (and data) from the ODU’s PoE outputs PoE+Data+CambiumSYNC to the main input on a radio. Typically
