Cambium Networks cnPilot r190 Series Home Router

Entry-level IPv6 home Wi-Fi router with cnMaestro cloud management for service providers.

Cambium Networks cnPilot r190 Series Home Router
Talk to a Pro
Contact Us 855-958-0754 Email Sales
cnPilot r190
  • Specs: IPv6 Entry-Level 802.11n Home Wi-Fi Router with Cloud Management
  • 2.4 GHz 802.11b/g/n 2x2 Wi-Fi
  • 4-port 10/100 LAN + 10/100 WAN
  • cnMaestro cloud management & zero-touch provisioning
  • IPv6 capable, TR-069 support

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks cnPilot r190 Series Home Router

The IPV6 capable R190W is ideal for cost-conscious service providers seeking a standard, entry level home router with cutting edge cloud management and robust features.

Home Router

Ideal Applications

Entry-level home and small-office Wi-Fi for service providers delivering managed residential broadband. Subscriber-side CPE for WISP deployments, MDU in-unit Wi-Fi, and low-cost rental-property connectivity — all centrally managed in cnMaestro.

Product Images

1 photo

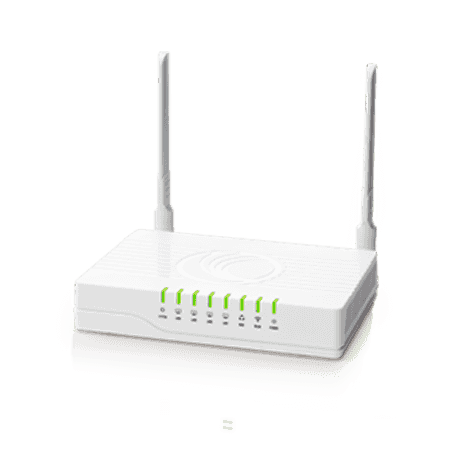

Product image 1
Technical Details

Hardware Specifications

Comprehensive technical data for the cnPilot r190 to ensure compatibility with your deployment.

SPECIFICATIONS

VoIP SoCMIPS Single-core 580MHz
Flash16MBytes Flash
RAM and CPU• 64MBytes DDR3 RAM • MT7628N
Power Supply• AC/DC Adapter • AC Input: 100~240V, 50~60Hz • DC Output: 12V, 1.0A
I/O Interfaces• 1 RJ-45 for WAN port (Ethernet 100 Base-T) • 4 RJ-45 for LAN port (Ethernet 100 Base-T)
Environmental• Operation Temperature: -5~45 Degree C • Storage Temperature: -25~ 85 Degree C • Relative Humidity: 10%~90% No Condensing
Key Feature• 100Mbps NAT/NAPT speed • 2T2R 2.4GHz IEEE 802.11 b/g/n(300 Mbps)
Protocols• DHCP/PPPoE • HTTP Server for Web Management • TFTP/HTTP for Auto Provisioning • DHCP Option Codes for SIP (RFC3361) • DNS/DNS SRV (RFC1706 and RFC 2782) • IEEE802.1Q VLAN/802.1p and IP DSCP • SNTP
Wireless• 4 SSID • Static WEP(64/128bit) • Dynamic WEP(64/128bit) • AES/TKIP • MAC certification • WEP certification • WPA/WPA2 • AP Isolation and MBSSID AP Isolation • WMM • WDS • WPS • MAC Filter(different from wired MAC Filter)
Applications• Support NAT mode and Bridge mode • Support DDNS • MAC address cloning • Built-in Wired speed NAT Router • DHCP Server and Client • IP conflict detection • Port Forwarding, DMZ, SuperDMZ • 802.1Q VLAN/802.1p, DSCP, Rate Limiting • VPN (PPTP,L2TP, IPSec) Passthrough • SNTP • IGMPv2 • Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
Management• Firmware Upgrade • Web Management Interface • Local and Remote Syslog (RFC3164) • Auto Provisioning • SNTP Time Synchronization • Multi User Level • SNMP v2 • Telnet • TR069 • System Log: local log and remote log
Downloads

Documentation & Resources

Download datasheets and technical documentation for the cnPilot r190.

Data Sheet

Download PDF →
