Product Overview

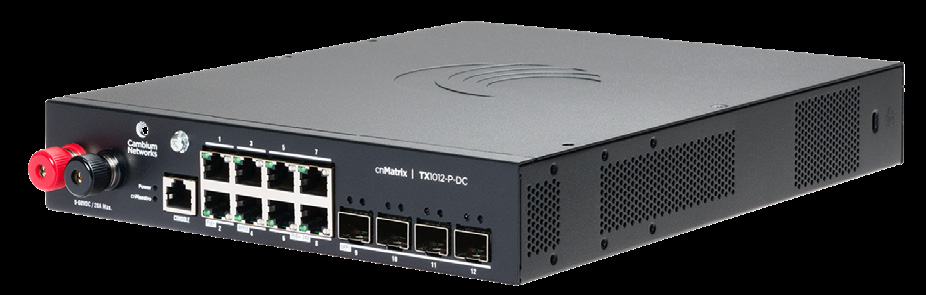

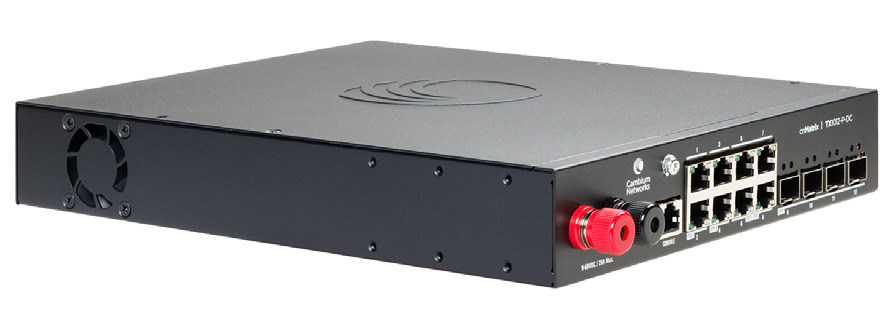

Cambium Networks cnMatrix TX1012-P-DC Switch
Cambium Networks delivers high-performance Ethernet switching solutions for enterprise networks. cnMatrix™ switches improve network performance while reducing the time and cost of provisioning and management. When integrated with Cambium Networks access points and cnMaestro™ Network Management, cnMatrix delivers a unified wired and wireless enterprise network that's secure, scalable, and easy to operate. Designed for enterprise, industrial, and campus environments, cnMatrix switches streamline deployment, automate policy enforcement, and simplify ongoing operations — helping IT teams do more with fewer resources.
Managed Switch
Product Highlights
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
WARNING: TX1012-P-DC Switch does not have an isolated input/output power supply. The switch must be powered with a positive polarity power source, otherwise damage to the switch will occur.
Unified Wired-Wireless access solution
* Feature to be included in a future release.

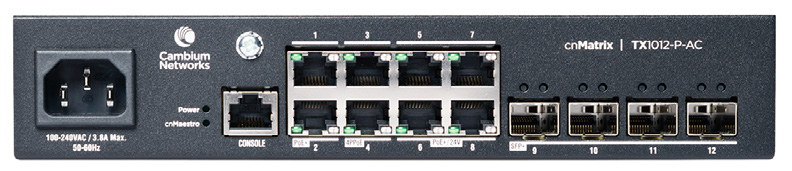

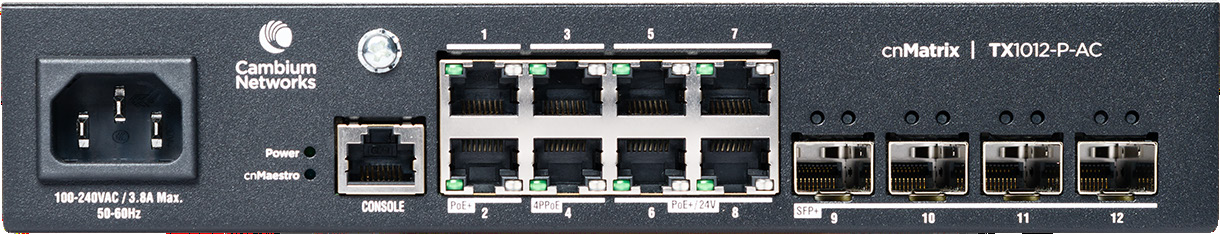

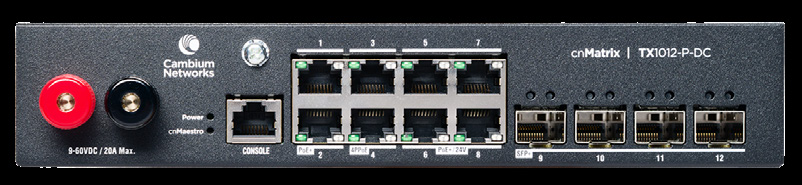

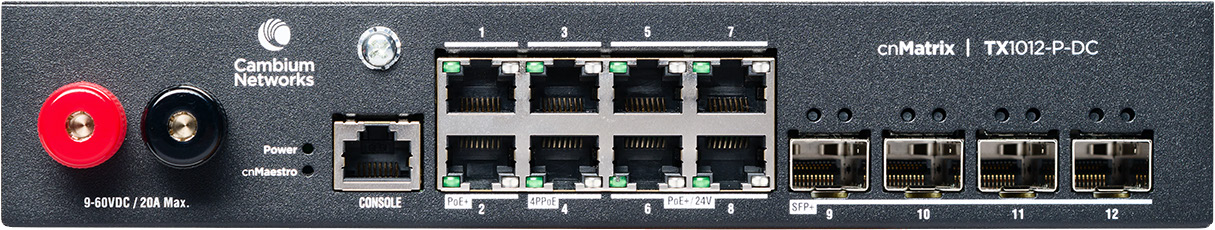

All interfaces located on front panel The cnMatrix series of fully managed switches delivers full Layer and Layer capabilities with enhanced access security. The cnMatrix series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 3-Year Limited Lifetime Warranty.
Ideal Applications
Enterprise LAN infrastructure requiring cloud-managed Layer 2/3 switching with full PoE budget for wireless APs, IP cameras, and VoIP. Wiring-closet aggregation and data-center edge deployments managed centrally through cnMaestro.

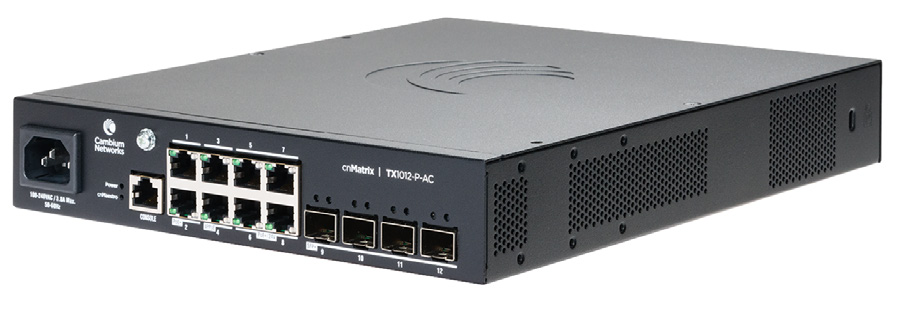

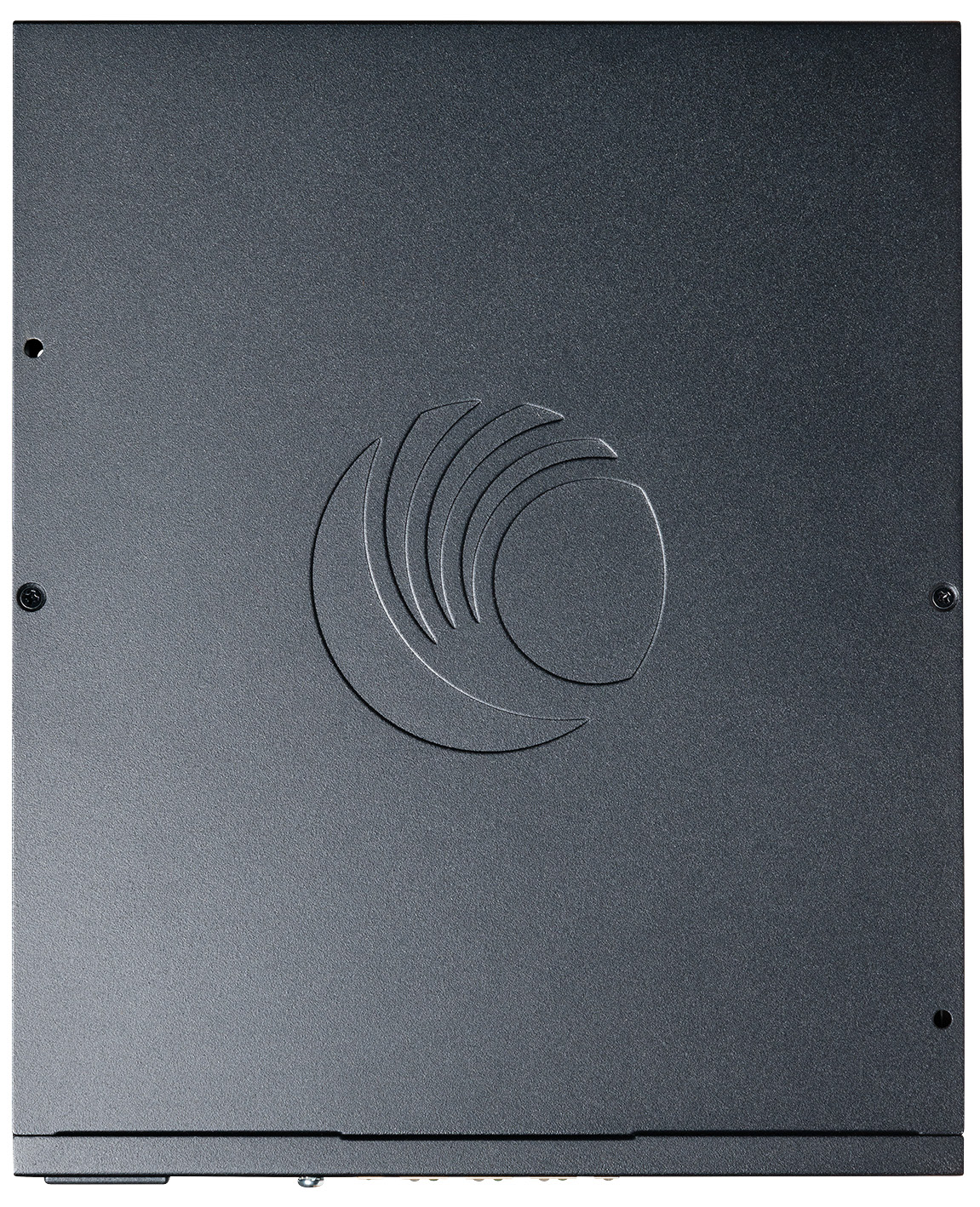

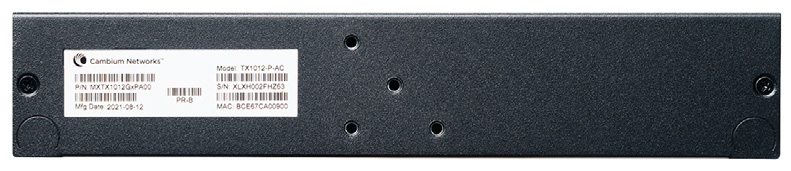

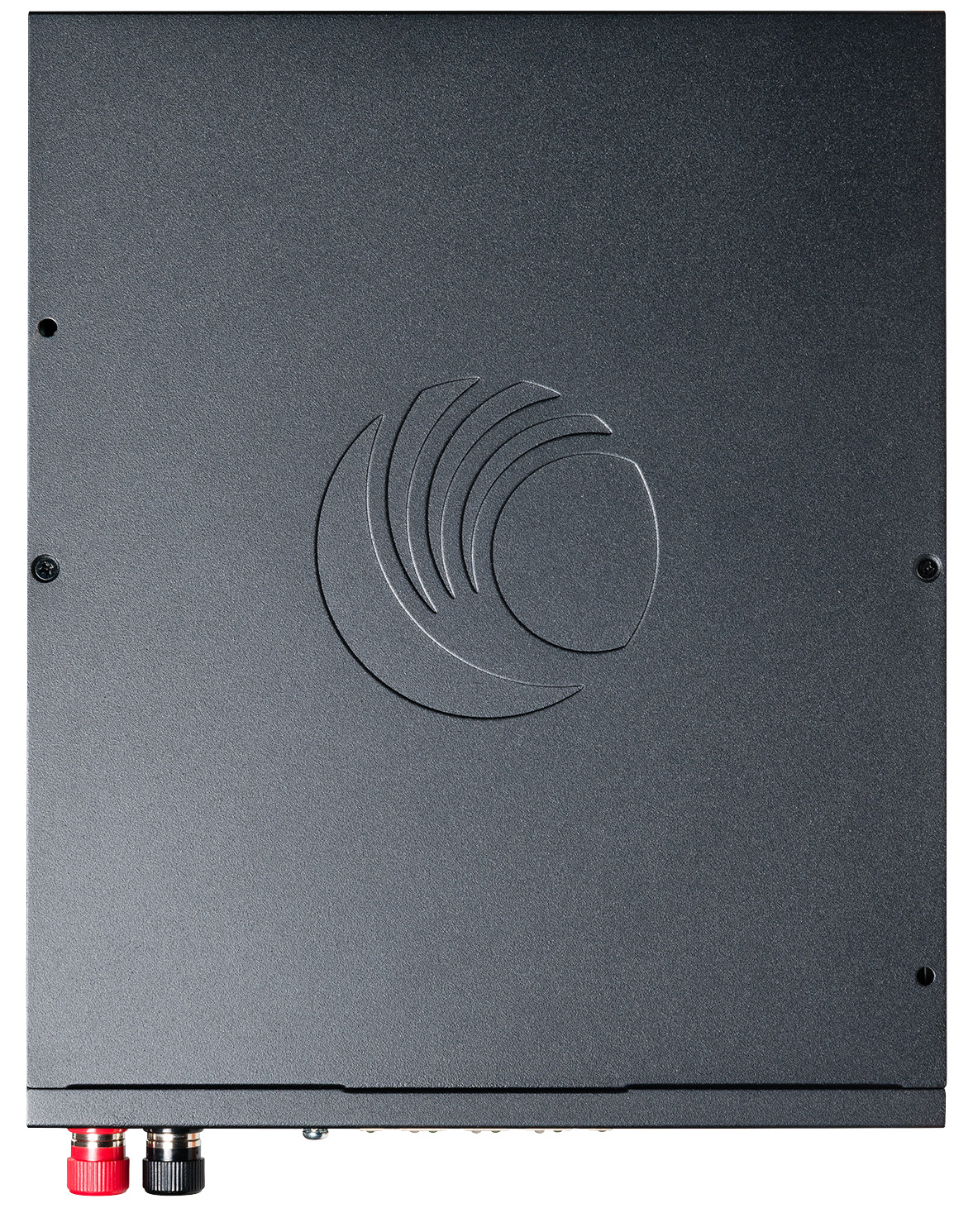

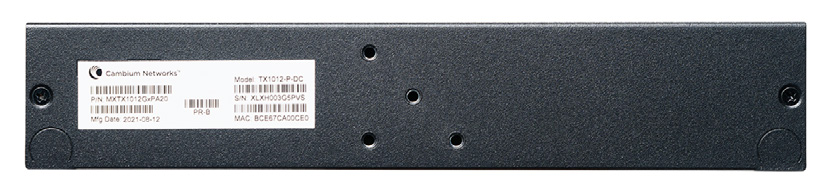

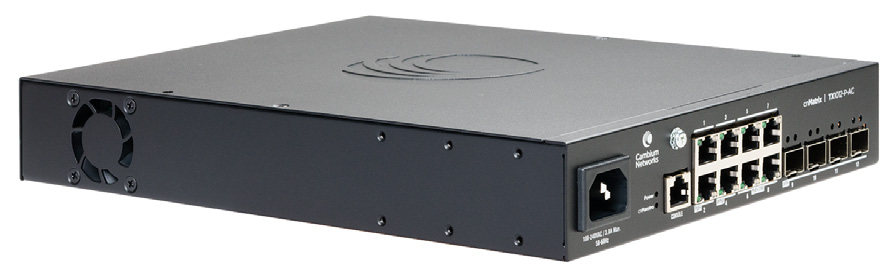

Product Images
13 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the cnMatrix TX1012-P-DC to ensure compatibility with your deployment.
Specifications
Throughput96 Gbps 96 Gbps 120 120
10/100/1000 Mbps RJ45 Ports8 8
1 Gbps Fiber Ports (SFP)0 0
10 Gbps Fiber Ports (SFP+)4 4
PoE+ Enabled Ports 802.3af/at/bt8 8
Low Voltage Passive PoE (24V)4 4
High Power 4 PPoE (up to 90W)2 2
Serial ConsoleYes Yes
Rack Mount KitYes, optional Yes, optional
Internal Fans1 1
Reset Button*Yes Yes
MAC Address Table Size16K 16K
Flash Storage128 MB 128 MB
DRAM512 MB 512 MB
VLANs4K 4K
QinQ*Yes Yes
LACP/Trunking8 LAGs/8 links per LAG 8 LAGs/8 links per LAG
QoS Priority Queues8 8
PVRST32 32
Ingress/Egress ACL128 128
Static ARP Entries512 512
ARP Entries512 512
Static Routes64 64
Dynamic Routing512 512
IGMP Multicast Groups256 256
Policy Based AutomationYes Yes cnMatrix™ TX1000 Series Switches
Hardware Specifications
Power Supply260W 200W (DC-In: 9V-65V)
Max Switch Power (WITH TRAFFIC)25.5W 24.5W
MTBF @25ºC (hours)741,409 749,495 223,619 207,122
Unit Weight2.22 kg (4.89 lbs) 2.1 kg (4.63 lbs) 4.4 x 28.0 x 23.0 cm 4.4 x 28.0 x 23.0 cm (1.7 x 11.2 x 9.05 in) (1.7 x 11.2 x 9.05 in) 2.75 kg (6.05 lbs) 2.65 kg (5.83 lbs)
Boxed Dimensions10.1 x 35.1 x 33 cm 10.1 x 35.1 x 33 cm
H x L x W(4.04 x 13.82 x 13.00 in) (4.04 x 13.82 x 13.00 in)
CPU Speed800 MHz 800 MHz Link/Activity, PoE Link/Activity, PoE
LEDs per port
PoE Power Budget200W 170W @ 30-65Vin, 120W @ 9–29Vin
802.3af/at/bt PoE (54V)Ports 1–8 Ports 1–8
24V Passive PoE - up to 15WPorts 5–8 Ports 5–8 Ports 3–4 Ports 3–4
54V Passive PoE - up to 30WPorts 1–2, 5–8 Ports 1–2, 5–8 Ports 1–2, 5–8: 30W Ports 1–2, 5–8: 30W
PoE Max Power Per Port
Rack MountableYes (Optional Accessory) Yes (Optional Accessory) Yes (Optional Accessory) Yes (Optional Accessory)
Wall MountableYes (Optional Accessory) Yes (Optional Accessory)
Temperature Ranges-30ºC to 60ºC / Sea level -30ºC to 60ºC / Sea level
Operating Humidity20% to 90% RH 20% to 90% RH -40ºC to 70ºC -40ºC to 70ºC cnMatrix™ TX1000 Series Switches
Specifications - All Models
Quality of ACL mappingand marking of Layer 2 802.1s multiple spanning tree
ServiceFeature Set
ToS/DSCP(COS) VLAN, Port, Protocol, 802.1q
ACL mappingmarking of 802.1p QinQ*
ACL mappingto priority queue 802.1d
DiffServsupport 802.1x authentication
HonoringDSCP and 802.1p (CoS) Auto MDI/MDIX BPDU Guard, Root Guard
Priorityqueue management using Weighted IGMP Snooping v1/v2/v3*, Fast Leave
RoundRobin (WRR), Strict Priority (SP) and LLDP/LLDP MED
a combinationof WRR and SP IGMP Proxy
Traffic ACL-basedinbound rate limiting policies
Management
Broadcast,multicast and unknown
unicastrate limiting Flow Control per port
Inboundrate limiting per port Per VLAN STP (PVST/PVRST)
Outboundrate limiting per port/queue Port Mirroring: port based, ACL based, VLAN based
802.1xauthentication
Security
MAC authentication*Link Aggregation Groups (Static/LACP) Rate Limiting/Storm Control
RADIUSauthentication/authorization Jumbo frame (9k) DHCP Snooping
Authentication,Authorization, and
Accounting(AAA) BPDU filtering
Secureshell Broadcast/Multicast/Unlearned Unicast (Storm Control)
Securecopy (SCP)* DoS Protection Ping/TraceRoute/ICMPv6
Inter-VLANRouting Dynamic Routing – RIPv1/v2
StaticARPs Dynamic Routing – OSPFv2
StaticRoutes Route Redistribution
DHCPRelay cnMatrix™ TX1000 Series Switches
Specifications - All Modelscont’d

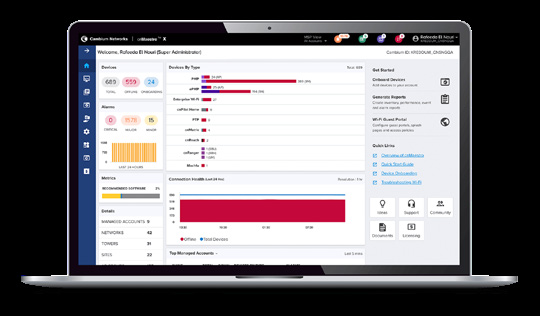

Management cnMaestrocloud management DHCP relay
XMS*cloud management Simple Network Time Protocol (SNTP)
Industrystandard Command Line Interface (CLI) Local/remote system logging
DHCPClient Policy Based Automation
Embeddedweb management (HTTP/HTTPS) Display log messages multiple terminals*
EmbeddedDHCP server TFTP/SFTP
SSH/ SSH v2 Password management
SNMPv1/v2/v3 Autoinstall support for firmware images and config files
Source/DestinationIP address EtherType
Security
TCP/UDPSource/Destination port IEEE 802.1p user priority
INBOUND IP AND IP ProtocolType VLAN ID
Typeof Service (ToS) or differentiated services RFC 1858—Security Considerations for IP
BASED ON: (DSCP)field Fragment Filtering
Source/DestinationMAC address * Feature to be included in a future release. cnMatrix™ TX1000 Series Switches
IEEE Standards
IEEE 802.1ab—LinkLayer Discovery RFC 4541—Considerations for Internet
Core SwitchingIEEE
Features Protocol(LLDP) 802.1Q-2003 Group Management Protocol (IGMP) Snooping Switches
IEEE 802.1D—Spanningtree compatibility ANSI/TIA-1057—LLDP-MEDia Endpoint
IEEE 802.1p—Ethernetpriority with user Discovery (MED)
provisioningand mapping Advanced Authentication, Authorization, and
IEEE 802.1s—Multiplespanning Layer 2 Accounting (AAA) Features IEEE 802.1ad (QinQ)*
IEEE 802.1Q—VirtualLANs with
port-basedVLANs Broadcast/Multicast/Unknown unicast storm recovery
IEEE 802.1X—Port-basedauthentication DHCP Snooping
VLAN IEEE 802.1W—Rapidspanning tree
Support
compatibilityIGMP Snooping Querier
IEEE 802.3—10BASE-TIndependent VLAN Learning (IVL) support
IEEE 802.3u—100BASE-TJumbo Ethernet frame support
IEEE 802.3ab—1000BASE-TPort MAC locking
IEEE 802.3ac—VLANtagging Port mirroring
IEEE 802.3ad—Linkaggregation Protected ports
IEEE 802.3x—Flow control Static MAC filtering Inter-VLAN Routing
BridgedLocal Area Networks - Amendment Layer 3 Features
07: MultipleRegistration Protocol Static ARP Static Routes RFC 2131 – DHCP Relay RFC 2328 – OSPF Version 2 RFC 2453 – RIP Version 2 * Feature to be included in a future release. cnMatrix™ TX1000 Series Switches
Event and error logging facilityRFC 1035—Domain names - implementation and specification
Run-time and configuration downloadcapability RFC 1321—Message digest algorithm
PING utilityRFC 1534—Interoperability between BOOTP and DHCP
FTP Transfers via IPv4/IPv6RFC 2021—Remote network monitoring management information base version 2 RFC 2030—Simple Network Time Protocol (SNTP) RFC 2132—DHCP options and BOOTP vendor extensions RFC 2819—Remote Network Monitoring Management Information Base RFC 2865—RADIUS client RFC 2869—RADIUS Extensions
RFC 894—Transmission of IPdatagrams over Ethernet networks RFC 3579—RADIUS support for EAP
RFC 896—Congestion controlin IP/TCP networks RFC 3580—IEEE 802.1X RADIUS usage guidelines RFC 3164—BSD syslog protocol
RFC 1034—Domain names -concepts and facilities RFC 3580—802.1X RADIUS Usage Guidelines * Feature to be included in a future release.
Management
SNMP v1, v2, and v3layer protocol SSL 3.0 and TLS 1.2
RFC 4252—SSH authenticationprotocol RFC 2246—TLS protocol, version 1.2
RFC 4253—SSH transport layerprotocol RFC 2818—HTTP over TLS
RFC 4254—SSH connectionprotocol RFC 3268—AES cipher suites for transport layer security
RFC 4251—SSH protocol architecture
RFC 4716—SECSH public keyfile format Web GUI cnMatrix™ TX1000 Series Switches
Enterprise RFC1213—MIB II RFC 2819—RMON groups 1, 2, 3, and 9
RFC1493—Bridge MIB RFC 2863—IF-MIB
Support of RFC1612—DNS resolver MIB extensions RFC 2925—Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations
RFC1643—Definitions of managed
objectsfor Ethernet-like interface types RFC 3273—RMON Groups 1, 2, and 3
RFC2233—Interfaces group MIB using RFC 3291—Textual conventions for Internet
SMI v2network addresses
RFC2613—SMON MIB RFC 3434—RMON Groups 1, 2, and 3
RFC2618—RADIUS authentication RFC 4022—TCP-MIB
clientMIB RFC 4113—UDP-MIB
RFC2674—VLAN MIB * Feature to be included in a future release.
RFC2737—Entity MIB version 2*
MIBsfor full configuration support of RFC 3289—Management information base for DiffServ
DiffServ,ACL, and CoS functionality architecture (read-only)
Classify Traffic Markthe IP DSCP or Precedence RFC 2475—An architecture for differentiated services
headerfields RFC 2597—Assured forwarding Per-Hop Behavior
Policethe flow to a specific rate with two-
coloraware support
RFC2474—Definition of the differentiated
servicesfield (DS field) in the IPv4 and
IPv6headers cnMatrix™ TX1000 Series Switches
TX1012-P-ACTX1012-P-DC DDAATTAA SSHHEEEETT DDDAAATTTAAA SSSHHHEEEEEETTT ccnnMMaattrriixx™™ TTXX11000000 SSeerriieess SSwwiittcchheess
Type ModelPart Number Description
Switch TX1012-AC-PMXTX1012GxPA00 AC Powered Intelligent Ethernet PoE Switch, 8 x 1 Gbps, and 4 SFP+, no pwr cord
Switch TX1012-DC-PMXTX1012GxPA20 DC Powered Intelligent Ethernet PoE Switch, 8 x 1 Gbps, and 4 SFP+, no pwr cord
Switch TX1012-AC-PMXTX1012GxPA01 AC Powered Intelligent Ethernet PoE Switch, 8 x 1 Gbps, and 4 SFP+, no pwr cord, USA Only
Switch TX1012-DC-PMXTX1012GxPA21 DC Powered Intelligent Ethernet PoE Switch, 8 x 1 Gbps, and 4 SFP+, no pwr cord, USA Only
Power Cord n/aN000900L092A AC line cord, US Type B, 15A, 1.2 m C13 connector
Power Cord n/aN000900L040A AC line cord, US Type B, 1.2 m C13 connector
Rack Ears n/aMX-Rack-TX1K-0 cnMatrix 19” Rack mount kit: TX1012-P-AC / TX1012-P-DC
Rack Ears n/aMX-DIN-TX1K-0 cnMatrix DIN Rail mount kit: TX1012-P-AC / TX1012-P-DC
Transceiver n/aSFP-10G-SR 10G SFP+ MMF SR Transceiver, 850 nm. -40ºC to 85ºC (-40°F to 185°F)
Transceiver n/aSFP-1G-SX 1G SFP MMF SX Transceiver, 850 nm. -40ºC to 85ºC (-40°F to 185°F)
Transceiver n/aSFP-10G-LR 10G SFP+ SMF LR Transceiver, 1310 nm. -40ºC to 85ºC (-40°F to 185°F)
Transceiver n/aSFP-1G-LX 1G SFP SMF LX Transceiver, 1310 nm. -40ºC to 85ºC (-40°F to 185°F)
Transceiver n/aSFP-1G-Copper 1000 Base-T (RJ45) SFP Transceiver. -40ºC to 85ºC (-40°F to 185°F)
Transceiver n/aSFP-10G-Copper 10G Base-T (RJ45) SFP Transceiver. 0ºC to 70ºC (-40°F to 185°F)
ABOUT CAMBIUM NETWORKS
Cambium Networks empowersmillions of people with wireless connectivity worldwide. Its wireless portfolio is used by commercial and
government network operatorsas well as broadband service providers to connect people, places and things. With a single network architecture
spanning fixed wireless andWi-Fi, Cambium Networks enables operators to achieve maximum performance with minimal spectrum. End-to-end
cloud management transformsnetworks into dynamic environments that evolve to meet changing needs with minimal physical human
intervention. Cambium Networksempowers a growing ecosystem of partners who design and deliver gigabit wireless solutions that just work. 3800 Golf Road Suite 360, Rolling Mecaadmowbsiu, mIllinnoeistw 6o0r0k0s8.c UoSmA
