Product Overview

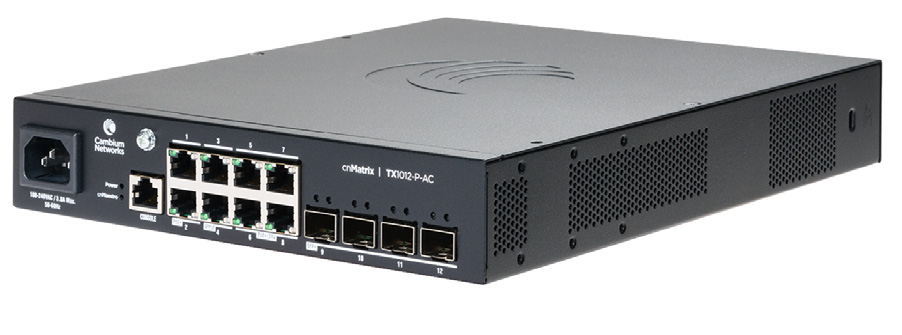

Cambium Networks cnMatrix TX1012-P-AC Switch

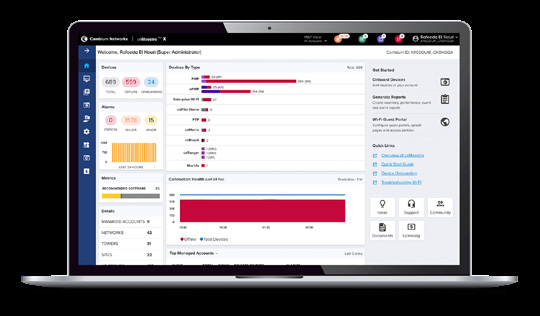

Cambium Networks delivers high-performance Ethernet switching solutions for enterprise networks. cnMatrix™ switches improve network performance while reducing the time and cost of provisioning and management. When integrated with Cambium Networks access points and cnMaestro™ Network Management, cnMatrix delivers a unified wired and wireless enterprise network that's secure, scalable, and easy to operate. Designed for enterprise, industrial, and campus environments, cnMatrix switches streamline deployment, automate policy enforcement, and simplify ongoing operations — helping IT teams do more with fewer resources.

Managed Switch

Product Highlights

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

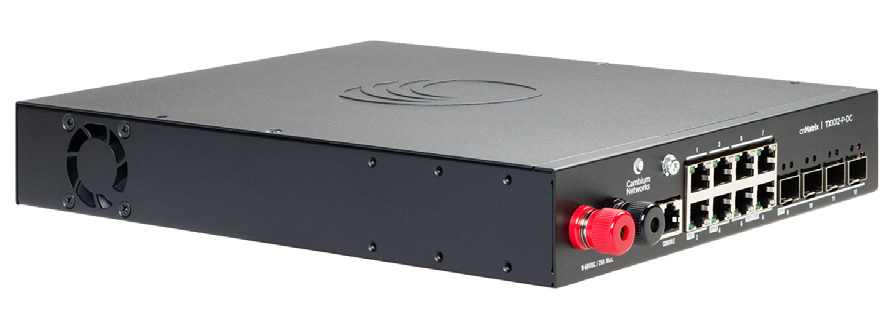

WARNING: TX1012-P-DC Switch does not have an isolated input/output power supply. The switch must be powered with a positive polarity power source, otherwise damage to the switch will occur.

Unified Wired-Wireless access solution

* Feature to be included in a future release.

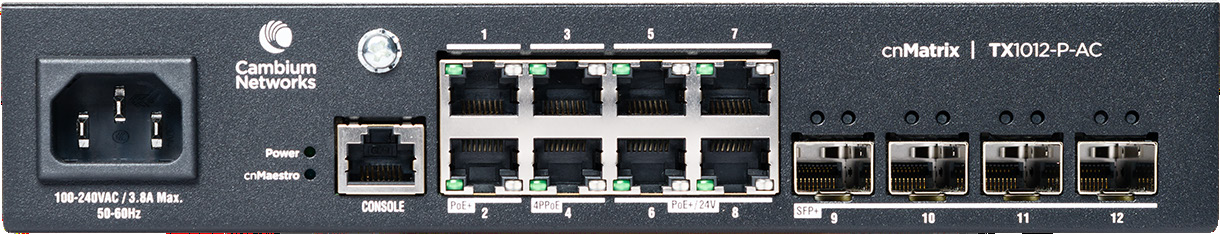

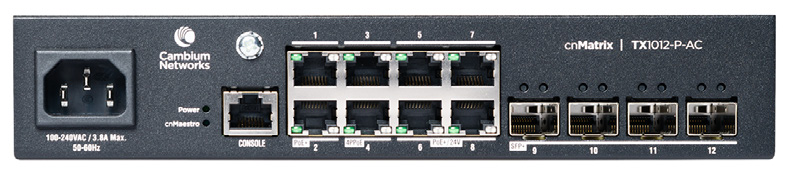

All interfaces located on front panel The cnMatrix series of fully managed switches delivers full Layer and Layer capabilities with enhanced access security. The cnMatrix series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 3-Year Limited Lifetime Warranty.

Ideal Applications

Enterprise LAN infrastructure requiring cloud-managed Layer 2/3 switching with full PoE budget for wireless APs, IP cameras, and VoIP. Wiring-closet aggregation and data-center edge deployments managed centrally through cnMaestro.

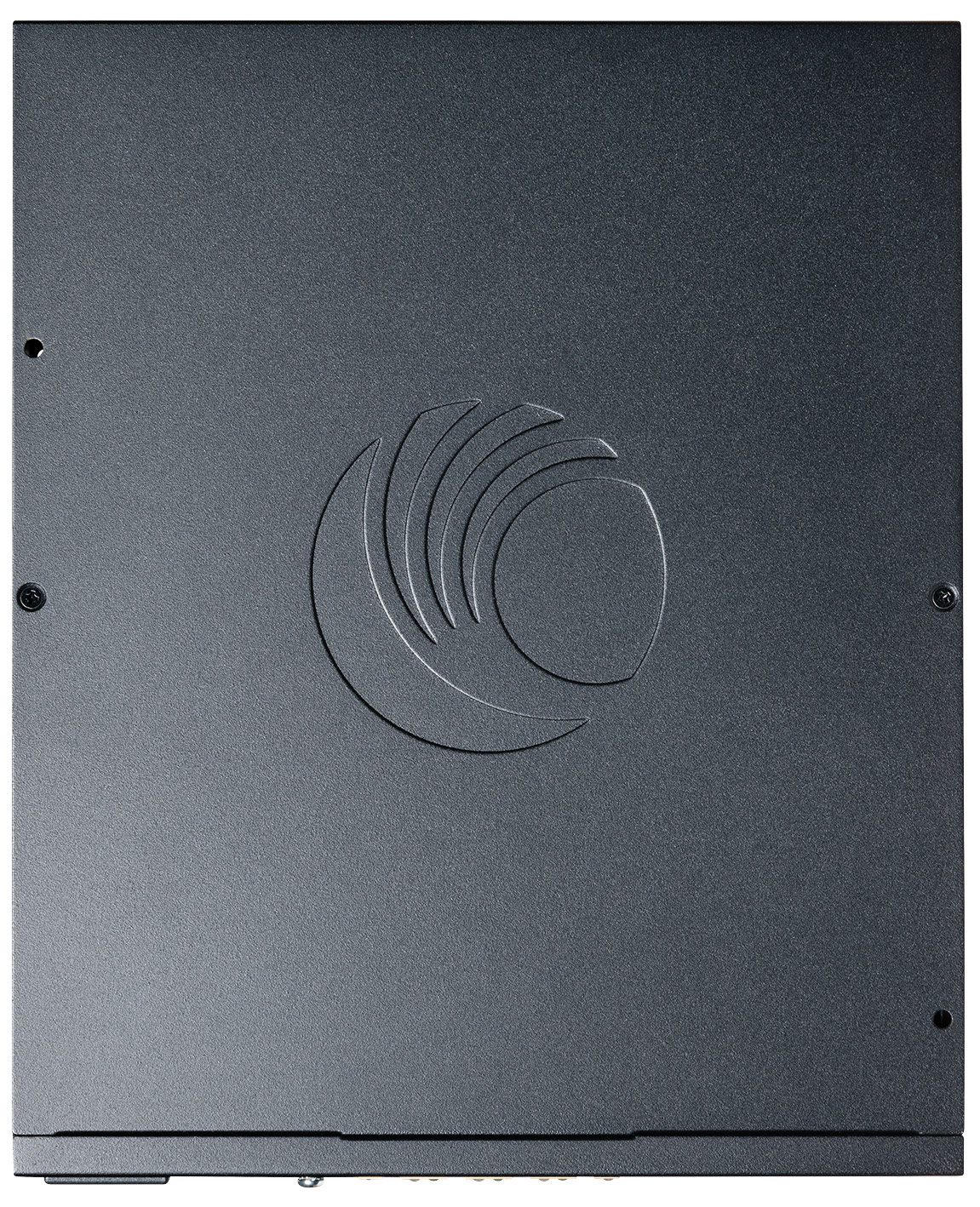

Product Images

13 photos

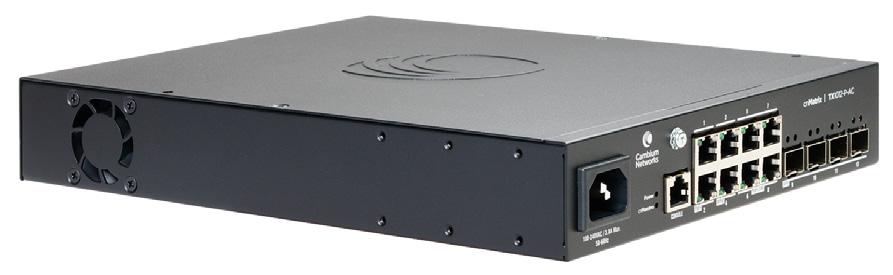

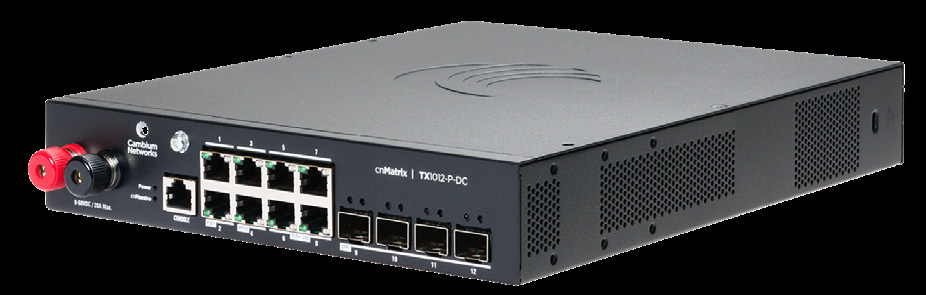

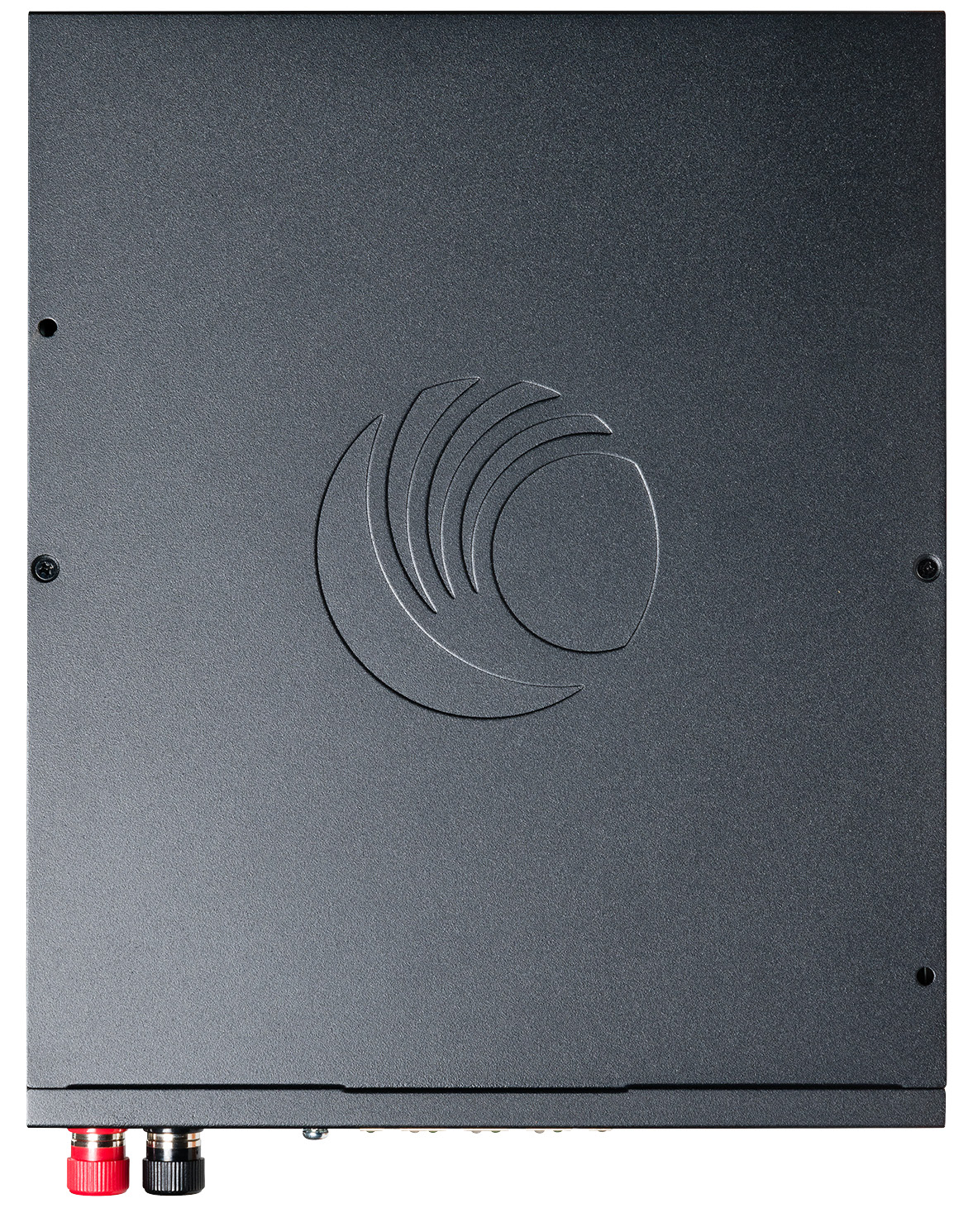

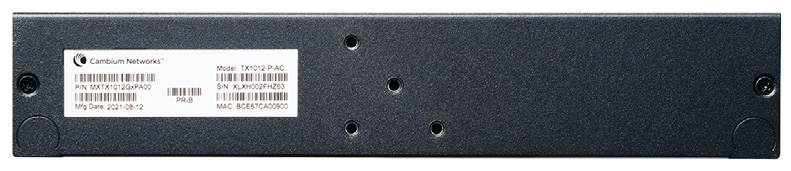

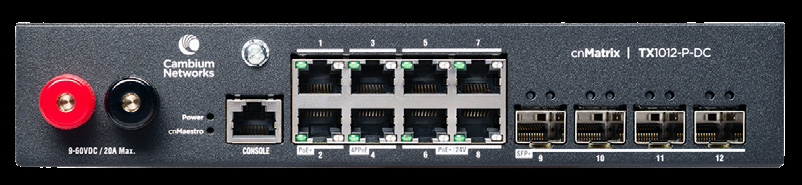

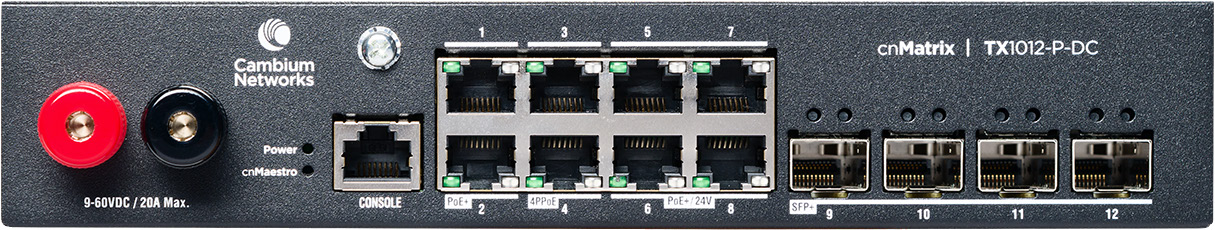

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Technical Details

Hardware Specifications

Comprehensive technical data for the cnMatrix TX1012-P-AC to ensure compatibility with your deployment.

Feature Specifications

Throughput 96 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10/100/1000 Mbps RJ45 Ports 8
1 Gbps Fiber Ports (SFP) 0
10 Gbps Fiber Ports (SFP+) 4
PoE+ Enabled Ports 802.3af/at/bt 8
Low Voltage Passive PoE (24 V) 4
High Power 4 PPoE (up to 90 W) 2
Rack Mount Kit Yes, optional
Internal Fans 1

Hardware Specifications

Power Supply 260W
Max Switch Power (with Traffic) 25.5W
MTBF @25ºC (Hours) 741,409
MTBF @60ºC (Hours) 223,619
Weight 2.22 kg (4.89 lbs)
Dimensions 4.4 x 28.0 x 23.0 cm (1.7 x 11.2 x 9.05 in)
CPU Speed 800 MHz
LEDs Per Port Link/Activity, PoE
PoE+ Power Budget 200W
802.3af/at/bt PoE (54V) Ports 1–8
24V Passive PoE - up to 15W Ports 5–8
54V Passive PoE - up to 90W Ports 3–4
54V Passive PoE - up to 30W Ports 1–2, 5–8
PoE Max Power Per Port Ports 1–2, 5–8: 30W
Ports 3–4: 90W
Rack Mountable Yes (Optional Accessory)
DIN Rail Mountable Yes (Optional Accessory)
Wall Mountable Yes (Optional Accessory)
Temperature Ranges -30ºC to 60ºC / Sea level
