Cambium Networks cnMatrix EX1028-P Switch

Enterprise LAN infrastructure requiring cloud-managed Layer 2/3 switching with full PoE budget for wireless APs, IP cameras, and VoIP.

cnMatrix EX1028-P
  • Specs: Cloud-Managed Gigabit Ethernet Layer 2 PoE+ Access Switch
  • Zero-touch deployments
  • Policy-based automation
  • Auto-device profiling and
  • Non-blocking, line-rate architecture

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

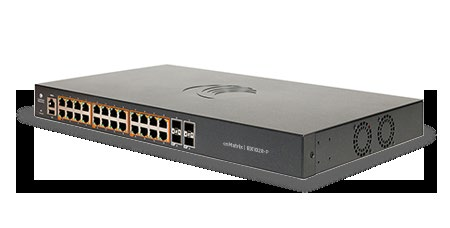

Cambium Networks cnMatrix EX1028-P Switch

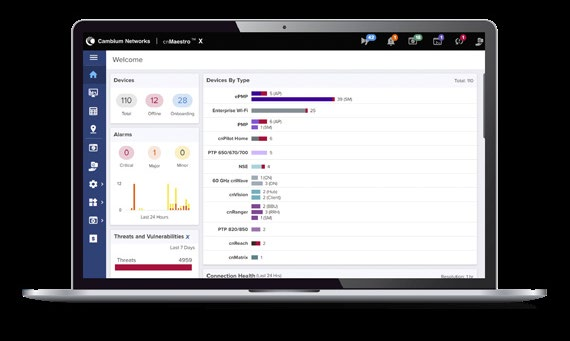

Cambium Networks delivers high-performance Ethernet switching solutions for enterprise networks. cnMatrix™ switches improve network performance while reducing the time and cost of provisioning and management. When integrated with Cambium Networks access points and cnMaestro™ Network Management, cnMatrix delivers a unified wired and wireless enterprise network that's secure, scalable, and easy to operate. Designed for enterprise, industrial, and campus environments, cnMatrix switches streamline deployment, automate policy enforcement, and simplify ongoing operations — helping IT teams do more with fewer resources.

Managed Switch

Ideal Applications

Enterprise LAN infrastructure requiring cloud-managed Layer 2/3 switching with full PoE budget for wireless APs, IP cameras, and VoIP. Wiring-closet aggregation and data-center edge deployments managed centrally through cnMaestro.

Product Images

7 photos
Technical Details

Hardware Specifications

Comprehensive technical data for the cnMatrix EX1028-P to ensure compatibility with your deployment.

Feature Specifications

Throughput 56 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10 / 100 / 1000 Ports 24
2.5G Ports (60W) n/a
Uplink Ports 4 SFP
PoE+ Enabled Ports 802.3af/at 24
Out-of-Band Management Port n/a
Internal Fans 2

Hardware Specifications

Power Supply 100–240 VAC
Max Switch Power (with Traffic) 25.10W
MTBF (Hours) 285,350
Weight 3.96 kg (8.75 lb)
Dimensions 44 x 4.4 x 25 cm (17.3 x 1.75 x 9.85 in)
CPU Speed 800 MHz
LEDs Per Port Link/Activity, PoE
PoE+ Power Budget 200W
Acoustic Noise dBA per Switch (Ambient Temperature) 40 dB - < 33C,
44.3 dB - 30C–40C,
52 dB - > 43C
Downloads

Documentation & Resources

Download datasheets and technical documentation for the cnMatrix EX1028-P.

Data Sheet

Download PDF →
