Cambium Networks 60GHz cnWave v1000

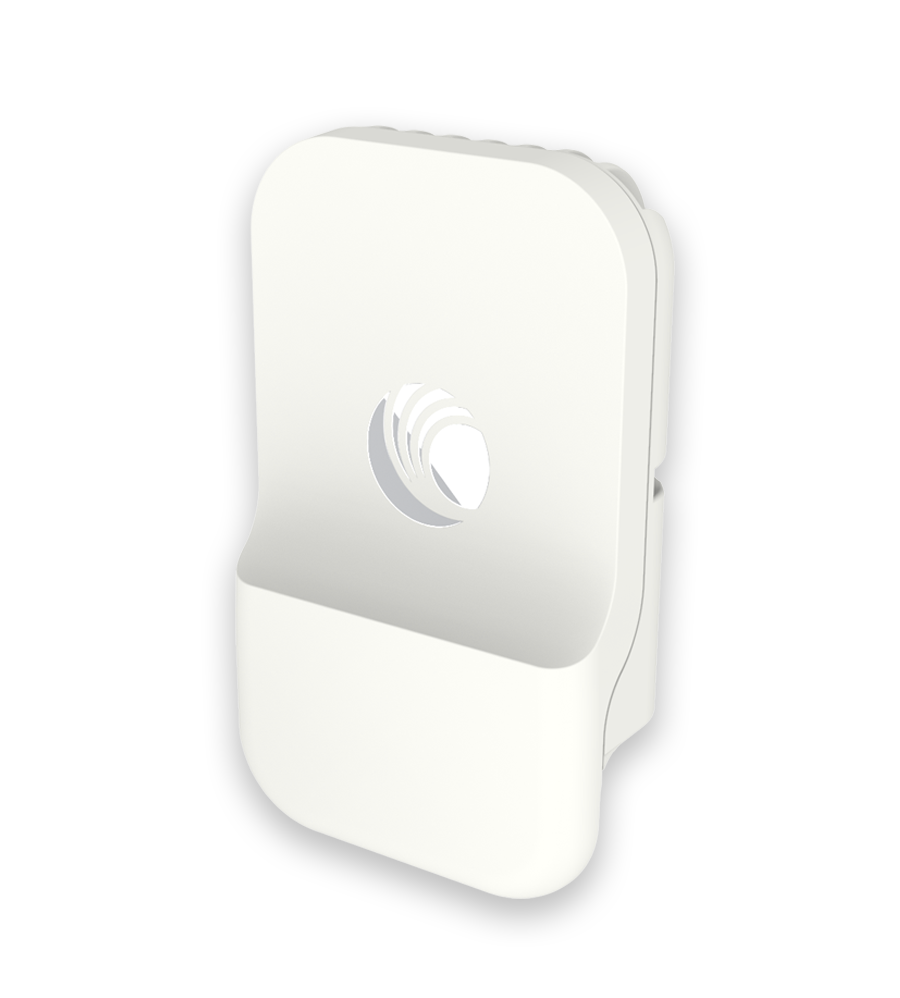

Cambium Networks cnWave v1000

V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

Cambium Networks Products
cnWave Radio
60 GHz cnWave v1000
60 GHz cnWave V1000 Client Node with US Cord
Promo: Receive Cambium Care Pro Service Package Free for the first year.
#C600500C001A-Promo
Contact us for pricing!


Overview:

Designed For High-speed and High-density Deployments

Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction

cnMaestro

Cloud and On-Premise Management

60 GHz cnWave operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.

Features:

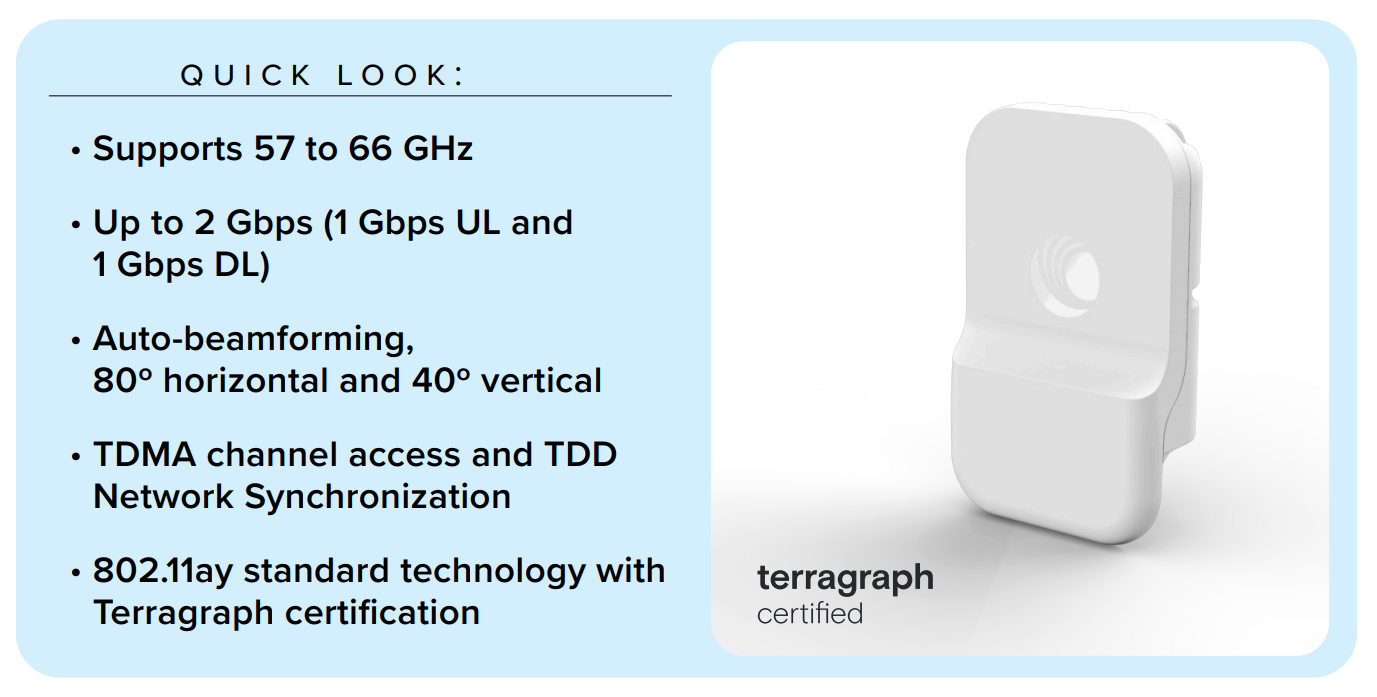

cnWave v1000 features

Specifications:


cnWave v1000


Spectrum



Performance

Frequency Range

57 to 66 GHz in a single SKU



Modulation & Coding Schemes

MCS-0 (BPSK) to MCS-12 (16-QAM)

Channel Width

2.16 GHz, 4.32 GHz*



Latency

< 1 ms

Carrier Bonding*

Up to 2 adjacent channels



Maximum EIRP

38 dBm

Mode of Operation

PMP or Mesh, PTP*











Antenna

Interface



Gain

22.5 dBi

Channel Access

TDMA/TDD



Type

Integrated

Ethernet Interface

1 x 100/1000 BaseT with PoE In



Beamforming Scan Range

+/- 40º azimuth, +/- 20º elevation







Beam Width

12º

Ethernet









Protocol Supported

IPv4, IPv6



Powering

Network Management

cnMaestro, HTTP, HTTPS, SNMP v2c & v3



Type

802.3af PoE

MTU

4,000 bytes



Power Consumption

10 W

VLAN*

802.1ad (QinQ), 802.1Q with 802.1p priority













Physical

QoS*

4 Level QoS, DSCP and VLAN Tag



Environmental

IP66/67











Security



Temperature

-40ºC to 60ºC (-40ºF to 140ºF)

Encryption

128-bit AES



Mean Time Between Failure

> 40 years

Firmware Security

Signed Firmware Images



Weight

0.25 kg (0.55 lbs)

* Available in future release



Dimensions

W x H x D

140 mm x 85 mm x 40 mm

(5.5 in x 3.3 in x 1.6 in)





Wind Survival

200 km/h (124 mi/h)

Documentation:

Download the Cambium Networks 60GHz cnWave v1000 Datasheet (.PDF)
