Cambium Networks cnReach Terminal Server
Add Serial to TCP/IP conversion on any wireless or wired broadband network

Cambium Networks cnReach

Cambium Networks Products

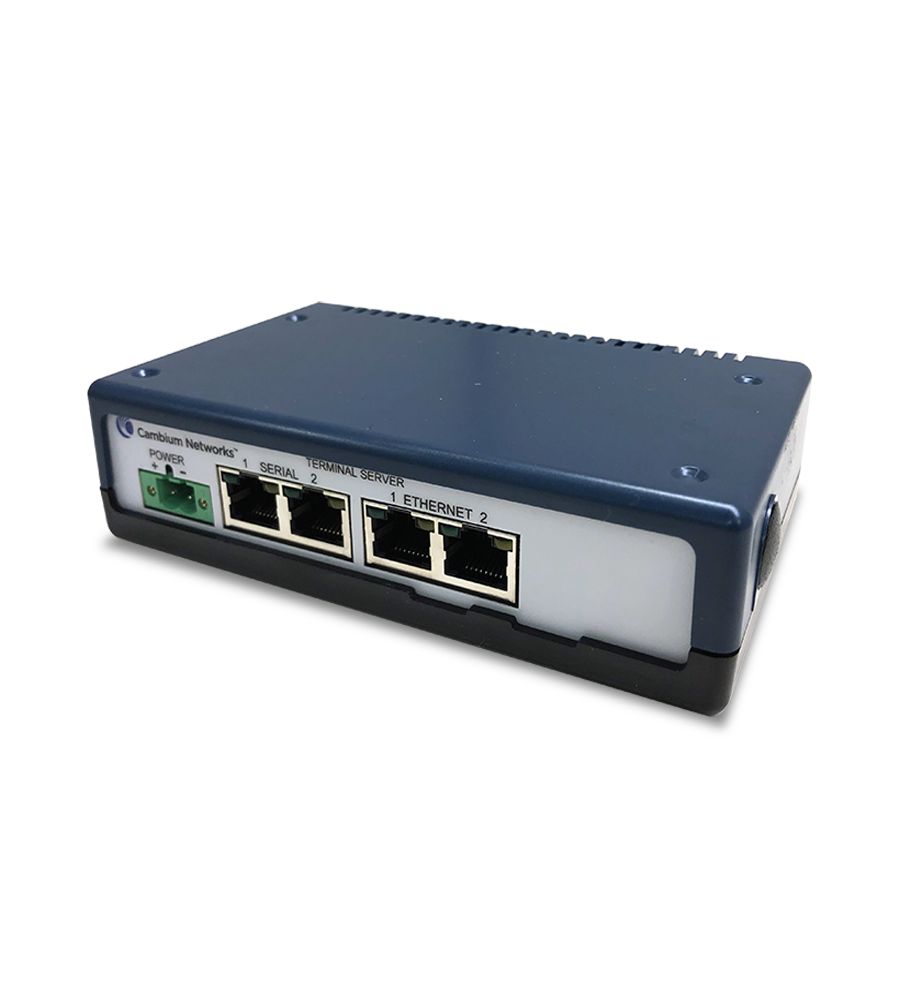

cnReach Terminal Server
cnReach Terminal Server Two Serial Port
#NB-N500082A-US
Our Price: $389.00
Power Supply, AC to 24VDC, DIN RAIL MOUNT
#NB-N500013A-GL
Our Price: $80.00

Click here to jump to more pricing!

Overview:


The cnReach Terminal Server delivers serial to Ethernet conversion enabling the addition or integration of serial connectivity to any wired or wireless TCP/IP network. In addition to serial connectivity, the terminal server supports MODBUS polling at the edge that can be published via MQTT. Finally, the cnReach Terminal Server is managed with cnMaestro providing a single pane of glass management across the network.

Features:


  • Add Serial to TCP/IP conversion on any wireless or wired broadband network
  • Single Pane of Glass Management
  • Monitor/Configure devices remotely using cnMaestro
  • Flexible configuration enables integration with most serial-based devices in the field today
  • Integrated MODBUS TCP to MODBUS RTU Conversion
  • Supports TCP or UDP traffic and Server or Client modes
  • Daisy-chain multiple units to add more serial ports
  • MQTT Publish/Subscribe Integration
  • Reduce traffic by up to 90% vs. traditional polling
  • Make data available across entire organization
  • Integrated local MODBUS Polling at the edge
  • Data Concentrator applications to reduce polling
  • PLC Local Logic to add intelligence at the edge

Specifications:


Management
Web-based Interface via HTTP/HTTPS
Remote Management via SNMP
User Login Authentication using RADIUS
cnMaestro integration
Support for configuration files, remote software upgrades
Data Capabilities
Packet Handling Layer 2 bridge and/or Layer 3 static routes VLAN support
Modes TCP Terminal Server, TCP Terminal Client, UDP Terminal, Multicast Terminal
Other MODBUS Bridge (MODBUS TCP to MODBUS RTU conversion) Data Concentrator (converges data from multiple MODBUS sources into single polling MODBUS map) MQTT (publish/subscribe data); Sparkplug B compliant
Interfaces
Ethernet Interfaces 2 x RJ-45
10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
Environmental
Operating Temperature -40 C to +85 C (-40 F to 185 F)
Humidity 95% operating humidity @ 40C non-condensing
HAZLOC Pending Approval to UL Class 1 / Div 2

Documentation:

Download the Cambium Networks cnReach Datasheet (.PDF)
