Cambium Networks cnReach High Availability Communications Module
Add Serial to TCP/IP conversion on any wireless or wired broadband network

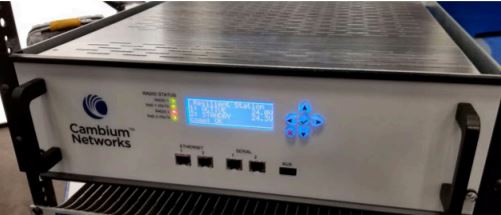

Cambium Networks cnReach HA Comms Module

Cambium Networks Products
Cambium Networks cnReach
cnReach HA Comms Module, 450 MHz
#NB-N502450A
Our Price: $9,995.00

Click here to jump to more pricing!

Overview:


Dual-radio solution provides hot standby and active failover capabilities eliminating maintenancewindow downtime and unplanned truck rolls.

Cambium Network’s cnReach IIoT solutions are deployed for mission-critical applications in industries such as Oil/Gas, Water, Electric Utilities, Rail and Mining. These operators depend on their communications infrastructure to be always-on as they control and monitor processes spread over large geographic areas. With the cnReach High-Availabilty Communications Module, the system can automatically detect radio or power supply failures and switch to a backup automatically with minimal loss of service. When performing maintenance operations like firmware upgrades, the network isn't interrupted as the hot standby unit can be activated for the maintenance window.

  • Automatically monitors Ethernet and radio connectivity to detect communications interruption.
  • Dual-radio, dual power supply hot standby and hot-swappable configuration uses same radios as field network reducing spares holding. Radios and power supplies accessible from removable top panel and slide out rails.
  • Trigger hot standby switchover automatically or manually (local or remote).
  • Front-panel display for monitoring status and controlling cutover
  • Rack-mountable with passive cooling (no fans).

Specifications:


Specifications

General

Radio Frequencies

Available for 900 MHz, 700 MHz, 450 MHz and 220 MHz cnReach configurations



Power Supplies

Ships with one AC supply and one DC supply

DC Supply: 9-32 VDC

AC Supply: 100-240 VAC

Hot-swappable and interchangeable for dual AC or dual DC configurations with spare supplies ordered separately

Front-panel Connectors

Two RJ-45 Ethernet ports (10/100); Two RJ-45 Serial Ports; 1 Alarm relay output; 1 pps input (for synchronization)



Rear-panel Connectors

N-type connector for active antenna; N-type connector for dummy load ; AC power input; DC power input; Protective Earth ground stud

Front-panel Display and Controls

244 x 68 bit backlit display readable in sunlight with trans-reflective illuminated control buttons for monitoring status and selecting active/backup radios.

Physical

Dimensions

Width: 19" Rack-Mountable

Height: 3U standard rack space; 5.22"

Depth: 17" front panel to back of N-type connectors on rear; 18.5" including front handles; 21" from handles to back of RF load

Unit slides out 22" to the front for top access to hot-standby radios and power supplies

Weight

21.5 lbs. (9.8 kg)

Environmental

Operating Temperature





-40F to +149F (-40C to +65C)

Humidity

95% operating humidity @ 40C non-condensing



Documentation:

Download the Cambium Networks cnReach HA Comms Module Datasheet (.PDF)
