Cambium Networks cnRanger Subscriber Module
Highly compact and cost-effective LTE Customer Premise Equipment


Cambium Networks cnRanger

Cambium Networks Products
cnRanger Subscriber Modules
2 GHz cnRanger 101 SM, CAT4, 14 dBi (US PSU and AC Line Cord)
#2LTE-SM-101
Our Price: $219.00
3 GHz cnRanger 201 SM, CAT6, 21 dBi (US PSU and AC Line Cord)
#3LTE-SM-201
Our Price: $319.00

Click here to jump to more pricing!

Overview:

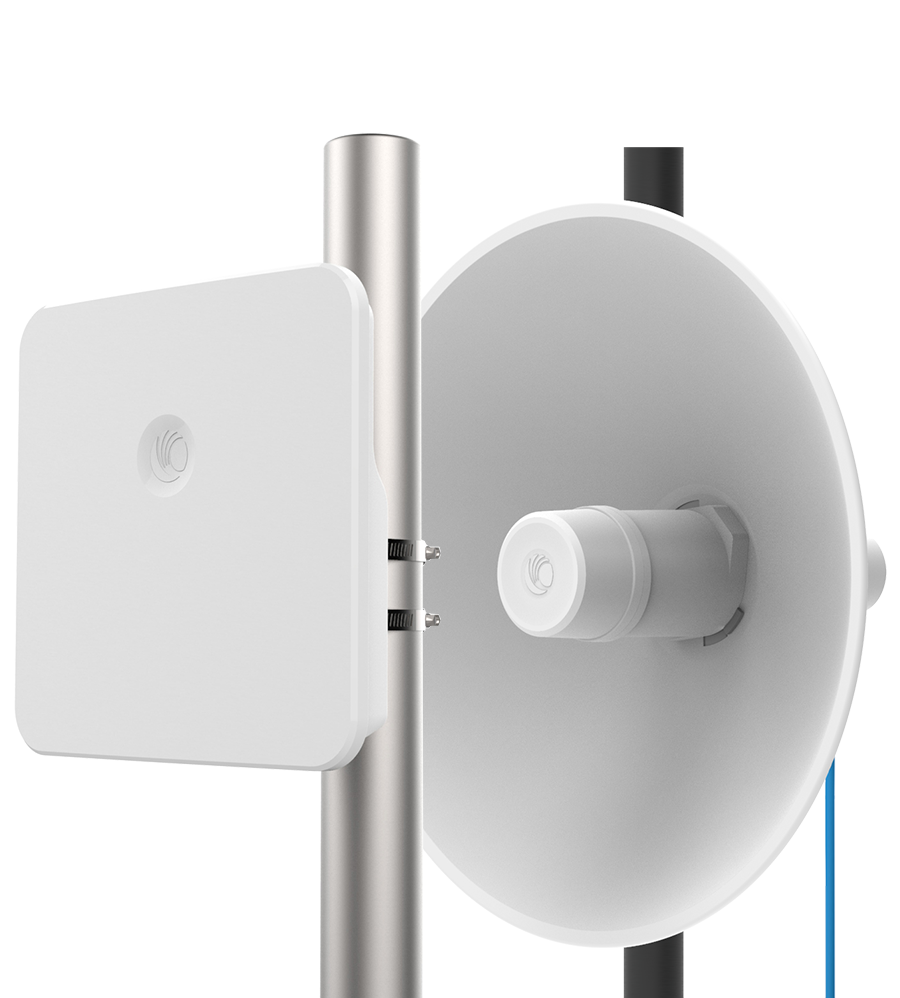

The cnRanger™ Subscriber Modules (SM) are highly compact and cost-effective LTE Customer Premise Equipment (CPE) designed for ease of installation, onboarding, management, and monitoring. Available as 2.5 GHz Cat 4 integrated flat panel, or a High Gain integrated parabolic reflector dish (for either 2.5 GHz or 3 GHz (including CBRS). These SMs optimize range and coverage, while removing the complexity normally associated with LTE equipment. The SMs accept standard LTE SIM cards (including cnRanger SIMs) and are designed with robust quality to withstand the elements. The SMs ship with a bundled POE injector.

Features


The cnRanger™ Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.

  • Category 4 Low Cost CPE in 2 GHz (Bands 38, 40 and 41)
  • Category 6 High Gain CPE in both 2 GHz (Bands 38, 40 and 41) and 3 GHz (Bands 42, 43 and 48)
  • LTE Optimized for Fixed Wireless Broadband
  • High power transmitter provides enhanced uplink for 2 GHz 101 SM
  • High Gain integrated parabolic dish for extended range on 201 SMs
  • Reliable yet cost effective subscriber modules for cnRanger system
  • Easy installation, with “Point and Go” configuration and provisioning

Specifications:


Product

Model

2 GHz cnRanger 101 SM

2 GHz cnRanger 201 SM

3 GHz cnRanger 201 SM

LTEUEType

LTE Category 4

LTE Category 6

LTE Category 6

Model Numbers

2LTE-SM-101

2LTE-SM-201

3LTE-SM-201



2LTE-SM-101-US

2LTE-SM-201-US

3LTE-SM-201-US



2LTE-SM-101-UK

2LTE-SM-201-UK

3LTE-SM-201-UK



2LTE-SM-101-EU

2LTE-SM-201-EU

3LTE-SM-201-EU

Spectrum




2 GHz 101 SM

2 GHz 201 SM

3 GHz 201 SM

Channel Spacing

1 MHz as specified in the BBU

1 MHz as specified in the BBU

1 MHz as specified in the BBU

Frequency Range

LTE Band 38: 2570 - 2620 MHz

LTE Band 40: 2300 - 2400 MHz

LTE Band 41: 2496 - 2690 MHz

LTE Band 38: 2570 - 2620 MHz

LTE Band 40: 2300 - 2400 MHz

LTE Band 41: 2496 - 2690 MHz

LTE Band 42: 3400-3600 MHz

LTE Band 43: 3600-3800 MHz

LTE Band 48: 3550-3700 MHz

Channel Width

5 MHz, 10 MHz,

15 MHz, 20 MHz

5 MHz, 10 MHz,

15 MHz, 20 MHz

5 MHz, 10 MHz,

15 MHz, 20 MHz

Interface



MAC (Media Access Control) Layer

TDD-LTE Advanced Release 10

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP

Network Management

HTTP, HTTPS, SSH, Cambium Networks cnMaestroTM

MTU

1516 bytes

Spectrum









2 GHz 101 SM

2 GHz 201 SM

3 GHz 201 SM

Channel Spacing

1 MHz as specified in the BBU

1 MHz as specified in the BBU

1 MHz as specified in the BBU

Frequency Range

LTE Band 38: 2570 - 2620 MHz

LTE Band 40: 2300 - 2400 MHz

LTE Band 41: 2496 - 2690 MHz

LTE Band 38: 2570 - 2620 MHz

LTE Band 40: 2300 - 2400 MHz

LTE Band 41: 2496 - 2690 MHz

LTE Band 42: 3400-3600 MHz

LTE Band 43: 3600-3800 MHz

LTE Band 48: 3550-3700 MHz

Channel Width

5 MHz, 10 MHz,

15 MHz, 20 MHz

5 MHz, 10 MHz,

15 MHz, 20 MHz

5 MHz, 10 MHz,

15 MHz, 20 MHz

Interface



MAC (Media Access Control) Layer

TDD-LTE Advanced Release 10

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP

Network Management

HTTP, HTTPS, SSH, Cambium Networks cnMaestroTM

MTU

1516 bytes

Documentation:

Download the Cambium Networks cnRanger SM Datasheet (PDF).

Pricing Notes:

Cambium Networks Products
cnRanger Subscriber Modules
2 GHz cnRanger 101 SM, CAT4, 14 dBi (US PSU and AC Line Cord)
#2LTE-SM-101
Our Price: $219.00
3 GHz cnRanger 201 SM, CAT6, 21 dBi (US PSU and AC Line Cord)
#3LTE-SM-201
Our Price: $319.00
