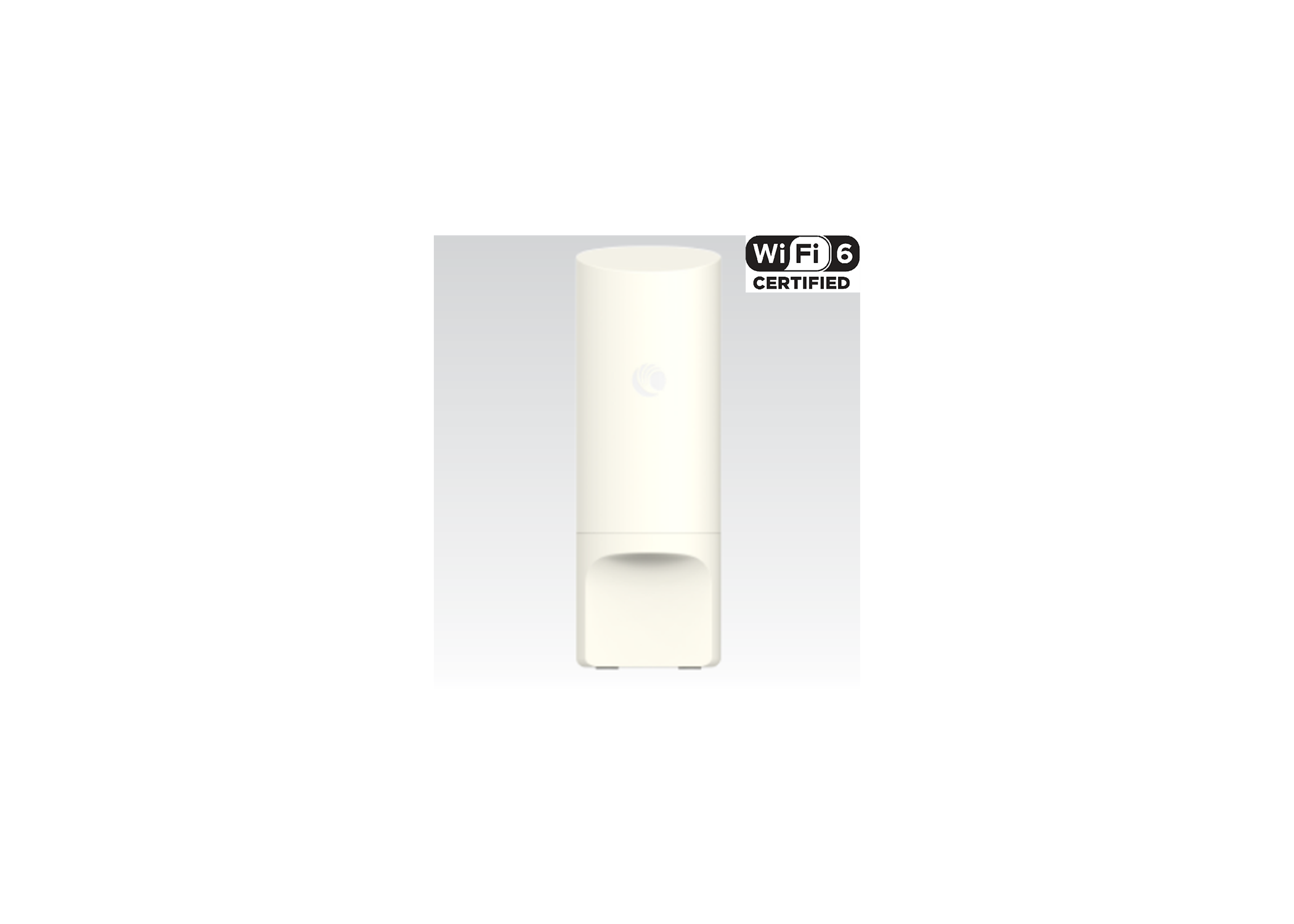

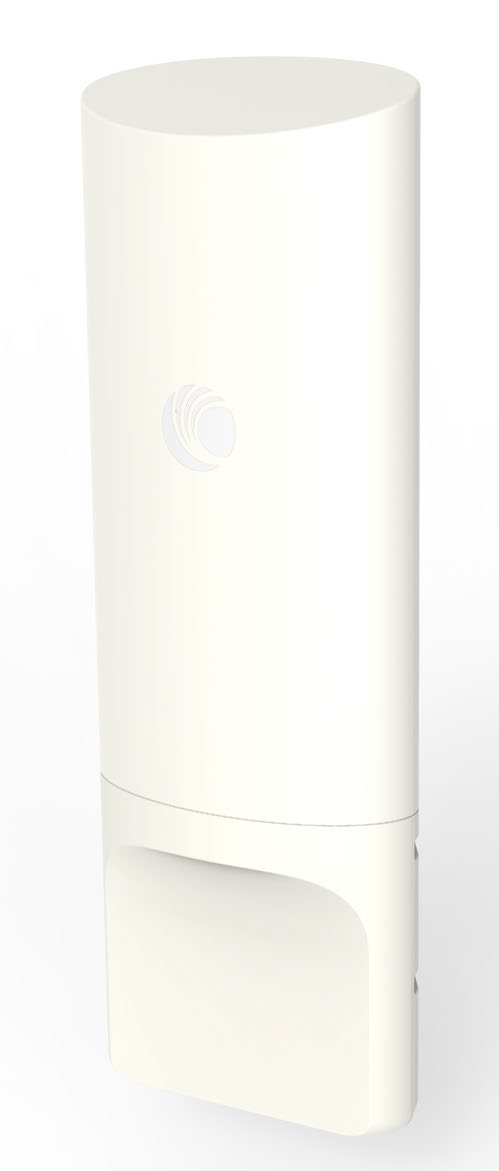

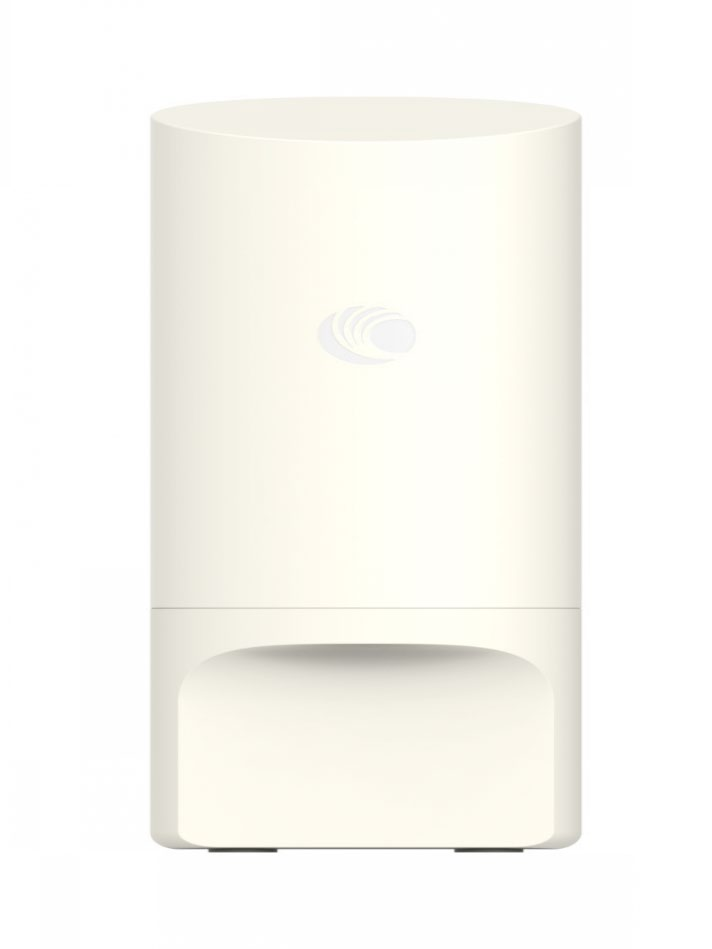

Cambium Network XV2-2T Wi-Fi 6 Outdoor Access Point
Outdoor Wi-Fi 6 APs with High Efficiency Antennas
Click here to jump to more pricing!
Overview:
Outdoor Wi-Fi 6 APs with High Efficiency Antennas
Cover significantly larger areas in campus networks and public Wi-Fi hotspot applications. Coupling Wi-Fi 6 technology with high efficiency antennas, the XV2-2T delivers up to 1 km range as well as higher throughput at shorter ranges compared to competitive solutions. Covering more area per AP, network operators can save costs on equipment, cabling, installation, maintenance and access rights for outdoor Wi-Fi deployments. When paired with Cambium Networks’ multi-gigabit 60 GHz cnWave solutions for Wi-Fi backhaul, network operators can blanket large areas with blazingly fast speeds – all wirelessly.
Outstanding Outdoor Coverage and Performance
Key Features
- 1 km or greater range, enabling a significant reduction in the equipment and cost required to cover a given area
- PoE-out up to 30 Watts for external IP/Ethernet devices such as an IP camera, 60 GHz node, or another Wi-Fi access point
- All-in-one design with integrated antennas and controller functionality
- Coverage options include omni-directional and 120-degree sectored
Unique Antenna Design

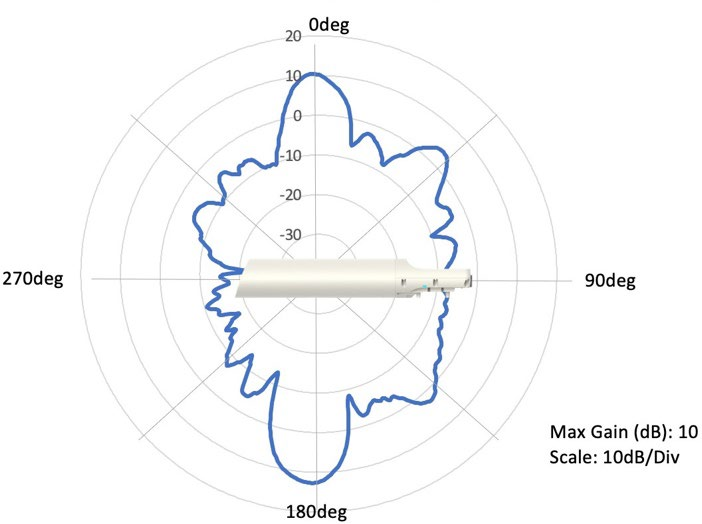

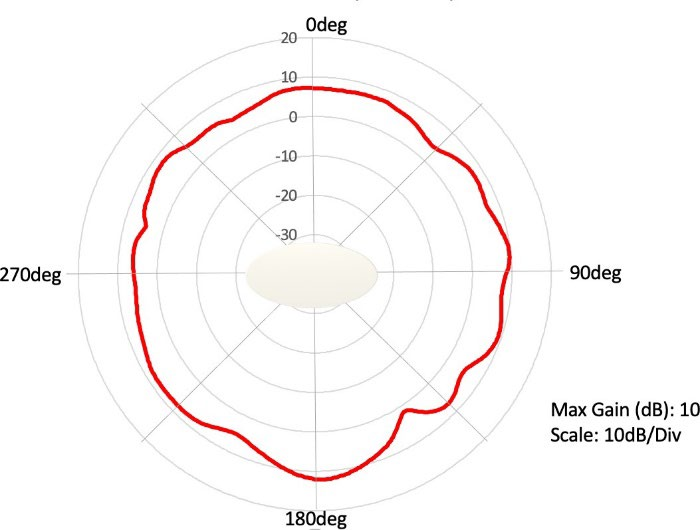

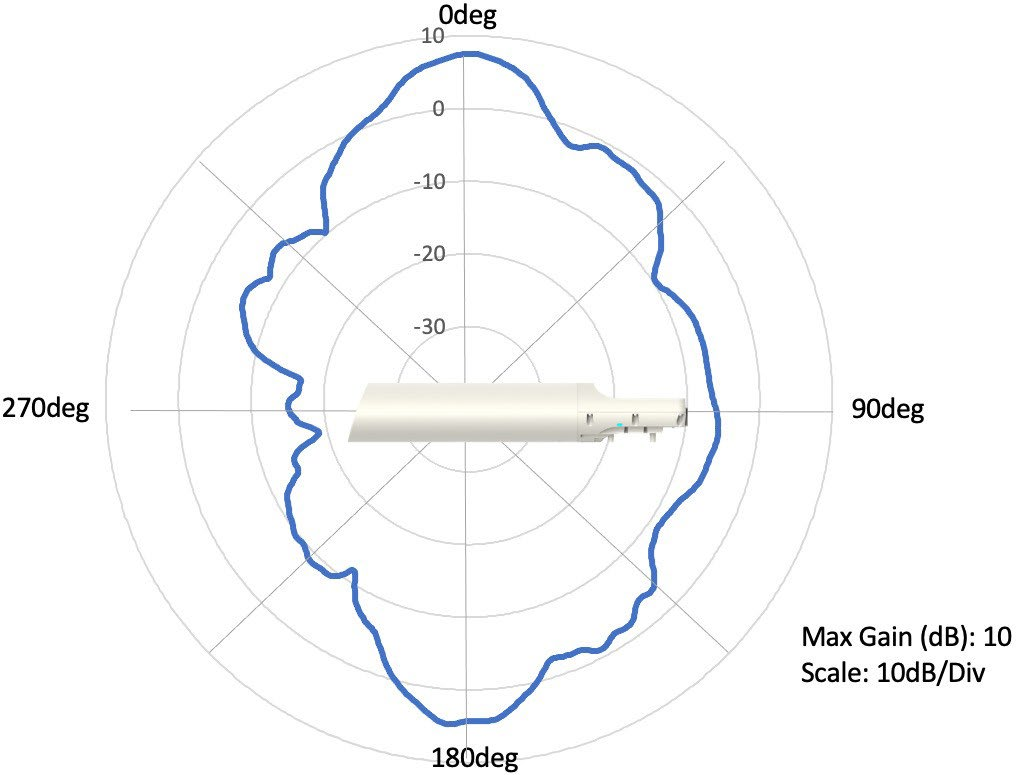

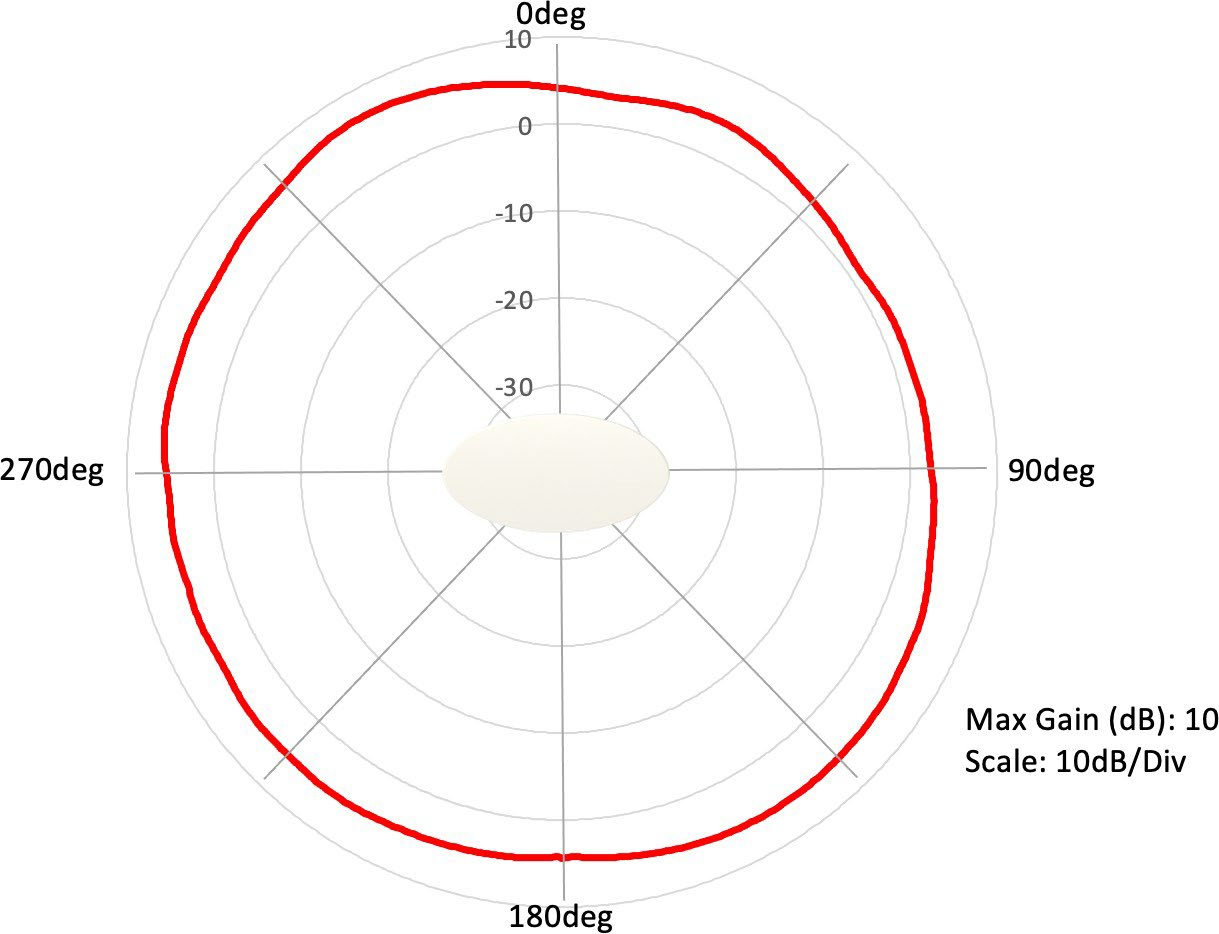

The XV2-2T0’s high-efficiency antennas deliver a maximum of 9 dBi and an average of 7 dBi gain over 360 degrees in 5 GHz, delivering maximum gain and minimum nulls. The XV2-2T1 delivers a maximum of 13.5 dBi gain over a 120 degree sectored area in 5GHz. The antenna design enables the XV2-2T access points to deliver consistent coverage for optimal user experience.
Cover Areas with Fewer Outdoor Access Points
Longer range and higher performance at range means that you can cover an area with significantly less equipment, backhaul infrastructure, cabling, installation and ongoing maintenance costs.
Combined with a highly attractive price point, both the initial investment in the solution and the total cost of ownership over its lifetime are dramatically reduced.
Features:
XV2-2T0 Wi-Fi 6 Outdoor Access Point
| Dual radio 802.11ax | |
| 2.5 GbE Uplink Ethernet | |
| 1 GbE with power out | |
| Outdoor IP67 rated, -40ºC to 65ºC |
XV2-2T1 Wi-Fi 6 Outdoor Access Point
| Dual radio 802.11ax | |
| 2.5 GbE Uplink Ethernet | |
| 1 GbE with power out | |
| Outdoor IP67 rated, -40ºC to 65ºC | |
| HE 120º Sector Antenna |
Specifications:
ACCESS POINT SPECIFICATIONS
| XV2-2T1 Wi-Fi | XV2-2T0 Wi-Fi | |
| Radio | 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2 BLE 4.1 |
5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2 BLE 4.1 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax | |
| SSID SECURITY | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open | |
| MAX PHY RATE | 5 GHz radio 1,201 Mbps 2.4 GHz radio 573.5Mbps |
|
| PORTS | 1 x IEEE 100/1000/2500 Mbps 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts |
|
| ANTENNA | 5 GHz 13.5 dBi, Sector 2.4 GHz 11 dBi, Sector |
5 GHz 9.3 dBi, Omni 2.4 GHz 5.3 dBi, Omni |
| Max EIRP | 5 GHz 36 dBm 2.4 GHz 35 dBm |
5 GHz 36 dBm 2.4 GHz 33 dBm |
| LTE Filter Band | 38, 40 | |
| POWER | 20W max Up to 50W when powering an auxiliary device |
|
| PHYSICAL ENVIRONMENTAL | 582 mm x 200 mm x 80 mm
(22.91 in x 7.87 in x 3.15 in) 1,200 g (2.64 lbs) |
|
| Security | Kensington lock slot | |
| LEDs | Multi-color status LEDs | |
| Ambient Operation Temperature | -40ºC to 65ºC (-40ºF to 149ºF) | |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) | |
| Humidity | 95% RH non-condensing | |
| MTBF | 25ºC = 674,966 hours 65ºC = 197,106 hours |
|

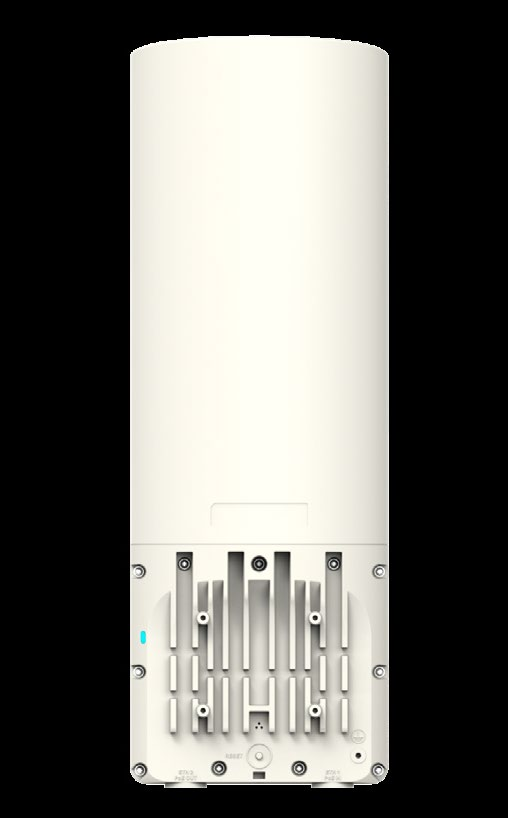

| Mount Options | Pole or wall mounting Pole diameter: MIN 30 mm / MAX 75 mm |
|
| CERTIFICATIONS | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1,IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4- 2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, EN 62311 Human Safety/RF Exposure, WEEE & RoHS | |
EIRP may be limited by individual country regulation
Documentation:
Download the Cambium Network cnPilotXirrus™ XV2-2T0 Access Point Datasheet (PDF).
Download the Cambium Network cnPilotXirrus™ XV2-2T1 Access Point Datasheet (PDF).
