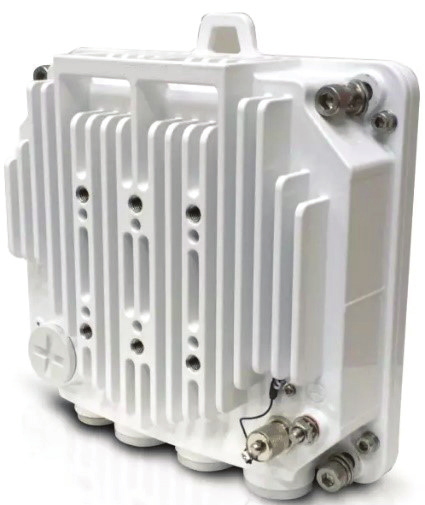

Cambium Networks PTP 820E
Millimeter Wave Radio

Cambium Networks PTP 820E

Cambium Networks Products
cnPilot Home and Small Business Wi-Fi
PTP 820E Radio, 1Gbps, Hi, TX 81-86GHz, RX 7176GHz
#C800082B006A
List Price: $2,200.00
Our Price: $1,870.00
PTP 820E Radio, 1Gbps, Lo, TX 71-76GHz, RX 8186GHz
#C800082B007A
List Price: $2,200.00
Our Price: $1,870.00
PTP 820E Radio with 43 dBi ant, 1Gbps, Hi, TX 8186GHz, RX 71-76GHz
#C800082B008A
List Price: $4,200.00
Our Price: $3,570.00
PTP 820E Radio with 43 dBi ant, 1Gbps, Lo, TX 7176GHz, RX 81-86GHz
#C800082B009A
List Price: $4,200.00
Our Price: $3,570.00
PTP 820E Radio, 2.5Gbps, Hi, TX 81-86GHz, RX 7176GHz
#C800082B002A
List Price: $2,300.00
Our Price: $1,955.00
PTP 820E Radio, 2.5Gbps, Lo, TX 71-76GHz, RX 8186GHz
#C800082B003A
List Price: $2,300.00
Our Price: $1,955.00

Click here to jump to more pricing!

Overview:

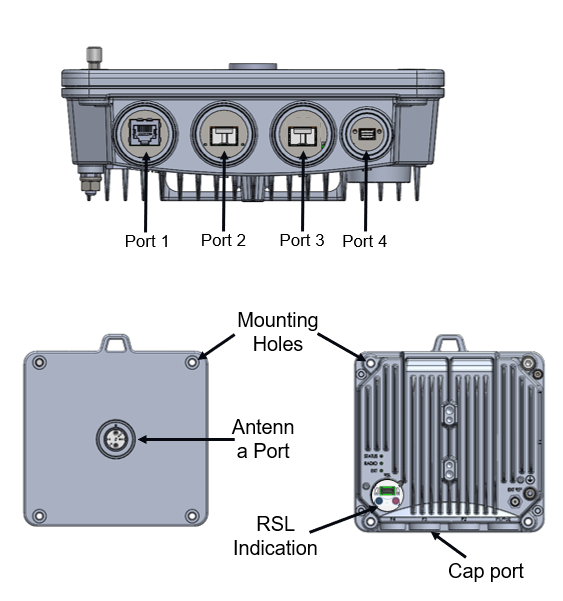

PTP 820E Physical Description

  PTP 820E-ESE PTP 820E-ESP
Port 1 10/100/1000 BaseT
PoE
External DC option
10/100/1000 BaseT
PoE
External DC option
Management port (no traffic)
Port 2 Regular SFP - Eth2
CSFP (Dual Bidir SFP) - Eth2 and Eth3
Port 3 10/100/1000 BaseT
Management port (no traffic)
SFP+, 10GE
SFP, 1GE
Management port (no traffic)
Exp Port Plan for future (XPIC & HSB)
overview-2
overview-1

Radio

  • 71 - 86GHz
  • 1024 QAM, 500MHz
  • 2.5 Gbps in a box

Radio Variation

  • Connectorized – Direct Mount
  • Integrated Flat Panel Antenna (ETSI/FCC)

Configurations

  • 1+0
  • SFP+ Port
  • Multi-band (E-band & MW)
  • RFU-E Interoperability

High Capacity

62.5MHz 125MHz 250MHz 500MHz
500Mbps @1KQAM 920Mbps @512QAM 1.6Gbps @256QAM 2.5Gbps @64QAM
overview-3

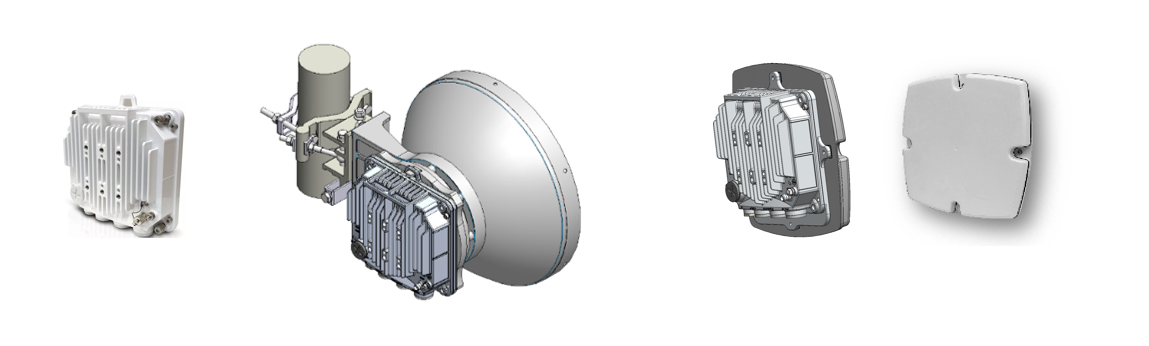

Direct Mount HW
(Radio Unit with external antenna)

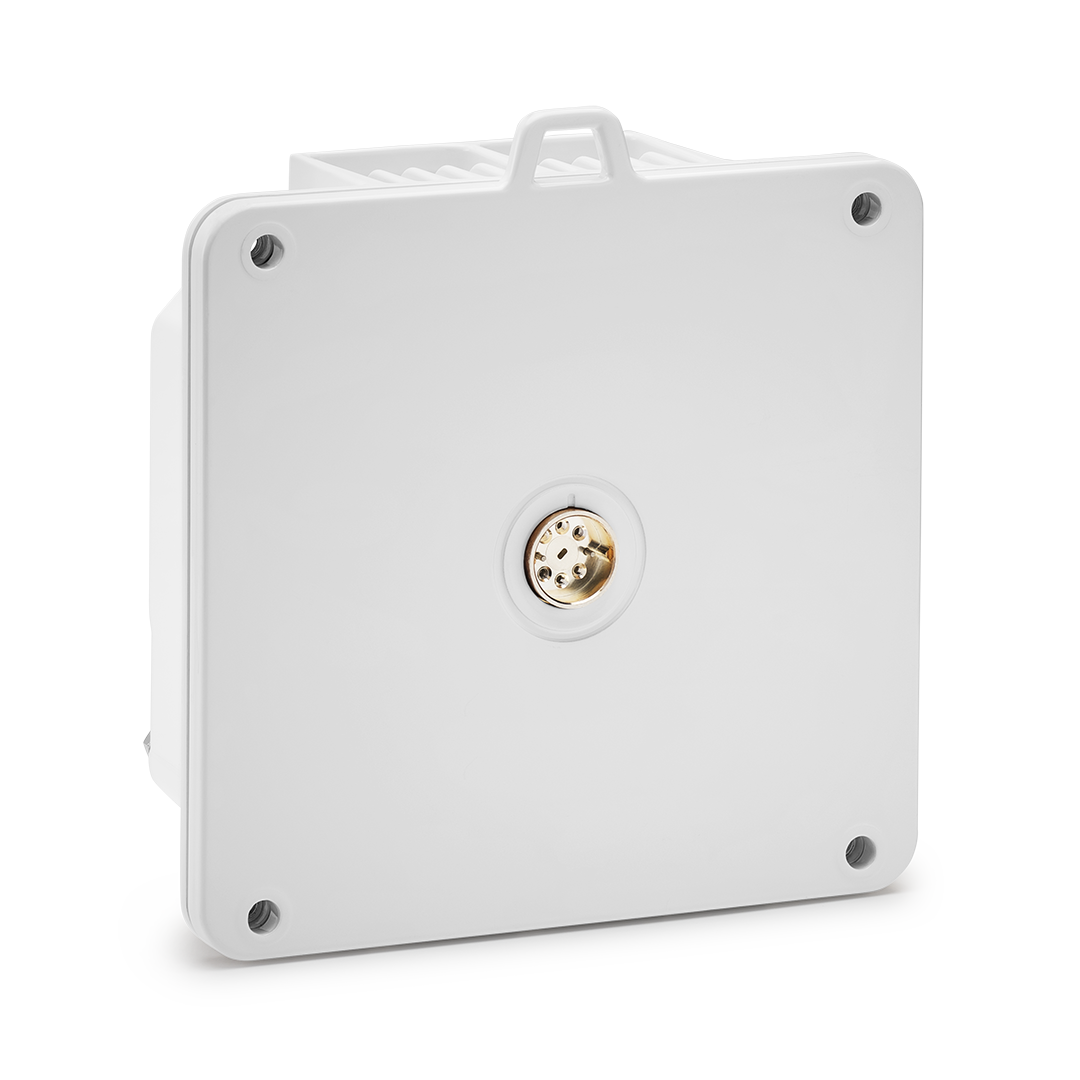

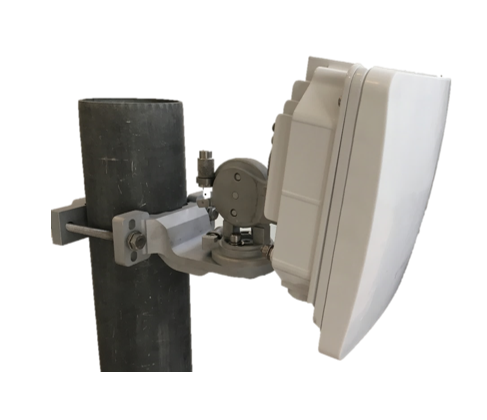

43dBi Intergrated Antenna
(Radio Unit with integrated antenna)
8.7 x 7.8 x 2.9”, 6.6lbs 11 x 11 x 4.3”, 7.7lbs

Easy To Use Mounting Kit

Single Mounting Kit for all installation scenarios

  • Lamp posts
  • Poles
  • Walls

Easy and reliable antenna alignment

  • Course and fine adjustments
  • Maintain orientation when replacing the radio

    overview-4

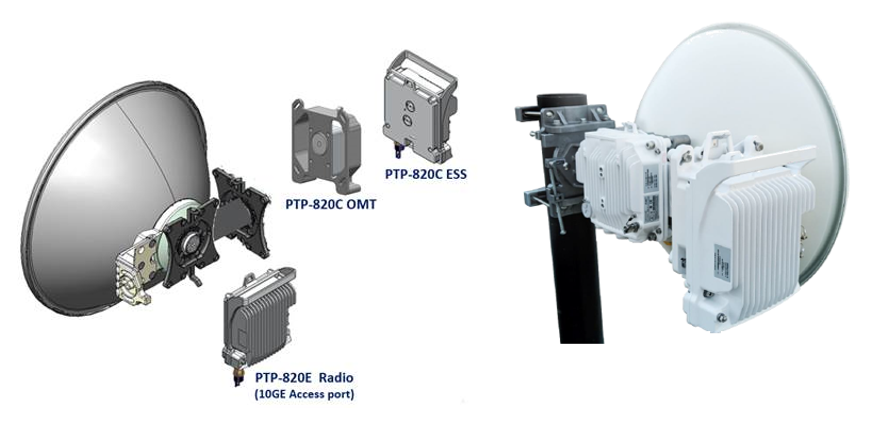

    PTP 820 Multiband

    overview-5
    • Require PTP 820E ESP hardware with PTP 820C or PTP 820S
    • 18, 23 GHz + 80 GHz
    • Easy link Alignment

    Features:

    System Configurations

    • 1+0, 2+0 SP/DP (No XPIC)
    • HW ready –XPIC
    • Low Visual w/ flat panel antenna (43dBi –class 2)
    • Multiband with PTP 820C and PTP 820S

    Hardware Options

    • “ESE” –Elec/SFP(Bidi)/Elec
    • “ESP” –Elec/SFP(Bidi)/SFP+

    Power Options

    • PoE Injector (Dual DC feed, +24 and -48VDC support)
    • External Power (Using an RJ-45 to DC cable adaptor)

    Radio Configurations

    • High power -18dBm output power
    • BPSK-1024QAM ACM (channel BW dependent)
    • Channel BW: 62.5, 125, 250, 500MHz

    Networking

    • “Smart-Pipe” mode (Eth L1 services)
    • “CET node” mode (EthL2 services)
    • MEF 2.0 Carrier Ethernet switch•Header de-duplication
    • LLDP
    • Standard QoS•Frame cut through
    • LAG functionality•Automatic State Propagation
    • ABN –Interoperability with Cisco -ACM messages
    • Ethernet & Radio PMs
    • Ethernet Service OAM -Y.1731 FM
    • SyncE
    • IEEE 1588TC

    Specifications:


      R190V R190W
    VoIP SoC MIPS Single-core 580MHz
    Flash 16MBytes Flash
    RAM and CPU
    • 64MBytes DDR3 RAM
    • MT7628
    • 64MBytes DDR3 RAM
    • MT7628N
    Power Supply
    • AC/DC Adapter
    • AC Input: 100~240V, 50~60Hz
    • DC Output: 12V, 1.0A
    I/O Interfaces
    • 1 RJ-45 for WAN port (Ethernet 100 Base-T)
    • 3 RJ-45 for LAN port (Ethernet 100 Base-T)
    • 2 RJ-11 for FXS port
    • IEEE802.11 b/g/n
    • 1 RJ-45 for WAN port (Ethernet 100 Base-T)
    • 4 RJ-45 for LAN port (Ethernet 100 Base-T)
    Environmental
    • Operation Temperature: -5~45 Degree C
    • Storage Temperature: -25~ 85 Degree C
    • Relative Humidity: 10%~90% No Condensing
    Key Feature
    • 100Mbps NAT/NAPT speed
    • 2T2R 2.4G 802.11 b/g/n(300 Mbps)
    • Support VoIP FXS port with SIP and T.38 FAX
    • 100Mbps NAT/NAPT speed
    • 2T2R 2.4GHz IEEE 802.11 b/g/n(300 Mbps)
    Protocols
    • DHCP/PPPoE
    • HTTP Server for Web Management
    • TFTP/HTTP for Auto Provisioning
    • DHCP Option Codes for SIP (RFC3361)
    • DNS/DNS SRV (RFC1706 and RFC 2782)
    • IEEE802.1Q VLAN/802.1p and IP DSCP
    • SNTP
    Audio Codec
    • G.711 (A-Law, u-Law) with PESQ above 4.3
    • G.729 with PESQ above 3.7
    • Adaptive Jitter Buffer Management
    • Voice Activity Detection
    • Comfort Noise Generation
    • Echo Cancellation
    • T.30 FAX with G.711
    • Real time FAX over IP via T.38
    Wireless
    • 802.11 b/g/n support
    • 4 SSID
    • Static WEP(64/128bit)
    • Dynamic WEP(64/128bit)
    • AES(CCMP/TKIP)
    • MAC certification
    • WEP certification
    • WPA-PAK/WPA-PSK(2.0)
    • WPA/WPA2
    • AP Isolation and MBSSID AP Isolation
    • WMM
    • WDS
    • WPS
    • Station list
    • Wireless MAC Filter
    • 4 SSID
    • Static WEP(64/128bit)
    • Dynamic WEP(64/128bit)
    • AES/TKIP
    • MAC certification
    • WEP certification
    • WPA/WPA2
    • AP Isolation and MBSSID AP Isolation
    • WMM
    • WDS
    • WPS
    • MAC Filter(different from wired MAC Filter)
    Applications
    • NAT mode and Bridge mode
    • Support DDNS
    • MAC address cloning
    • SIP proxy redundancy
    • NAT Traversal by STUN
    • Built-in Wired speed NAT Router
    • DHCP Server and Client
    • IP conflict detection
    • Port Forwarding, DMZ, SuperDMZ
    • 802.1Q VLAN/802.1p, DSCP, Rate Limiting
    • VPN(PPTP,L2TP, IPSec) Passthrough
    • SNTP
    • IGMPv2
    • Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
    Management
    • Firmware Upgrade
    • Web Management Interface
    • IVR-driven Management Interface
    • Local and Remote Syslog (RFC3164)
    • Auto Provisioning
    • SNTP Time Synchronization
    • Multi User Level
    • SNMP v2
    • Telnet
    • TR069
    • System Log: local log and remote log
    • Firmware Upgrade
    • Web Management Interface
    • Local and Remote Syslog (RFC3164)
    • Auto Provisioning
    • SNTP Time Synchronization
    • Multi User Level
    • SNMP v2
    • Telnet
    • TR069
    • System Log: local log and remote log
    Call Features
    • 3-way conference
    • Call hold
    • Call forwarding
    • Call Transfer
    • Call waiting
    • Caller ID and CWCID
    • DTMF Relay: In-band, Out-band and SIP INFO
    • QoS Layer 3
    • Call Log
    • CID/CWCID
    • Dial Plan
    • DTMF Mode: Inband, outband and SIP Info

    Documentation:

    Download the Cambium Networks PTP 820E Datasheet (.PDF)
