8- or 16-Port Combo PON OLT
  • Specs: Fiber TCX08/TCX16 COMBO PON OLT
  • With support for multiple subscribers, this 1RU PON OLT enables service providers to stay ahead of the curve and meet the growing demand for high-speed internet.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
Product Overview

Cambium Networks 8- or 16-Port Combo PON OLT

With support for multiple subscribers, this 1RU PON OLT enables service providers to stay ahead of the curve and meet the growing demand for high-speed internet.

Fiber

Product Highlights

Cambium Fiber is here

Deliver high-quality broadband services to business and residential customers with reliable and performant technology at a low Total Cost of Ownership (TCO). The Combo PON OLT features a compact design, or PON ports with GPON, XGS-PON, and Combo PON support, as well as dual GbE / GbE QSFP28 and dual GbE / GbE SFP+ uplink ports.

The Combo PON OLT delivers fast, reliable multi-gigabit services that are simple and scalable. This highly scalable 1RU OLT enables service providers to meet the growing demand for high-speed internet.

pre-configuration

Multi-gigabit symmetric customer speeds for fast and

Ideal Applications

High-capacity fiber backhaul and enterprise WAN aggregation requiring dense SFP port density. Service provider edge and data-center interconnect deployments with optical transport requirements.

Product Images

7 photos
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Technical Details

Hardware Specifications

Comprehensive technical data for the 8- or 16-Port Combo PON OLT to ensure compatibility with your deployment.

Interfaces

Uplink2x QSFP28 (supporting 100GE or 40GE or 4x25GE) and 2x SFP28/SFP+ (supporting 25GbE or 10GbE)
PON8- or 16-port PON supporting PON: GPON, XGS-PON, or Combo PON maximum split ratios: XGS-PON 1:256, GPON 1:128 (ITU-T G.9807.1, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4)
ManagementConsole ports: USB 2.0, D-SUB 9-pin, 1x RJ-45 out-of-band management (100/1000-BaseT) in-band and out-of-band IPv4 & IPv6 management

Features

NetworkingDHCP relay, option 82 support IGMP V2/V3 multicast support VLAN tagging, support IEEE 802.1Q, SVLAN, CVLAN, Q-in-Q IEEE 802.1p QoS service prioritization support
Single Management Interface8- or 16-port PON downlink interfaces and 4 uplink interfaces
Dimensions4.15 x 4.15 x 1.3 in (105 x 105 x 33mm)

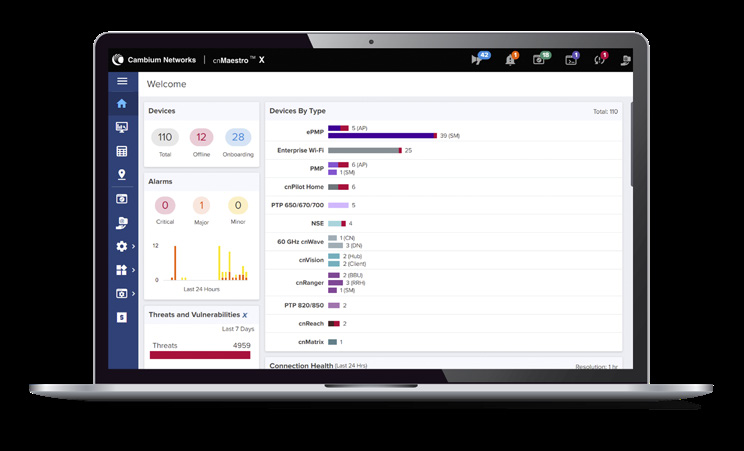

ManagementcnMaestro management with support for Netconf/Yang SNMP v2c & v3, Syslog, CLI, API, and cnMaestro RSTP rogue ONT detection, AES encryption, FEC dynamic bandwidth allocation (DBA): NSR status reporting (SR), traffic monitoring (TM) DBA

Hardware

PerformanceNon-blocking switching capacity: 300Gb/s;
Jumbo frames: 9K; MAC address: 16K;
VLAN number: 4K
Environmental4+1 left-to-right airflow fan modules (SDA FAN)
Operating Temperature: -40°F to 149°F (-40°C to +65°C) Relative Humidity: 5% to 95%
PowerHot swappable redundant power modules (AC is a priority when AC and DC are present)
SDA AC: Universal 250W AC (100~240VAC, 50Hz to 60Hz)
SDA DC: -48VDC 250W (-72~-38.4VDC)

Regulatory

CertificationsFCC, ICES, EN, IEC, CAN/CSA, ETSI, ANSI/UL, AS/NZS (details in product documentation)
Downloads

Documentation & Resources

Download datasheets and technical documentation for the 8- or 16-Port Combo PON OLT.

Data Sheet

Download PDF →
