Cambium Networks 3 GHz PMP 450m Fixed Wireless Access Point

Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage.

Talk to a Pro

3 GHz PMP 450m

Specs: Cambium Networks industry-leading 450

cnMedusa™ technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Product Overview

Cambium Networks 3 GHz PMP 450m Fixed Wireless Access Point

cnMedusa™ technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.

PMP 450

Product Highlights

capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.

equipment by continuing to utilize existing Subscriber Modules (all platform subscribers work with the 450m and cnMedusa technology)

investment until additional capacity is actually required. A 30-day trial of MU-MIMO operation is included, and a simple license key can permanently enable MU-MIMO operation when needed.

Ideal Applications

Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage. Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.

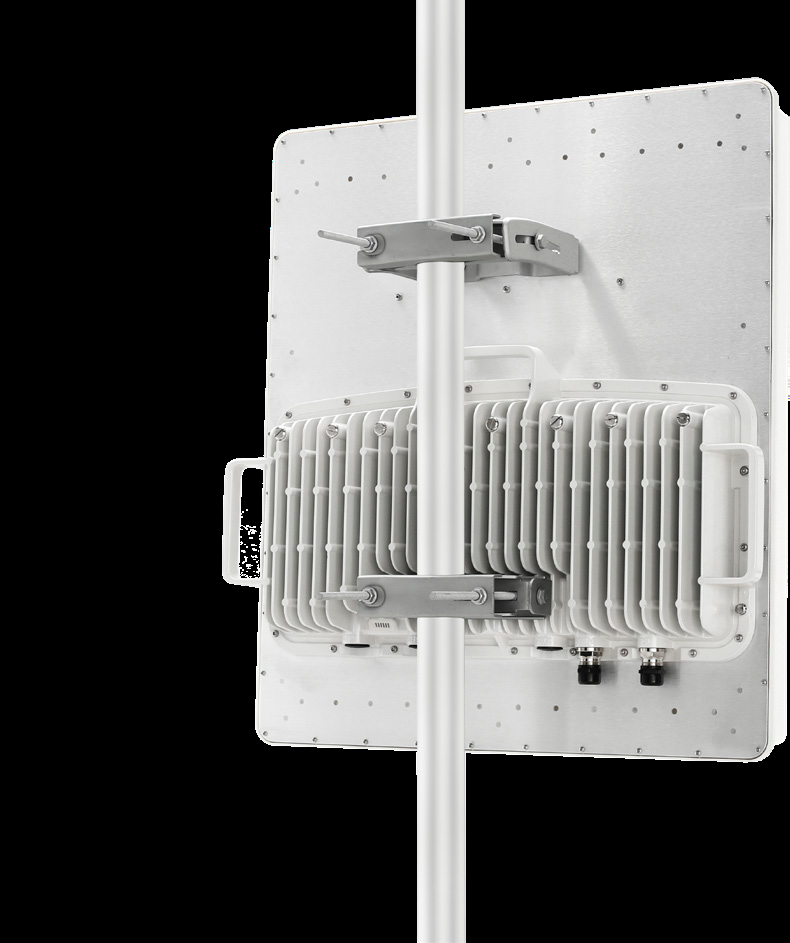

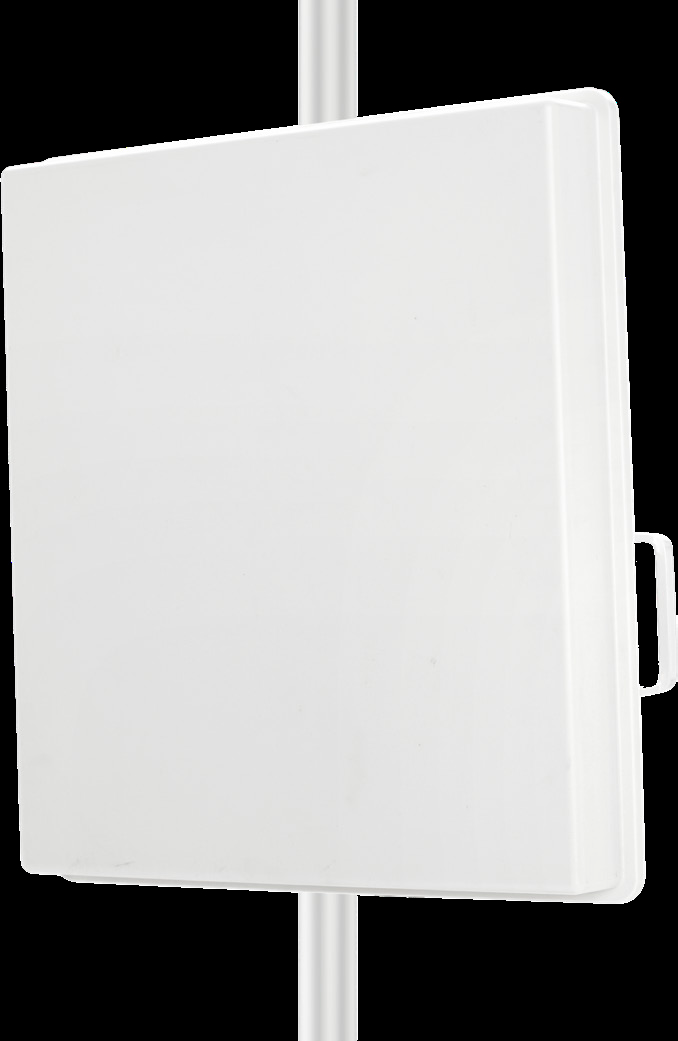

Product Images

2 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the 3 GHz PMP 450m to ensure compatibility with your deployment.

Specifications

Product Model NumbersGlobal No Encryption

Integrated 90º SectorC030045A101B C030045A104B

Limited VersionC030045A111B C030045A114B

Spectrum

Frequency Range3300–4200 MHz

Channel Width5, 10, 15, 20, 30 and 40 MHz

Interface

MAC (Media Access Control)Cambium Networks proprietary

Physical Layer8 x 8 Multi-User MIMO OFDM

Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP support for 1 Gbps optical

Protocols UsedIPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM

Network Management

VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Security

Encryption256-bit AES (Requires Optional License for attached Access Point) 3 GHz PMP 450m Access Point

Subscribers Per SectorUp to 238

ARQYes

Modulation Levels (Adaptive)MCS Signal to Noise Required (SNR, in dB)

2xQPSK 10

4x16 QAM 17

6x64 QAM 24

8x256 QAM 32

Ultimate Sensitivity-94 dBm

Maximum Deployment RangeUp to 64 km (40 miles)

Latency10 ms, typical

GPS SynchronizationYes, via Autosync (CMM5 or UGPS)

Quality of ServiceDiffserve QoS

Antenna

Beam width - Azimuth90° integrated sector (dual polarity, H+V, 3dB rolloff), 120° (6dB rolloff)

Beam width - Elevation2° Electrical Downtilt, 8° Elevation Beamwidth and Null Fill down to -30° +52 dBm (or up to maximum allowed by regulation) - achieved by combining 16 dBi Antenna Gain and +36 dBm Max Tx Power

Physical

Antenna ConnectionIntegrated Sector Array EN61000-4-5: 10/700us, 4 kV voltage waveform, Recommended external

Surge Suppression (with LPU)MAIN and AUX ports: surge suppressor: Model # C000065L007B EN61000-4-5: 10/700us, 4 kV voltage waveform, Recommended external DC IN port: surge suppressor: Model # C000000L114A

Mean Time Between Failure> 40 years

EnvironmentalIP67, IP66

Temperature / Humidity-40°C to 60°C (-40°F to 140°F), 100% non-condensing

WeightWithout Mounting Brackets: 20.4 kg (45 lbs) With Mounting Brackets: 22.6 kg (49.8 lbs)

Wind Survival200 kph (124 mph)

Wind Loading - Front Facing@144 kph / 90 mph: 613 N @177 kph / 110 mph: 927 N @200 kph / 124 mph: 1183 N

Dimensions (Diameter x Depth)69 x 61 x 17.5 cm (27.2 x 24 x 7 in)

Power Consumption140W typical, 150W peak (up to 180W max with AUX port PoE enabled)

Input Voltage40–60VDC

MountingPole mount with included brackets (1.25 in to 4 in pole diameter) 3 GHz PMP 450m Access Point

Certifications

ISED Canada 109A0-30450M(3 GHz)

FCC ID QWP-30450M(3 GHz)

CE EN 302326-2 v1.2.2 (3 GHz)

3 GHz 450m AntennaPatterns (Sector Mode)

Col 3 +45 - Azimuthat Elevation = -2.0 Col 3 +45 - Elevation 90° 90°

105°75° 105° 75°

120°60° 120° 60°

135°45° 135° 45°

150°30° 150° 30°

c o p o l 3 . 311 c o p o l 3 . 3 11

x p o l 3 . 36

1 6 5°1 15 ° x p o l 3 . 3 1 6 5° 1 15 °

c o p o l 3 . 44 c o p o l 3 . 4

x p o l 3 . 49 x p o l 3 . 4 9

c o p o l 3 . 514 19 c o p o l 3 . 5

x p o l 3 . 519 24 x p o l 3 . 5

c o p o l 3 . 629

18 0 °0 ° c o p o l 3 . 6 29

x p o l 3 . 618 0 ° 0 ° xpol 3.6 copol 3.7 xpol 3.7 c o p o l 3 .8

-165°-15° x p o l 3 .8

co p o l 3 .9-165° -15° copol 3.9 xpol 3.9

-150°-30° -150° -30°

-135°-45° -135° -45°

-120°-60° -120° -60°

-105°-75° -90° -105° -75° -90°

3 GHzAzimuth 3 GHz Elevation

ABOUT CAMBIUM NETWORKS

Cambium Networks empowersmillions of people with wireless connectivity worldwide. Its wireless portfolio is used by commercial and

government network operatorsas well as broadband service providers to connect people, places and things. With a single network architecture

spanning fixed wireless andWi-Fi, Cambium Networks enables operators to achieve maximum performance with minimal spectrum. End-to-end

cloud management transformsnetworks into dynamic environments that evolve to meet changing needs with minimal physical human

intervention. Cambium Networksempowers a growing ecosystem of partners who design and deliver gigabit wireless solutions that just work.

Downloads

Documentation & Resources

Download datasheets and technical documentation for the 3 GHz PMP 450m.

Data Sheet

Download PDF →
